High-performance ignition control for street and drag racing applications.

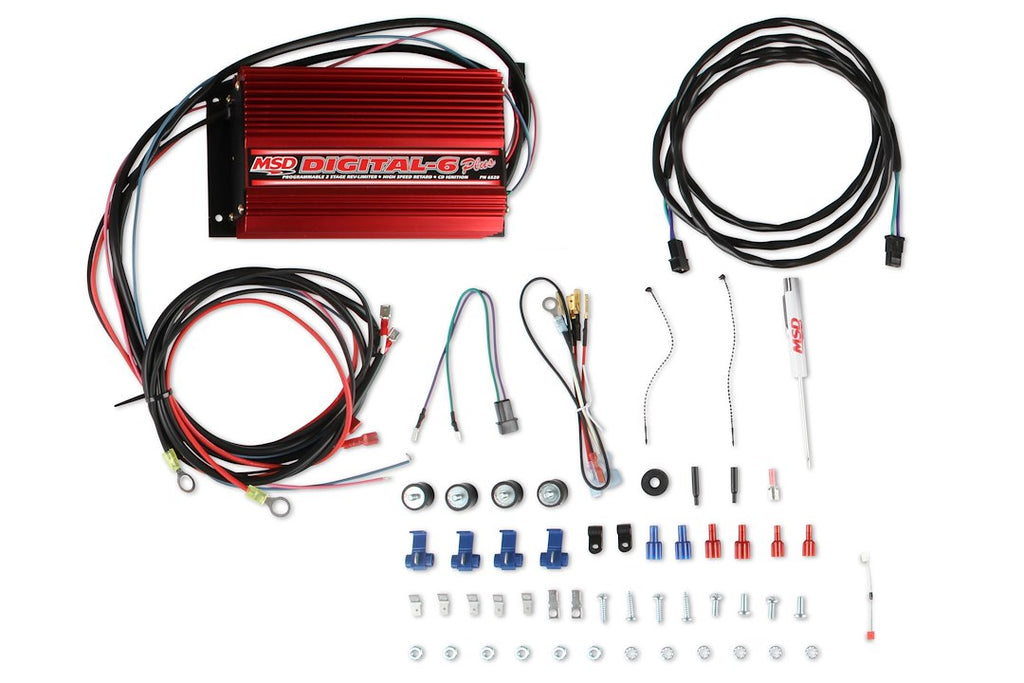

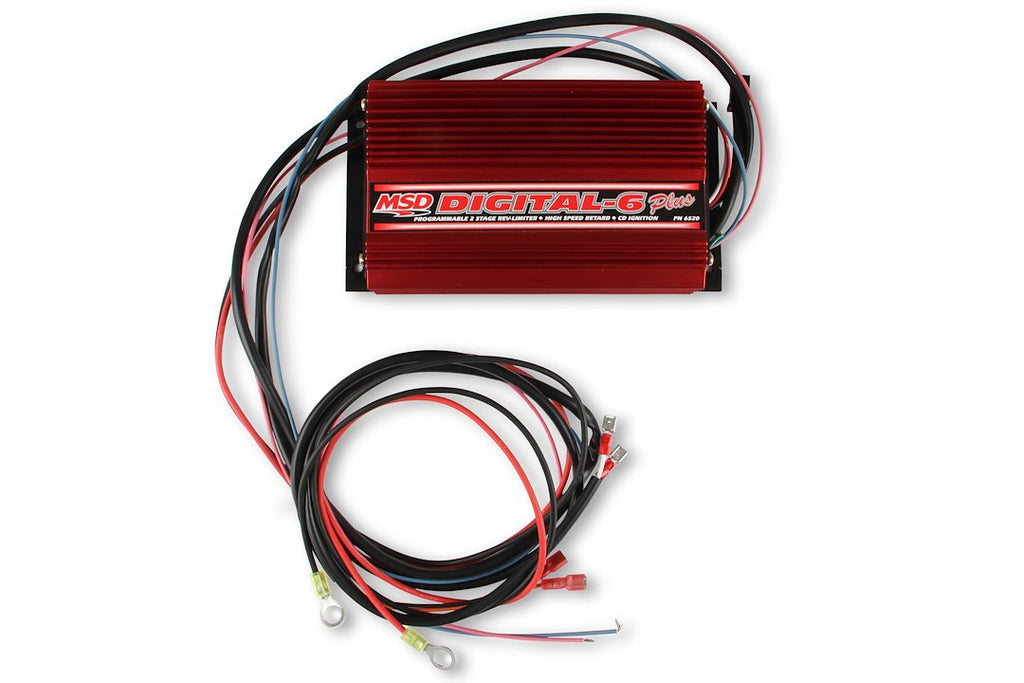

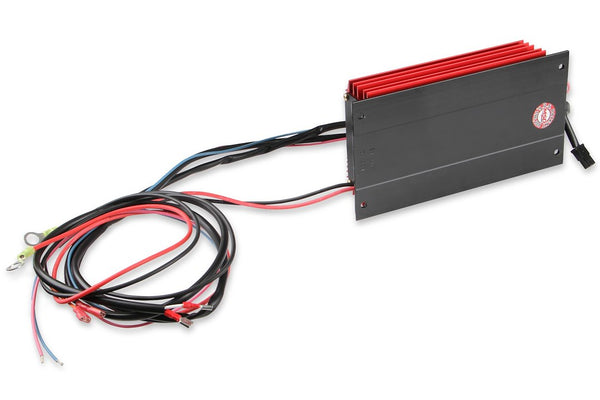

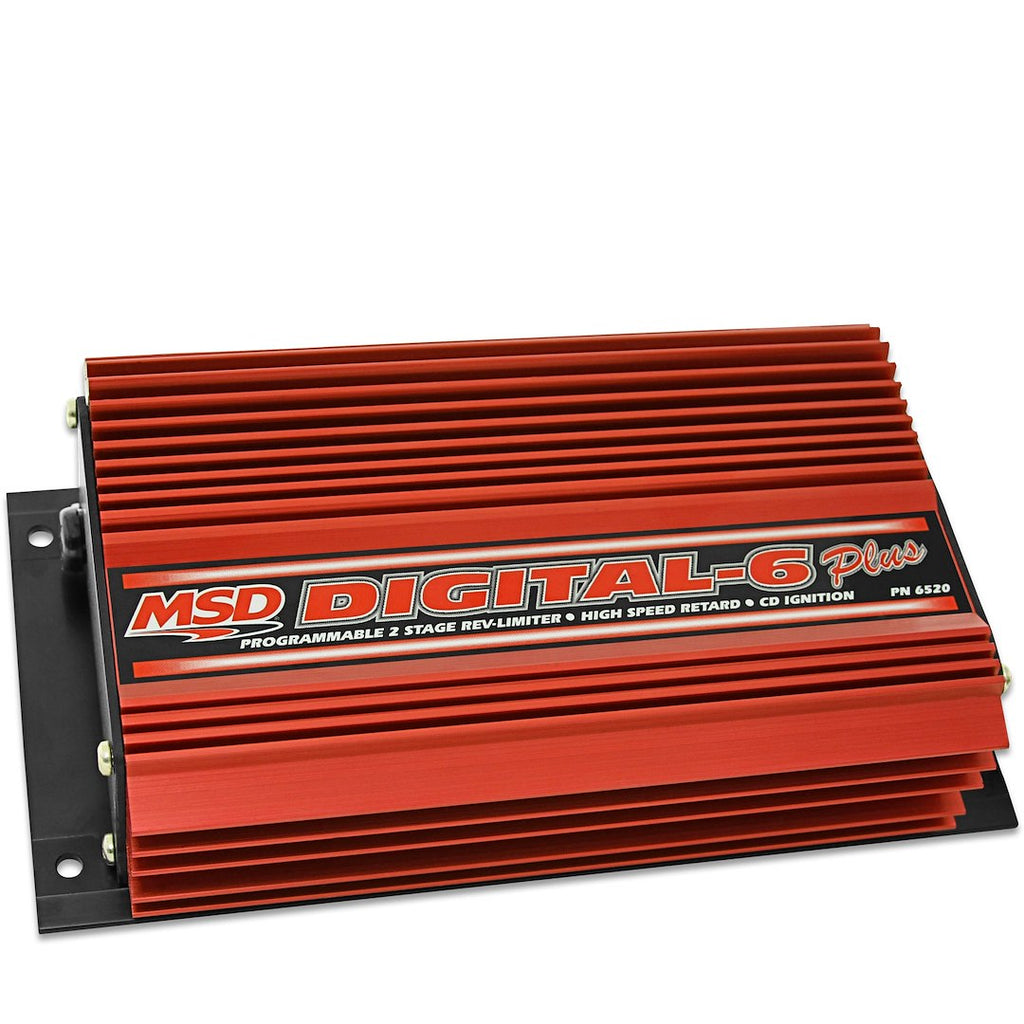

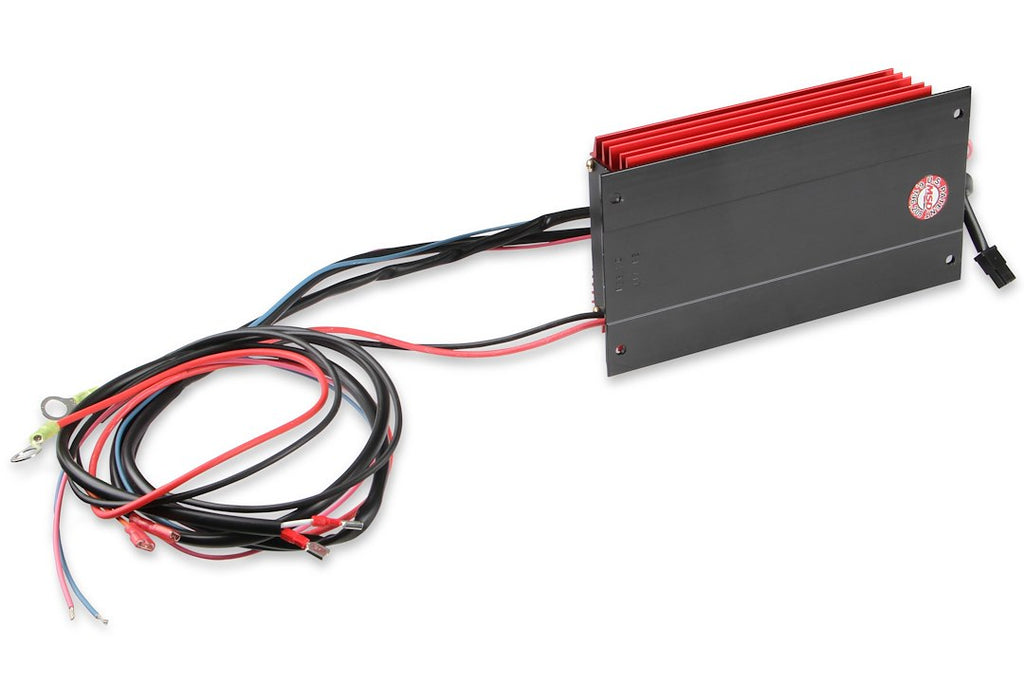

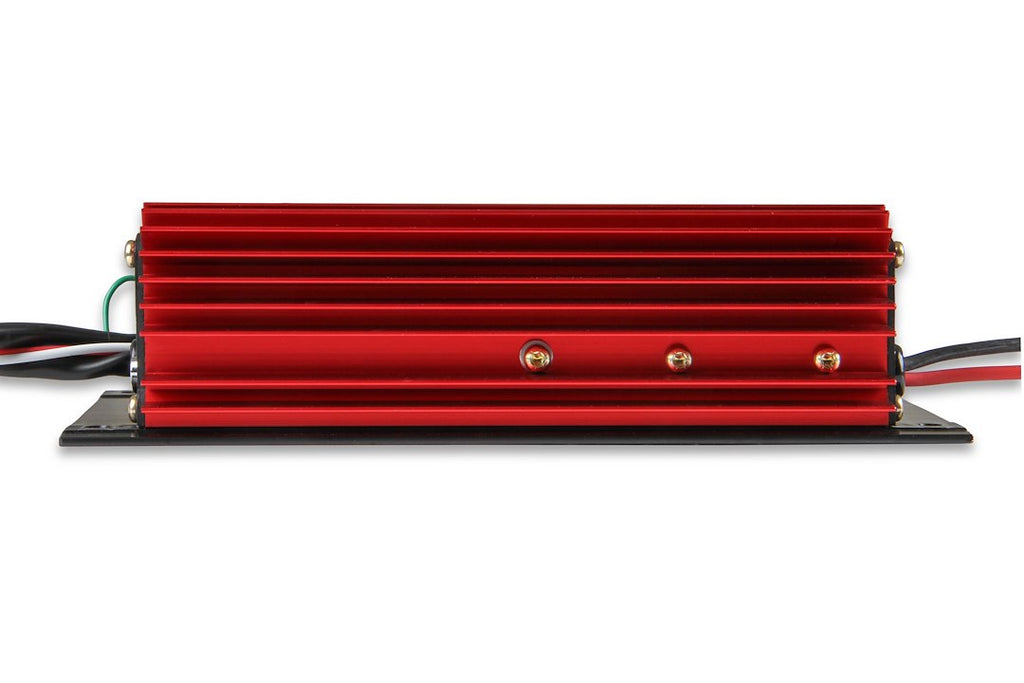

The MSD Ignition Control Module is designed for high-performance street and drag racing applications, delivering exceptional spark energy and precision. With a digital circuitry that provides 135 millijoules of spark energy and 535 primary volts, this ignition module ensures optimal combustion and power output. It features a two-step rev limiter that allows for easy adjustments in 100 RPM increments, enhancing performance during racing conditions.
This ignition control module also includes a single stage retard feature for nitrous applications, which improves top-end performance. The start retard function reduces strain on the starter and engine, facilitating smoother starts. Additionally, the adjustable magnetic pickup compensation ensures accurate trigger signals, while the LED display alerts users to any trigger signal issues or charging system faults.

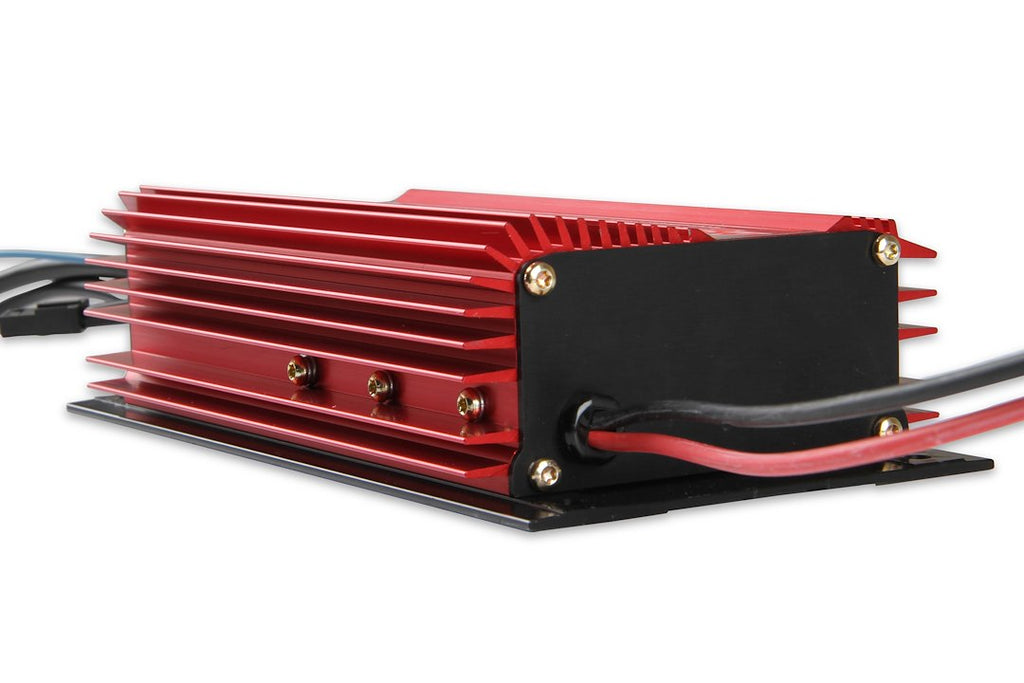

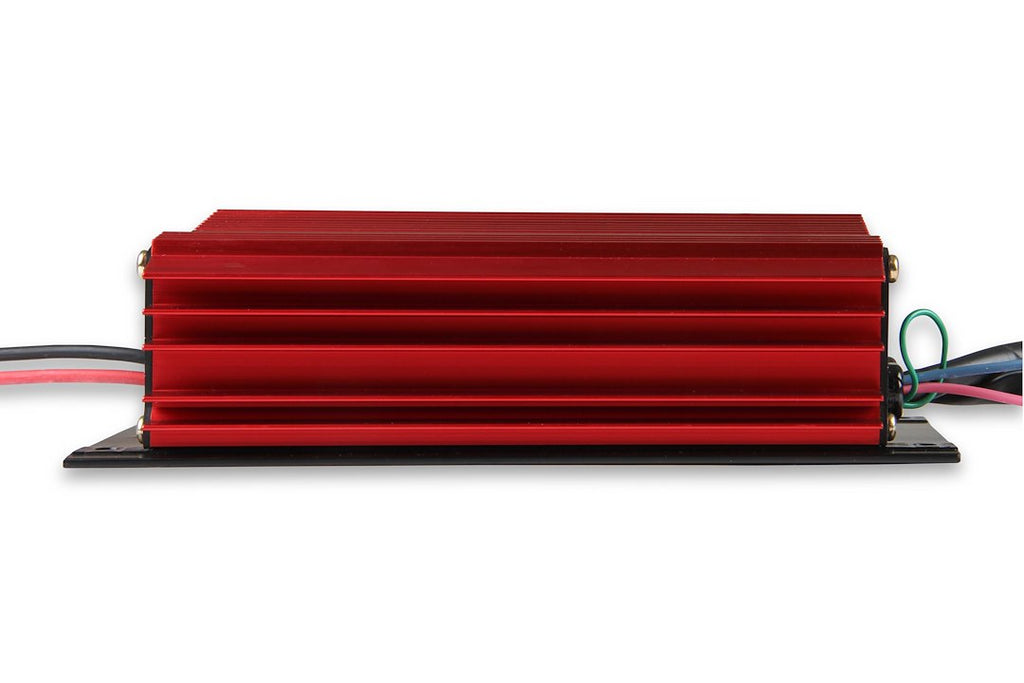

Constructed with durability in mind, the MSD Ignition Control Module is fully potted with polyurethane, providing protection against vibration and water damage. This makes it a reliable choice for racers looking to enhance their vehicle's ignition system and overall performance.
Features
- Switch Between Two Rev Limits That Adjust With Rotary Switches In 100 RPM Increments
- Single Stage Retard For Nitrous And Top End Performance
- Start Retard Eases Pressure On The Starter, Flywheel And Engine
- Adjustable Magnetic Pickup Compensation Produces Accurate Trigger Signals
- LED Display Warns Of Trigger Signal Problems Or Faulty Charging System
- Fully Potted With Polyurethane For Vibration And Water Protection
Specifications
- Manufacturer: MSD Ignition
- Manufacturer Part Number: 6520
- Color: Red
- Spark Output (Millijoules): 135 Millijoules
- Output: Multiple Spark Discharge
- Current Draw: 0.7 Amp Per 1000 RPM
- CD Voltage Output To Coil (V): 535 Volt
- Timing Retard: Single Stage
- REV Limiter: Yes
- Recommended Use: Street/ Drag Racing
- Circuitry: Digital
- Maximum Operating Voltage: 18 Volt
- Minimum Operating Voltage: 7 Volt
- Data Acquisition: No
- Includes Coil: No
