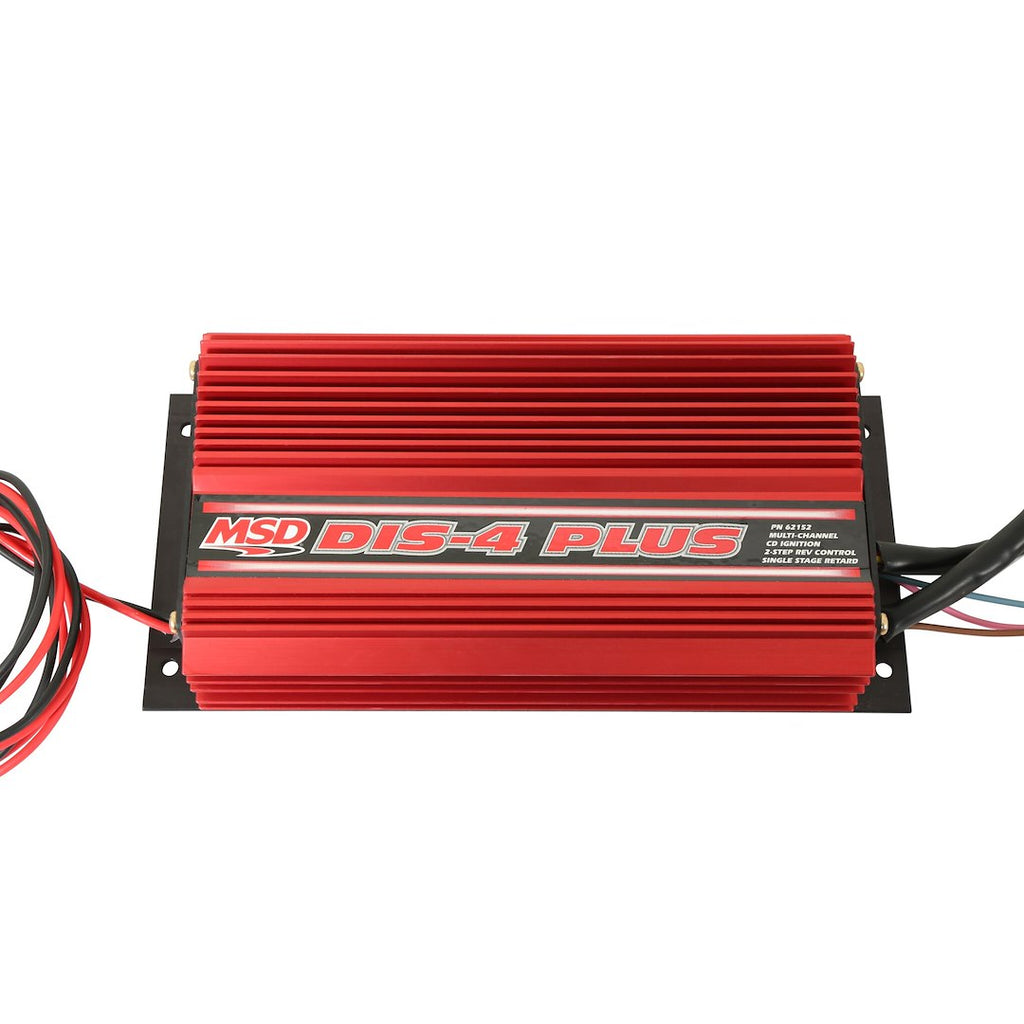

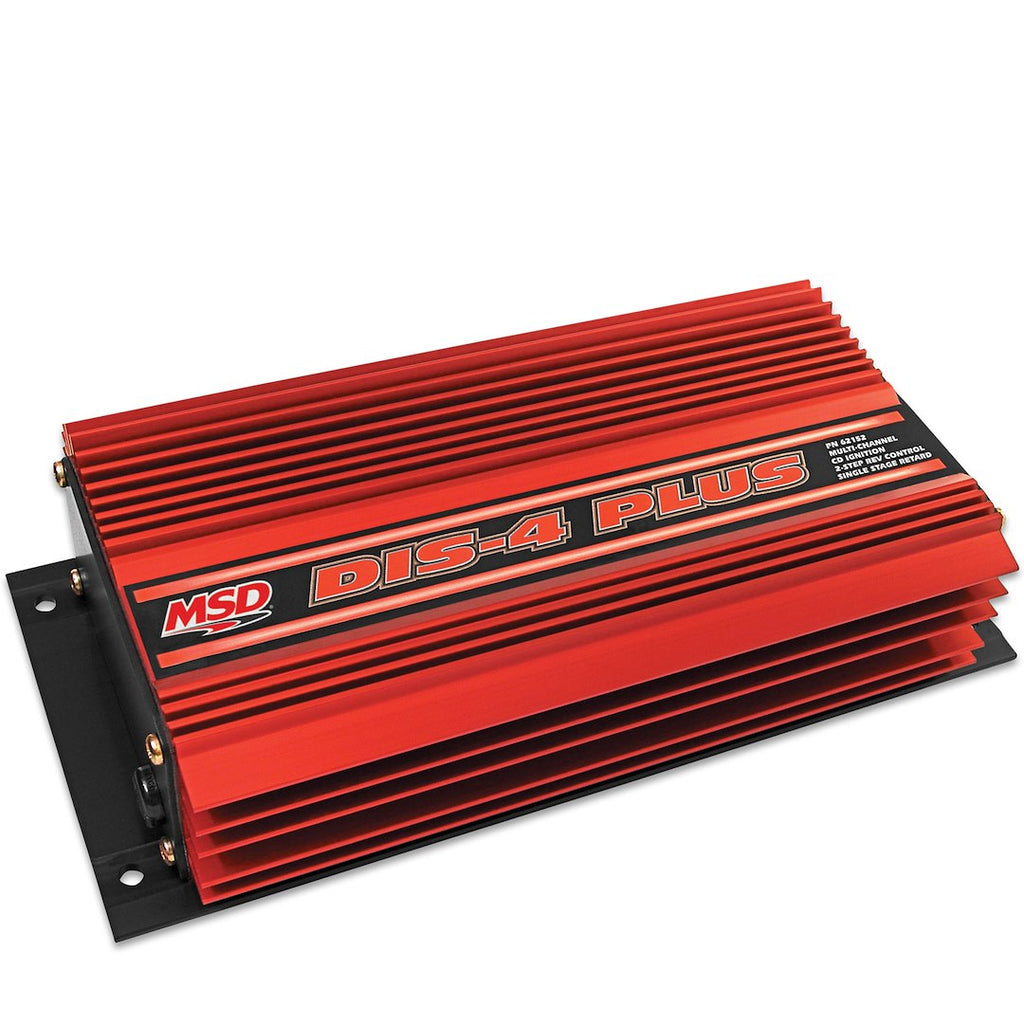

MSD Ignition Control Module (MPN: 62152)

Advanced ignition control for enhanced engine performance and efficiency.

The MSD Ignition Control Module is engineered for modern engines utilizing coil pack and waste spark ignition systems. This module supports both 6 and 8 cylinder engines, providing precise control over ignition timing and spark delivery. With capabilities to fire multiple coil packs, the DIS-2 and DIS-4 models ensure optimal performance from idle to high RPMs, delivering full power capacitive discharge sparks.

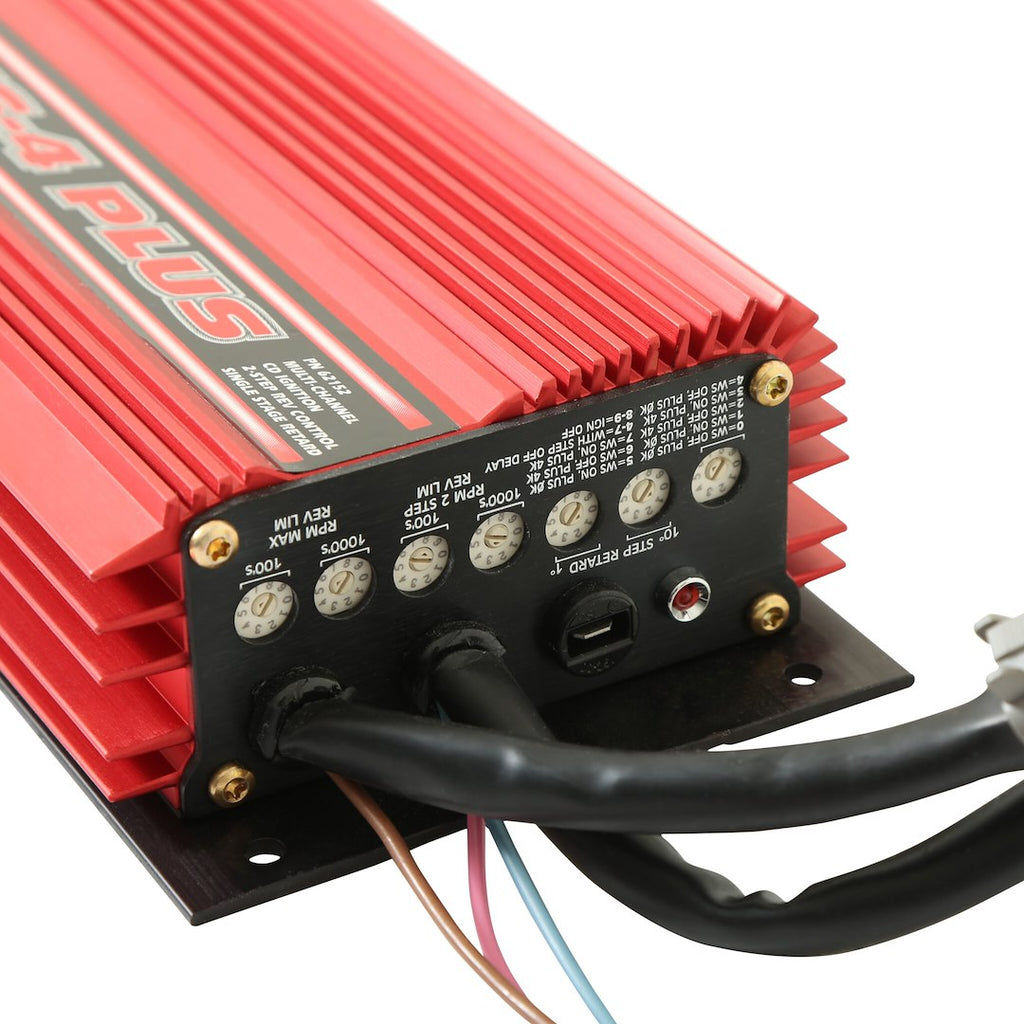

Designed for street use, the module features two adjustable rev limits and a step retard function that can be integrated with nitrous systems. The digital circuitry allows for efficient operation, with a maximum voltage output of 480 volts to the coil. Additionally, the module includes an LED monitor for real-time performance feedback, enhancing user experience and control.

The MSD Ignition Control Module is built to improve idle quality, starting, and throttle response through multiple spark discharges at lower RPMs. With rotary dials for easy adjustments, users can fine-tune their ignition settings for optimal performance. This module is a reliable choice for those looking to enhance their engine's ignition system.

Features

• Two Adjustable Rev Limits
• Step Retard
• LED Monitor

Specifications

• Manufacturer: MSD Ignition
• Manufacturer Part Number: 62152
• Color: Red
• Spark Output (Millijoules): 105 To 115 Millijoules
• Output: Capacitive Discharge
• Current Draw: 6.6 Ampere At 10000 RPM
• CD Voltage Output To Coil (V): 460 To 480 Volt
• Timing Retard: Single Stage
• REV Limiter: Yes
• Recommended Use: Street
• Circuitry: Digital
• Maximum Operating Voltage: 18 Volt
• Minimum Operating Voltage: 12 Volt
• Data Acquisition: No
• Includes Coil: No
