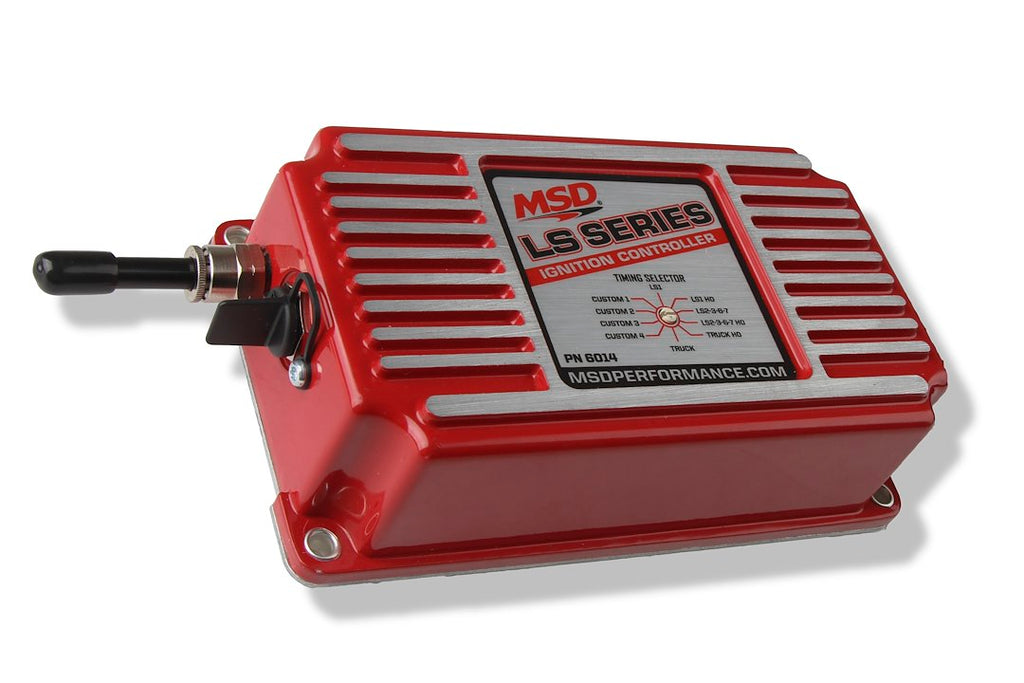

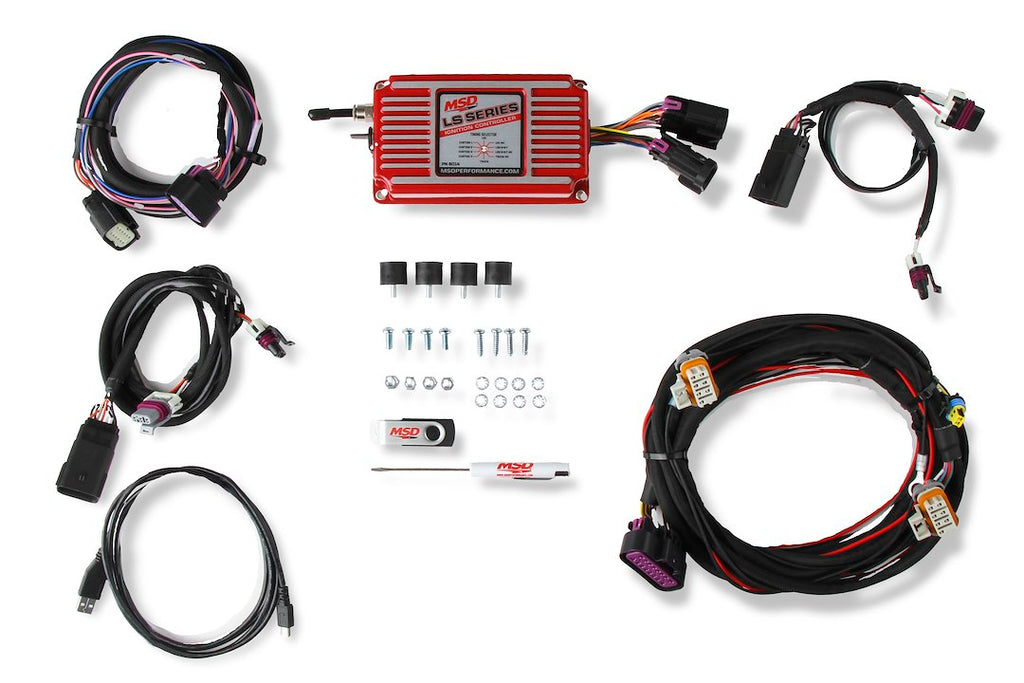

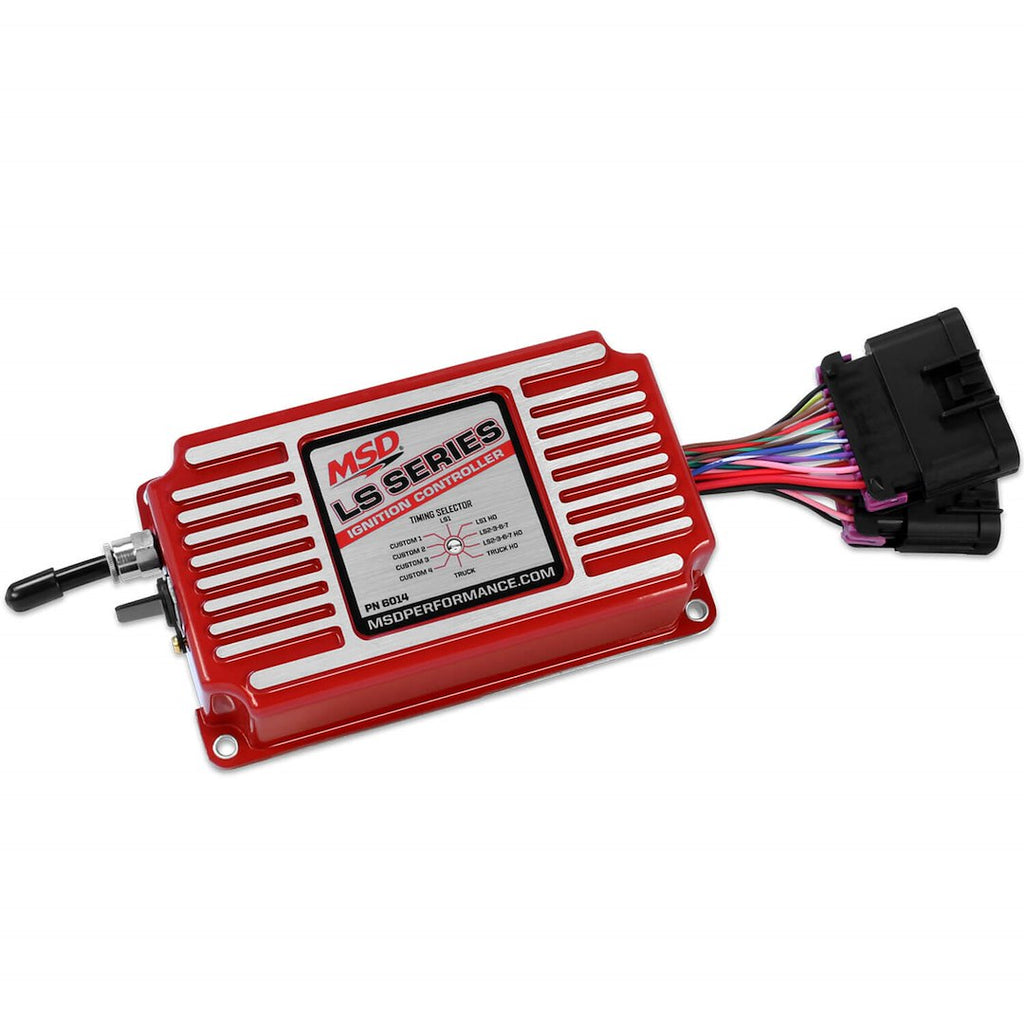

MSD Ignition Control Module (MPN: 6014)

Advanced ignition system for GM LS-Series engines with customizable features.

The MSD Ignition Control Module is designed specifically for GM LS-Series engines, catering to both street and drag racing applications. This digital ignition system offers a single spark discharge and features an adjustable rev limiter, allowing users to fine-tune their engine's performance. With individual cylinder timing and boost retard capabilities, this module provides enhanced control over ignition timing, ensuring optimal performance under various conditions.

Equipped with six pre-programmed timing tables, the MSD Ignition Control Module simplifies setup and adjustments. The rotary selector switch enables timing changes on the fly, making it easy to adapt to different racing scenarios. Additionally, the system is compatible with nitrous and boost applications, further expanding its versatility.

High-speed data acquisition is included, allowing users to monitor engine performance in real-time. The fully sealed direct plugin connectors ensure reliable connections, while the programmable step retard and idle timing control features enhance the module's functionality. This ignition control module is a robust solution for those looking to maximize the potential of their GM LS engine.

Features

• Six Pre-Programmed Timing Tables For Easy Set-Up
• Rotary Selector Switch Allows Timing Changes On The Fly
• Nitrous And Boost Compatible
• No PC Required For Basic Functionality
• High Speed Data Acquisition
• Fully Sealed Direct Plugin Connectors
• Programmable Step Retard
• Idle Timing Control

Specifications

• Manufacturer: MSD Ignition
• Manufacturer Part Number: 6014
• Color: Red
• Output: Single Spark Discharge
• Timing Retard: Yes
• REV Limiter: Yes
• Recommended Use: Street/ Drag Racing
• Circuitry: Digital
• Data Acquisition: Yes
• Includes Coil: No

Technical Documents

• frm33798_6014_60143_0720.pdf
• msd_brand_warranties.pdf
