High voltage ignition coil for racing applications with advanced features.

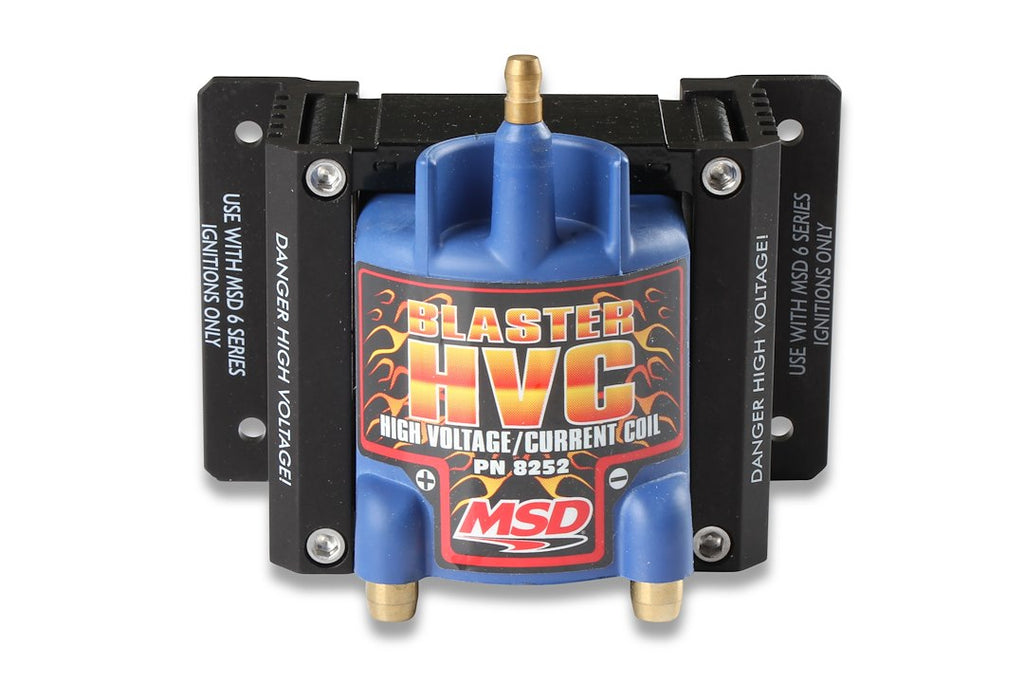

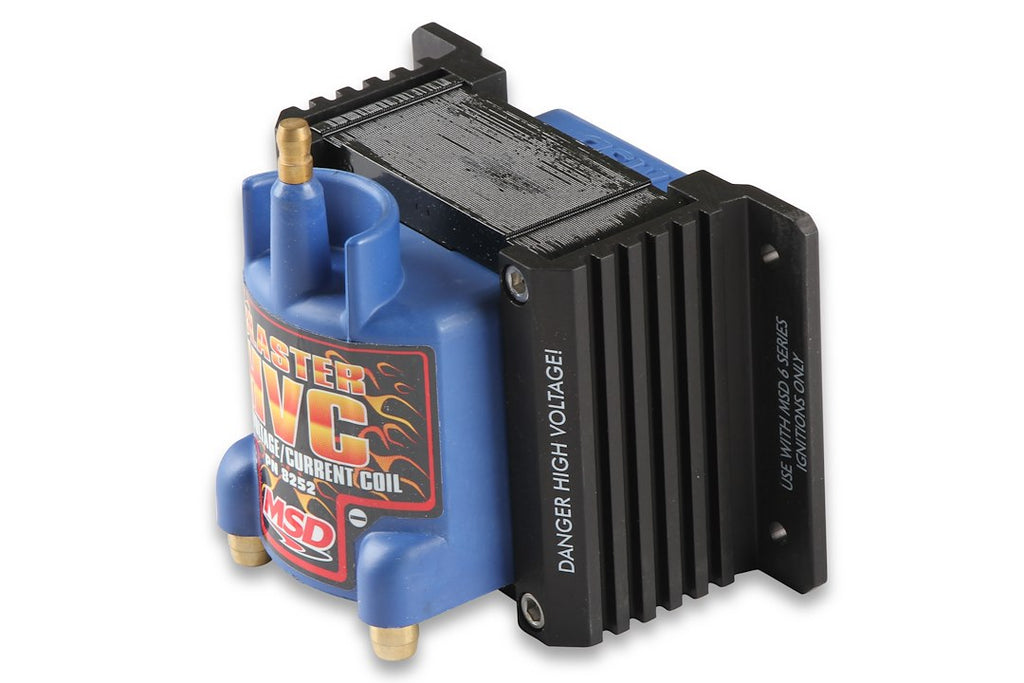

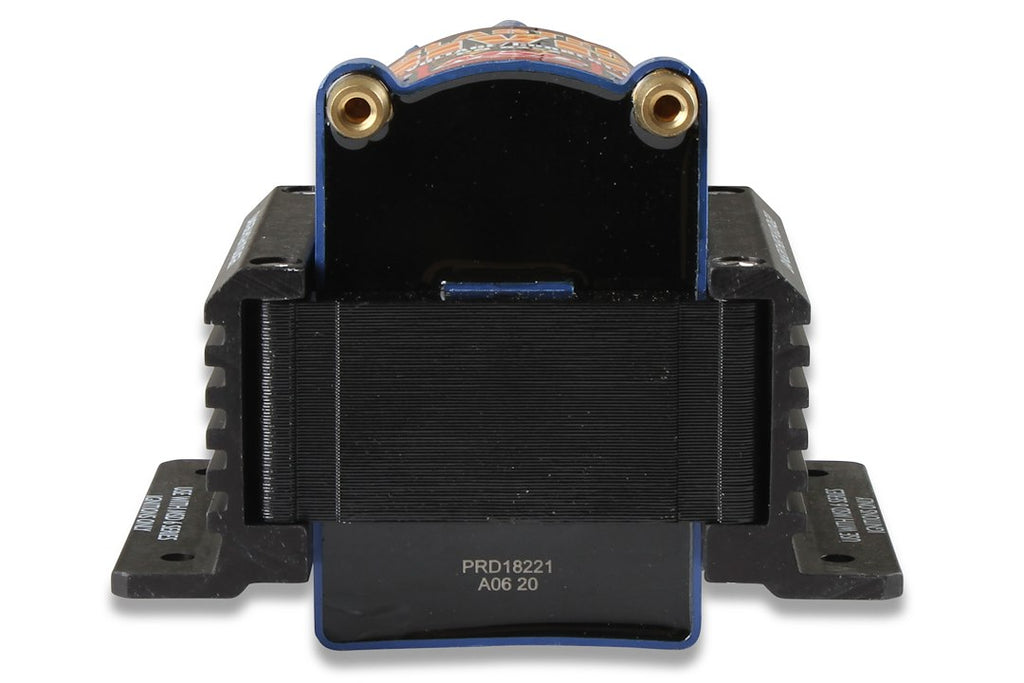

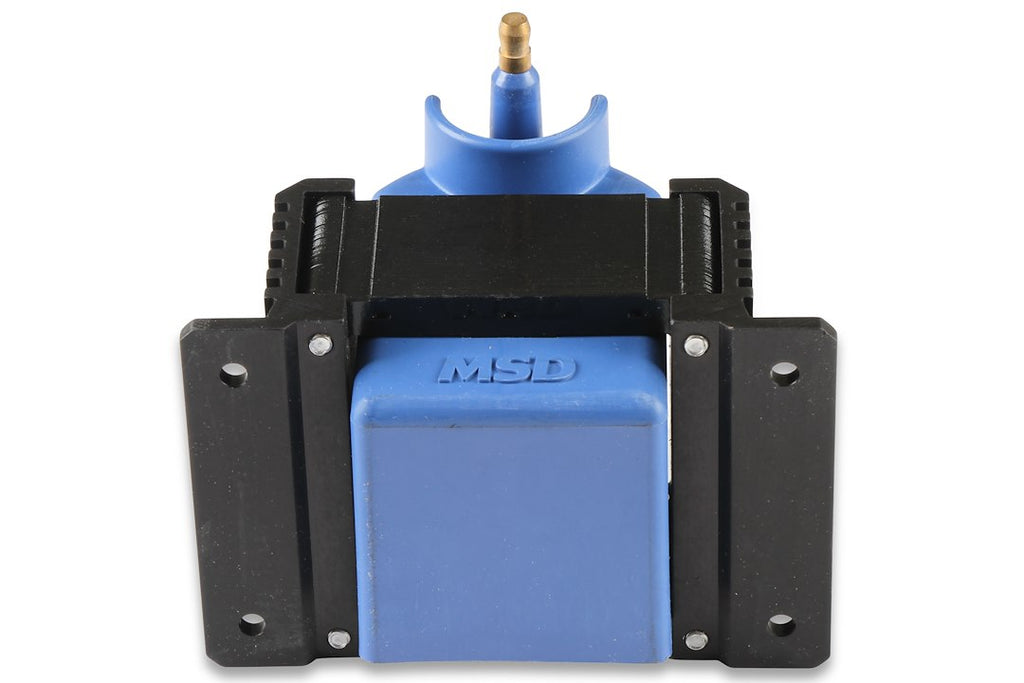

The MSD Ignition Blaster HVC Coil is engineered for high RPM and long duration applications, making it suitable for road course and circle track racing. This single tower ignition coil delivers a maximum output of 42000 volts, ensuring optimal performance in demanding conditions. With a primary resistance of only 0.02 ohms and a secondary resistance of 1.38 kilo ohms, it achieves a 100:1 turns ratio that enhances voltage output significantly.
Constructed with epoxy-filled windings, the coil is designed to withstand the rigors of racing environments. The blue epoxy encasement and extruded brackets provide durability and stability, while the spark plug style terminal and threaded brass primary studs facilitate easy installation. Additionally, the coil is supplied with rubber shock mounts to minimize vibration impact.
The MSD Blaster HVC is compatible with electronic ignitions and MSD ignition controls, although a ballast resistor is required for points systems. This coil is CARB EO approved, ensuring compliance with emissions regulations. Its robust design and high-performance specifications make it a reliable choice for serious racers looking to enhance their ignition system.
Features
- Designed For High RPM, Long Duration Applications
- Works With Electronic Ignitions And MSD Ignition Controls (Ballast Resistor Required For Points Systems)
- 100:1 Turns Ratio And Lower Primary Resistance Produce High Voltage Output
- Windings Are Encased In Blue Epoxy And Secured With Extruded Brackets
- Spark Plug Style Terminal And Threaded Brass Primary Studs

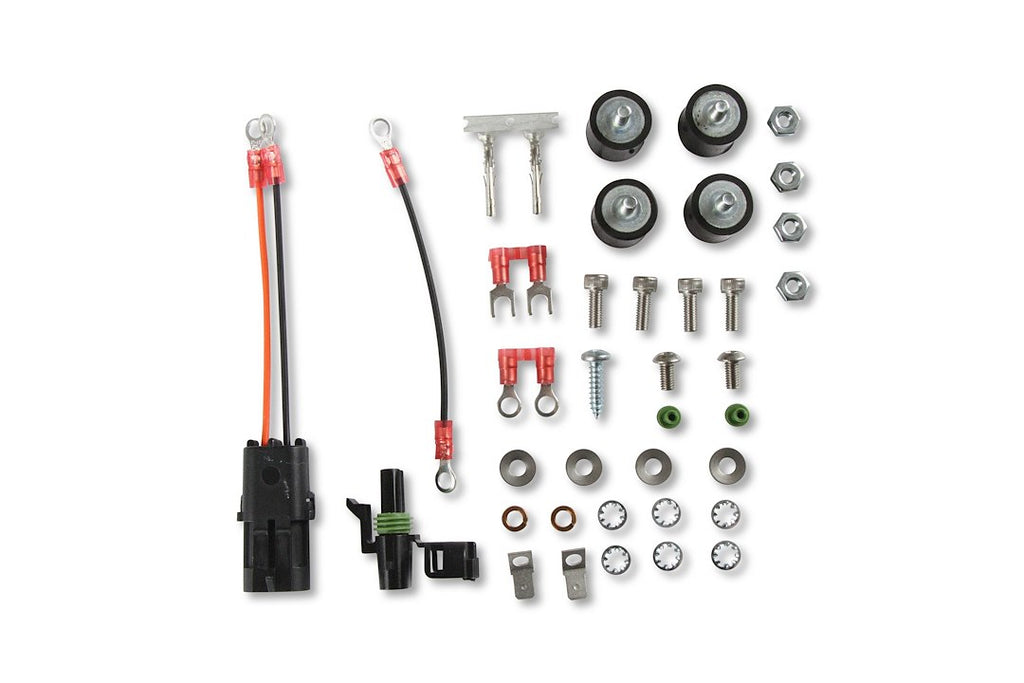

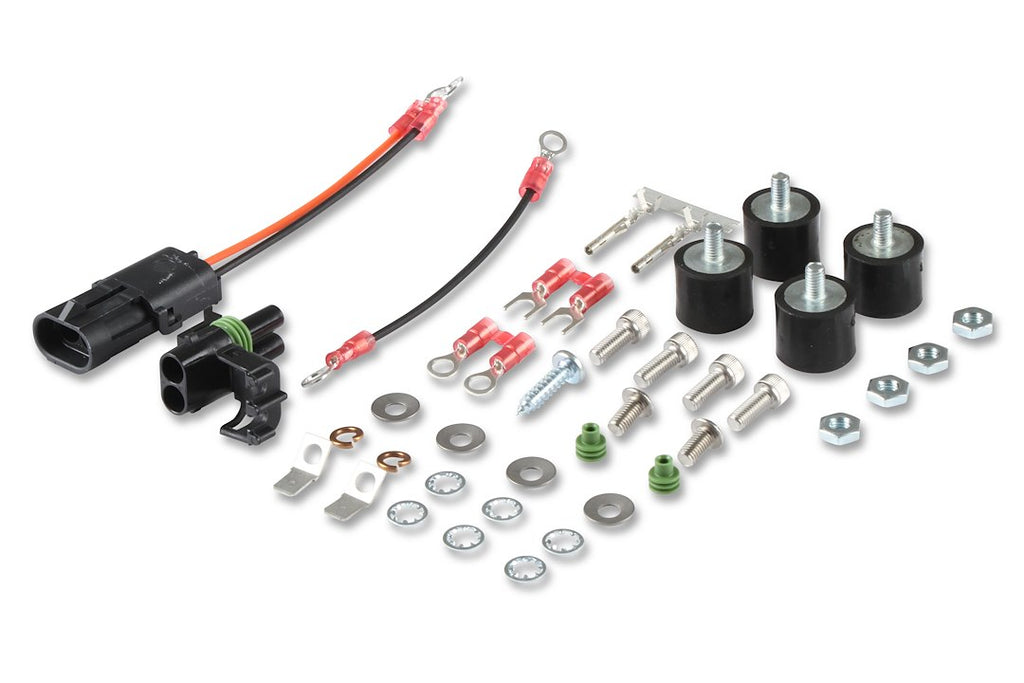

- Supplied With Rubber Shock Mounts
- CARB EO Approved
Specifications
- Manufacturer: MSD Ignition
- Manufacturer Part Number: 8252
- Recommended Use: Street/ Strip
- Coil Style: 1 Tower
- Internal Construction: Epoxy Filled
- Maximum Voltage: 42000 Volt
- Coil Wire Attachment Type: Male/ HEI
- Color: Black
- Primary Resistance: 0.02 Ohm
- Secondary Resistance: 1.38 Kilo Ohm
- Diameter (IN): Not Applicable
- Height (IN): 5 Inch
- Includes Mounting Bracket: No
- Includes Coil Wire: No
- Includes Ballast Resistor: No
