Mr Gasket Auto Trans Dipstick (MPN: 9704G)

Durable chrome dipstick designed for GM 700R4 transmissions.

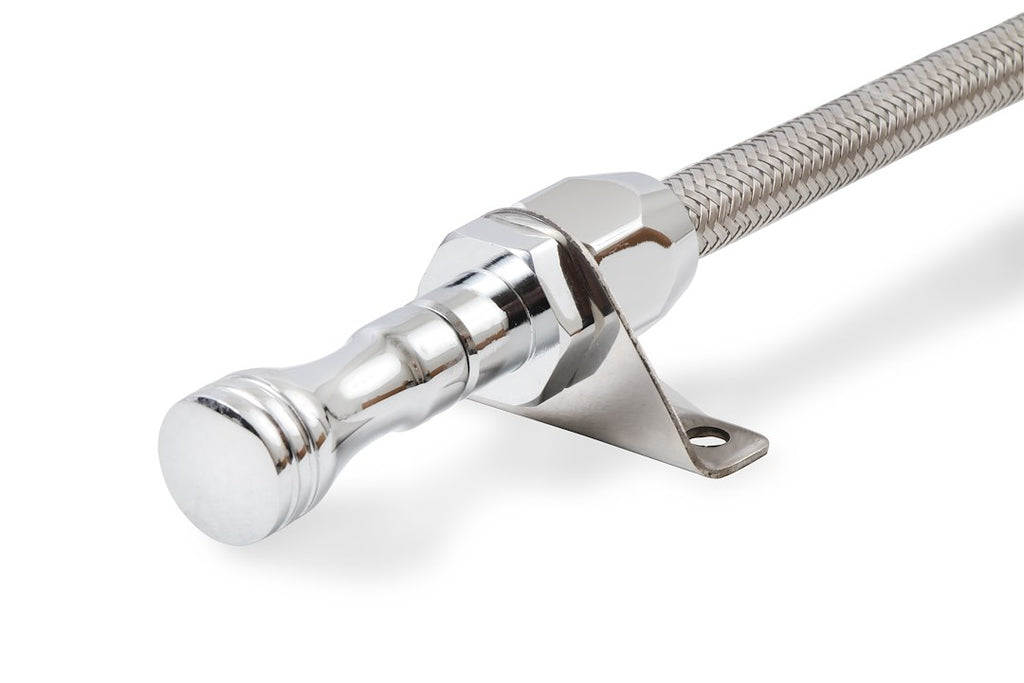

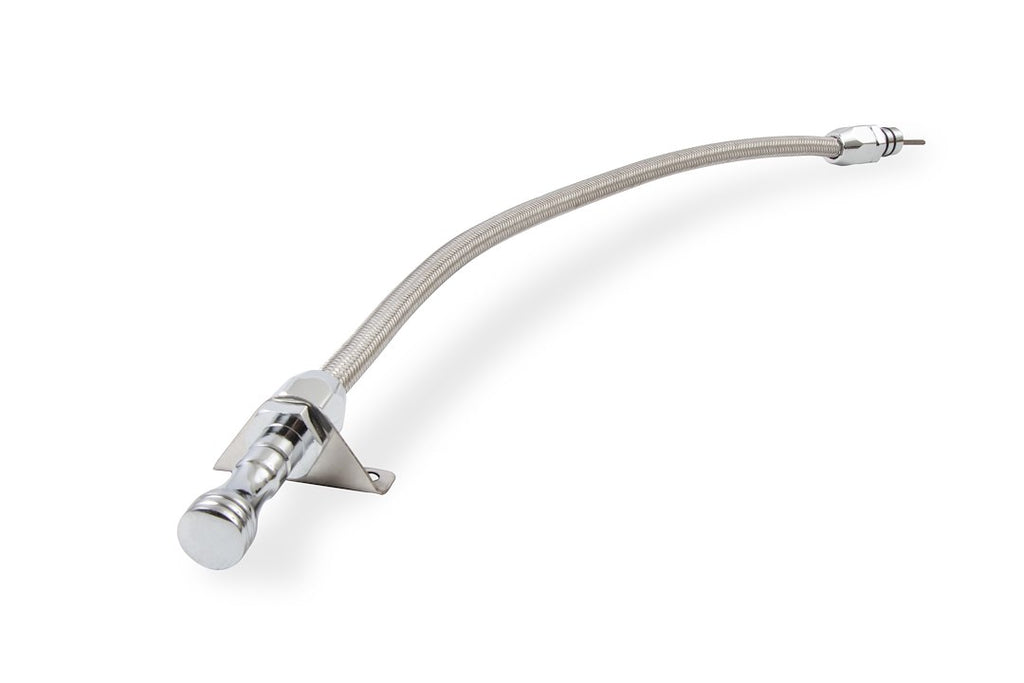

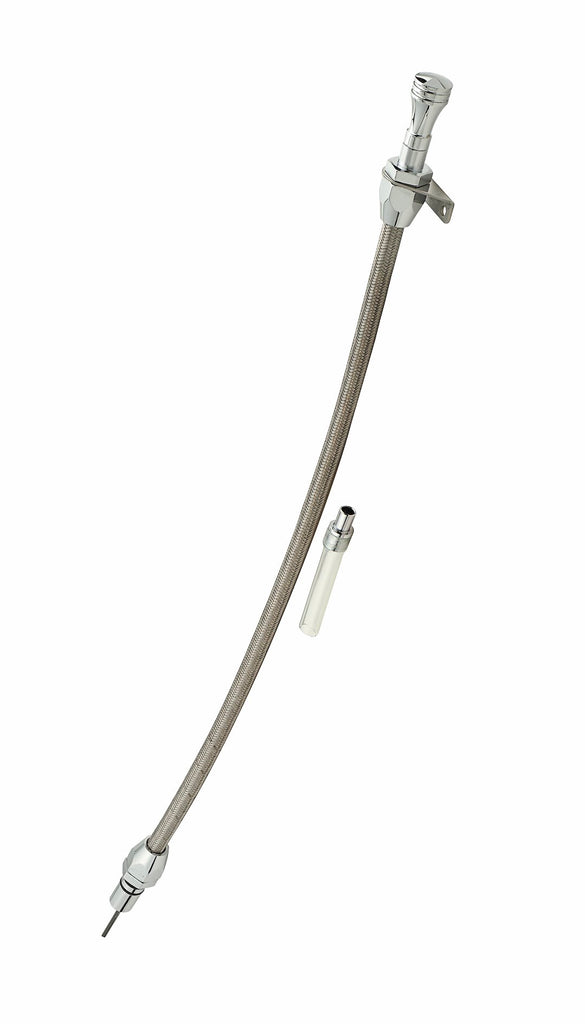

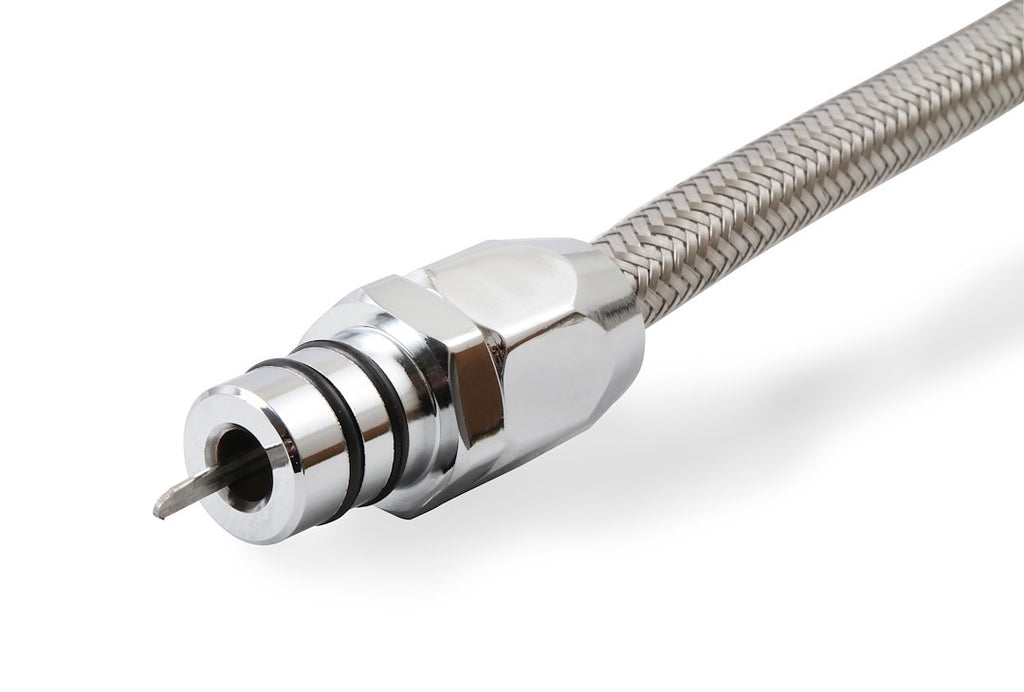

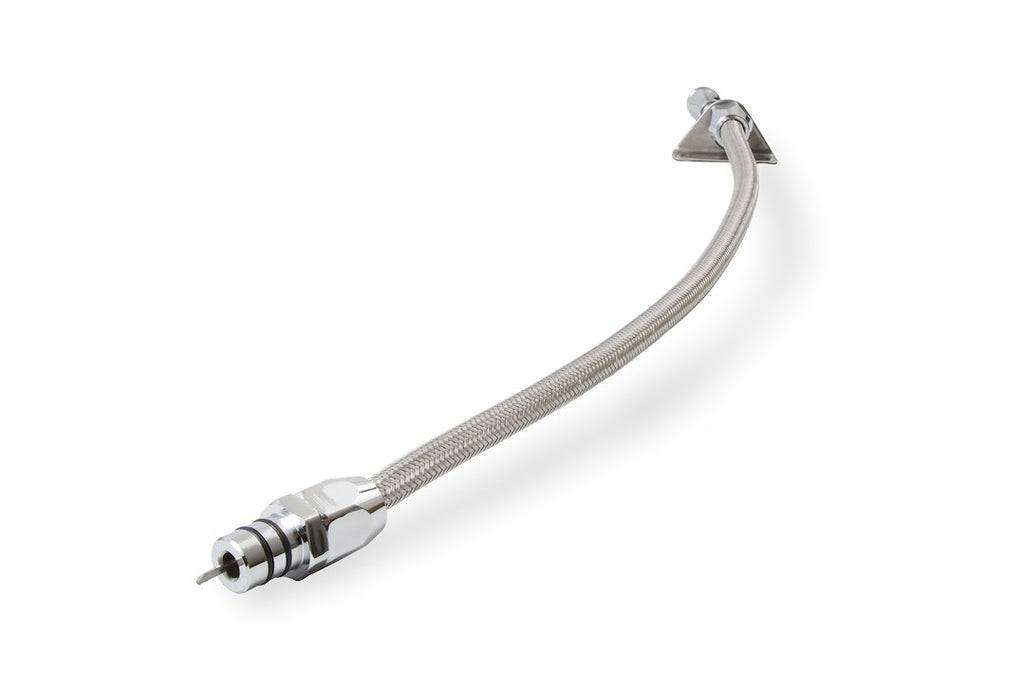

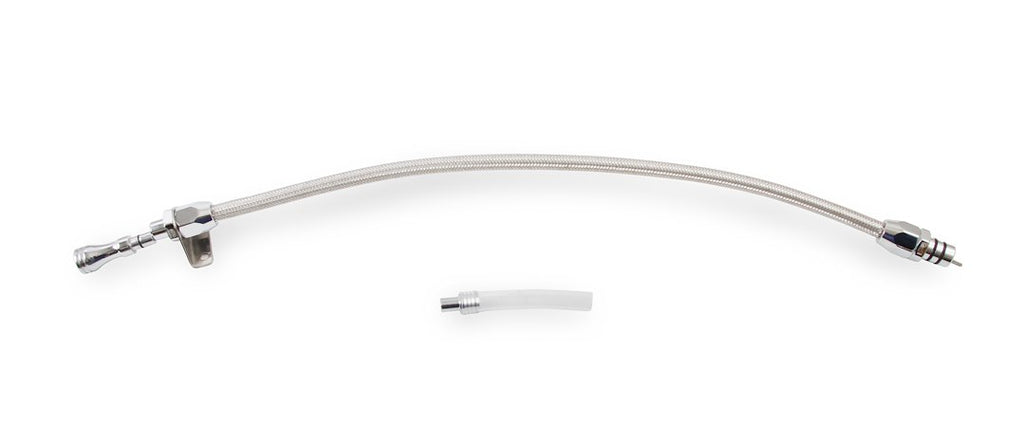

The Mr Gasket Auto Trans Dipstick is engineered for use with GM 700R4 transmissions, providing a reliable solution for monitoring transmission fluid levels. This dipstick features a billet aluminum handle that ensures durability and ease of use, while the flexible braided stainless steel tube allows for versatile installation options. The tube can be mounted to either an exhaust manifold bolt or a header flange, making it adaptable to various engine configurations.

Measuring 29-3/4 inches in length, this dipstick is designed to reach the transmission case effectively. The polished silver finish of the handle and the bare stainless steel tube not only enhance the aesthetic appeal but also contribute to the overall longevity of the product. With a firewall mounting location, this dipstick is positioned for convenient access, ensuring that users can easily check fluid levels without hassle.

Overall, the Mr Gasket Auto Trans Dipstick combines functionality with a sleek design, making it a practical addition for automotive enthusiasts and professionals alike. Its robust construction and thoughtful design features make it a valuable tool for maintaining optimal transmission performance.

Features

• Braided Stainless Steel
• Firewall Mounting
• Billet Aluminum Handle
• 29-3/4 Inch Long

Specifications

• Manufacturer: Mr. Gasket
• Manufacturer Part Number: 9704G
• Transmission Model: GM 700R4
• Locking: No
• Mounting Location: Firewall Mount
• Entry: Transmission Case
• Handle Finish: Polished
• Handle Color: Silver
• Handle Material: Aluminum
• Includes Tube: Yes
• Tube Finish: Bare
• Tube Color: Silver
• Tube Material: Stainless Steel

Compatibility / Fit

• 1991-1993 Buick Commercial Chassis
• 1988-1988 Buick Electra
• 1988-1988 Buick LeSabre
• 1984-1984 Buick Regal
• 1991-1993 Buick Roadmaster
• 1990-1992 Cadillac Brougham
• 1992-1993 Cadillac Commercial Chassis
• 1993-1993 Cadillac Fleetwood
• 1985-1992 Chevrolet Astro
• 1987-1993 Chevrolet Blazer
• 1982-1986 Chevrolet C10
• 1982-1986 Chevrolet C10 Suburban
• 1988-1992 Chevrolet C1500
• 1992-1992 Chevrolet C1500 Suburban
• 1982-1986 Chevrolet C20
• 1982-1986 Chevrolet C20 Suburban
• 1988-1992 Chevrolet C2500
• 1992-1992 Chevrolet C2500 Suburban
• 1982-1986 Chevrolet C30
• 1988-1990 Chevrolet C3500
• 1983-1993 Chevrolet Camaro
• 1982-1993 Chevrolet Caprice
• 1982-1982 Chevrolet Corvette
• 1984-1993 Chevrolet Corvette
• 1982-1987 Chevrolet El Camino
• 1983-1992 Chevrolet G10
• 1983-1992 Chevrolet G20
• 1983-1992 Chevrolet G30
• 1982-1985 Chevrolet Impala
• 1982-1986 Chevrolet K10
• 1982-1986 Chevrolet K10 Suburban
• 1988-1992 Chevrolet K1500
• 1992-1992 Chevrolet K1500 Suburban
• 1982-1986 Chevrolet K20
• 1982-1986 Chevrolet K20 Suburban
• 1988-1992 Chevrolet K2500
• 1992-1992 Chevrolet K2500 Suburban
• 1982-1986 Chevrolet K30
• 1988-1989 Chevrolet K3500
• 1982-1986 Chevrolet K5 Blazer
• 1982-1983 Chevrolet Malibu
• 1982-1988 Chevrolet Monte Carlo
• 1980-1981 Chevrolet P20
• 1980-1981 Chevrolet P30
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R10 Suburban
• 1989-1991 Chevrolet R1500 Suburban
• 1987-1988 Chevrolet R20
• 1987-1988 Chevrolet R20 Suburban
• 1989-1989 Chevrolet R2500
• 1989-1991 Chevrolet R2500 Suburban
• 1987-1988 Chevrolet R30
• 1989-1991 Chevrolet R3500
• 1983-1993 Chevrolet S10
• 1983-1992 Chevrolet S10 Blazer
• 1987-1987 Chevrolet V10
• 1988-1988 Chevrolet V10 Suburban
• 1989-1991 Chevrolet V1500 Suburban
• 1987-1987 Chevrolet V20
• 1987-1988 Chevrolet V20 Suburban
• 1989-1991 Chevrolet V2500 Suburban
• 1987-1988 Chevrolet V30
• 1989-1991 Chevrolet V3500
• 1982-1986 GMC C1500
• 1988-1992 GMC C1500
• 1982-1986 GMC C1500 Suburban
• 1992-1992 GMC C1500 Suburban
• 1982-1986 GMC C2500
• 1988-1992 GMC C2500
• 1982-1986 GMC C2500 Suburban
• 1992-1992 GMC C2500 Suburban
• 1982-1986 GMC C3500
• 1988-1991 GMC C3500
• 1984-1987 GMC Caballero
• 1983-1992 GMC G1500
• 1983-1992 GMC G2500
• 1983-1992 GMC G3500
• 1982-1992 GMC Jimmy
• 1982-1986 GMC K1500
• 1988-1992 GMC K1500
• 1982-1986 GMC K1500 Suburban
• 1992-1992 GMC K1500 Suburban
• 1982-1986 GMC K2500
• 1988-1992 GMC K2500
• 1982-1986 GMC K2500 Suburban
• 1992-1992 GMC K2500 Suburban
• 1982-1986 GMC K3500
• 1988-1991 GMC K3500
• 1980-1981 GMC P2500
• 1980-1981 GMC P3500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1987-1989 GMC R2500
• 1987-1991 GMC R2500 Suburban
• 1987-1991 GMC R3500
• 1983-1990 GMC S15
• 1983-1991 GMC S15 Jimmy
• 1985-1992 GMC Safari
• 1991-1993 GMC Sonoma
• 1991-1991 GMC Syclone
• 1992-1992 GMC Typhoon
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 1987-1987 GMC V2500
• 1987-1991 GMC V2500 Suburban
• 1987-1991 GMC V3500
• 1992-1992 GMC Yukon
• 1991-1992 Oldsmobile Bravada
• 1988-1988 Oldsmobile Custom Cruiser
• 1991-1992 Oldsmobile Custom Cruiser
• 1984-1984 Oldsmobile Cutlass Calais
• 1984-1984 Oldsmobile Cutlass Supreme
• 1988-1988 Oldsmobile Cutlass Supreme
• 1983-1986 Pontiac Bonneville
• 1983-1993 Pontiac Firebird
• 1983-1986 Pontiac Grand Prix
• 1983-1986 Pontiac Parisienne
• 1988-1988 Pontiac Safari
