Engineered for optimal lubrication in street and strip applications.
The Moroso Performance Oil Pan is specifically designed for Mazda 13B rotary engines, providing a capacity of 6.25 quarts. This oil pan features a wet sump design with a depth of 4 inches, ensuring efficient oil management during operation. Constructed from high-quality aluminum, it is fully fabricated for durability and performance.

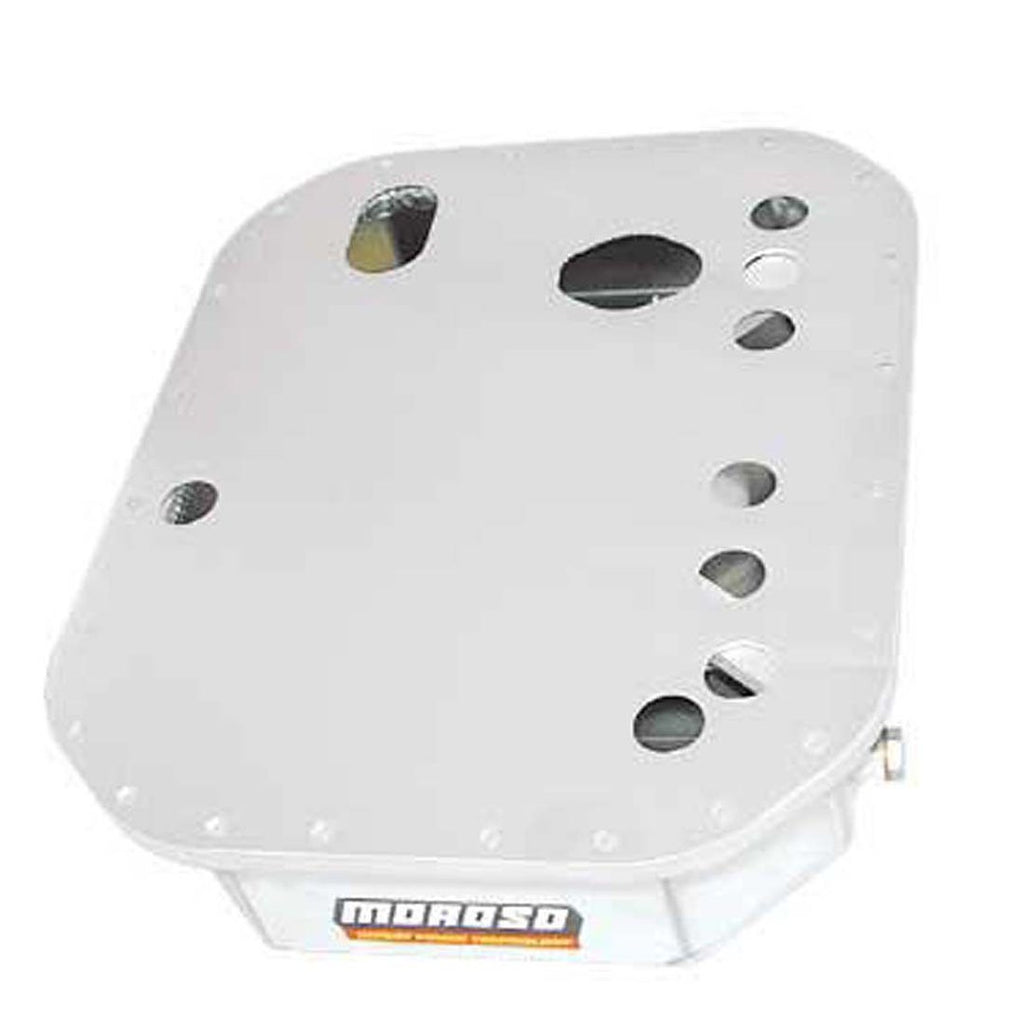

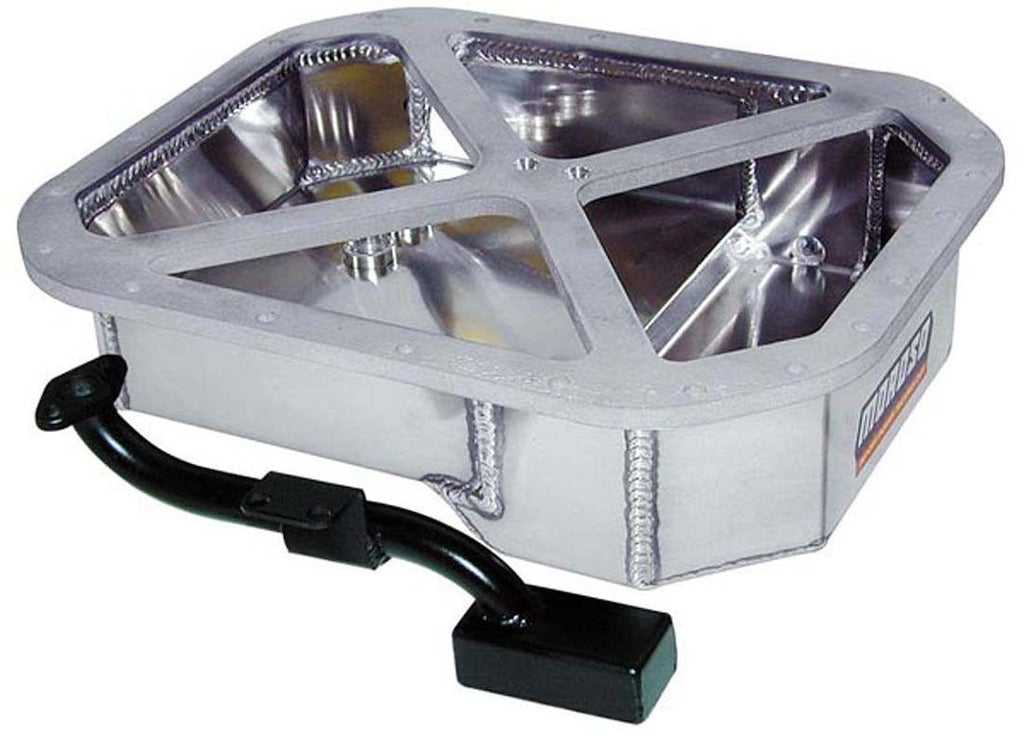

This oil pan includes a 3/8 inch thick billet rail with an integral X-brace, which significantly strengthens the engine assembly to reduce twisting and axial deflection. Additionally, it comes with a .080 inch thick aluminum baffle plate that effectively de-aerates and cools return oil, outperforming standard baffles.
The Moroso oil pan is equipped with a specially designed oil pump pickup and access holes for easy mounting to the front cover. It also features a magnetic drain plug with an extra copper washer, ensuring secure and efficient oil changes. The pan is compatible with stock pan gaskets and dipsticks, making installation straightforward for engine builders.
Features
- Fully Fabricated
- 3/8 Inch Thick Billet Rail With Integral X-Brace Greatly Strengthens Engine Assembly To Reduce Twisting And Axial Deflection
- Includes .080 Inch Thick Aluminum Baffle Plate To De-Aerate And Cool Return Oil (Other Baffles Are Only .060 Inch Thick)
- Includes An Oil Pump Pickup Specially Designed For This Pan; Access Holes In Pan Facilitate Mounting Pickup To The Front Cover
- Includes Magnetic Drain Plug With Extra Copper Washer, Pan Mounting Kit With Hex Drive Steel Studs To Eliminate Stripping The Engine Block And Serrated Face Flare Nuts To Withstand Vibration
- Accommodates Stock Pan Gasket And Dipstick With Existing Oil Level Marks
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20940
- Recommended Use: Street/ Strip
- Color: Silver
- Material: Aluminum
- Capacity: 6.25 Quart

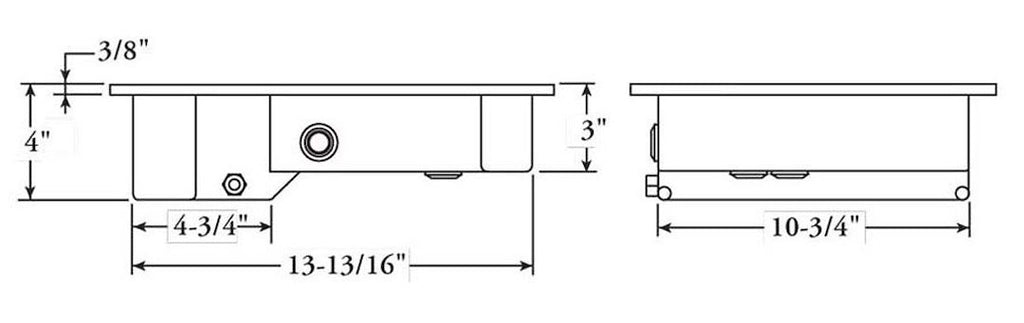

- Depth (IN): 4 Inch
- Baffled: No
- Sump Style: Wet
Compatibility / Fit
- 1976-1978 Mazda Cosmo
- 1977-1978 Mazda GLC
- 1976-1977 Mazda Mizer
- 1974-1977 Mazda Rotary Pickup
- 1974-1978 Mazda RX-4
- 1984-1991 Mazda RX-7
- 1993-1995 Mazda RX-7
- 2004-2011 Mazda RX-8
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
