High-quality cast aluminum oil pan designed for performance and reliability.

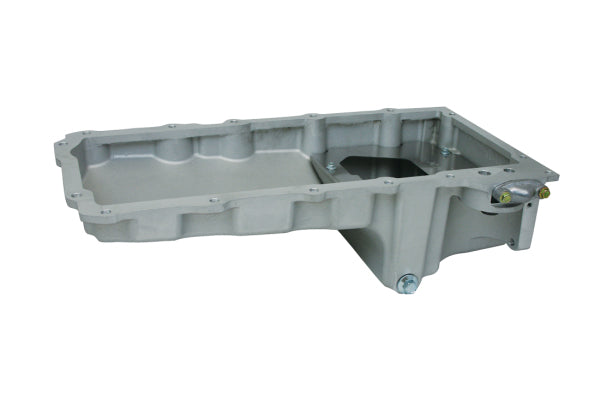

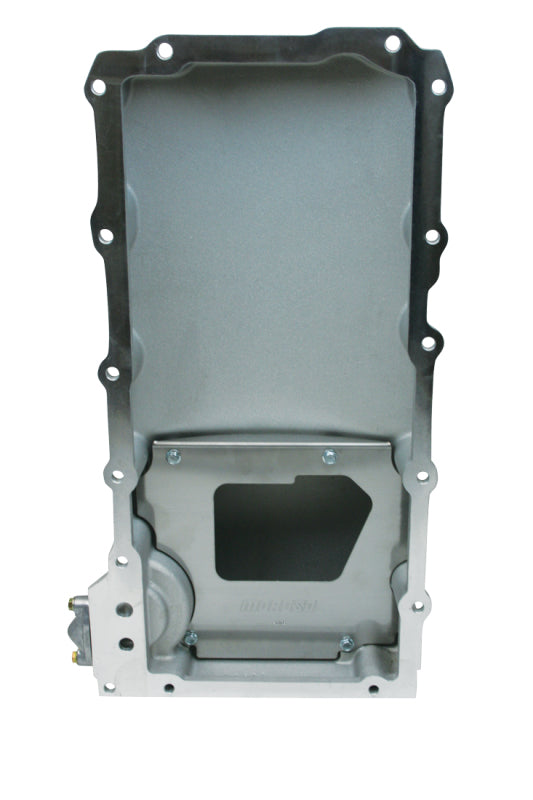

The Moroso Performance Oil Pan is engineered specifically for LS series engines with a rear sump configuration. Constructed from cast aluminum, this oil pan is both lightweight and durable, ensuring optimal performance in both street and strip applications. It features a heavy-duty, high flow oil pump pickup and an integral spin-on oil filter provision, enhancing the oiling system's efficiency and reliability.

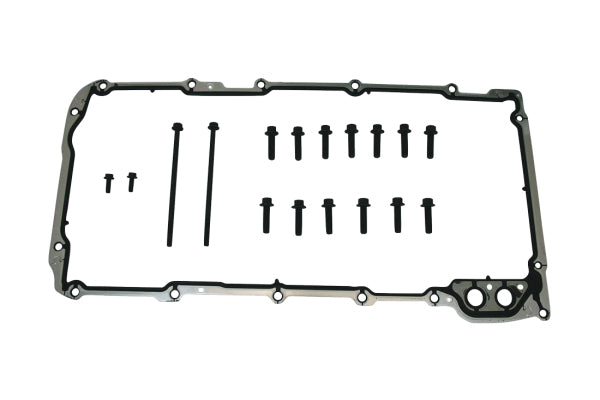

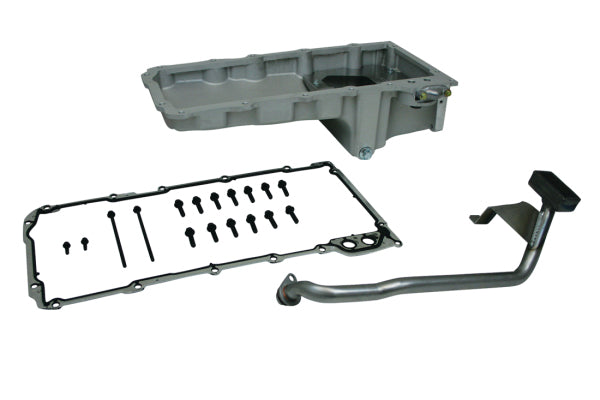

With a capacity of 6 quarts and a depth of 5-3/4 inches, this oil pan is designed to clear 4.25 inches of stroke with most steel rods, making it suitable for a variety of performance setups. The baffled design helps maintain oil control during high-performance driving, while the included oil pan gasket, mounting bolts, and nuts facilitate straightforward installation. This oil pan is a critical component for those looking to enhance their engine's performance and longevity.
Features
- The Oil Pan is Cast Then Machined Aluminum
- Clears 4.25 Inch Of Stroke With Most Steel Rods
- Features A Heavy-Duty, High Flow Oil Pump Pickup
- Integral Spin-On Oil Filter Provision With An O.E.M. Oil Cooler Port
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20105
- Recommended Use: Street/ Strip
- Material: Aluminum
- Capacity: 6 Quart
- Depth (IN): 5-3/4 Inch
- Baffled: Yes
- Rear Main Seal Style: 1-Piece
- Stroker Clearance: No
- Drain Plug Thread Size: 1/2 Inch-20
- Sump Position: Rear
- Sump Style: Wet
- Dipstick Provision: Yes
- Dipstick Location: No Dipstick
- Kicked Out: No
- Kicked Out Position: No Kicked Out
- Includes Pickup: Yes
- Includes Crank Scraper: No
- Includes Windage Tray: Yes
