High-quality steel oil pan designed for optimal lubrication in racing applications.

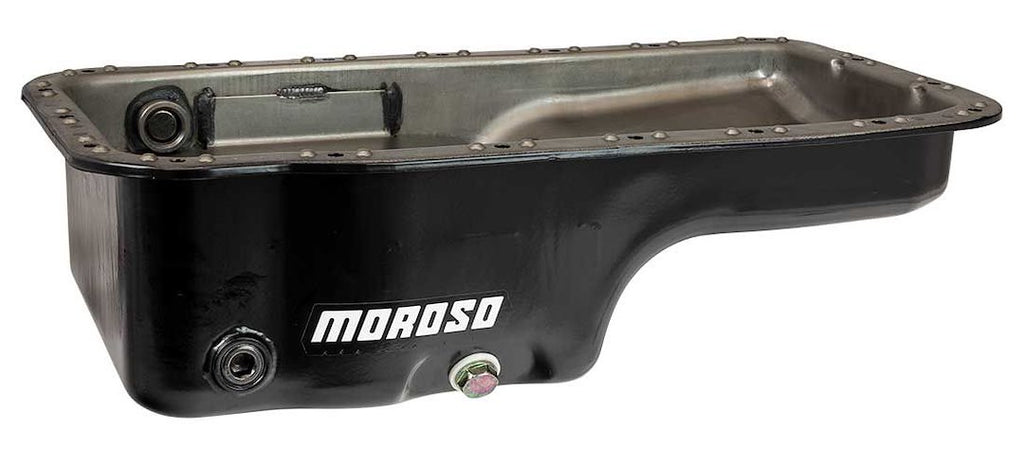

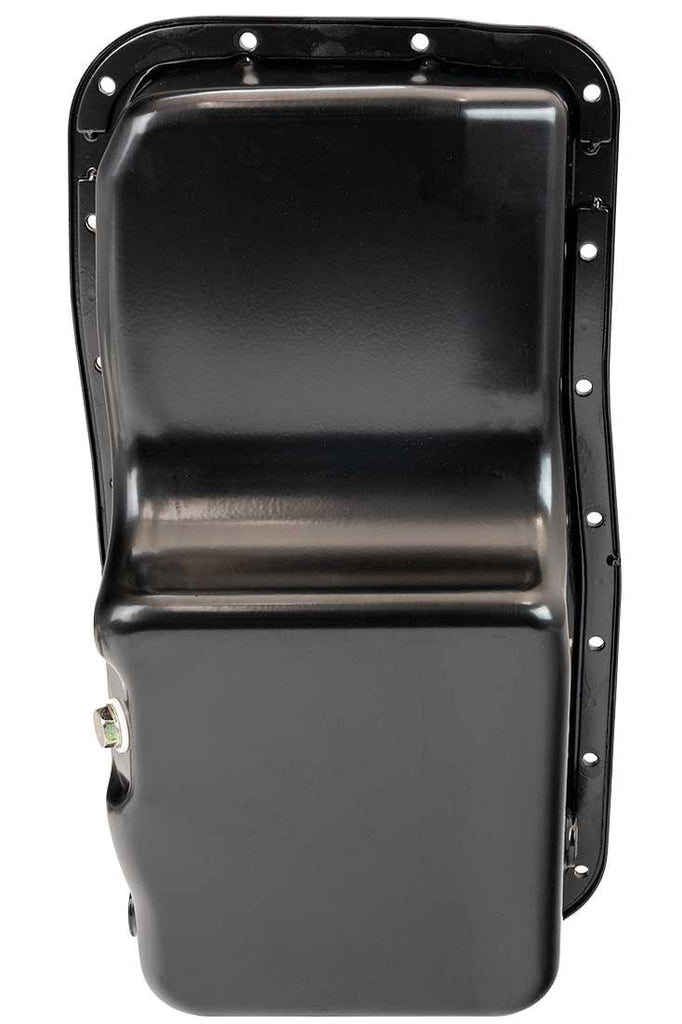

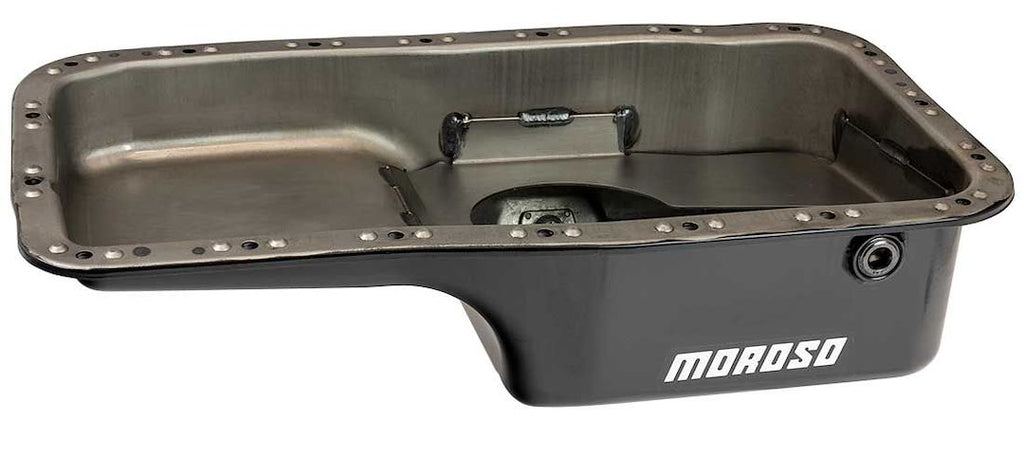

The Moroso Performance Oil Pan is engineered specifically for Acura and Honda B-Series engines, providing a reliable solution for street and strip applications. With a capacity of 4 quarts and a 6-inch sump depth, this wet sump oil pan features a baffle that fully surrounds the oil pump pickup, ensuring consistent oil flow and preventing starvation during high-performance driving. The powder-coated black finish enhances durability while maintaining a sleek appearance.
Designed with precision welding by skilled craftsmen, this oil pan integrates seamlessly with other Moroso oiling components, allowing for a customized setup tailored to individual engine needs. The inclusion of a magnetic drain plug and temperature sensor bung provision adds to its functionality, making it suitable for both turbocharged and supercharged applications. Additionally, it is compatible with OEM exhaust manifolds and most aftermarket exhaust/header combinations, providing versatility for various builds.
Moroso's commitment to quality ensures that each oil pan is built to withstand the rigors of racing, making it a trusted choice among engine builders. This oil pan not only addresses lubrication challenges but also enhances overall engine performance, making it an essential component for serious racers.
Features

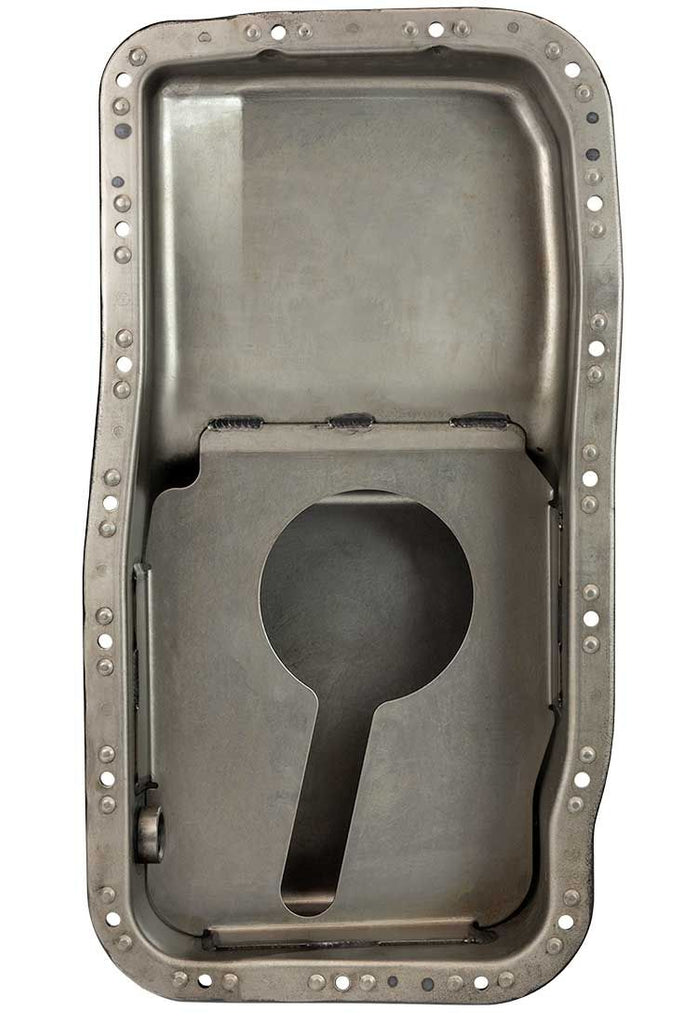

- Sump Baffle That Fully Surrounds The Oil Pump Pickup
- Turbo/Supercharger Oil Drain Back
- Features A Magnetic Drain Plug And Temperature Sensor Bung Provision
- Works With OEM Exhaust Manifold And Most Aftermarket Exhaust/Header Combinations
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20911
- Recommended Use: Street/ Strip
- Finish: Powder Coated
- Color: Black
- Material: Steel
- Capacity: 4 Quart

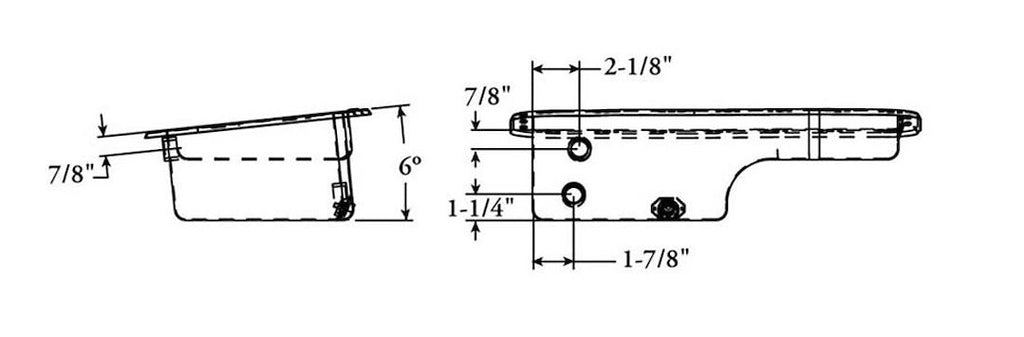

- Depth (IN): 6 Inch
- Baffled: Yes
- Rear Main Seal Style: No Seal
- Stroker Clearance: No
- Drain Plug Thread Size: 1/2 Inch-20
- Sump Position: Rear
- Sump Style: Wet
- Dipstick Provision: No
- Dipstick Location: No Dipstick
- Kicked Out: No
- Kicked Out Position: No Kicked Out
- Includes Pickup: No
- Includes Crank Scraper: No
- Includes Windage Tray: Yes
Compatibility / Fit
- 1990-2001 Acura Integra
- 1999-2000 Honda Civic
- 1994-1997 Honda Civic del Sol
