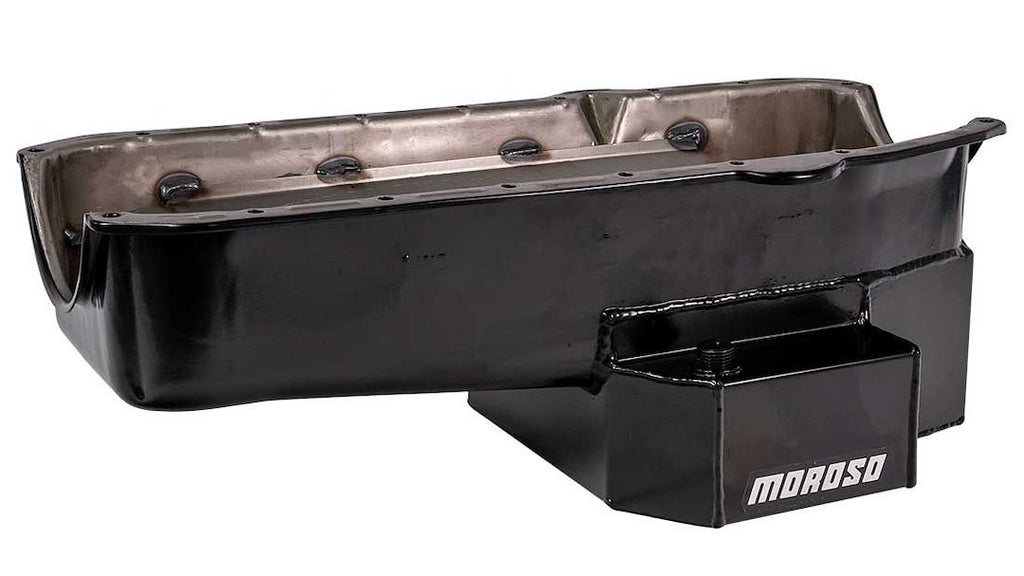

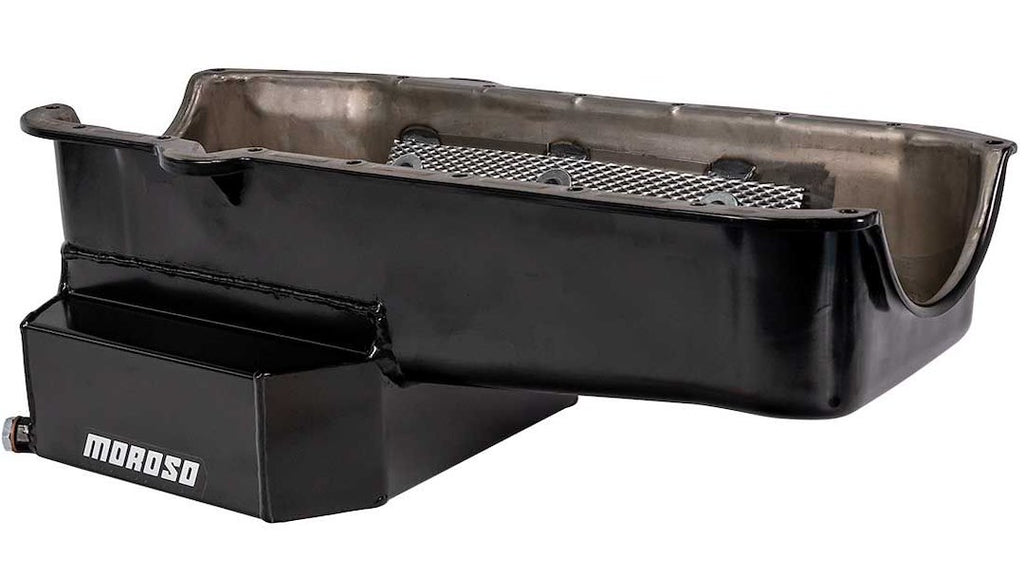

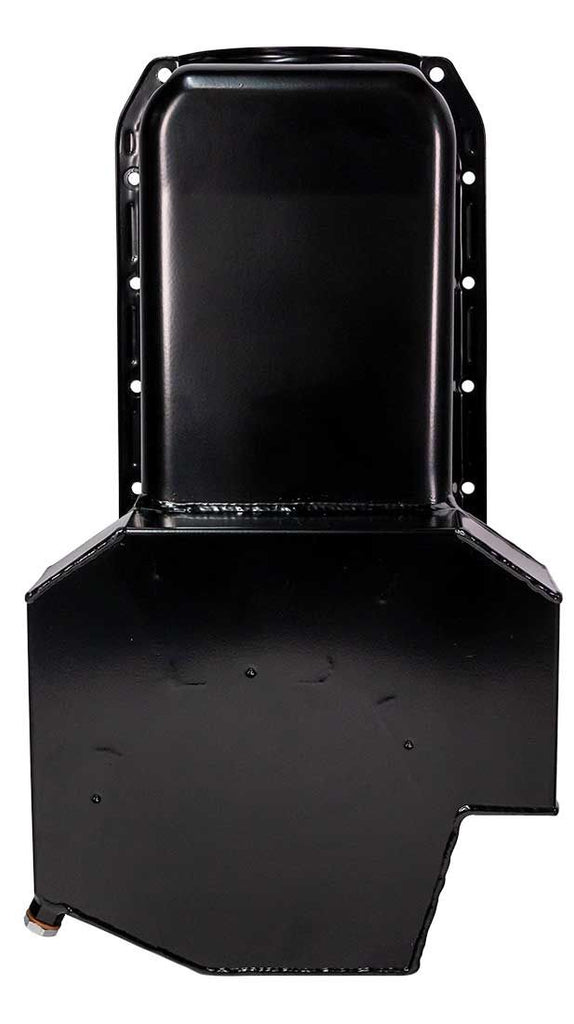

Moroso Performance Oil Pan (MPN: 21814)

High-capacity oil pan designed for small block Chevy engines.

The Moroso Performance Oil Pan is engineered specifically for 1980-1985 small block Chevy engines, accommodating up to a 4.125 inch stroke with steel rods. This oil pan features a 7 quart capacity and a 7-1/2 inch deep sump, making it suitable for both road racing and drag racing applications. It includes a built-in crank scraper and a removable screen windage tray, which work together to enhance oil control and free up horsepower during operation.

Constructed from durable steel and finished with a powder-coated black exterior, this oil pan is designed to withstand the rigors of competitive racing. It incorporates three trap door baffles and two runners for optimal oil management, ensuring consistent lubrication under high-performance conditions. The design is compatible with most starter and flywheel combinations, and it fits 4 bolt Dart, GM, and Merlin main caps.

Moroso's commitment to quality is evident in the precision welding of each oil pan, crafted by skilled artisans. This oil pan is part of a comprehensive range of oiling system accessories, all engineered to work seamlessly together, eliminating compatibility issues often faced with mixed components. The Moroso Performance Oil Pan is a reliable choice for racers seeking enhanced performance and durability.

Features

• Compatible With Most Starter/Flywheel Combinations

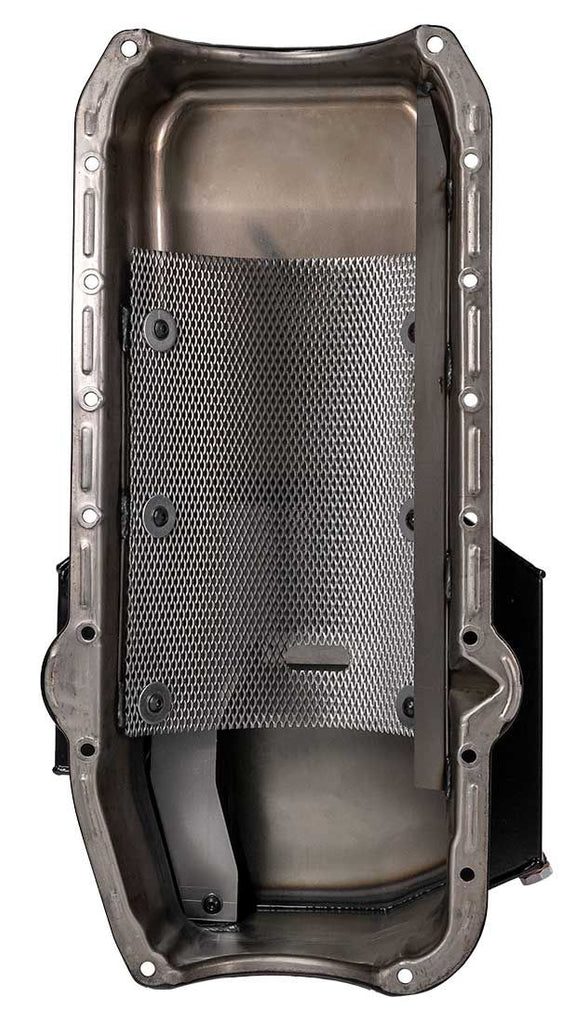

• Has A Built In Crank Scraper, Removable Screen Windage Tray And Anti-Slosh To Free Up Horsepower
• Steel With A Clear Zinc Finish
• 3 Trap Door Baffles, 2 Runners For Oil Control In Road Racing, Also Makes An Excellent Drag Race Product
• Fits 4 Bolt Dart, GM And Merlin Main Caps
• Clears 4.125 Inch Stroke With Most Steel Rods

Specifications

• Manufacturer: Moroso Performance
• Manufacturer Part Number: 21814
• Recommended Use: Road Race And Drag Race
• Finish: Powder Coated
• Color: Black
• Material: Steel
• Capacity: 7 Quart

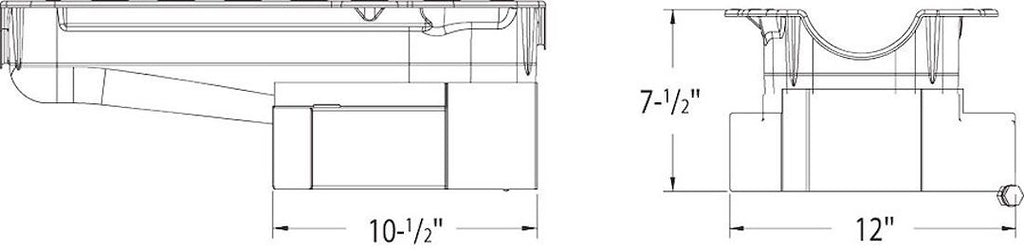

• Depth (IN): 7-1/2 Inch
• Baffled: Yes
• Stroker Clearance: Yes
• Sump Position: Rear
• Sump Style: Wet
• Includes Pickup: Yes
• Includes Crank Scraper: Yes
• Includes Windage Tray: Yes

Compatibility / Fit

• 1980-1981 Buick Century
• 1980-1981 Buick Regal
• 1980-1982 Checker Marathon
• 1980-1985 Chevrolet C10
• 1980-1985 Chevrolet C10 Suburban
• 1980-1985 Chevrolet C20
• 1980-1985 Chevrolet C20 Suburban
• 1980-1985 Chevrolet C30
• 1980-1985 Chevrolet Camaro
• 1980-1985 Chevrolet Caprice
• 1980-1981 Chevrolet Corvette
• 1985-1985 Chevrolet Corvette
• 1980-1985 Chevrolet El Camino
• 1980-1985 Chevrolet G10
• 1980-1985 Chevrolet G20
• 1980-1985 Chevrolet G30
• 1980-1985 Chevrolet Impala
• 1980-1985 Chevrolet K10
• 1980-1985 Chevrolet K10 Suburban
• 1980-1985 Chevrolet K20
• 1980-1985 Chevrolet K20 Suburban
• 1980-1985 Chevrolet K30
• 1980-1985 Chevrolet K5 Blazer
• 1980-1983 Chevrolet Malibu
• 1980-1985 Chevrolet Monte Carlo
• 1980-1985 Chevrolet P20
• 1980-1985 Chevrolet P30
• 1900-1900 Chevrolet Small Block 1955-1986
• 1980-1985 GMC C1500
• 1980-1985 GMC C1500 Suburban
• 1980-1985 GMC C2500
• 1980-1985 GMC C2500 Suburban
• 1980-1985 GMC C3500
• 1980-1985 GMC Caballero
• 1980-1985 GMC G1500
• 1980-1985 GMC G2500
• 1980-1985 GMC G3500
• 1980-1985 GMC Jimmy
• 1980-1985 GMC K1500
• 1980-1985 GMC K1500 Suburban
• 1980-1985 GMC K2500
• 1980-1985 GMC K2500 Suburban
• 1980-1985 GMC K3500
• 1980-1985 GMC P2500
• 1980-1985 GMC P3500
• 1980-1980 Oldsmobile Cutlass
• 1980-1980 Oldsmobile Cutlass Calais
• 1980-1980 Oldsmobile Cutlass Cruiser
• 1982-1982 Oldsmobile Cutlass Cruiser
• 1980-1980 Oldsmobile Cutlass Salon
• 1980-1980 Oldsmobile Cutlass Supreme
• 1980-1981 Pontiac Bonneville
• 1983-1985 Pontiac Bonneville
• 1980-1981 Pontiac Catalina
• 1980-1985 Pontiac Firebird
• 1980-1980 Pontiac Grand Am
• 1980-1981 Pontiac Grand LeMans
• 1980-1981 Pontiac Grand Prix
• 1983-1985 Pontiac Grand Prix
• 1980-1981 Pontiac LeMans
• 1983-1985 Pontiac Parisienne

Technical Documents

• unipan_inst.pdf
