Moroso Performance Oil Pan (MPN: 21319)

Advanced design for optimal oil control in racing applications.

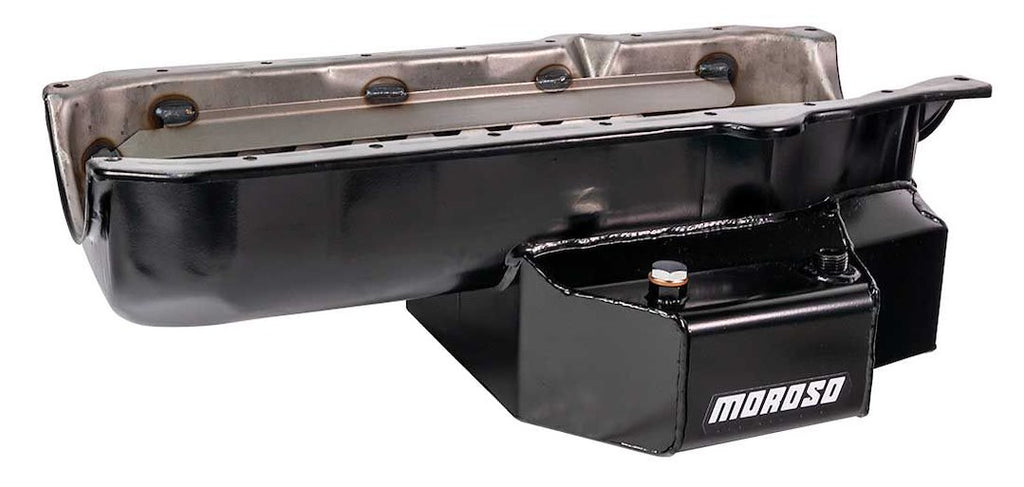

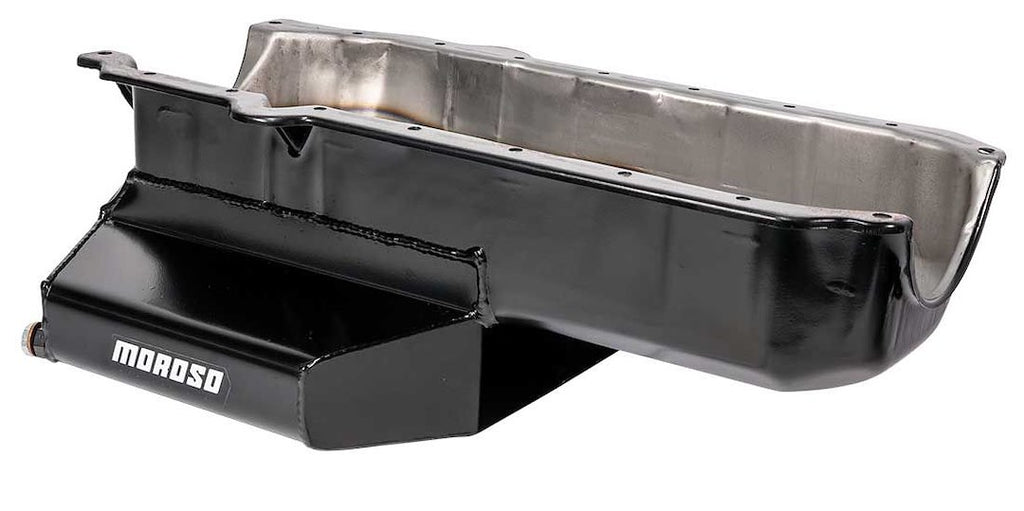

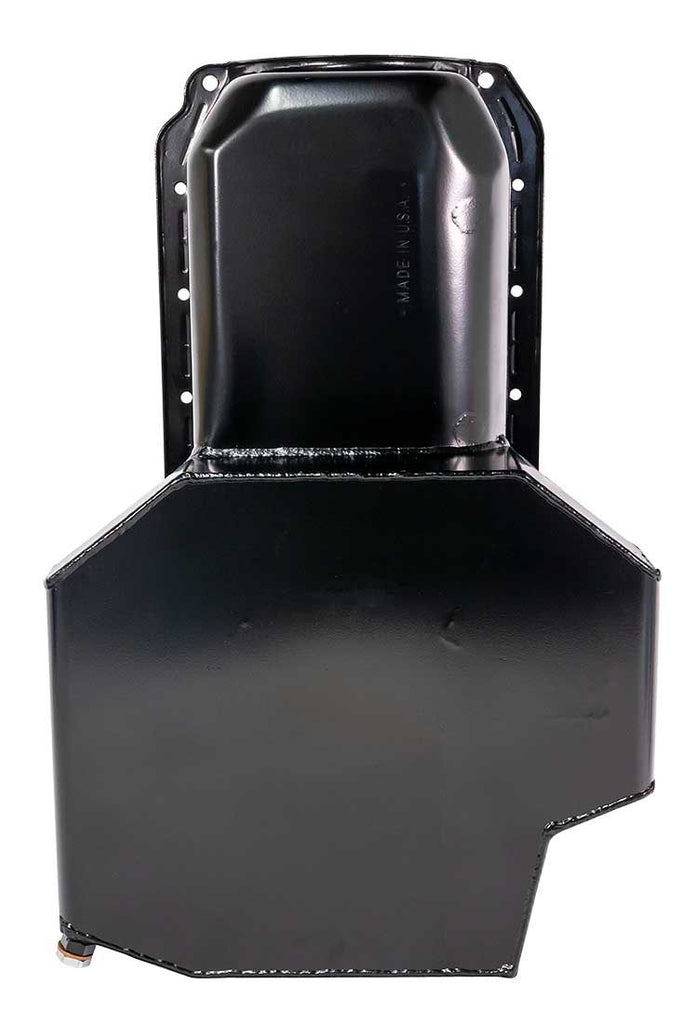

The Moroso Performance Oil Pan is engineered specifically for 1986 and newer small block Chevy engines, accommodating up to a 3.80 inch stroke with steel rods. This 7 quart capacity oil pan features a kicked out design and a 7-1/2 inch deep sump, ensuring effective oil management during high-performance racing conditions. The inclusion of five trap door baffles enhances oil control, minimizing the risk of oil starvation during aggressive maneuvers.

Constructed from durable steel and finished with a powder-coated black exterior, this oil pan is built to withstand the rigors of racing environments. The integrated crank scraper and louvered tray system further optimize oil flow and reduce windage, contributing to improved engine performance. Additionally, the oil level sight plug allows for easy monitoring of oil levels, ensuring that racers can maintain optimal lubrication at all times.

Moroso's commitment to quality is evident in the precision welding of each oil pan, crafted by skilled artisans. This oil pan is designed to work seamlessly with other Moroso oiling components, providing engine builders with a reliable and efficient solution for their racing needs. With its robust construction and thoughtful design, the Moroso Performance Oil Pan is a critical component for serious racers looking to enhance their engine's performance.

Features

• Five Trap Door Baffles For Oil Control

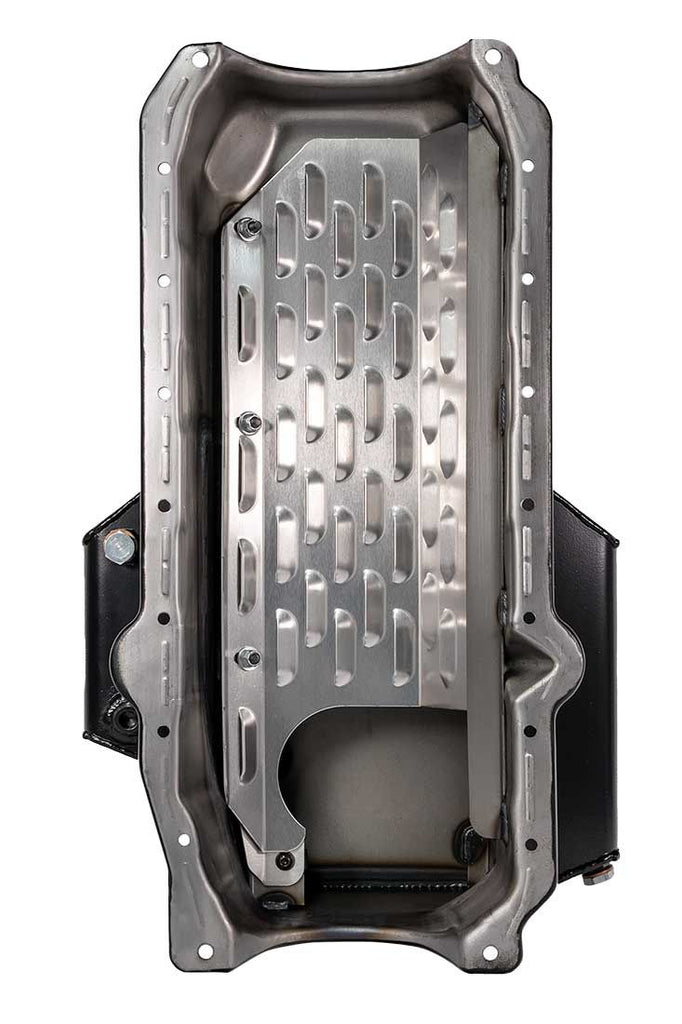

• Engineered Louvered Tray System
• Accepts Most Starters And Flywheel Combinations
• Oil Level Sight Plug
• Accepts 3.8 Inch Stroke With Steel Rods

Specifications

• Manufacturer: Moroso Performance
• Manufacturer Part Number: 21319
• Recommended Use: Race
• Finish: Powder Coated
• Color: Black
• Material: Steel
• Capacity: 7 Quart

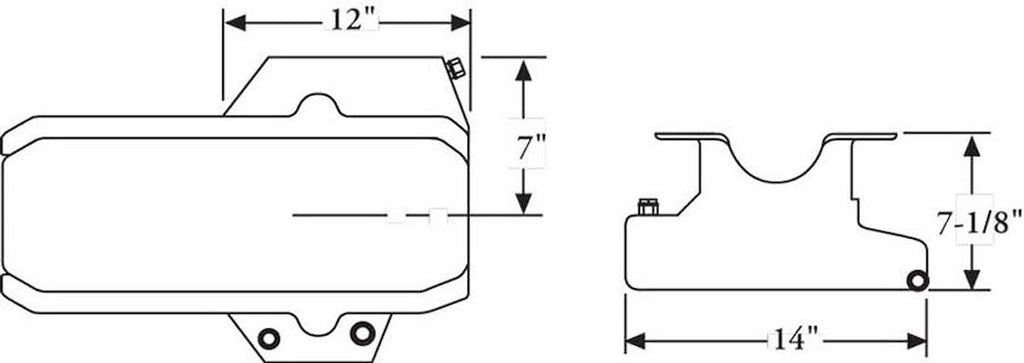

• Depth (IN): 7-1/8 Inch
• Baffled: Yes
• Sump Style: Wet
• Kicked Out: Yes
• Includes Crank Scraper: Yes
• Includes Windage Tray: Yes

Compatibility / Fit

• 1991-1993 Buick Commercial Chassis
• 1991-1993 Buick Roadmaster
• 1990-1992 Cadillac Brougham
• 1992-1993 Cadillac Commercial Chassis
• 1999-2000 Cadillac Escalade
• 1993-1993 Cadillac Fleetwood
• 1987-1994 Chevrolet Blazer
• 1986-1986 Chevrolet C10
• 1986-1986 Chevrolet C10 Suburban
• 1988-1999 Chevrolet C1500
• 1992-1999 Chevrolet C1500 Suburban
• 1986-1986 Chevrolet C20
• 1986-1986 Chevrolet C20 Suburban
• 1988-2000 Chevrolet C2500
• 1992-1999 Chevrolet C2500 Suburban
• 1986-1986 Chevrolet C30
• 1988-2000 Chevrolet C3500
• 1986-1992 Chevrolet Camaro
• 1986-1993 Chevrolet Caprice
• 1991-1993 Chevrolet Commercial Chassis
• 1986-1991 Chevrolet Corvette
• 1986-1987 Chevrolet El Camino
• 1996-2002 Chevrolet Express 1500
• 1996-2002 Chevrolet Express 2500
• 1996-2002 Chevrolet Express 3500
• 1986-1995 Chevrolet G10
• 1986-1995 Chevrolet G20
• 1986-1996 Chevrolet G30
• 1986-1986 Chevrolet K10
• 1986-1986 Chevrolet K10 Suburban
• 1988-1999 Chevrolet K1500
• 1992-1999 Chevrolet K1500 Suburban
• 1986-1986 Chevrolet K20
• 1986-1986 Chevrolet K20 Suburban
• 1988-2000 Chevrolet K2500
• 1992-1999 Chevrolet K2500 Suburban
• 1986-1986 Chevrolet K30
• 1988-2000 Chevrolet K3500
• 1986-1986 Chevrolet K5 Blazer
• 1986-1988 Chevrolet Monte Carlo
• 1986-1989 Chevrolet P20
• 1986-1999 Chevrolet P30
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R10 Suburban
• 1989-1991 Chevrolet R1500 Suburban
• 1987-1988 Chevrolet R20
• 1987-1988 Chevrolet R20 Suburban
• 1989-1991 Chevrolet R2500 Suburban
• 1987-1988 Chevrolet R30
• 1989-1991 Chevrolet R3500
• 1900-1900 Chevrolet Small Block 1987-1998 (OE Roller)
• 1995-2000 Chevrolet Tahoe
• 1987-1987 Chevrolet V10
• 1988-1988 Chevrolet V10 Suburban
• 1989-1991 Chevrolet V1500 Suburban
• 1987-1987 Chevrolet V20
• 1987-1988 Chevrolet V20 Suburban
• 1989-1991 Chevrolet V2500 Suburban
• 1987-1988 Chevrolet V30
• 1989-1991 Chevrolet V3500
• 1986-1986 GMC C1500
• 1988-1999 GMC C1500
• 1986-1986 GMC C1500 Suburban
• 1992-1999 GMC C1500 Suburban
• 1986-1986 GMC C2500
• 1988-2000 GMC C2500
• 1986-1986 GMC C2500 Suburban
• 1992-1999 GMC C2500 Suburban
• 1986-1986 GMC C3500
• 1988-2000 GMC C3500
• 1986-1987 GMC Caballero
• 1986-1995 GMC G1500
• 1986-1995 GMC G2500
• 1986-1996 GMC G3500
• 1986-1991 GMC Jimmy
• 1986-1986 GMC K1500
• 1988-1999 GMC K1500
• 1986-1986 GMC K1500 Suburban
• 1992-1999 GMC K1500 Suburban
• 1986-1986 GMC K2500
• 1988-2000 GMC K2500
• 1986-1986 GMC K2500 Suburban
• 1992-1999 GMC K2500 Suburban
• 1986-1986 GMC K3500
• 1988-2000 GMC K3500
• 1986-1989 GMC P2500
• 1986-1999 GMC P3500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1987-1989 GMC R2500
• 1987-1991 GMC R2500 Suburban
• 1987-1991 GMC R3500
• 1996-2002 GMC Savana 1500
• 1996-2002 GMC Savana 2500
• 1996-2002 GMC Savana 3500
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 1987-1987 GMC V2500
• 1987-1991 GMC V2500 Suburban
• 1987-1991 GMC V3500
• 1992-1999 GMC Yukon
• 1991-1992 Oldsmobile Custom Cruiser
• 1986-1986 Pontiac Bonneville
• 1986-1992 Pontiac Firebird
• 1986-1987 Pontiac Grand Prix
• 1986-1986 Pontiac Parisienne

Technical Documents

• unipan_inst.pdf
