High-quality aluminum oil pan for Toyota 3SGT and 5SFE engines

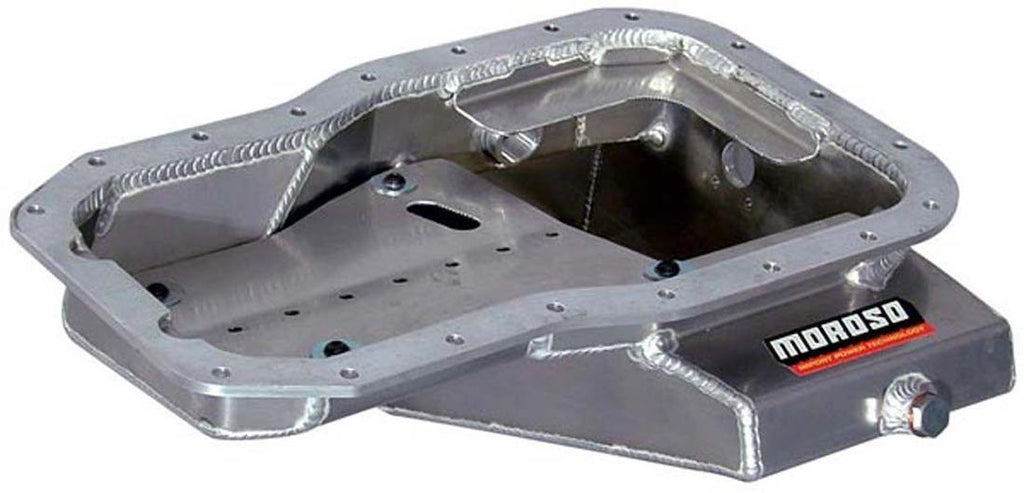

The Moroso Performance Oil Pan is designed specifically for Toyota 3SGT 2.0L Turbo and 5SFE Non-Turbo engines, providing a reliable solution for both street and strip applications. This oil pan features a capacity of 6.25 quarts and a sump depth of 7-9/16 inches, ensuring optimal oil control and lubrication during high-performance driving. Constructed from durable aluminum with a 1/4 inch thick billet aluminum pan rail, this oil pan is built to withstand the rigors of racing.
Incorporating advanced design elements, the Moroso oil pan includes trap door baffling to maintain adequate oil control and a solid windage tray that prevents oil from splashing back to the rotating assembly, which can rob horsepower. Additionally, the front of the pan is equipped with a 28 millimeter threaded bung for the factory turbo drain back connection, while a 3/8 inch thick billet receptacle on the side accommodates the factory oil level sensor. The included mounting kit features hex drive steel studs and serrated face flange nuts for secure installation.
Moroso Performance has a long-standing reputation for quality and innovation in oiling systems, ensuring that all components are engineered to work seamlessly together. This oil pan is a testament to their commitment to performance and reliability, making it an essential component for any serious engine builder.
Features
- Aluminum With 1/4 Inch Thick Billet Aluminum Pan Rail

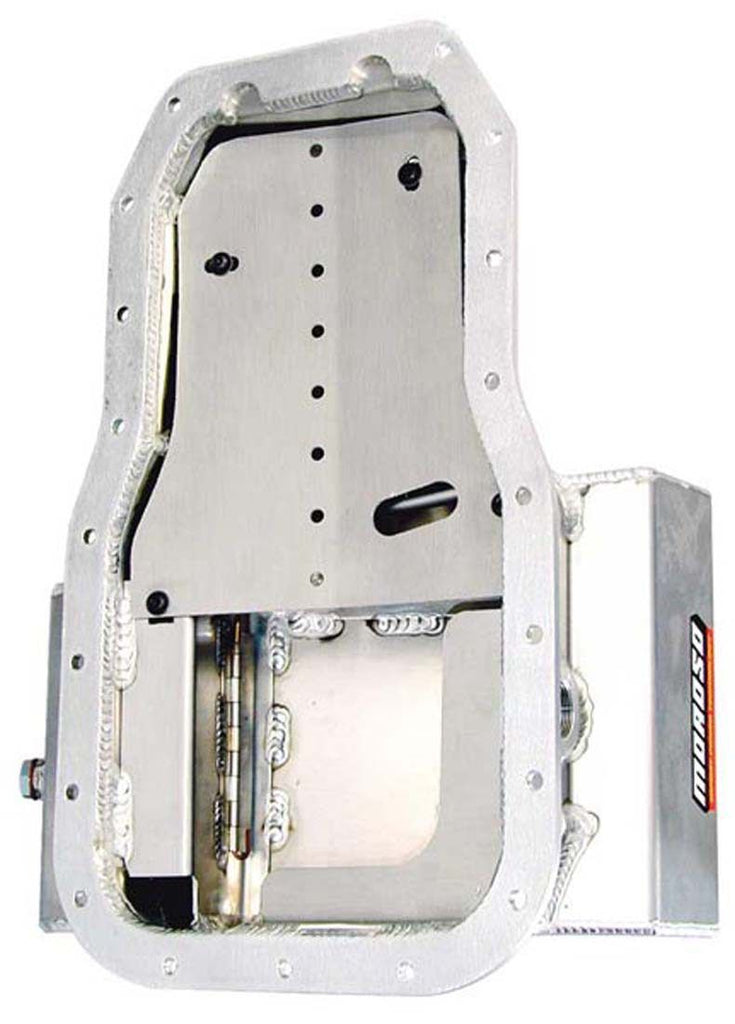

- Trap Door Baffling Ensures Adequate Oil Control
- Solid Windage Tray With Oil Drain And Dipstick Cut Out Holes Prevents Oil From Splashing Back To The Rotating Assembly, Robbing Vital Horsepower
- Front Of Pan Includes A 28 Millimeter Threaded Bung To Accommodate The Factory Turbo Drain Back Connection
- Side Of Pan Retains A 3/8 Inch Thick Billet Receptacle To Accommodate The Factory Oil Level Sensor
- Includes Mounting Kit With Hex Drive Steel Studs And Serrated Face Flange Nuts
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20935
- Recommended Use: Street/ Strip
- Color: Silver
- Material: Aluminum
- Capacity: 6.25 Quart

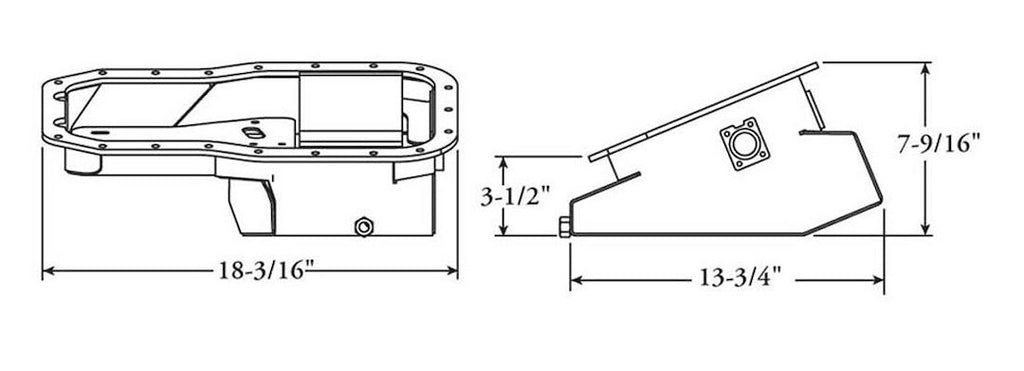

- Depth (IN): 7-9/16 Inch
- Baffled: Yes
- Sump Style: Wet
- Kicked Out: Yes
- Includes Windage Tray: Yes
Compatibility / Fit
- 1992-2001 Toyota Camry
- 1988-1999 Toyota Celica
- 1991-1995 Toyota MR2
- 1999-2001 Toyota Solara
