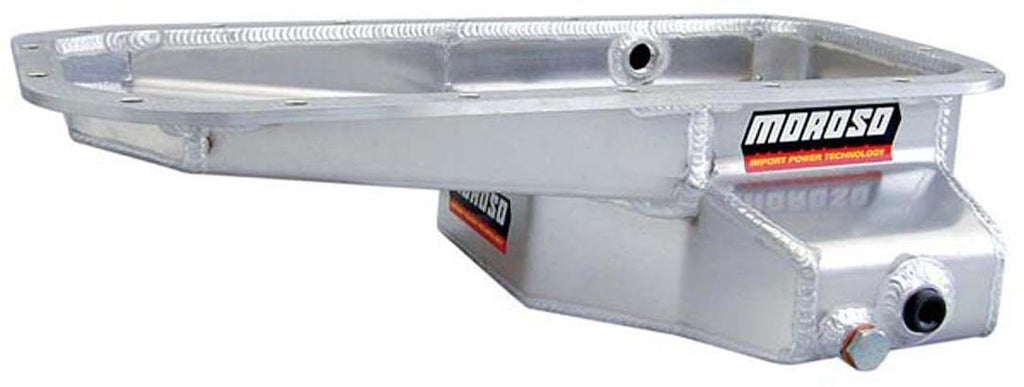

High-capacity aluminum oil pan for Toyota engines with advanced features.
The Moroso Performance Oil Pan is designed specifically for Toyota 3C, 2T, and 2C engines, providing a robust solution for both street and strip applications. With a capacity of 6 quarts and a sump depth of 5-1/4 inches, this wet sump oil pan is engineered to enhance oil control and lubrication efficiency. The one-piece, 1/4 inch thick billet aluminum pan rail ensures a rigid flange for leak-free sealing, while the trap door baffle improves oil management during high-performance driving conditions.
This oil pan features a louvered windage tray that maximizes horsepower by de-aerating the oil, ensuring optimal performance. Additionally, a separate sump tray prevents oil from splashing back, further enhancing oil return from the turbo. The design includes two 1/2 inch NPT bungs for easy plumbing of the turbo oil return line and installation of an oil temperature sender, making it a versatile choice for engine builders.
Moroso's commitment to quality is evident in the inclusion of two magnetic drain plugs that facilitate oil draining, even when the engine is canted. The mounting kit comes complete with hex drive steel studs and serrated face flange nuts, ensuring a secure installation. This oil pan is part of a comprehensive range of oiling system accessories from Moroso, all engineered to work seamlessly together.
Features
- One Piece, 1/4 Inch Thick Billet Aluminum Pan Rail Provides A Rigid Flange For Leak Free Sealing

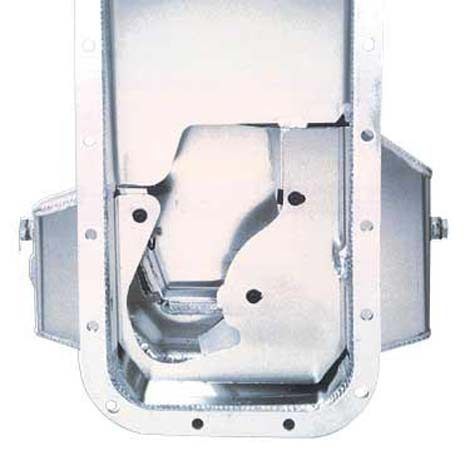

- Trap Door Baffle For Improved Oil Control
- Louvered Windage Tray Maximizes Horsepower And De-Aerates Oil
- A Separate Sump Tray Helps Prevent Oil From Splashing Back And Also De-Aerates Oil Returning From The Turbo
- Includes Two 1/2 Inch NPT Bungs For Plumbing Turbo Oil Return Line And Installing Oil Temperature Sender
- Two Magnetic Drain Plug Facilitate Oil Draining When The Engine Is Canted Left Or Right
- Includes Mounting Kit With Hex Drive Steel Studs And Serrated Face Flange Nuts
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20930
- Recommended Use: Street/ Strip
- Color: Silver
- Material: Aluminum
- Capacity: 6 Quart

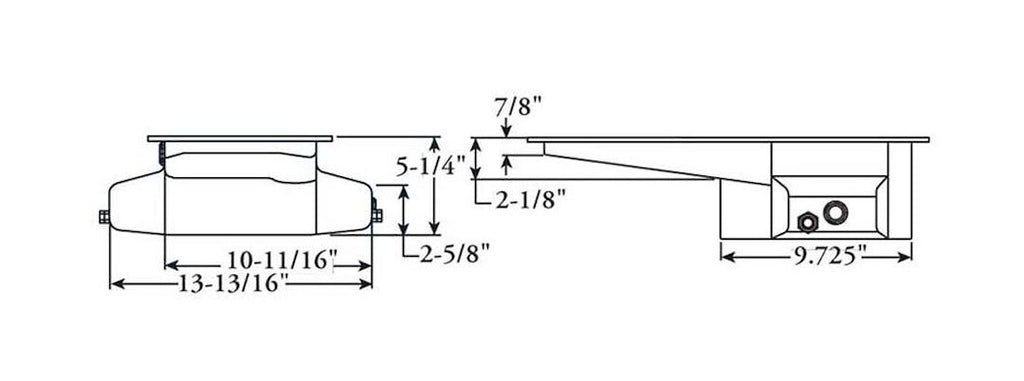

- Depth (IN): 5-1/4 Inch
- Baffled: Yes
- Sump Style: Wet
- Kicked Out: Yes
Compatibility / Fit
- 1971-1973 Toyota Carina
- 1971-1984 Toyota Celica
- 1970-1984 Toyota Corolla
- 1970-1982 Toyota Corona
