High-capacity aluminum oil pan designed for drag racing applications.

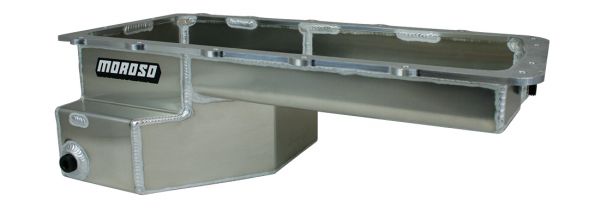

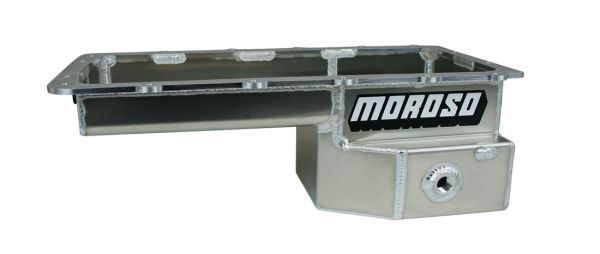

The Moroso Performance Oil Pan is engineered specifically for 1979-1993 Ford 5.0L Coyote engines, providing a robust solution for drag racing enthusiasts. With a capacity of 7.5 quarts, this oil pan features a rear T-sump design that ensures optimal oil containment during high-performance racing conditions. Constructed from aluminum and finished with a clear zinc plating, it offers durability and resistance to corrosion.

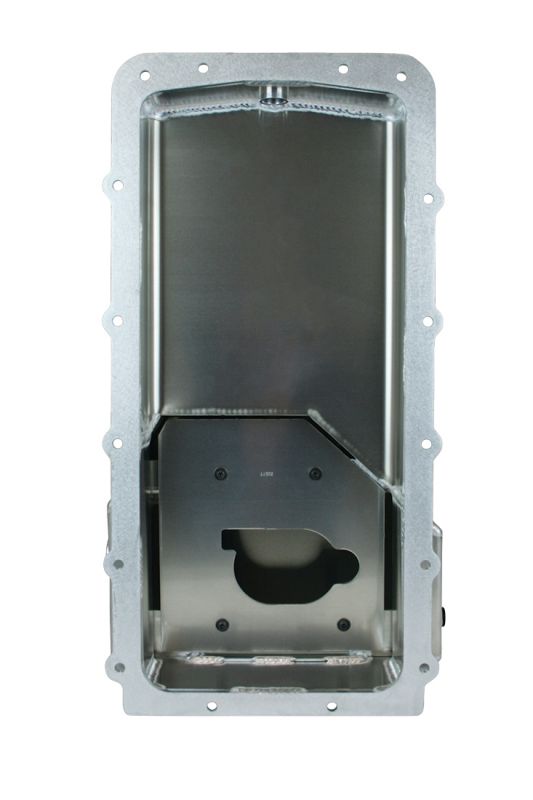

This oil pan incorporates a thick billet aluminum rail and a race-proven trap door assembly, along with an anti-slosh baffle that keeps oil securely in the pump pickup area, enhancing performance during acceleration. Additionally, it includes two 1/2 inch NPT fittings for supercharger drain back and oil temperature sender installation, making it a versatile choice for serious racers. The design also accommodates a kicked-out position on the driver side, ensuring compatibility with various setups.
Features
- Pan Has A Thick Billet Aluminum Rail
- Aluminum With A Clear Zinc Finish
- Features A Race Proven Trap Door Assembly And Anti-Slosh Baffle That Keeps Oil Contained In The Oil Pump Pickup Area During Drag Racing
- 1/2 Inch NPT Fitting For Supercharger Drain Back
- 1/2 Inch NPT Fitting For Oil Temperature Sender
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20577
- Recommended Use: Drag Race
- Finish: Zinc Plated
- Color: Silver
- Material: Aluminum
- Capacity: 7.5 Quart
- Depth (IN): 6-5/8 Inch
- Baffled: Yes
- Rear Main Seal Style: 1-Piece
- Stroker Clearance: No
- Sump Position: Rear
- Sump Style: T-Sump
- Dipstick Provision: No
- Dipstick Location: No Dipstick
- Kicked Out: Yes
- Kicked Out Position: Driver Side
- Includes Pickup: No
- Includes Crank Scraper: No
- Includes Windage Tray: No
Compatibility / Fit
- 1979-1979 Ford Mustang
- 1982-1993 Ford Mustang
- 1900-1900 Ford Small Block 221-351W
