High-capacity oil pan designed for Ford 5.0 Coyote engines.

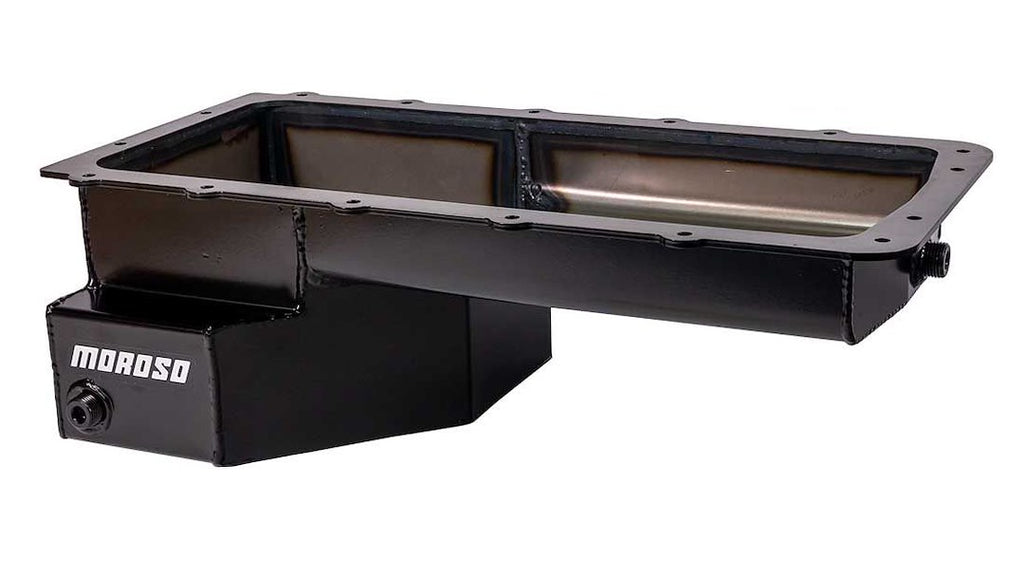

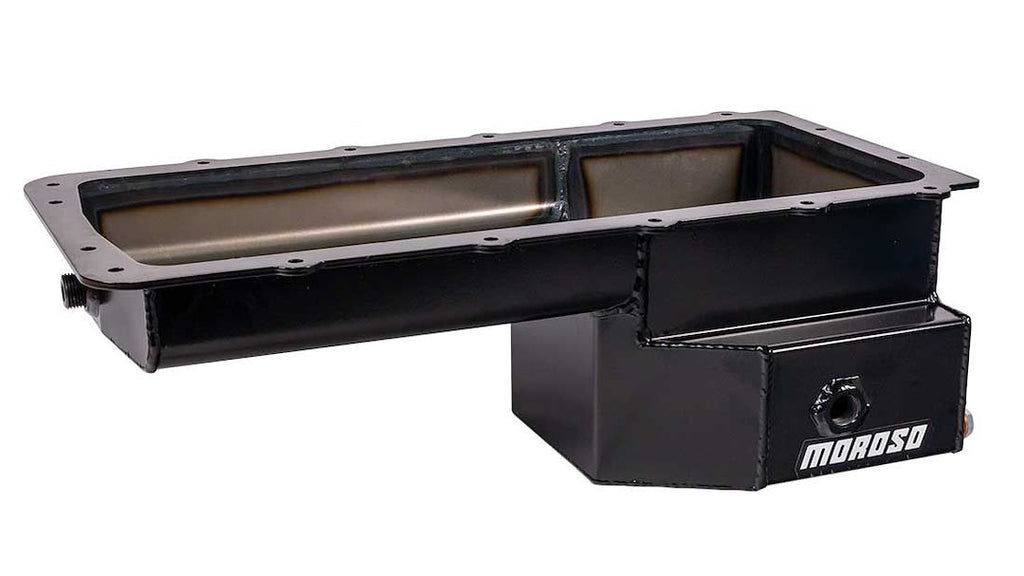

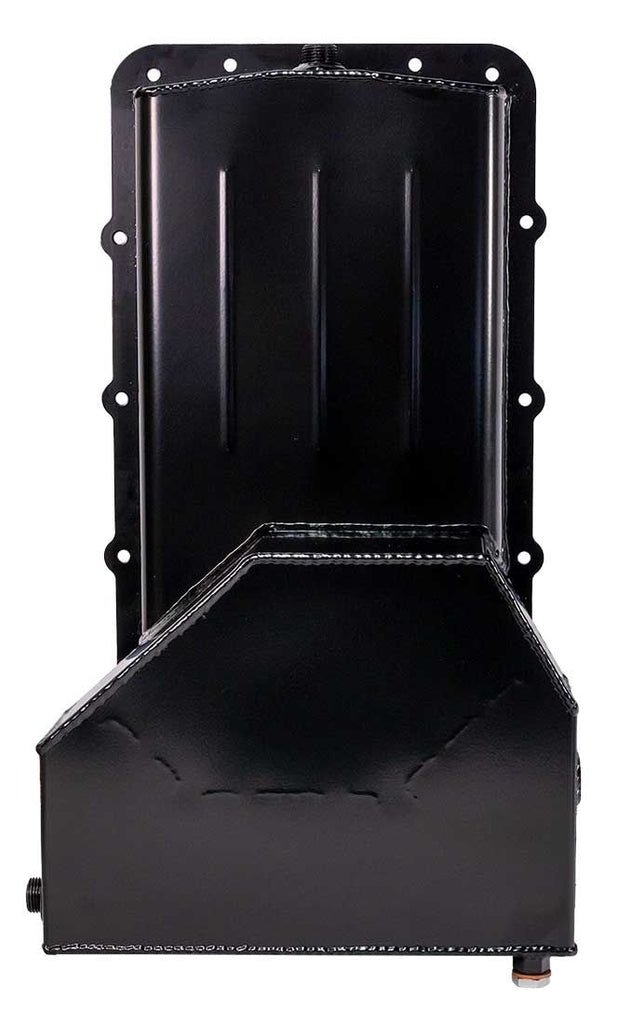

The Moroso Performance Oil Pan is engineered specifically for Ford 5.0 Coyote engines, offering a capacity of 7.5 quarts. This rear wet sump oil pan features a robust construction with a thick steel or billet aluminum rail, ensuring durability and reliability under demanding conditions. The powder-coated black finish provides additional protection against corrosion while maintaining a sleek appearance.
Designed with performance in mind, this oil pan includes a race-proven trap door assembly and an anti-slosh baffle that effectively keeps oil contained in the pump pickup area during both road racing and street/strip applications. The inclusion of a 1/2 inch NPT fitting allows for easy supercharger drain back, enhancing the overall functionality of the system.
With a depth of 6-5/8 inches and a rear main seal style of 1-piece, this oil pan is optimized for performance without compromising on essential features. The design also accommodates a 20 millimeter fitting for the factory oil level sensor, ensuring accurate monitoring of oil levels during operation.
Features
- Pan Has A Thick Steel Or Billet Aluminum Rail
- Steel With A Clear Zinc Finish

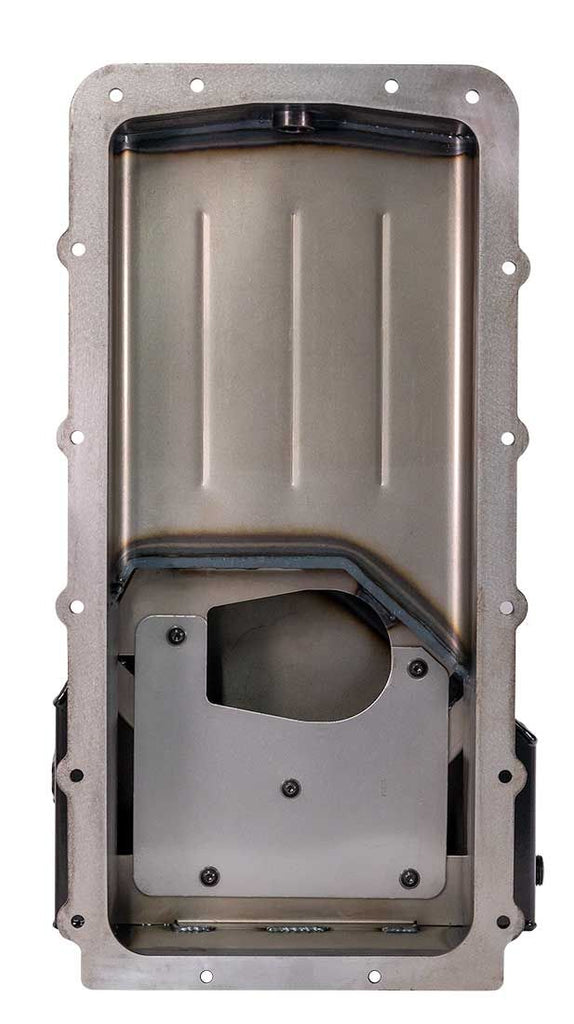

- Features A Race Proven, Trap Door Assembly And Anti-Slosh Baffle That Keeps Oil Contained In The Oil Pump Pickup Area During Road Racing And Street/ Strip Usage
- 20 Millimeter Fitting For The Factory Oil Level Sensor
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20575
- Recommended Use: Road Race
- Finish: Powder Coated
- Color: Black
- Material: Steel
- Capacity: 7.5 Quart
- Depth (IN): 6-5/8 Inch
- Baffled: Yes
- Rear Main Seal Style: 1-Piece
- Stroker Clearance: No
- Sump Position: Rear
- Sump Style: Wet
- Dipstick Provision: No
- Dipstick Location: No Dipstick
- Kicked Out: Yes
- Kicked Out Position: Driver And Passenger Side
- Includes Pickup: No
- Includes Crank Scraper: No
- Includes Windage Tray: No
Compatibility / Fit
- 1979-1979 Ford Mustang
- 1982-1993 Ford Mustang
