High-capacity oil pan designed for Ford Coyote and Voodoo engines.

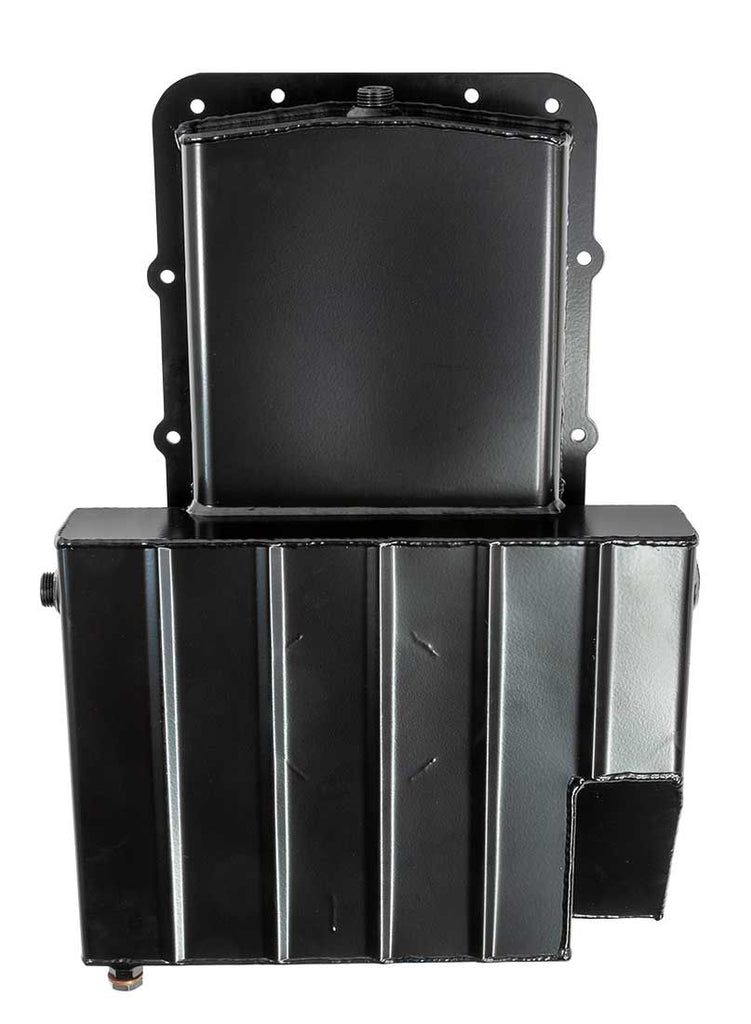

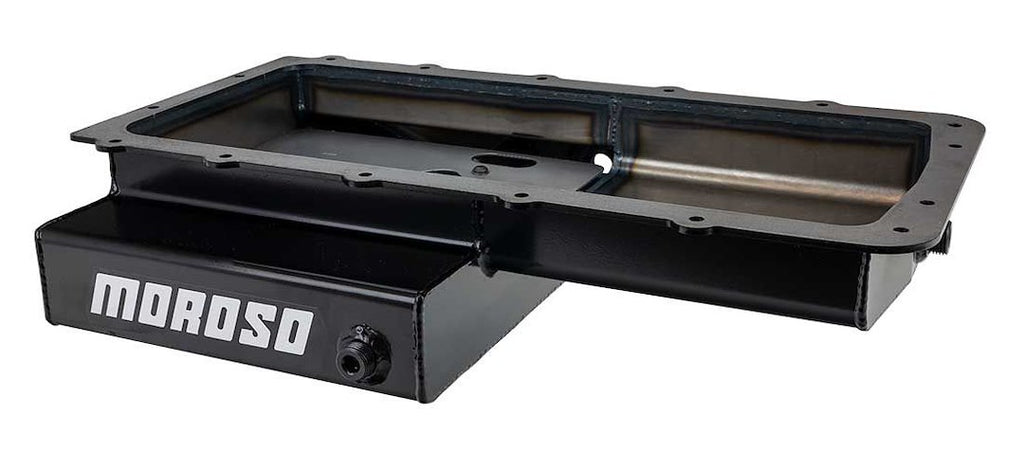

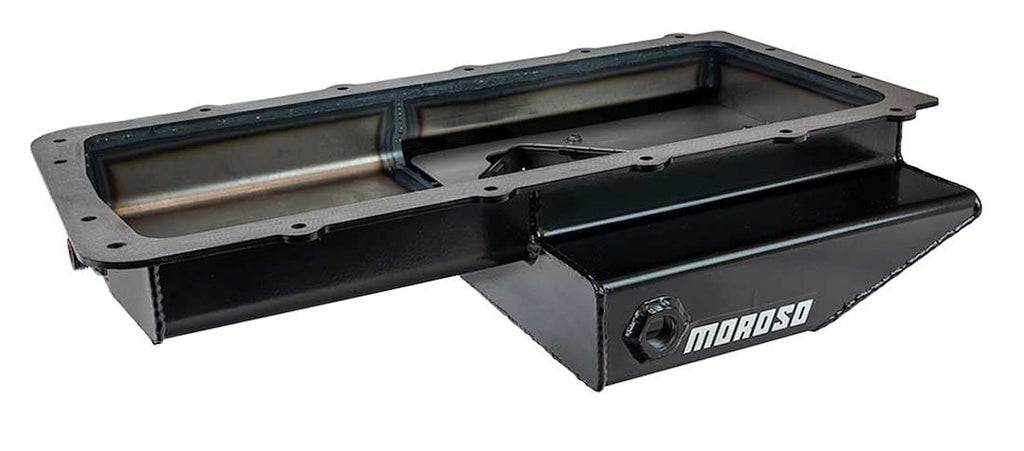

The Moroso Performance Oil Pan is engineered specifically for Ford 5.0L Coyote and 5.2L Voodoo engines, providing a robust solution for high-performance applications. With a capacity of 7.5 quarts, this oil pan features a rear T-sump design that is ideal for Cobra replicas requiring a shallow sump. Constructed from fully fabricated steel and finished with a black powder coat, it ensures durability and resistance to corrosion.

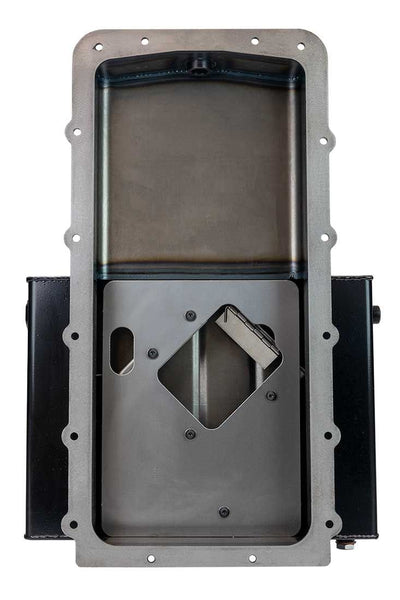

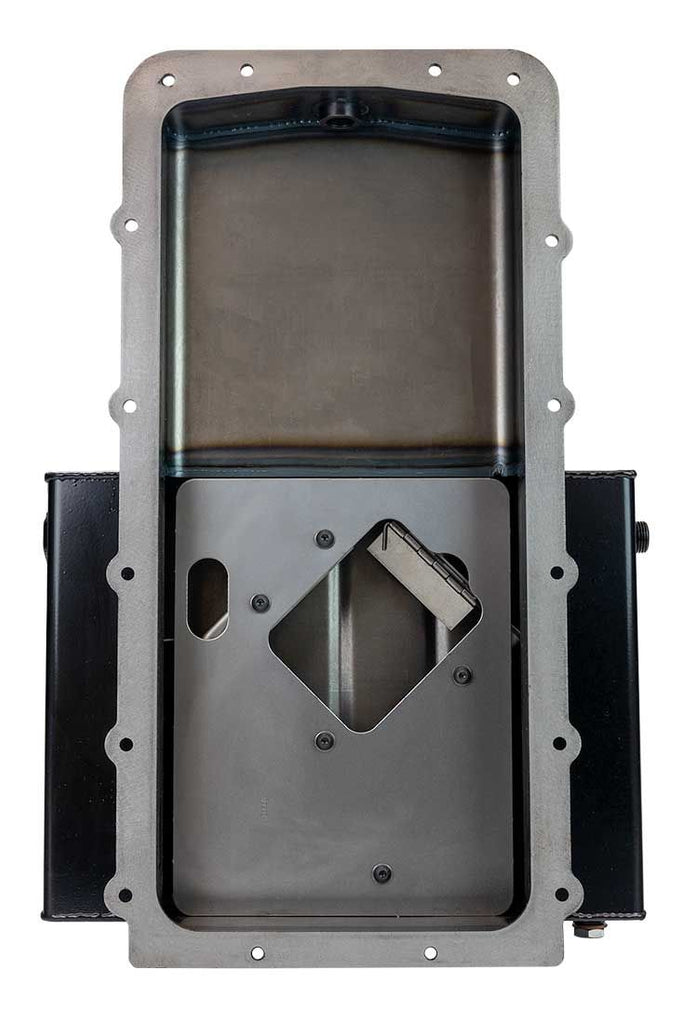

This oil pan incorporates a race-proven four trap door assembly and an anti-slosh baffle, which effectively keeps oil contained in the pump pickup area during intense road racing and drag racing conditions. The design is compatible with factory windage trays and dipsticks, making it a versatile choice for performance enthusiasts.
With a thick steel rail and dimensions of 4-1/2 inches deep, 10-3/4 inches long, and 14-1/2 inches wide at the rear sump, this oil pan is built to withstand the rigors of competitive racing. The inclusion of a dipstick provision on the driver side further enhances its functionality, ensuring that oil levels can be easily monitored.
Features
- Fully Fabricated Steel With A Black Powder Coat Finish
- Designed For Cobra Replicas That Require A Shallow Rear Sump Oil Pan
- Features A Race-Proven Four Trap Door Assembly And Anti-Slosh Baffle That Keeps Oil Contained In Oil Pump Pickup Area During Road Racing And Drag Racing
- Designed To Be Used With The 5.0 Coyote And 5.2 Voodoo Gen 1 Or 2 Factory Windage Tray And Dipstick

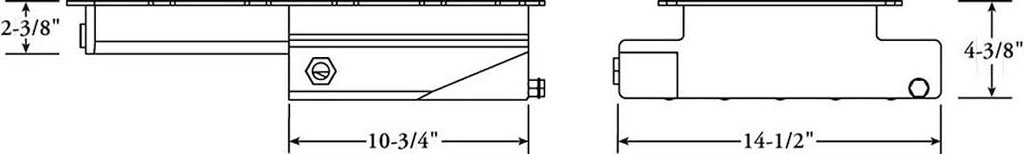

- Oil Pan Has A Thick Steel Rail With A 4-1/2 Inch Deep 10-3/4 Inch Long By 14-1/2 Inch Wide Rear Sump
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20568
- Recommended Use: Road Race
- Finish: Powder Coated
- Color: Black
- Material: Steel
- Capacity: 7.5 Quart
- Depth (IN): 4-3/8 Inch
- Baffled: Yes
- Stroker Clearance: No
- Drain Plug Thread Size: 1/2 Inch NPT
- Sump Position: Rear
- Sump Style: Wet
- Dipstick Provision: Yes
- Dipstick Location: Driver Side
- Kicked Out: Yes
- Includes Pickup: No
- Includes Crank Scraper: No
- Includes Windage Tray: No
Compatibility / Fit
- 2011-2023 Ford F-150
- 2011-2023 Ford Mustang
