High-capacity oil pan designed for Ford 351W engines with advanced features.

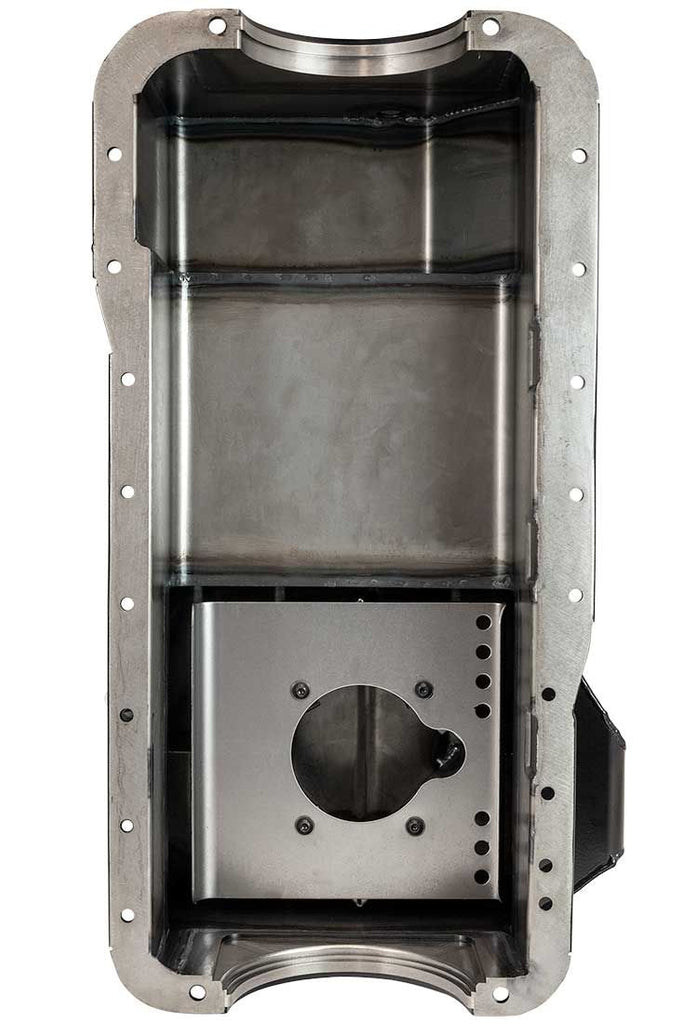

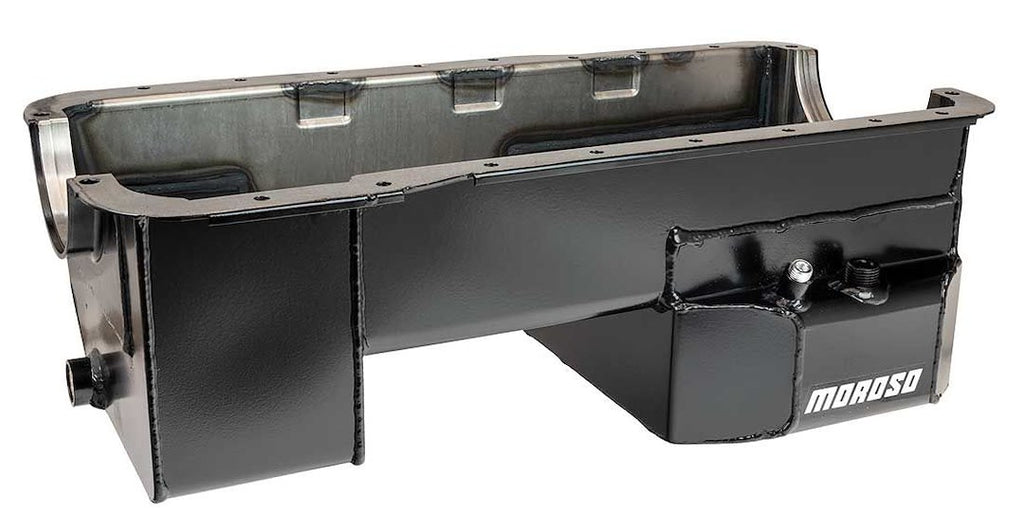

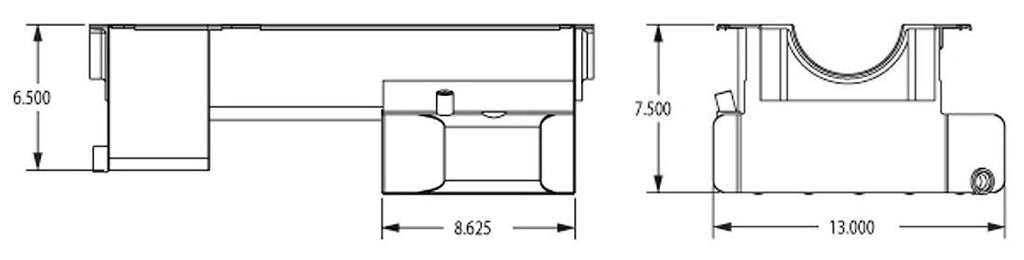

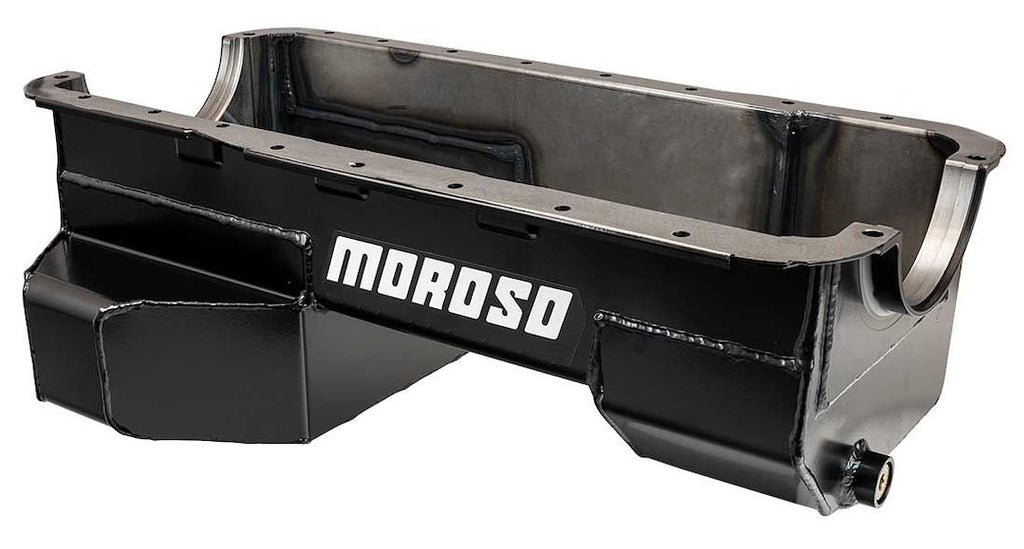

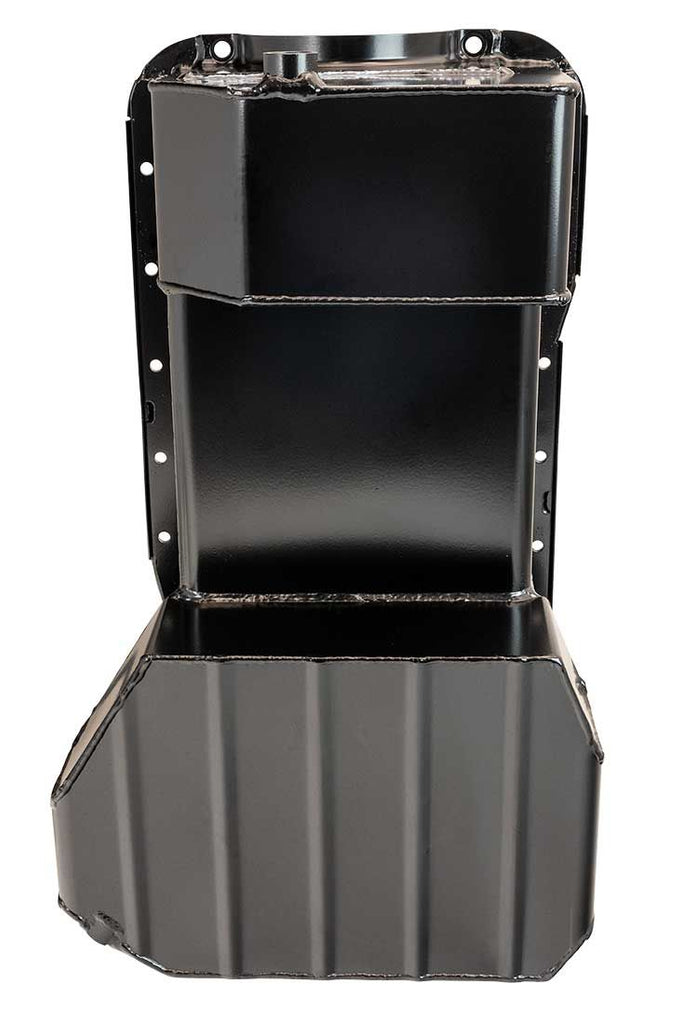

The Moroso Performance Oil Pan is engineered specifically for Ford 351W engines, providing a robust solution for road racing applications. With a capacity of 7 quarts, this oil pan is designed to clear all 4-bolt main caps, accommodating most steel rods and ensuring optimal performance under demanding conditions. The rear wet sump design features a sump depth of 7.5 inches and a length of 13 inches, making it suitable for various racing setups.
Constructed from fully fabricated steel and finished with a durable powder coating in black, this oil pan includes a diamond-shaped four trap door assembly and a removable anti-slosh baffle. These features enhance oil control, reducing the risk of oil starvation during high-speed maneuvers. Additionally, the pan is equipped with a 1/4 inch NPT dipstick provision and a 1/2 inch NPT oil temperature bung, allowing for precise monitoring of oil levels and temperature.
Moroso Performance Products is recognized for its commitment to quality and innovation in automotive equipment, serving a diverse range of customers from grassroots racers to professional teams. This oil pan exemplifies their dedication to performance, providing essential features that support the demands of competitive racing.
Features
- Clears 4 Inch Stroke With Most Steel Rods
- Diamond-Shaped Four Trap Door Assembly And Removable Anti-Slosh Baffle For Improved Oil Control In All Conditions
- Clears All 4-Bolt Main Caps, Including Front And Rear
- Fully Fabricated Steel With Billet End Seals For Improved Sealing
- 1/4 Inch NPT Dipstick Provision And 1/2 Inch NPT Oil Temperature Bung
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20534
- Recommended Use: Road Race
- Finish: Powder Coated
- Color: Black
- Material: Steel
- Capacity: 7 Quart
- Depth (IN): 7-1/2 Inch
- Baffled: Yes
- Stroker Clearance: Yes
- Drain Plug Thread Size: 1/2 Inch NPT
- Sump Position: Rear
- Sump Style: Wet
- Dipstick Provision: Yes
- Dipstick Location: Drivers Side
- Kicked Out: No
- Kicked Out Position: Passenger Side
- Includes Pickup: No
- Includes Crank Scraper: No
Compatibility / Fit
- 1979-2026 Ford Mustang
- 1981-1988 Ford Thunderbird
- 1979-1986 Mercury Capri
- 1981-1988 Mercury Cougar
