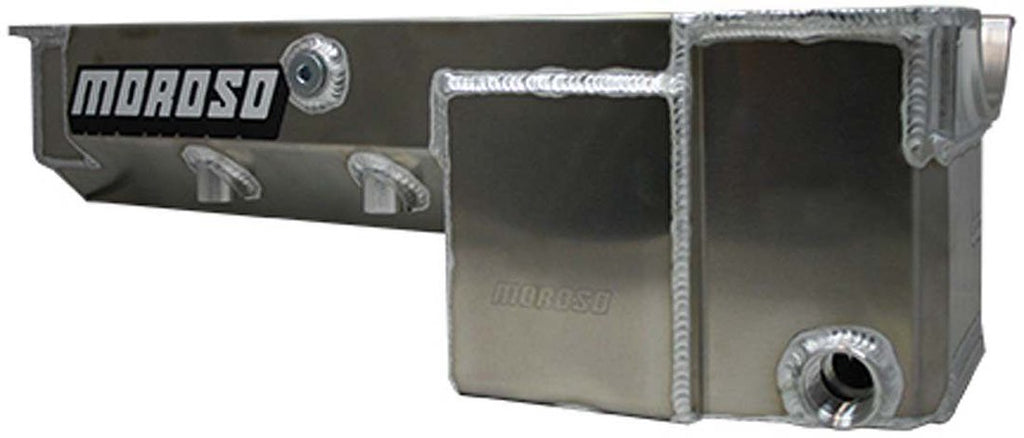

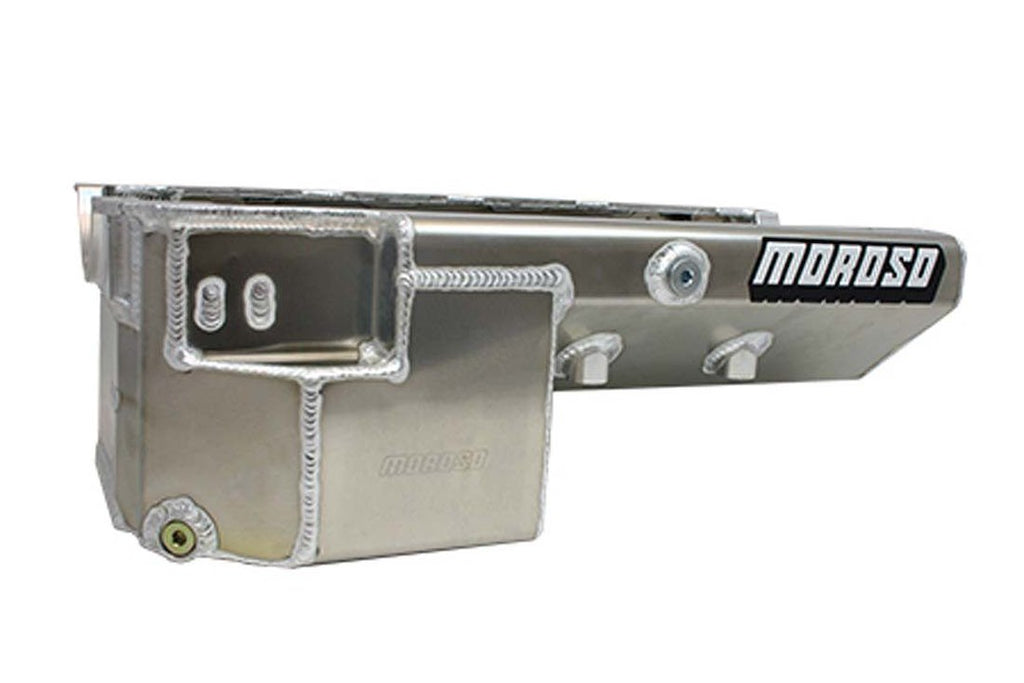

High-capacity aluminum oil pan for Gen IV Big Block Chevy engines
The Moroso Performance Oil Pan is engineered specifically for Gen IV Big Block Chevy engines equipped with a 168 tooth flexplate. This oil pan is designed for competitive applications such as Competition Eliminator, Super Gas, Super Comp, and Bracket Cars, providing a 7 quart capacity to ensure optimal oil supply during high-performance driving. The 8 inch sump depth and external oil pump compatibility enhance its utility in demanding racing environments.
Constructed from fully fabricated aluminum, this oil pan features billet end seals that guarantee a consistent sealing surface with billet front covers and rear main caps. The double kick-out design accommodates up to a 4.75 inch stroke with aluminum rods, allowing for wide main cap clearance and maximizing horsepower potential. Additionally, the full-length solid louvered windage tray with main cap partitions aids in oil control and power efficiency.
The oil pan includes a sump-mounted billet aluminum pickup that accepts a -16AN male fitting, ensuring reliable oil delivery. It is equipped with a one O-ring magnetic drain plug, two -8AN drain backs, and an alternator notch for added convenience. The pump adjustment bung with plug further enhances its functionality, making it a comprehensive solution for serious racers.
Features
- Designed To Be Used With A External Oil Pump, Oil Pan Has A Sump Mounted Billet Aluminum Pickup That Accepts A -16AN Male Fitting
- Fully Fabricated Aluminum With Billet End Seals To Ensure Consistent Sealing Surface To Billet Front Covers And Rear Main Caps
- Utilizes “race” Pan Rail Bolt Pattern, Recommended Oil Pan Gasket
- Double Kick-Out Design Ensures Up To 4.75 Inch Stroke With Aluminum Rods, Wide Main Cap Clearance And Maximum Horsepower

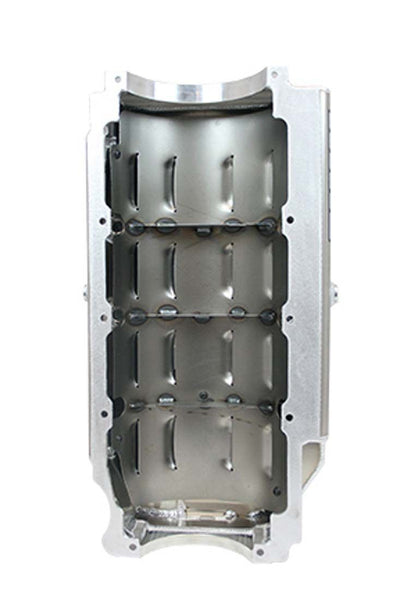

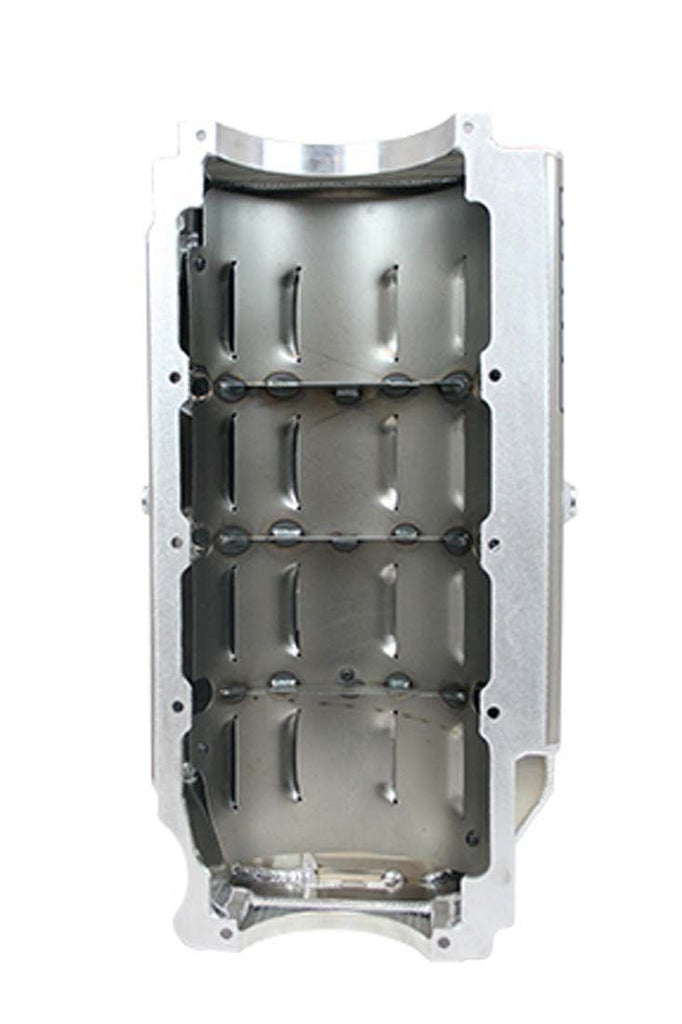

- Full Length Solid Louvered Windage Tray With Main Cap Partitions For Maximum Power And Oil Control
- Features One O-Ring Magnetic Drain Plug, Two –8AN Drain Backs, Alternator Notch
- Pump Adjustment Bung With Plug
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20486
- Recommended Use: Competition Eliminator/ Super Gas/ Super Comp/ Bracket Cars
- Color: Silver
- Material: Aluminum
- Capacity: 7 Quart
- Depth (IN): 8 Inch
- Sump Style: Wet
- Dipstick Provision: Yes
- Kicked Out: Yes
- Includes Pickup: Yes
- Includes Windage Tray: Yes
Compatibility / Fit
- 1900-1900 Chevrolet Big Block 1965-1990 Gen IV
