Moroso Performance Oil Pan (MPN: 20385)

Engineered for Drag Racing with Advanced Oil Control Features

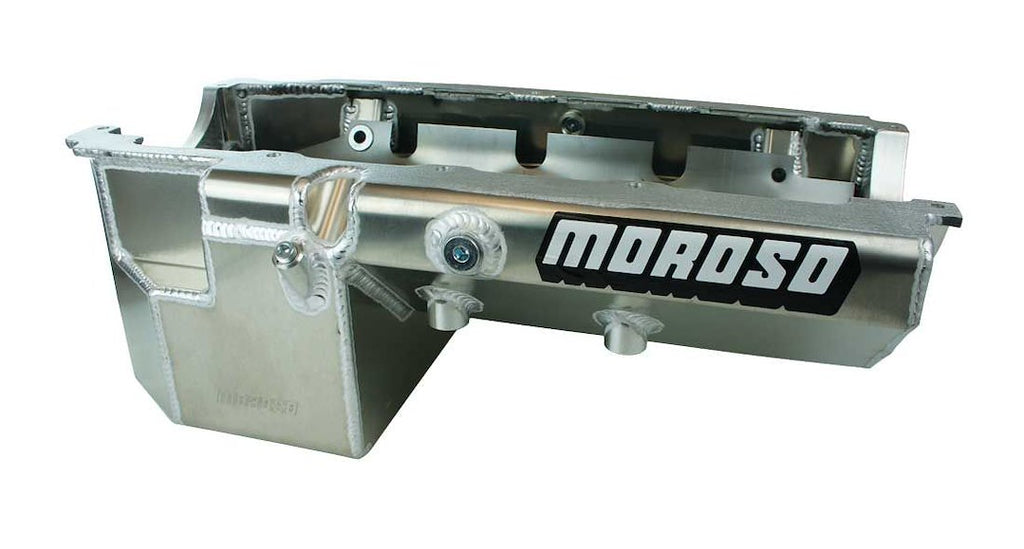

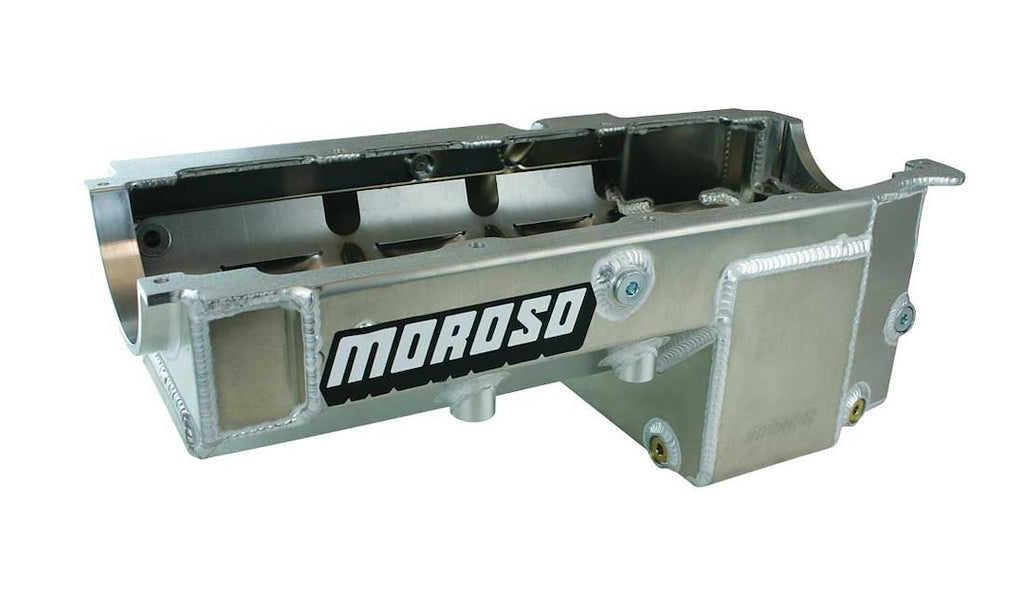

The Moroso Performance Oil Pan is specifically designed for Mark IV Big Block Chevy engines, accommodating up to a 4.75 inch stroke with aluminum rods. This oil pan features a capacity of 7 quarts and incorporates a double kick out design that ensures ample stroke clearance and wide main cap clearance, optimizing horsepower and performance. Constructed from fully fabricated aluminum, it utilizes a race pan rail bolt pattern for secure installation and reliability.

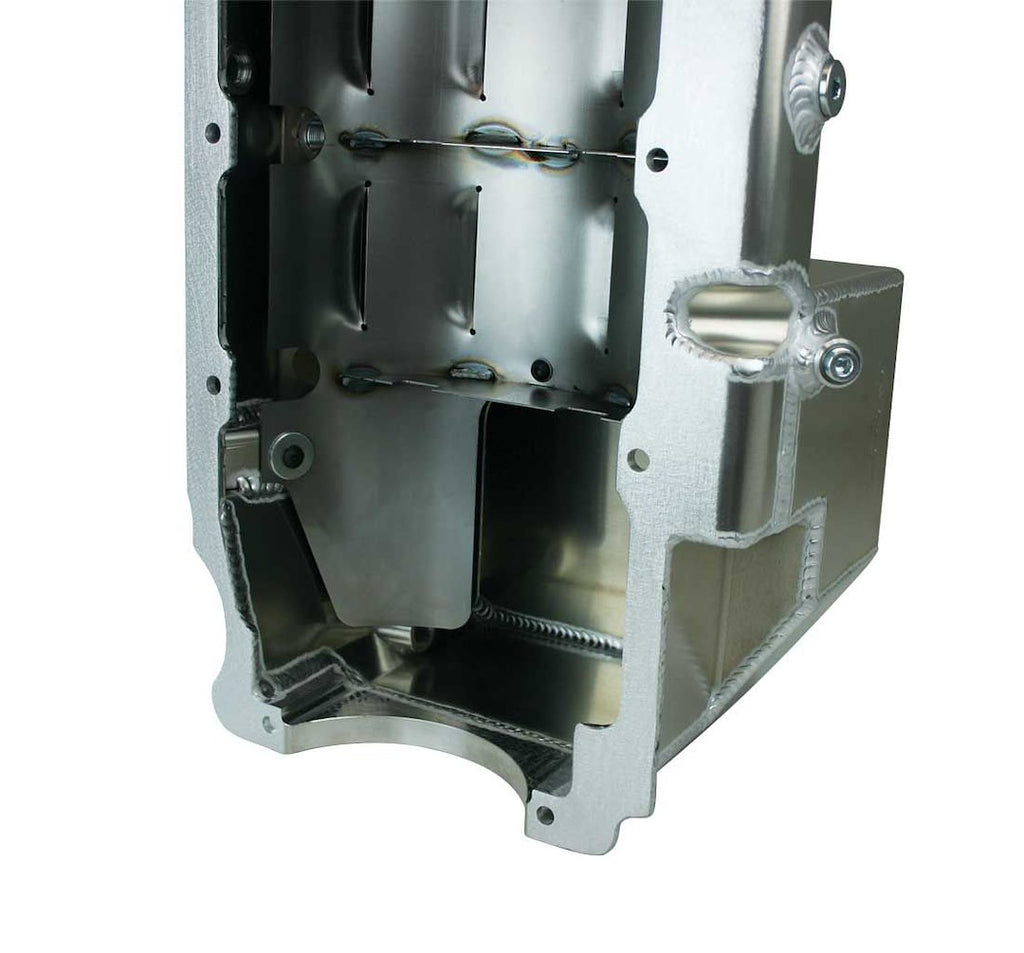

The solid louvered tray with main cap partitions enhances oil control and power delivery, making it a critical component for serious drag racing applications. The sump design is compatible with Moroso spur gear and gerotor billet oil pumps, ensuring efficient oil circulation. Additionally, the billet end seals provide a consistent sealing surface to both billet front covers and rear main caps, further enhancing the oiling system's integrity.

With an 8 inch sump depth and 9-7/8 inch sump length, this wet sump oil pan is baffled to prevent oil starvation during high-speed maneuvers. The rear sump position and included windage tray contribute to effective oil management, while the dipstick provision on the passenger side allows for easy monitoring of oil levels. Moroso's commitment to quality and precision engineering ensures that this oil pan meets the rigorous demands of competitive racing.

Features

• Fully Fabricated, Aluminum; Utilizes "Race" Pan Rail Bolt Pattern
• Double Kick Out Design Ensures Large Stroke Clearance, Wide Main Cap Clearance And Maximum Horsepower

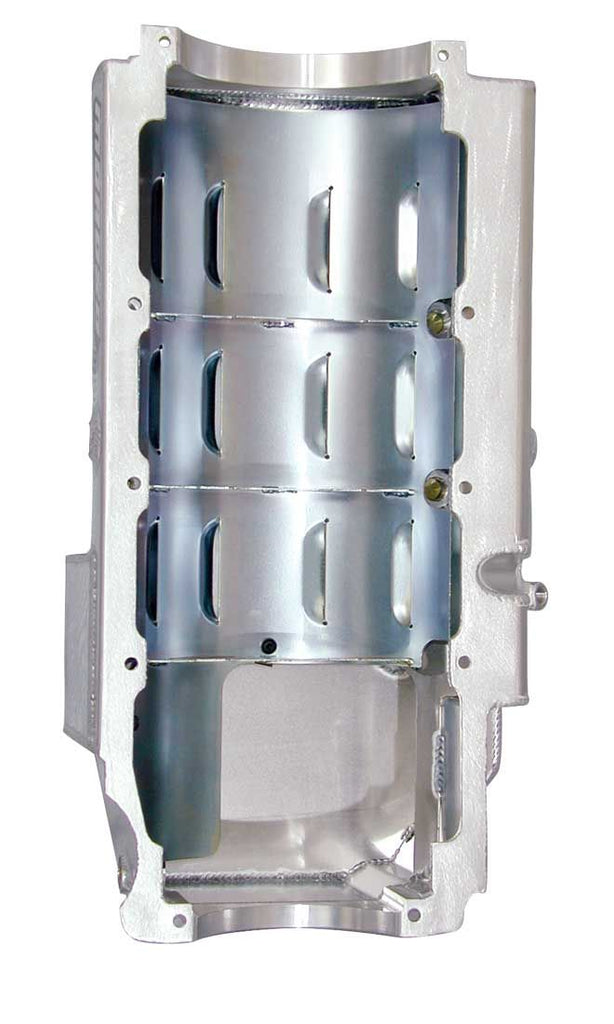

• Solid Louvered Tray With Main Cap Partitions For Maximum Power And Oil Control
• Sump Design Works With Moroso Spur Gear And Gerotor Billet Oil Pumps
• Billet End Seals Ensure Consistent Sealing Surface To Billet Front Covers And Rear Main Caps
• Accepts 4.75 Inch Stroke With Aluminum Rods

Specifications

• Manufacturer: Moroso Performance
• Manufacturer Part Number: 20385
• Recommended Use: Drag Race
• Material: Aluminum
• Capacity: 7 Quart
• Depth (IN): 8 Inch
• Baffled: Yes
• Rear Main Seal Style: 2-Piece
• Stroker Clearance: Yes
• Drain Plug Thread Size: 1/2 Inch-20
• Sump Position: Rear
• Sump Style: Wet
• Dipstick Provision: Yes
• Dipstick Location: Passenger Side
• Kicked Out: Yes
• Kicked Out Position: No Kicked Out
• Includes Pickup: No
• Includes Crank Scraper: No
• Includes Windage Tray: Yes

Compatibility / Fit

• 1965-1975 Chevrolet Bel Air
• 1900-1900 Chevrolet Big Block 1965-1990 Gen IV
• 1965-1972 Chevrolet Biscayne
• 1973-1974 Chevrolet Blazer
• 1969-1972 Chevrolet Brookwood
• 1975-1980 Chevrolet C10
• 1968-1974 Chevrolet C10 Pickup
• 1968-1980 Chevrolet C10 Suburban
• 1990-1993 Chevrolet C1500
• 1975-1986 Chevrolet C20
• 1968-1974 Chevrolet C20 Pickup
• 1968-1986 Chevrolet C20 Suburban
• 1991-1995 Chevrolet C2500
• 1992-1995 Chevrolet C2500 Suburban
• 1975-1986 Chevrolet C30
• 1968-1974 Chevrolet C30 Pickup
• 1988-1995 Chevrolet C3500
• 1967-1972 Chevrolet Camaro
• 1966-1976 Chevrolet Caprice
• 1965-1973 Chevrolet Chevelle
• 1968-1968 Chevrolet Chevy II
• 1965-1974 Chevrolet Corvette
• 1966-1975 Chevrolet El Camino
• 1969-1970 Chevrolet Estate
• 1973-1974 Chevrolet G10 Van
• 1976-1976 Chevrolet G20
• 1973-1974 Chevrolet G20 Van
• 1975-1976 Chevrolet G30
• 1988-1996 Chevrolet G30
• 1973-1974 Chevrolet G30 Van
• 1965-1976 Chevrolet Impala
• 1976-1976 Chevrolet K10
• 1980-1980 Chevrolet K10
• 1968-1974 Chevrolet K10 Pickup
• 1968-1974 Chevrolet K10 Suburban
• 1976-1978 Chevrolet K20
• 1968-1974 Chevrolet K20 Pickup
• 1968-1974 Chevrolet K20 Suburban
• 1985-1985 Chevrolet K20 Suburban
• 1991-1995 Chevrolet K2500
• 1992-1995 Chevrolet K2500 Suburban
• 1977-1977 Chevrolet K30
• 1980-1986 Chevrolet K30
• 1968-1974 Chevrolet K30 Pickup
• 1988-1995 Chevrolet K3500
• 1976-1978 Chevrolet K5 Blazer
• 1969-1972 Chevrolet Kingswood
• 1973-1975 Chevrolet Laguna
• 1973-1975 Chevrolet Malibu
• 1970-1975 Chevrolet Monte Carlo
• 1969-1972 Chevrolet Nova
• 1973-1973 Chevrolet P10 Van
• 1976-1976 Chevrolet P20
• 1979-1979 Chevrolet P20
• 1970-1971 Chevrolet P20 Van
• 1973-1973 Chevrolet P20 Van
• 1975-1997 Chevrolet P30
• 1970-1971 Chevrolet P30 Van
• 1973-1974 Chevrolet P30 Van
• 1987-1988 Chevrolet R20
• 1987-1988 Chevrolet R20 Suburban
• 1989-1989 Chevrolet R2500
• 1989-1991 Chevrolet R2500 Suburban
• 1987-1988 Chevrolet R30
• 1989-1991 Chevrolet R3500
• 1969-1972 Chevrolet Townsman
• 1987-1988 Chevrolet V20 Suburban
• 1990-1990 Chevrolet V2500 Suburban
• 1987-1988 Chevrolet V30
• 1989-1991 Chevrolet V3500
• 1972-1979 Excalibur Phaeton
• 1975-1978 GMC C15
• 1975-1978 GMC C15 Suburban
• 1968-1974 GMC C15/C1500 Pickup
• 1968-1974 GMC C15/C1500 Suburban
• 1979-1980 GMC C1500
• 1979-1980 GMC C1500 Suburban
• 1975-1978 GMC C25
• 1975-1978 GMC C25 Suburban
• 1968-1974 GMC C25/C2500 Pickup
• 1968-1974 GMC C25/C2500 Suburban
• 1979-1986 GMC C2500
• 1991-1995 GMC C2500
• 1979-1986 GMC C2500 Suburban
• 1992-1995 GMC C2500 Suburban
• 1975-1978 GMC C35
• 1968-1974 GMC C35/C3500 Pickup
• 1979-1986 GMC C3500
• 1988-1995 GMC C3500
• 1975-1976 GMC G25
• 1976-1976 GMC G35
• 1973-1974 GMC G35/G3500 Van
• 1988-1996 GMC G3500
• 1973-1974 GMC Jimmy
• 1976-1976 GMC Jimmy
• 1976-1976 GMC K15
• 1968-1974 GMC K15/K1500 Pickup
• 1968-1974 GMC K15/K1500 Suburban
• 1980-1980 GMC K1500
• 1976-1978 GMC K25
• 1976-1977 GMC K25 Suburban
• 1968-1974 GMC K25/K2500 Pickup
• 1968-1974 GMC K25/K2500 Suburban
• 1991-1995 GMC K2500
• 1992-1995 GMC K2500 Suburban
• 1968-1974 GMC K35/K3500 Pickup
• 1979-1986 GMC K3500
• 1988-1995 GMC K3500
• 1979-1979 GMC P1500
• 1970-1971 GMC P25/P2500 Van
• 1975-1978 GMC P35
• 1970-1971 GMC P35/P3500 Van
• 1973-1974 GMC P35/P3500 Van
• 1979-1997 GMC P3500
• 1987-1989 GMC R2500
• 1987-1991 GMC R2500 Suburban
• 1987-1991 GMC R3500
• 1971-1975 GMC Sprint
• 1987-1991 GMC V3500
• 1969-1974 Iso Grifo

Technical Documents

• unipan_inst.pdf
