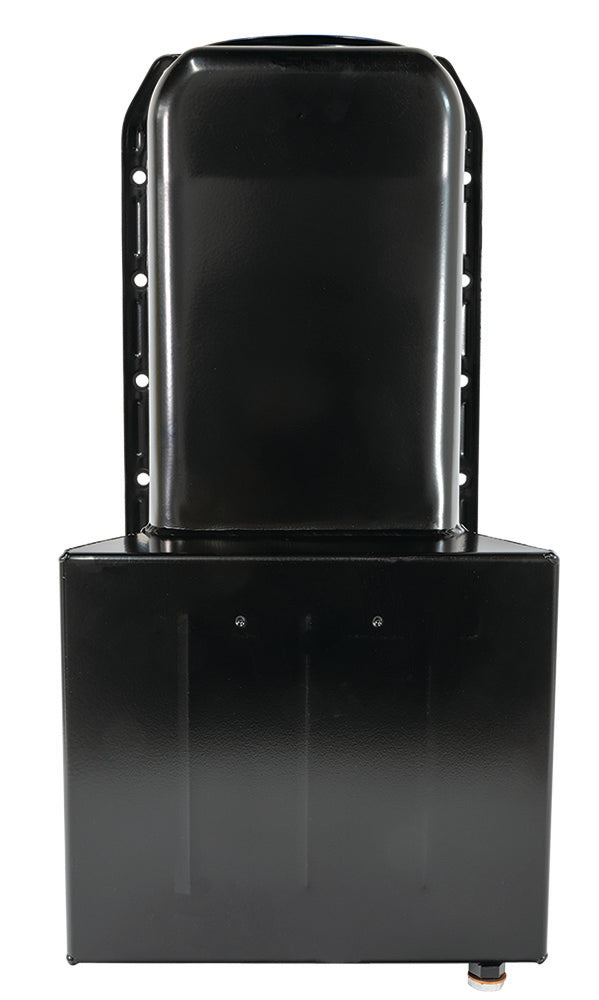

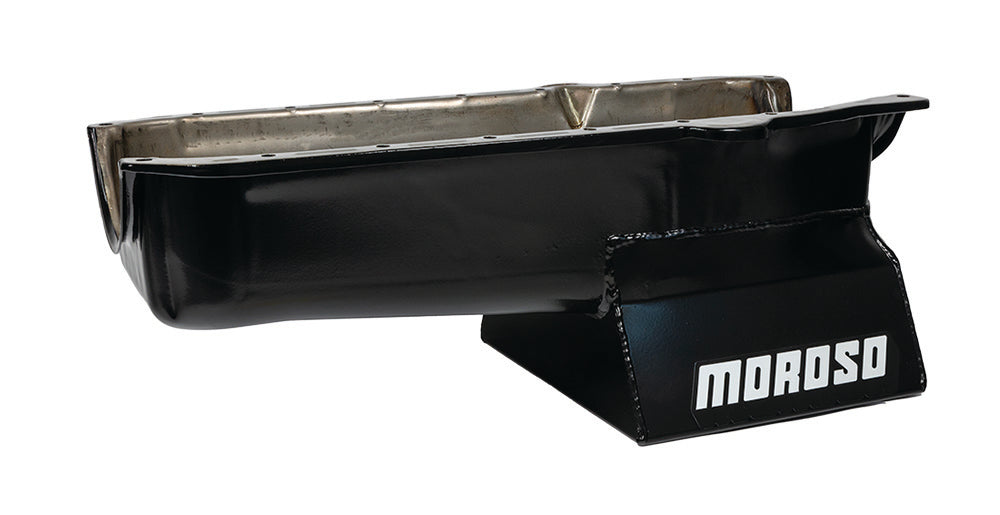

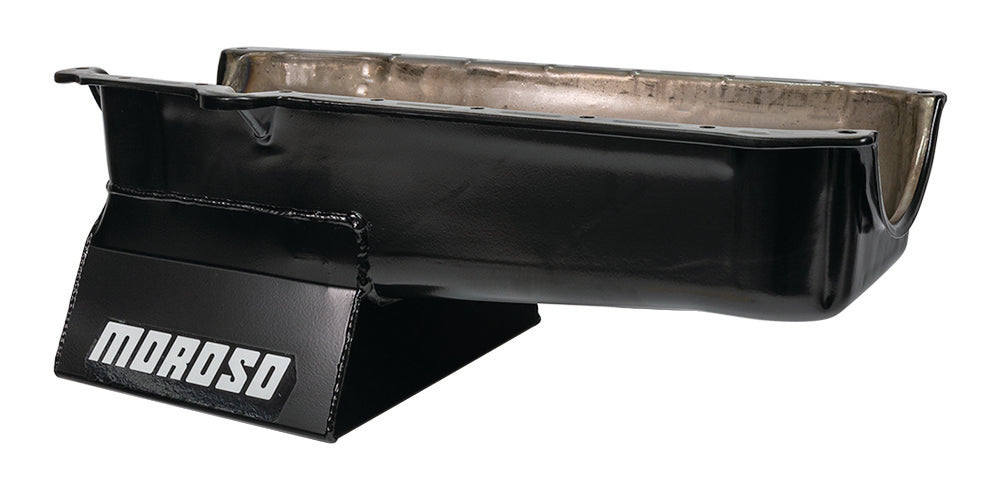

Moroso Performance Oil Pan (MPN: 20205)

High-capacity oil pan designed for small block Chevy engines.

The Moroso Performance Oil Pan is engineered specifically for 1986 and newer small block Chevy engines, accommodating up to a 4.125 inch stroke with steel rods. This oil pan features a 7-quart capacity and a kicked out sump design, which enhances oil control during high-performance driving conditions. The construction includes a trap door baffle that improves oil management, ensuring consistent lubrication even under extreme conditions.

Crafted from durable steel and finished with a black powder coating, this oil pan is built to withstand the rigors of street and strip applications. It is designed to be compatible with most starter and flywheel combinations, and it will clear most stock exhaust systems as well as popular aftermarket headers. The right side dipstick provision allows for easy access and maintenance.

Moroso has a long-standing reputation for quality and precision in the manufacturing of racing oil pans. Each unit is meticulously welded by skilled craftsmen, ensuring that every oil pan meets the high standards expected by engine builders. This oil pan is part of a comprehensive range of oiling system accessories, all engineered to work seamlessly together, providing a reliable solution for performance enthusiasts.

Features

• Accepts 3.8 Inch Stroke With Steel Rods
• Kicked Out Sump

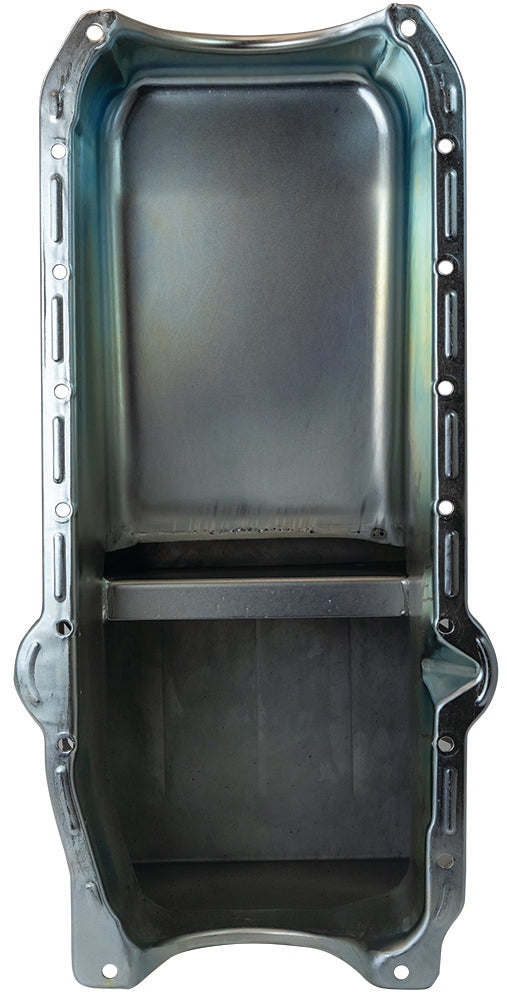

• Trap Door Baffle For Improved Oil Control
• Compatible With Most Starter/Flywheel Combinations
• Will Clear Most Stock Exhaust, Borla, Hedman And Hooker Headers

Specifications

• Manufacturer: Moroso Performance
• Manufacturer Part Number: 20205
• Recommended Use: Street/ Strip
• Finish: Powder Coated
• Color: Black
• Material: Steel
• Capacity: 7 Quart

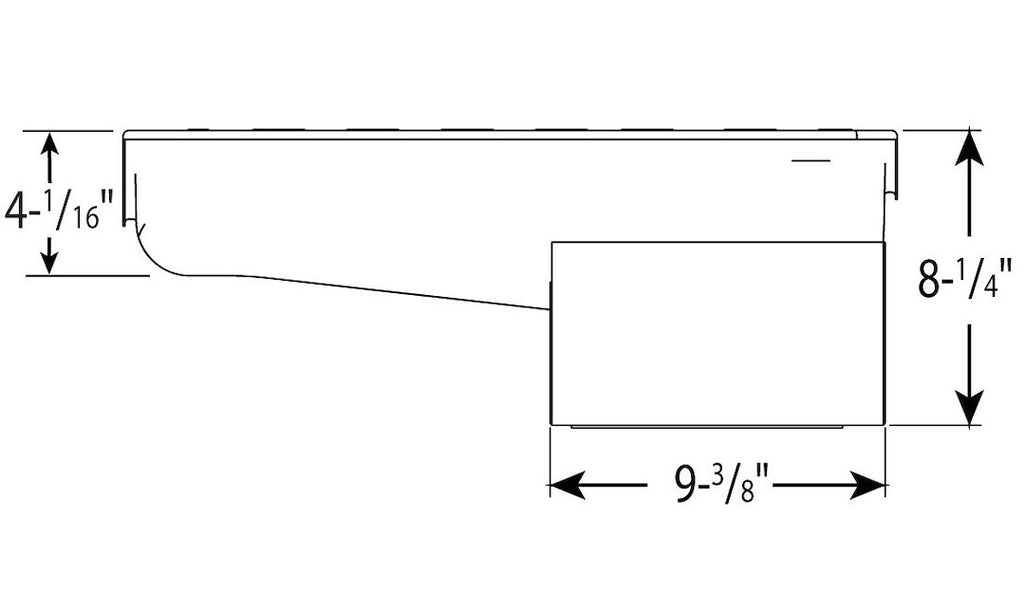

• Depth (IN): 8-1/4 Inch
• Baffled: Yes
• Rear Main Seal Style: 1-Piece
• Stroker Clearance: Yes
• Drain Plug Thread Size: 1/2 Inch-20
• Sump Position: Rear
• Sump Style: Wet
• Dipstick Provision: Yes
• Dipstick Location: Passenger Side
• Kicked Out: Yes
• Kicked Out Position: Driver And Passenger Side
• Includes Pickup: No
• Includes Crank Scraper: No
• Includes Windage Tray: No

Compatibility / Fit

• 1991-1993 Buick Commercial Chassis
• 1991-1993 Buick Roadmaster
• 1990-1992 Cadillac Brougham
• 1992-1993 Cadillac Commercial Chassis
• 1999-2000 Cadillac Escalade
• 1993-1993 Cadillac Fleetwood
• 1987-1994 Chevrolet Blazer
• 1986-1986 Chevrolet C10
• 1986-1986 Chevrolet C10 Suburban
• 1988-1999 Chevrolet C1500
• 1992-1999 Chevrolet C1500 Suburban
• 1986-1986 Chevrolet C20
• 1986-1986 Chevrolet C20 Suburban
• 1988-2000 Chevrolet C2500
• 1992-1999 Chevrolet C2500 Suburban
• 1986-1986 Chevrolet C30
• 1988-2000 Chevrolet C3500
• 1986-1992 Chevrolet Camaro
• 1986-1993 Chevrolet Caprice
• 1991-1993 Chevrolet Commercial Chassis
• 1986-1991 Chevrolet Corvette
• 1986-1987 Chevrolet El Camino
• 1996-2002 Chevrolet Express 1500
• 1996-2002 Chevrolet Express 2500
• 1996-2002 Chevrolet Express 3500
• 1986-1995 Chevrolet G10
• 1986-1995 Chevrolet G20
• 1986-1996 Chevrolet G30
• 1986-1986 Chevrolet K10
• 1986-1986 Chevrolet K10 Suburban
• 1988-1999 Chevrolet K1500
• 1992-1999 Chevrolet K1500 Suburban
• 1986-1986 Chevrolet K20
• 1986-1986 Chevrolet K20 Suburban
• 1988-2000 Chevrolet K2500
• 1992-1999 Chevrolet K2500 Suburban
• 1986-1986 Chevrolet K30
• 1988-2000 Chevrolet K3500
• 1986-1986 Chevrolet K5 Blazer
• 1986-1988 Chevrolet Monte Carlo
• 1986-1989 Chevrolet P20
• 1986-1999 Chevrolet P30
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R10 Suburban
• 1989-1991 Chevrolet R1500 Suburban
• 1987-1988 Chevrolet R20
• 1987-1988 Chevrolet R20 Suburban
• 1989-1991 Chevrolet R2500 Suburban
• 1987-1988 Chevrolet R30
• 1989-1991 Chevrolet R3500
• 1900-1900 Chevrolet Small Block 1987-1998 (OE Roller)
• 1995-2000 Chevrolet Tahoe
• 1987-1987 Chevrolet V10
• 1988-1988 Chevrolet V10 Suburban
• 1989-1991 Chevrolet V1500 Suburban
• 1987-1987 Chevrolet V20
• 1987-1988 Chevrolet V20 Suburban
• 1989-1991 Chevrolet V2500 Suburban
• 1987-1988 Chevrolet V30
• 1989-1991 Chevrolet V3500
• 1986-1986 GMC C1500
• 1988-1999 GMC C1500
• 1986-1986 GMC C1500 Suburban
• 1992-1999 GMC C1500 Suburban
• 1986-1986 GMC C2500
• 1988-2000 GMC C2500
• 1986-1986 GMC C2500 Suburban
• 1992-1999 GMC C2500 Suburban
• 1986-1986 GMC C3500
• 1988-2000 GMC C3500
• 1986-1987 GMC Caballero
• 1986-1995 GMC G1500
• 1986-1995 GMC G2500
• 1986-1996 GMC G3500
• 1986-1991 GMC Jimmy
• 1986-1986 GMC K1500
• 1988-1999 GMC K1500
• 1986-1986 GMC K1500 Suburban
• 1992-1999 GMC K1500 Suburban
• 1986-1986 GMC K2500
• 1988-2000 GMC K2500
• 1986-1986 GMC K2500 Suburban
• 1992-1999 GMC K2500 Suburban
• 1986-1986 GMC K3500
• 1988-2000 GMC K3500
• 1986-1989 GMC P2500
• 1986-1999 GMC P3500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1987-1989 GMC R2500
• 1987-1991 GMC R2500 Suburban
• 1987-1991 GMC R3500
• 1996-2002 GMC Savana 1500
• 1996-2002 GMC Savana 2500
• 1996-2002 GMC Savana 3500
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 1987-1987 GMC V2500
• 1987-1991 GMC V2500 Suburban
• 1987-1991 GMC V3500
• 1992-1999 GMC Yukon
• 1991-1992 Oldsmobile Custom Cruiser
• 1986-1986 Pontiac Bonneville
• 1986-1992 Pontiac Firebird
• 1986-1987 Pontiac Grand Prix
• 1986-1986 Pontiac Parisienne
• 2000-2005 Workhorse P30

Technical Documents

• unipan_inst.pdf
