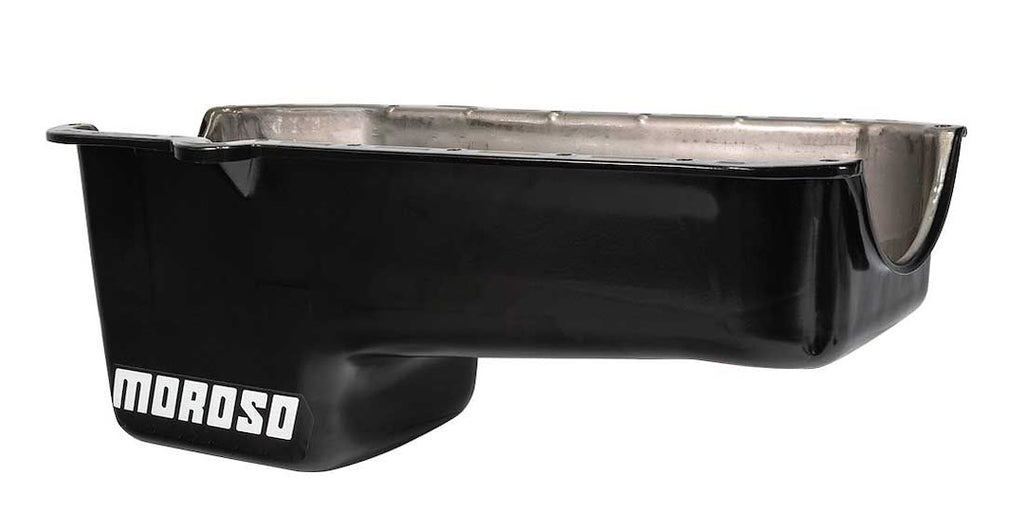

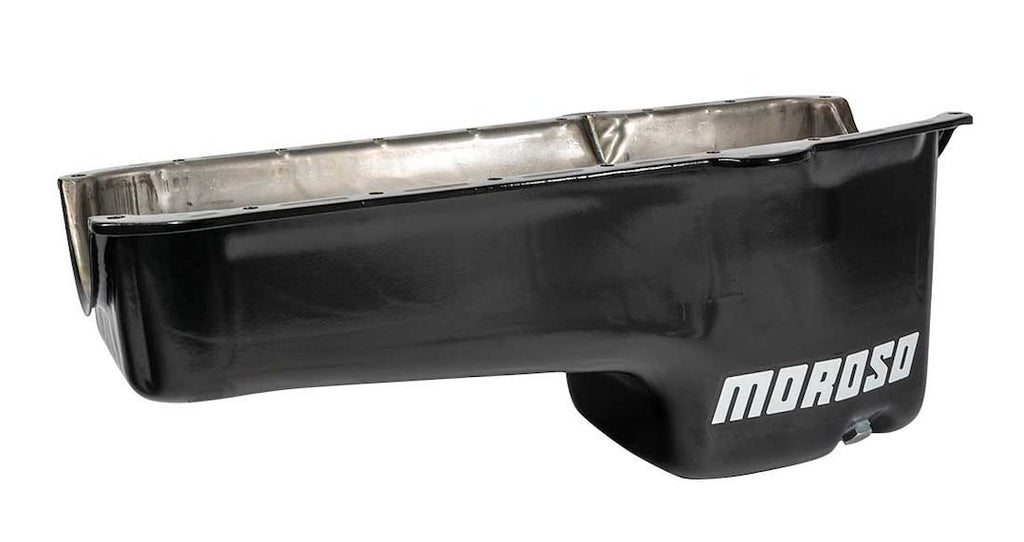

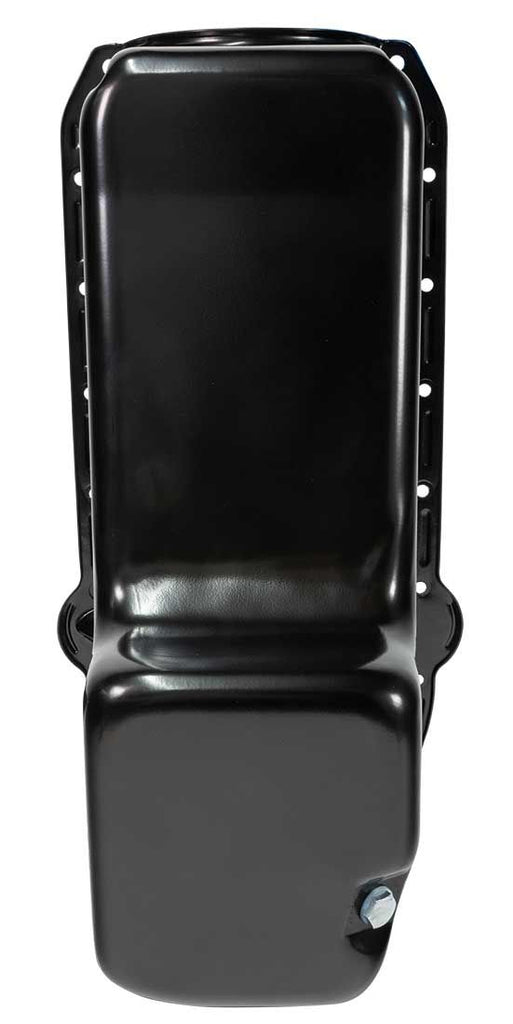

Moroso Performance Oil Pan (MPN: 20181)

High-quality oil pan designed for Small Block Chevy engines.

The Moroso Performance Oil Pan is engineered specifically for 1980-1985 Small Block Chevy engines with up to a 4.125 inch stroke. This oil pan features a capacity of 6 quarts and is designed for street and strip applications. It is constructed from durable steel and finished with a black powder coating for enhanced durability and corrosion resistance. The pan includes a trap door baffle that improves oil control and reduces oil temperature, ensuring optimal performance during operation.

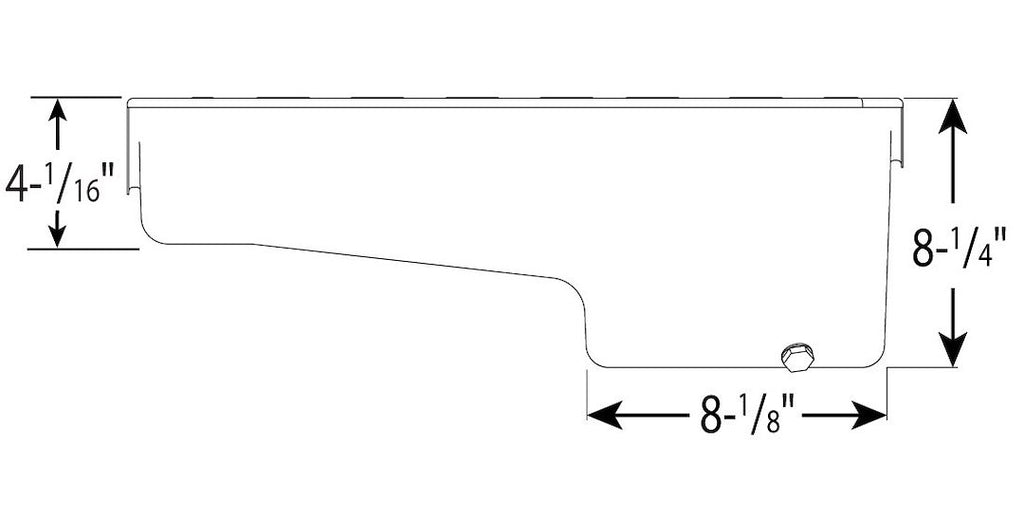

This oil pan is compatible with most starter and flywheel combinations, making it a versatile choice for engine builders. The right side dipstick provision allows for easy access and monitoring of oil levels. With a sump depth of 8-1/4 inches and a sump length of 8-1/8 inches, this wet sump design is tailored to meet the demands of high-performance engines. Moroso's commitment to quality ensures that each oil pan is precision welded by skilled craftsmen, providing reliability and performance for racing enthusiasts.

Features

• Accepts 3.8 Inch Stroke With Steel Rods
• Reduces Oil Temperature

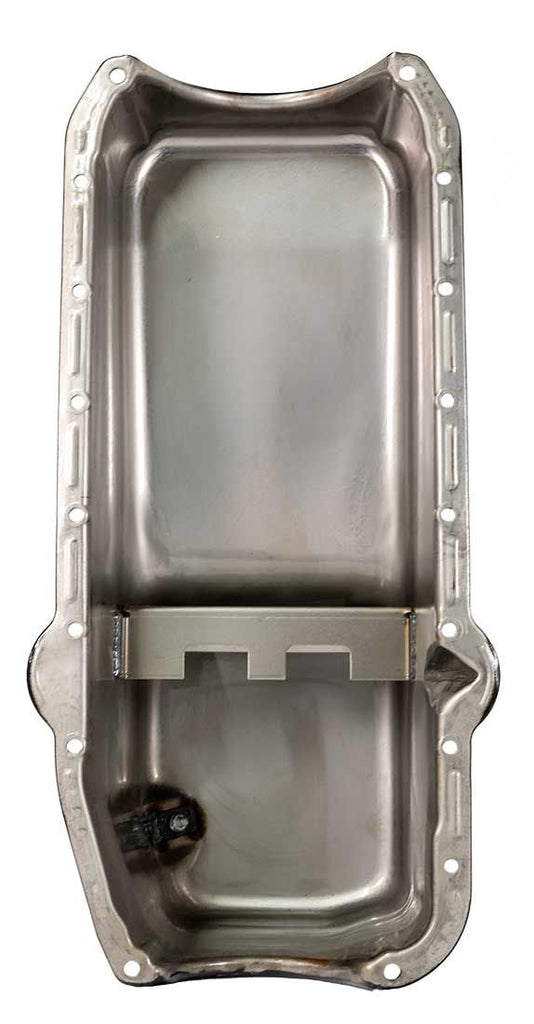

• Trap Door Baffle For Improved Oil Control
• Compatible With Most Starter/Flywheel Combinations

Specifications

• Manufacturer: Moroso Performance
• Manufacturer Part Number: 20181
• Recommended Use: Street/ Strip
• Finish: Powder Coated
• Color: Black
• Material: Steel
• Capacity: 6 Quart
• Depth (IN): 8-1/4 Inch
• Baffled: Yes
• Rear Main Seal Style: 2-Piece
• Stroker Clearance: No
• Drain Plug Thread Size: 1/2 Inch-20
• Sump Position: Rear
• Sump Style: Wet
• Dipstick Provision: Yes
• Dipstick Location: Passenger Side
• Kicked Out: No
• Kicked Out Position: No Kicked Out
• Includes Pickup: No
• Includes Crank Scraper: No
• Includes Windage Tray: No

Compatibility / Fit

• 1980-1981 Buick Century
• 1980-1981 Buick Regal
• 1980-1982 Checker Marathon
• 1980-1985 Chevrolet C10
• 1980-1985 Chevrolet C10 Suburban
• 1980-1985 Chevrolet C20
• 1980-1985 Chevrolet C20 Suburban
• 1980-1985 Chevrolet C30
• 1980-1985 Chevrolet Camaro
• 1980-1985 Chevrolet Caprice
• 1980-1981 Chevrolet Corvette
• 1985-1985 Chevrolet Corvette
• 1980-1985 Chevrolet El Camino
• 1980-1985 Chevrolet G10
• 1980-1985 Chevrolet G20
• 1980-1985 Chevrolet G30
• 1980-1985 Chevrolet Impala
• 1980-1985 Chevrolet K10
• 1980-1985 Chevrolet K10 Suburban
• 1980-1985 Chevrolet K20
• 1980-1985 Chevrolet K20 Suburban
• 1980-1985 Chevrolet K30
• 1980-1985 Chevrolet K5 Blazer
• 1980-1983 Chevrolet Malibu
• 1980-1985 Chevrolet Monte Carlo
• 1980-1985 Chevrolet P20
• 1980-1985 Chevrolet P30
• 1900-1900 Chevrolet Small Block 1955-1986
• 1980-1985 GMC C1500
• 1980-1985 GMC C1500 Suburban
• 1980-1985 GMC C2500
• 1980-1985 GMC C2500 Suburban
• 1980-1985 GMC C3500
• 1980-1985 GMC Caballero
• 1980-1985 GMC G1500
• 1980-1985 GMC G2500
• 1980-1985 GMC G3500
• 1980-1985 GMC Jimmy
• 1980-1985 GMC K1500
• 1980-1985 GMC K1500 Suburban
• 1980-1985 GMC K2500
• 1980-1985 GMC K2500 Suburban
• 1980-1985 GMC K3500
• 1980-1985 GMC P2500
• 1980-1985 GMC P3500
• 1980-1980 Oldsmobile Cutlass
• 1980-1980 Oldsmobile Cutlass Calais
• 1980-1980 Oldsmobile Cutlass Cruiser
• 1982-1982 Oldsmobile Cutlass Cruiser
• 1980-1980 Oldsmobile Cutlass Salon
• 1980-1980 Oldsmobile Cutlass Supreme
• 1980-1981 Pontiac Bonneville
• 1983-1985 Pontiac Bonneville
• 1980-1981 Pontiac Catalina
• 1980-1985 Pontiac Firebird
• 1980-1980 Pontiac Grand Am
• 1980-1981 Pontiac Grand LeMans
• 1980-1981 Pontiac Grand Prix
• 1983-1985 Pontiac Grand Prix
• 1980-1981 Pontiac LeMans
• 1983-1985 Pontiac Parisienne

Technical Documents

• unipan_inst.pdf
