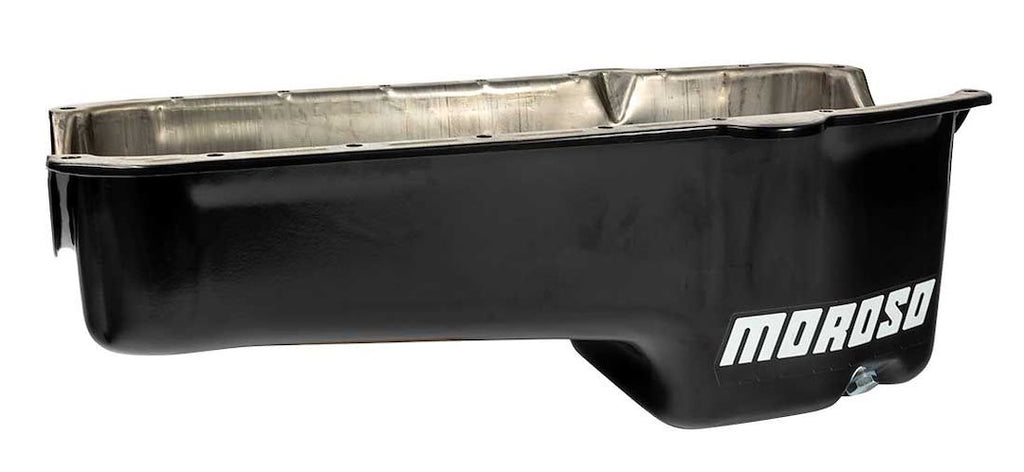

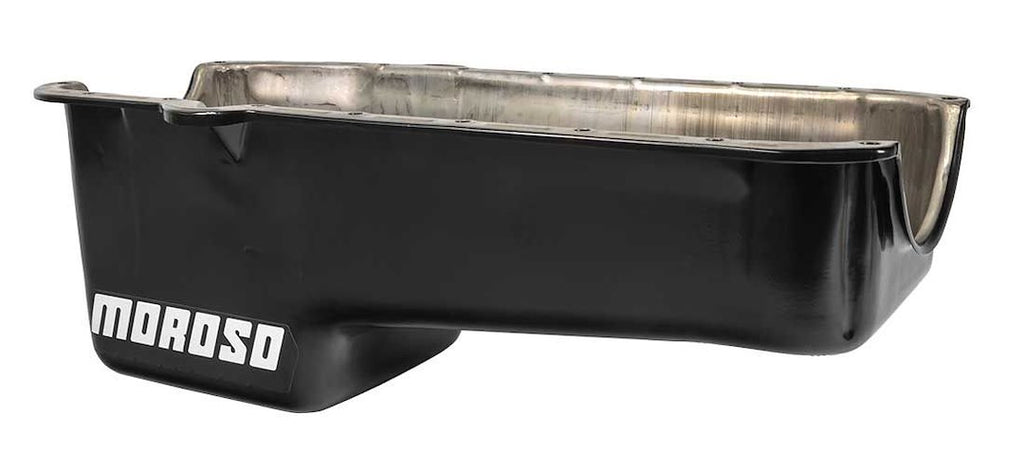

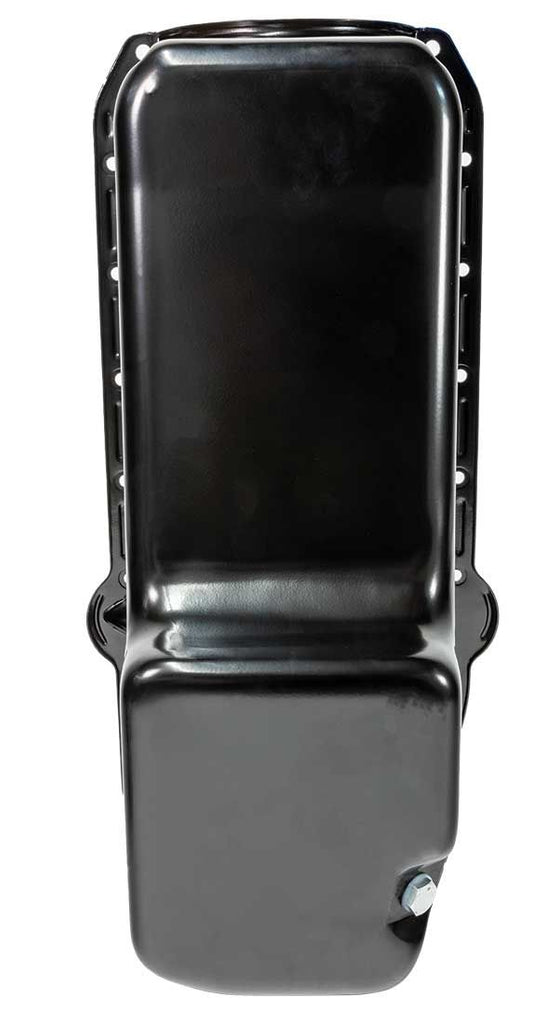

Moroso Performance Oil Pan (MPN: 20171)

Engineered for Small Block Chevy Engines with Enhanced Lubrication

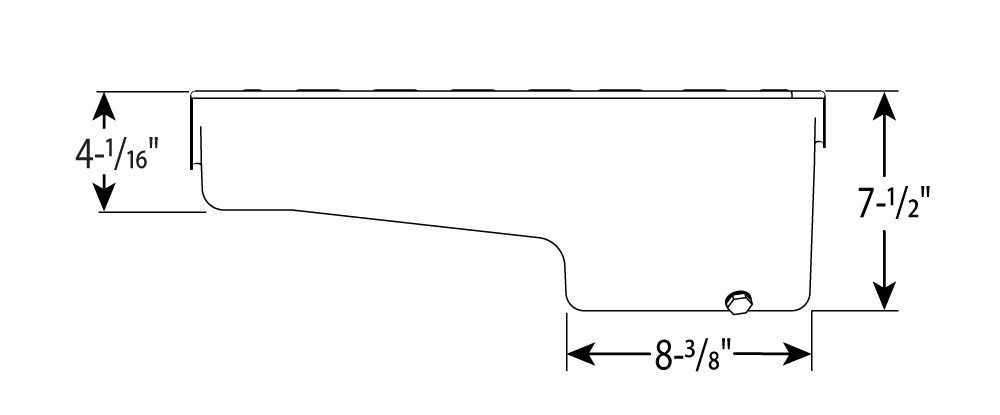

The Moroso Performance Oil Pan is designed specifically for 1980-1985 Small Block Chevy engines, accommodating up to a 4.125 inch stroke with steel rods. This oil pan features a 5 quart capacity and is constructed from durable steel with a black powder coated finish, ensuring longevity and resistance to corrosion. The design includes an 8-3/8 inch deep sump and a 7-1/2 inch sump length, optimized for wet sump applications with a right side dipstick provision.

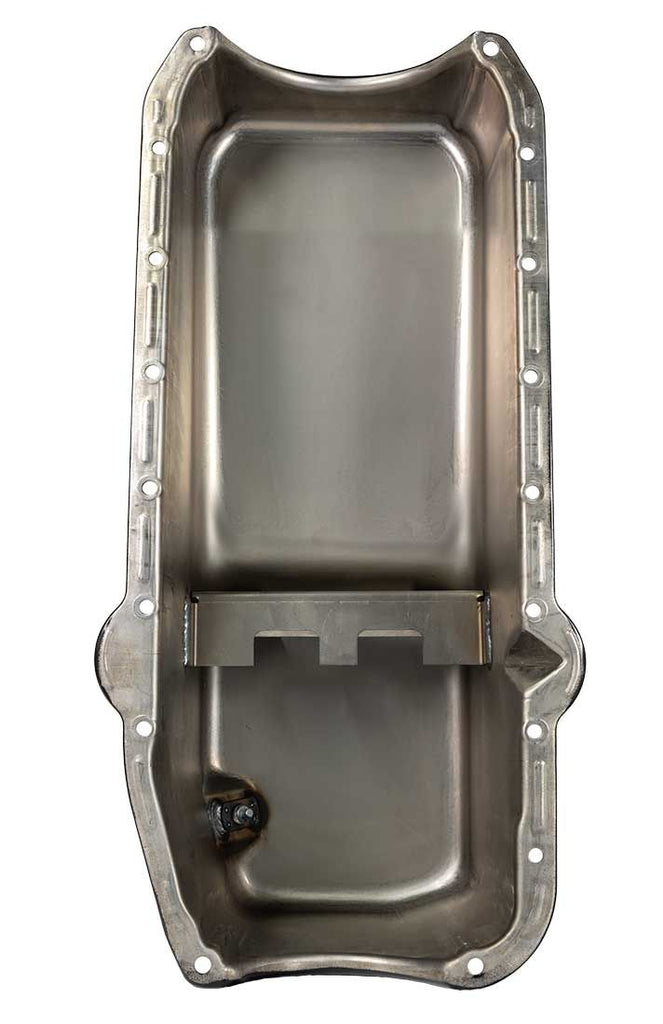

Moroso has a legacy of innovation in racing oil pans, having pioneered deep and kicked out sump designs that address lubrication challenges faced by racers. Each oil pan is precision welded by skilled craftsmen, ensuring high-quality construction and reliability. The internal baffling system enhances oil control during high-performance driving, making it suitable for both street and strip applications.

Compatibility is a key feature of Moroso products, as all oiling components are engineered to work seamlessly together. This allows engine builders to select the optimal combination of parts without the risk of incompatibility. Moroso also offers a comprehensive range of oiling system accessories, including oil pumps, pickups, and crankshaft scrapers, all designed to integrate with their oil pans for maximum performance.

Features

• Internal Baffling

Specifications

• Manufacturer: Moroso Performance
• Manufacturer Part Number: 20171
• Recommended Use: Street/ Strip
• Finish: Powder Coated
• Color: Black
• Material: Steel
• Capacity: 5 Quart
• Depth (IN): 8-3/8 Inch
• Baffled: Yes
• Sump Style: Wet
• Dipstick Provision: Yes
• Dipstick Location: Passenger Side
• Includes Pickup: No
• Includes Crank Scraper: No
• Includes Windage Tray: No

Compatibility / Fit

• 1980-1981 Buick Century
• 1980-1981 Buick Regal
• 1980-1982 Checker Marathon
• 1980-1985 Chevrolet C10
• 1980-1985 Chevrolet C10 Suburban
• 1980-1985 Chevrolet C20
• 1980-1985 Chevrolet C20 Suburban
• 1980-1985 Chevrolet C30
• 1980-1985 Chevrolet Camaro
• 1980-1985 Chevrolet Caprice
• 1980-1981 Chevrolet Corvette
• 1985-1985 Chevrolet Corvette
• 1980-1985 Chevrolet El Camino
• 1980-1985 Chevrolet G10
• 1980-1985 Chevrolet G20
• 1980-1985 Chevrolet G30
• 1980-1985 Chevrolet Impala
• 1980-1985 Chevrolet K10
• 1980-1985 Chevrolet K10 Suburban
• 1980-1985 Chevrolet K20
• 1980-1985 Chevrolet K20 Suburban
• 1980-1985 Chevrolet K30
• 1980-1985 Chevrolet K5 Blazer
• 1980-1983 Chevrolet Malibu
• 1980-1985 Chevrolet Monte Carlo
• 1980-1985 Chevrolet P20
• 1980-1985 Chevrolet P30
• 1980-1985 GMC C1500
• 1980-1985 GMC C1500 Suburban
• 1980-1985 GMC C2500
• 1980-1985 GMC C2500 Suburban
• 1980-1985 GMC C3500
• 1980-1985 GMC Caballero
• 1980-1985 GMC G1500
• 1980-1985 GMC G2500
• 1980-1985 GMC G3500
• 1980-1985 GMC Jimmy
• 1980-1985 GMC K1500
• 1980-1985 GMC K1500 Suburban
• 1980-1985 GMC K2500
• 1980-1985 GMC K2500 Suburban
• 1980-1985 GMC K3500
• 1980-1985 GMC P2500
• 1980-1985 GMC P3500
• 1980-1980 Oldsmobile Cutlass
• 1980-1980 Oldsmobile Cutlass Calais
• 1980-1980 Oldsmobile Cutlass Cruiser
• 1982-1982 Oldsmobile Cutlass Cruiser
• 1980-1980 Oldsmobile Cutlass Salon
• 1980-1980 Oldsmobile Cutlass Supreme
• 1980-1981 Pontiac Bonneville
• 1983-1985 Pontiac Bonneville
• 1980-1981 Pontiac Catalina
• 1980-1985 Pontiac Firebird
• 1980-1980 Pontiac Grand Am
• 1980-1981 Pontiac Grand LeMans
• 1980-1981 Pontiac Grand Prix
• 1983-1985 Pontiac Grand Prix
• 1980-1981 Pontiac LeMans
• 1983-1985 Pontiac Parisienne
