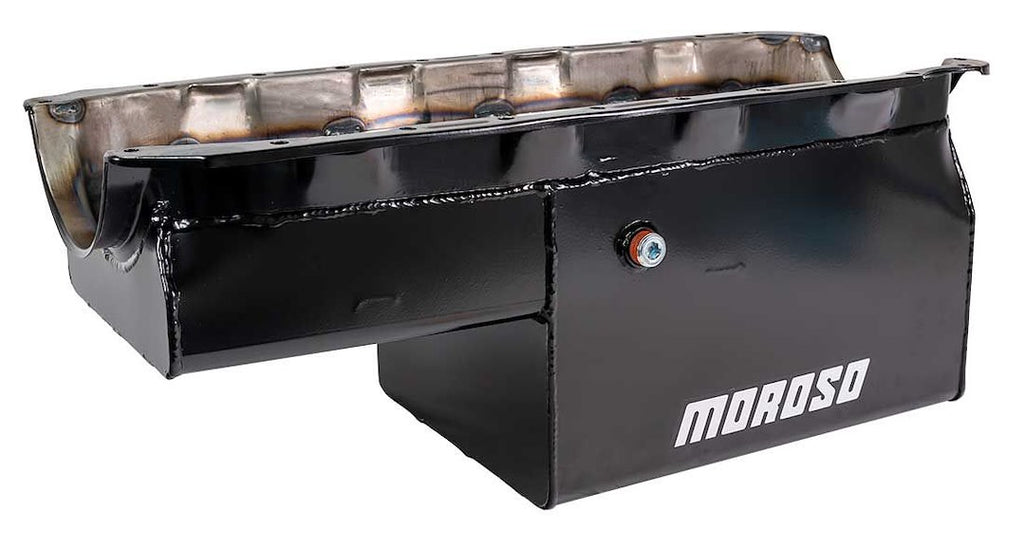

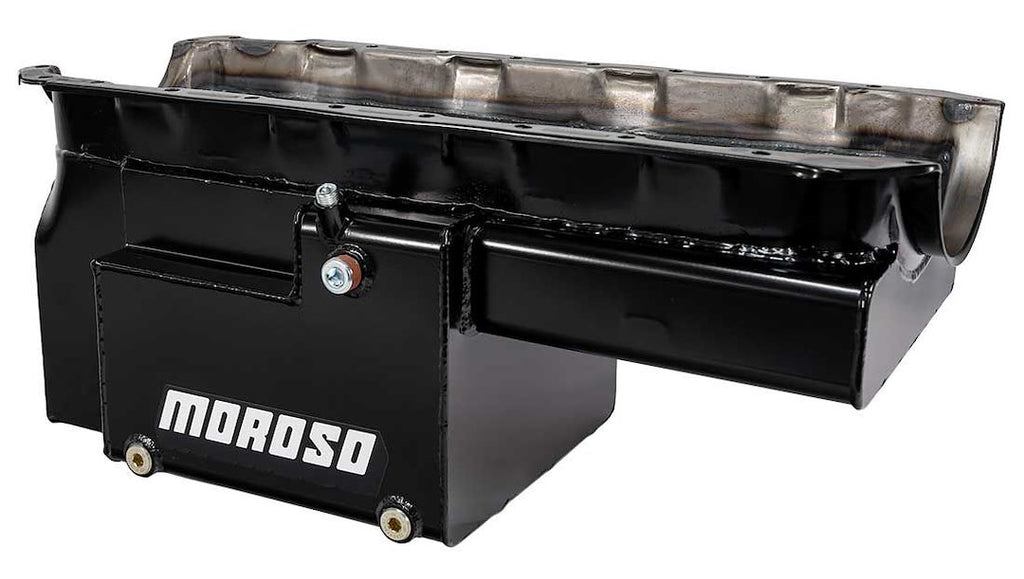

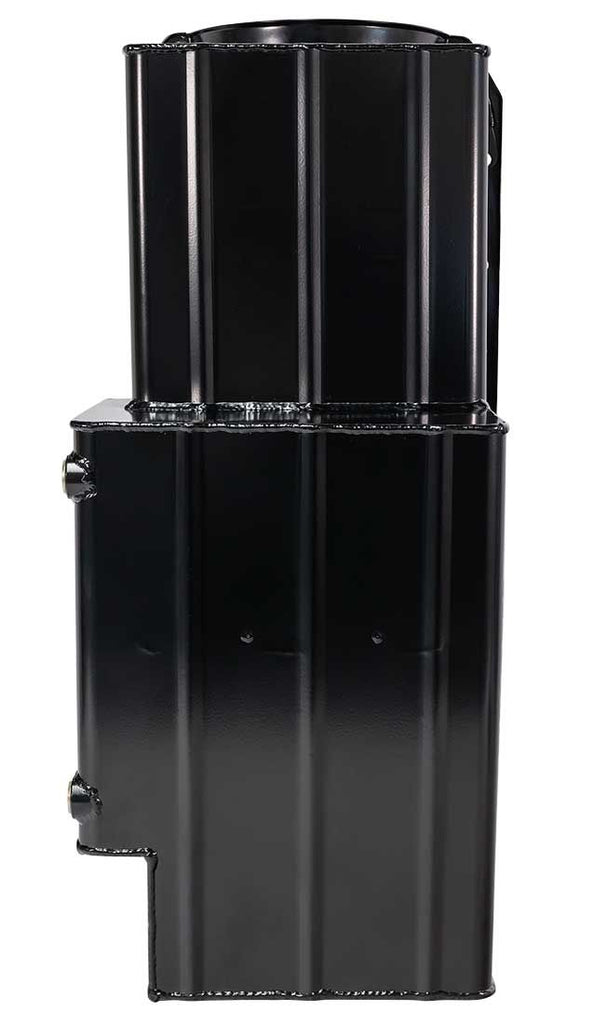

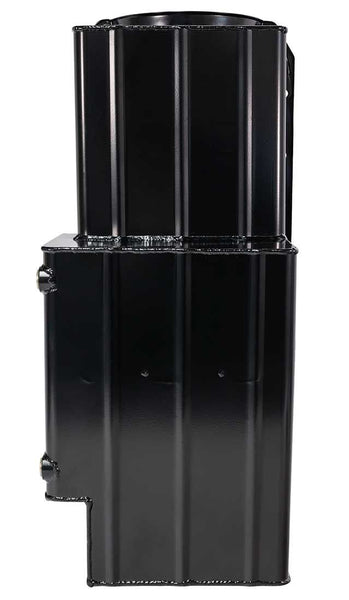

Moroso Performance Oil Pan (MPN: 20033)

High-capacity oil pan designed for Big Block Chevy engines.

The Moroso Performance Oil Pan is engineered specifically for Big Block Chevy engines, featuring a 10-inch deep sump and a capacity of 12 quarts. This wet sump design incorporates marine baffling, making it suitable for various applications including tractor pulling and mud drag trucks. Constructed from heavy-duty 14 gauge steel, the oil pan is powder coated in black for enhanced durability and corrosion resistance.

Precision welding by skilled craftsmen ensures that each oil pan meets high-quality standards, while the passenger-side kick-out design contributes to horsepower savings. The removable anti-slosh baffle enhances oil control during high-performance driving, and the pan is designed to accommodate up to a 4.25-inch stroke with steel rods and a 4.090-inch stroke with aluminum rods. Additionally, the pan includes a dipstick fitting for easy oil level monitoring.

Features

• Core Based Oil Pan With A Heavy-Duty 14 Gauge Steel Sump And A Clear Zinc Finish
• Passenger-Side Kick-Out For Horsepower Savings
• Marine Baffling, Also Works Well For Tractor Pulling And Mud Drag Trucks

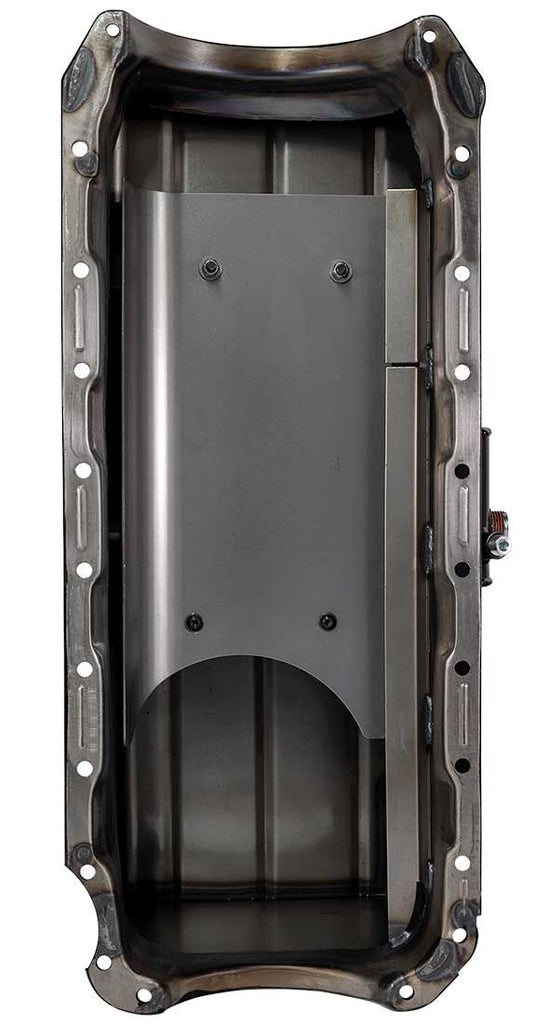

• Removable Anti-Slosh Baffle
• Accepts Up To A 4.25 Inch Stroke With Steel Rods And A 4.090 Inch Stroke With Aluminum Rods
• Pan Mounted Dipstick Fitting

Specifications

• Manufacturer: Moroso Performance
• Manufacturer Part Number: 20033
• Recommended Use: Street
• Finish: Powder Coated
• Color: Black
• Material: Steel
• Capacity: 12 Quart

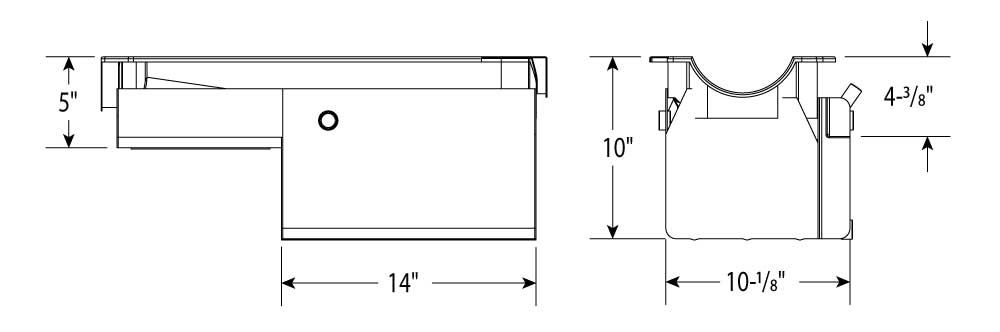

• Depth (IN): 5 Inch Front/ 10 Inch Rear Depth
• Baffled: Yes
• Stroker Clearance: Yes
• Drain Plug Thread Size: 1/2 Inch NPT
• Sump Position: Rear
• Sump Style: Wet
• Dipstick Provision: Yes
• Kicked Out: Yes
• Kicked Out Position: Passenger Side
• Includes Pickup: No
• Includes Crank Scraper: No
• Includes Windage Tray: No

Technical Documents

• unipan_inst.pdf
