High-capacity oil pan designed for LS series engines with advanced features.

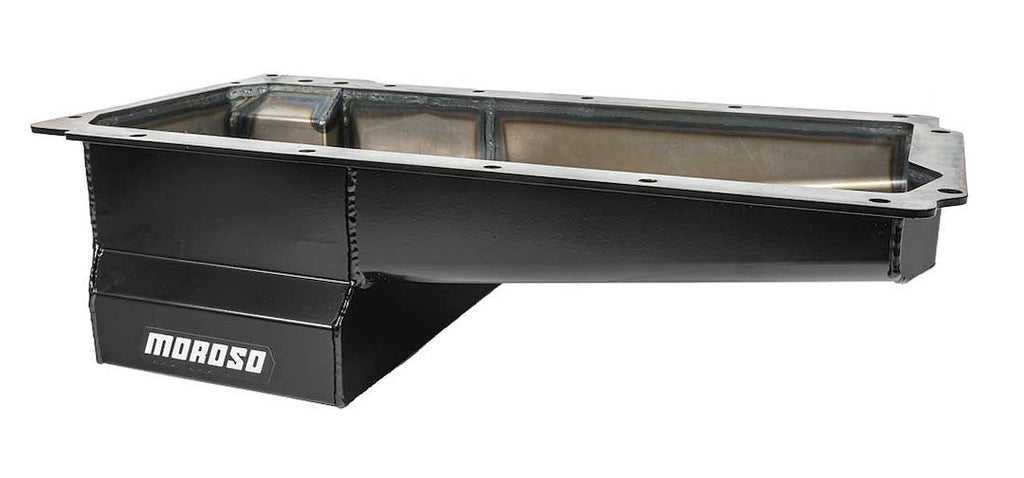

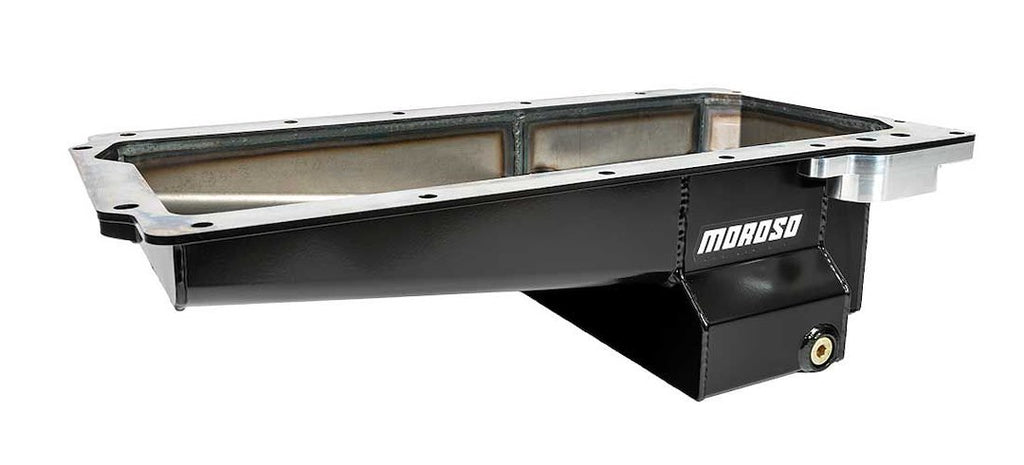

The Moroso Performance Engine Swap Oil Pan is engineered specifically for LS series engines, providing a robust solution for high-performance applications. With a 7 quart capacity, this oil pan effectively moves oil away from the rotating assembly, enhancing oil control and contributing to horsepower efficiency. The design includes a sloped front section and a race-proven diamond shape trap door assembly, which features an anti-slosh baffle to keep oil contained in the pump pick-up area during intense racing conditions.
Constructed from thick precision laser cut steel, the oil pan is finished with a durable black powder coating for added protection. It is designed to clear a 4.125 inch stroke with most steel rods, making it versatile for various setups. The included billet aluminum adapter allows for the mounting of a 13/16 inch thread oil filter or an OEM oil filter in the stock location, eliminating the need for a remote oil filter. Additionally, the oil pan utilizes the stock dipstick for easy monitoring of oil levels.
Features
- Oil Pan Has A Thick Precision Laser Cut Steel Rail And A Clear Zinc Finish
- Clears 4.125 Inch Stroke With Most Steel Rods

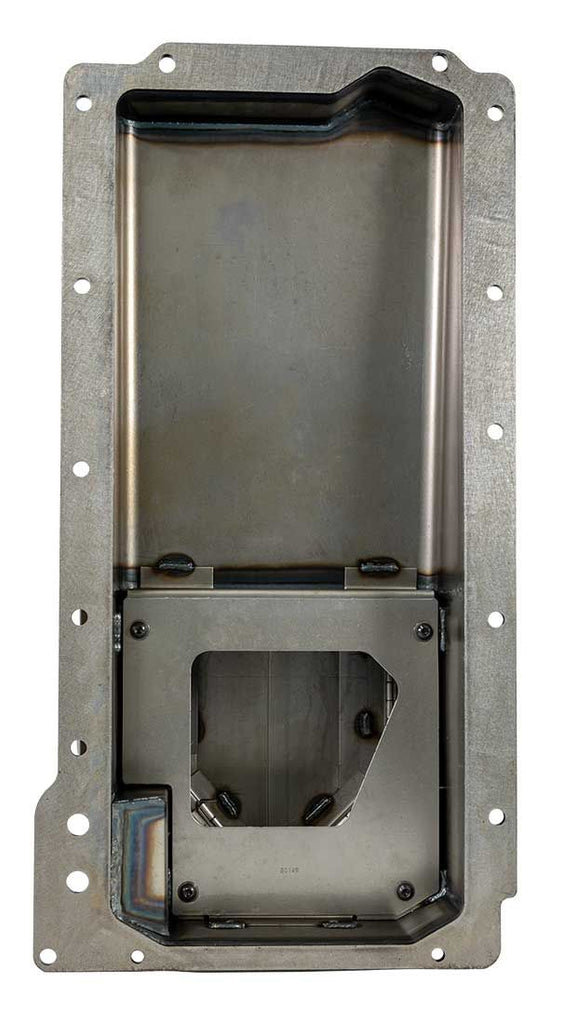

- Features A Race Proven Diamond Shape 4 Trap Door Assembly And Anti-Slosh Baffle That Keeps Oil Contained In Oil Pump Pick Up Area During Road Racing And Drag Racing
- The 7 Quart Capacity Moves The Oil Away From The Rotating Assembly For Oil Control And Horsepower Saving
- Features A Billet Aluminum Adapter That Allows A 13/16 Inch Thread Oil Filter Or O.E.M. Oil Filter To Be Mounted In The Stock Location, No Need To Run A Remote Oil Filter
- Uses Stock Dipstick
Specifications
- Manufacturer: Moroso Performance
- Manufacturer Part Number: 20143
- Recommended Use: Race
- Finish: Powder Coated
- Color: Black
- Material: Steel
- Capacity: 7 Quart
- Baffled: Yes
- Sump Position: Front
- Dipstick Provision: Yes
- Includes Pickup: Yes
Compatibility / Fit
- 1967-1992 Chevrolet Camaro
- 1965-1972 Chevrolet Chevelle
- 1968-1968 Chevrolet Chevy II
- 1953-1982 Chevrolet Corvette
- 1984-1996 Chevrolet Corvette
- 1978-1987 Chevrolet El Camino
- 1978-1983 Chevrolet Malibu
- 1978-1988 Chevrolet Monte Carlo
- 1969-1978 Chevrolet Nova
- 1900-1900 Chevrolet Small Block 1955-1986
- 1900-1900 Chevrolet Small Block 383
