Reliable performance with advanced protection against wear and environmental factors.

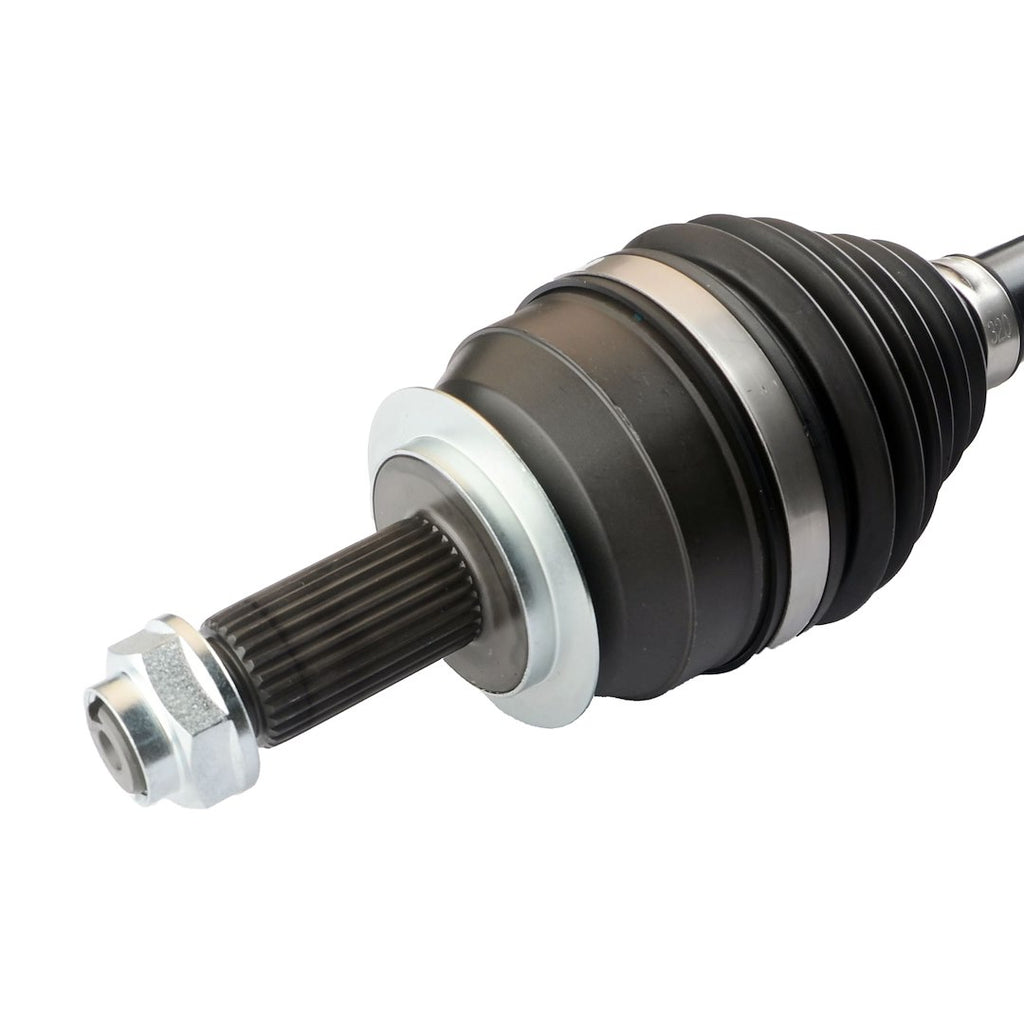

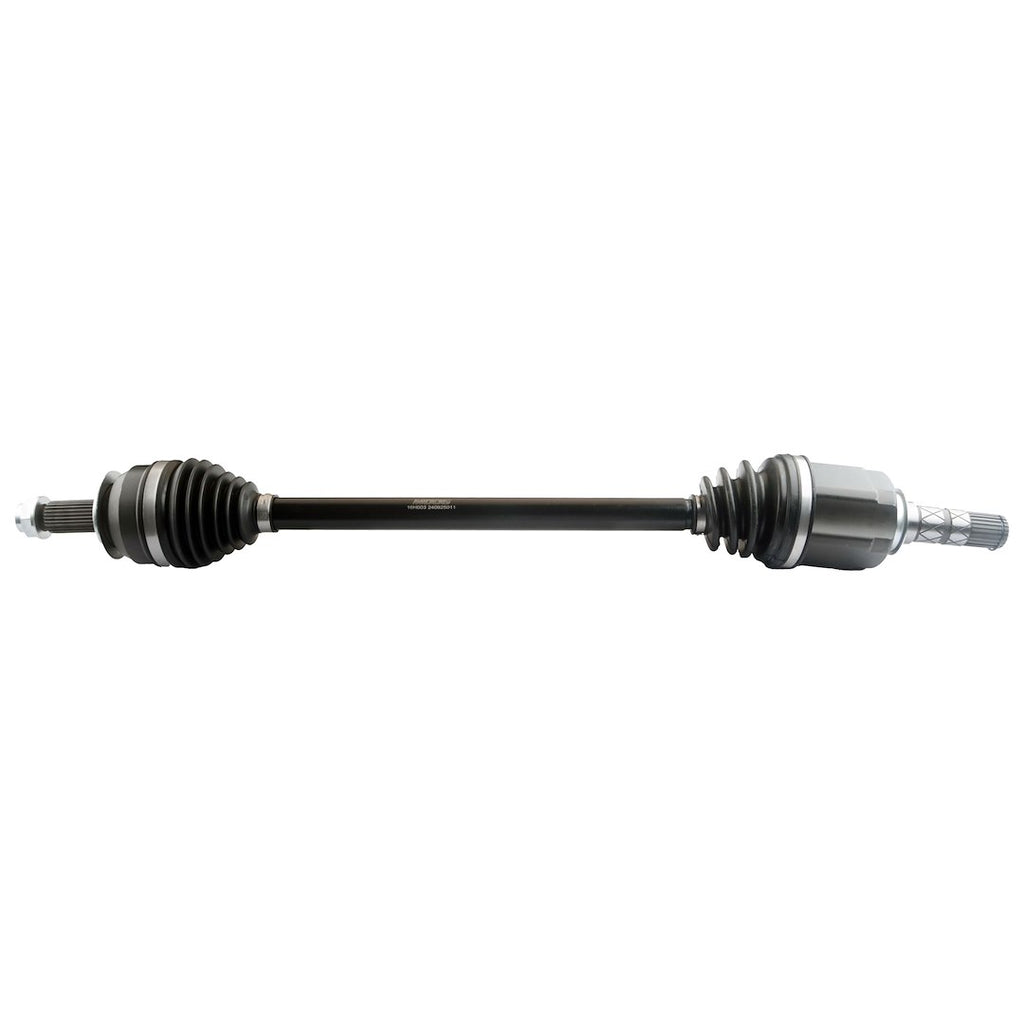

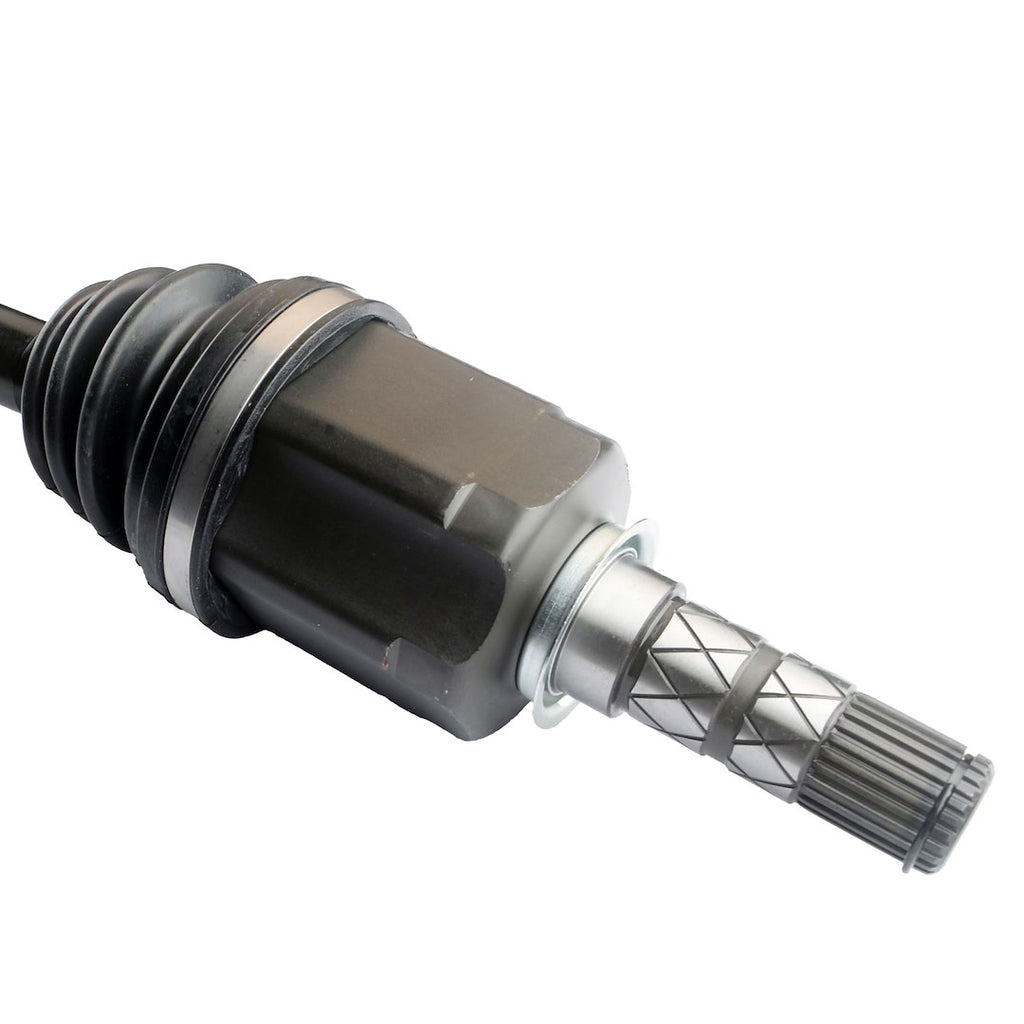

The Moog CV Axle Shaft is engineered for durability and reliability, featuring a compressed length of 31.26 inches. This axle is designed to keep dirt and moisture out, utilizing a problem-solving thermoplastic boot that withstands extreme temperatures ranging from -50 to 284 degrees Fahrenheit. The specially engineered coating on the intermediate shaft and housings provides added rust protection, inhibiting wear caused by environmental factors such as rain, snow, and road grime.
Constructed with heat-treated bearings, races, and housings, the Moog CV Axle Shaft ensures optimal joint function and articulation. The precise fit is guaranteed with splines that align accurately with the mating hub, facilitating a seamless installation process. Additionally, the product includes an axle nut and inboard bolts where required, making it a comprehensive solution for your repair needs.
Features
- Keeps Dirt And Moisture Out: Problem Solver Thermoplastic Boot Not Only Keeps Water And Dirt Out To Prevent Premature Failure, It Also Withstands Extreme Temperatures (-50 To 284 Degree Fahrenheit)
- Added Rust Protection: Specially Engineered Coating Applied To Intermediate Shaft And Inboard And Outboard Housings To Inhibit Premature Wear Caused By Rain, Snow, Salt And Road Grime
- Built To Last: Heat-Treated Bearings, Races And Housings For Optimal Joint Function, Articulation And Geometry
- Precise Fit: Splines Ensure Precise Fit Of The Axle Into The Mating Hub
- Everything For The Repair: Comes With Axle Nut And Inboard Bolts (Where Required)
Specifications
- Manufacturer: Moog Chassis
- Manufacturer Part Number: 16H003
- Condition: New
- Inboard Joint Spline Count: 25
- Outboard Joint Spline Count: 27
- Length (IN): 31.26 Inch
- Includes ABS Rig: No
- Material: Neoprene/ Thermoplastic
Compatibility / Fit
- 2009-2013 Subaru Forester
- 2011-2014 Subaru Impreza
- 2013-2014 Subaru XV Crosstrek
