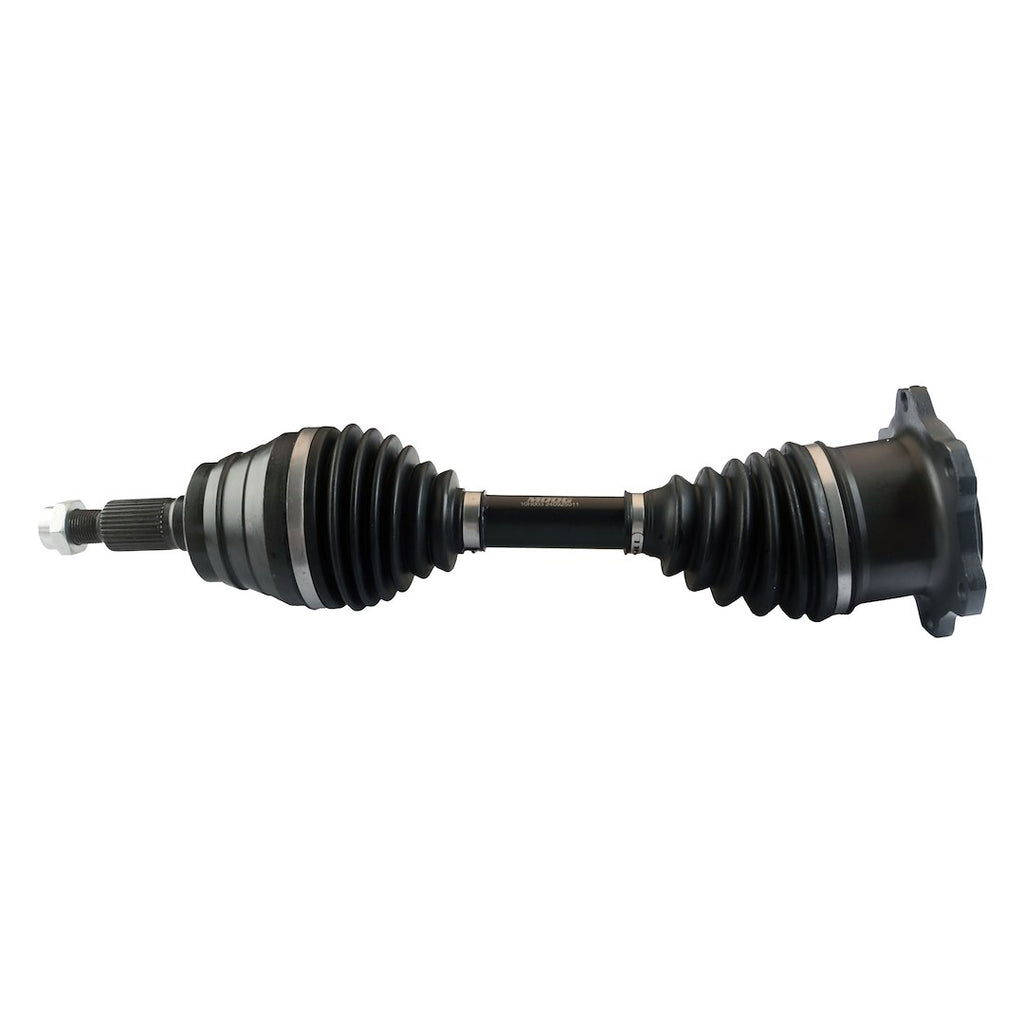

Moog CV Axle Shaft (MPN: 10H003)

Reliable performance with advanced protection against wear and environmental factors.

The Moog CV Axle Shaft is engineered for durability and reliability, featuring a compressed length of 21.77 inches. This axle is designed to keep dirt and moisture out, utilizing a problem solver thermoplastic boot that withstands extreme temperatures ranging from -50 to 284 degrees Fahrenheit. The specially engineered coating on the intermediate shaft and housings provides added rust protection, inhibiting wear caused by harsh weather conditions such as rain, snow, and road grime.

Constructed with heat-treated bearings, races, and housings, the Moog CV Axle Shaft ensures optimal joint function and articulation. The precise fit is guaranteed with splines that align accurately with the mating hub, facilitating a seamless installation process. Additionally, the product includes essential components for repair, such as the axle nut and inboard bolts, where required, making it a comprehensive solution for your vehicle's needs.

Features

• Keeps Dirt And Moisture Out: Problem Solver Thermoplastic Boot Not Only Keeps Water And Dirt Out To Prevent Premature Failure, It Also Withstands Extreme Temperatures (-50 To 284 Degree Fahrenheit)

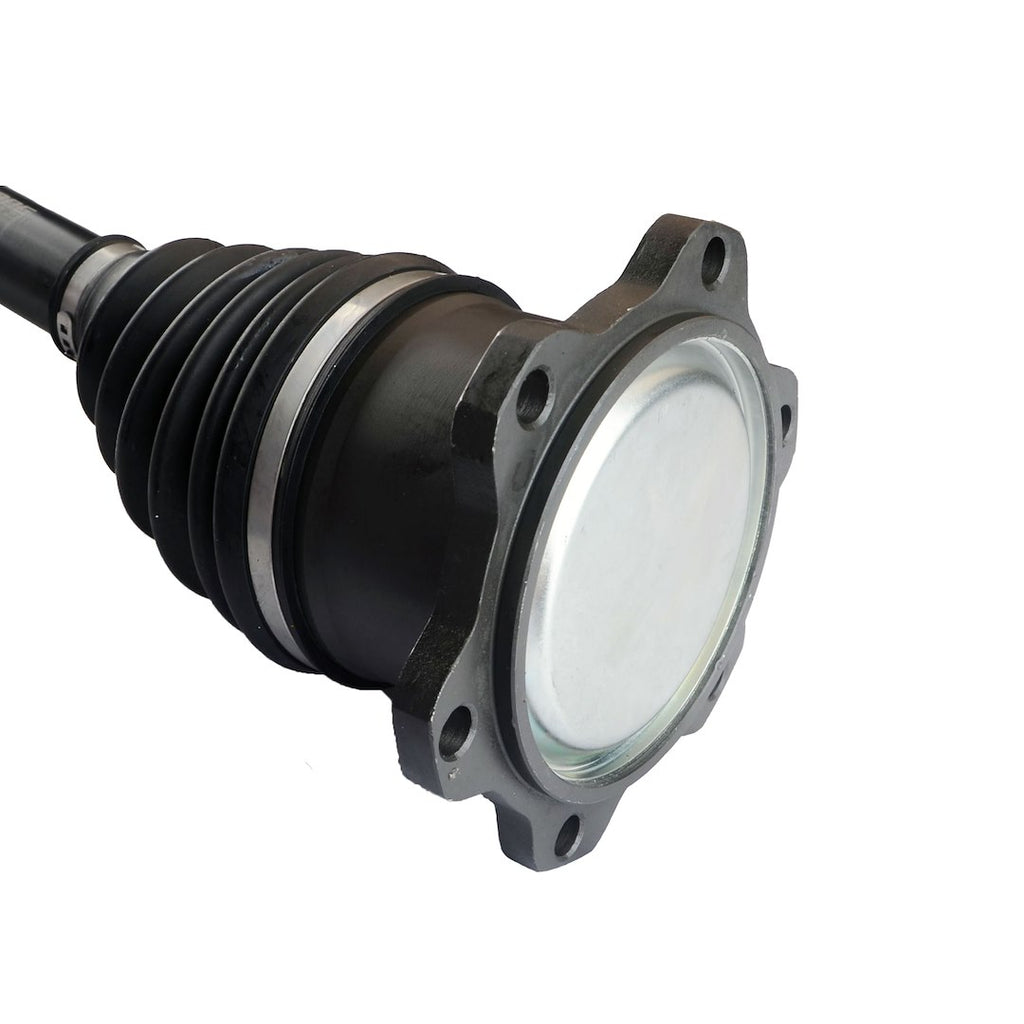

• Added Rust Protection: Specially Engineered Coating Applied To Intermediate Shaft And Inboard And Outboard Housings To Inhibit Premature Wear Caused By Rain, Snow, Salt And Road Grime
• Built To Last: Heat-Treated Bearings, Races And Housings For Optimal Joint Function, Articulation And Geometry

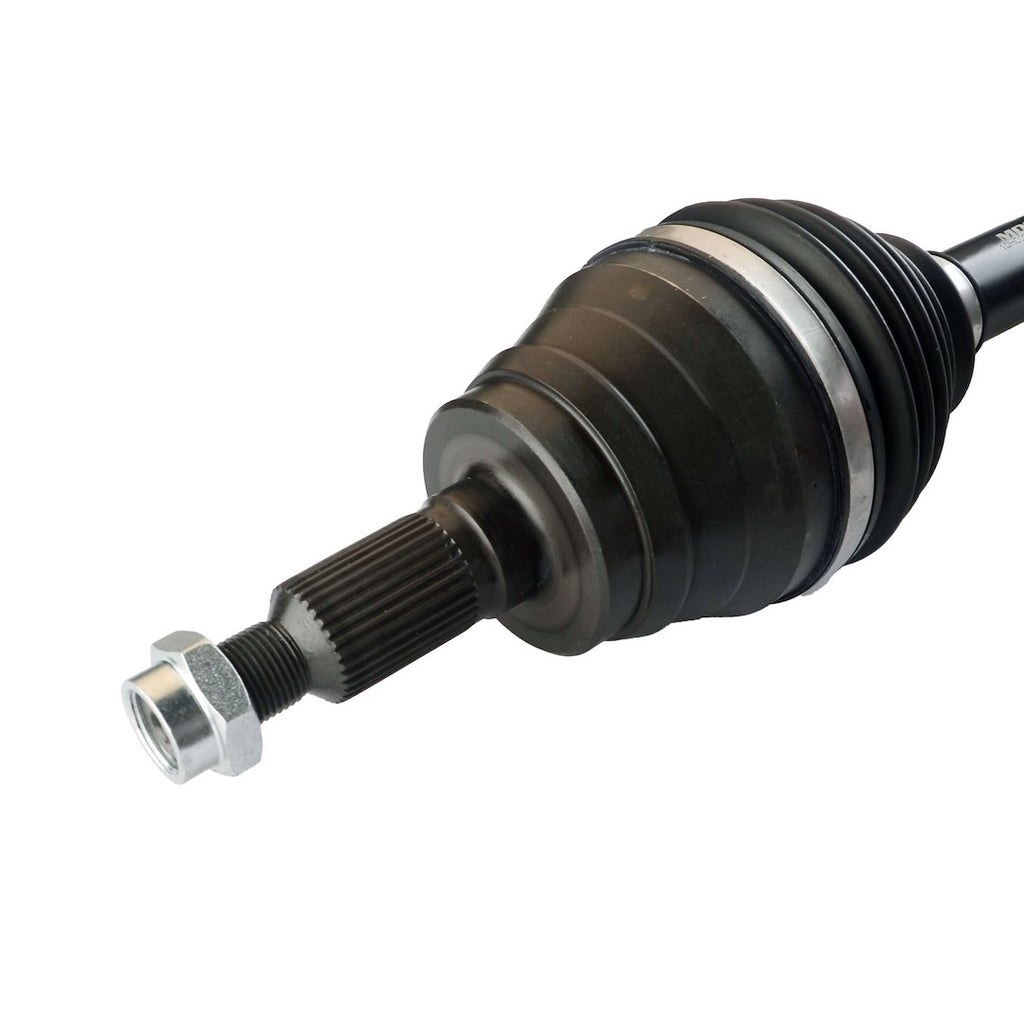

• Precise Fit: Splines Ensure Precise Fit Of The Axle Into The Mating Hub

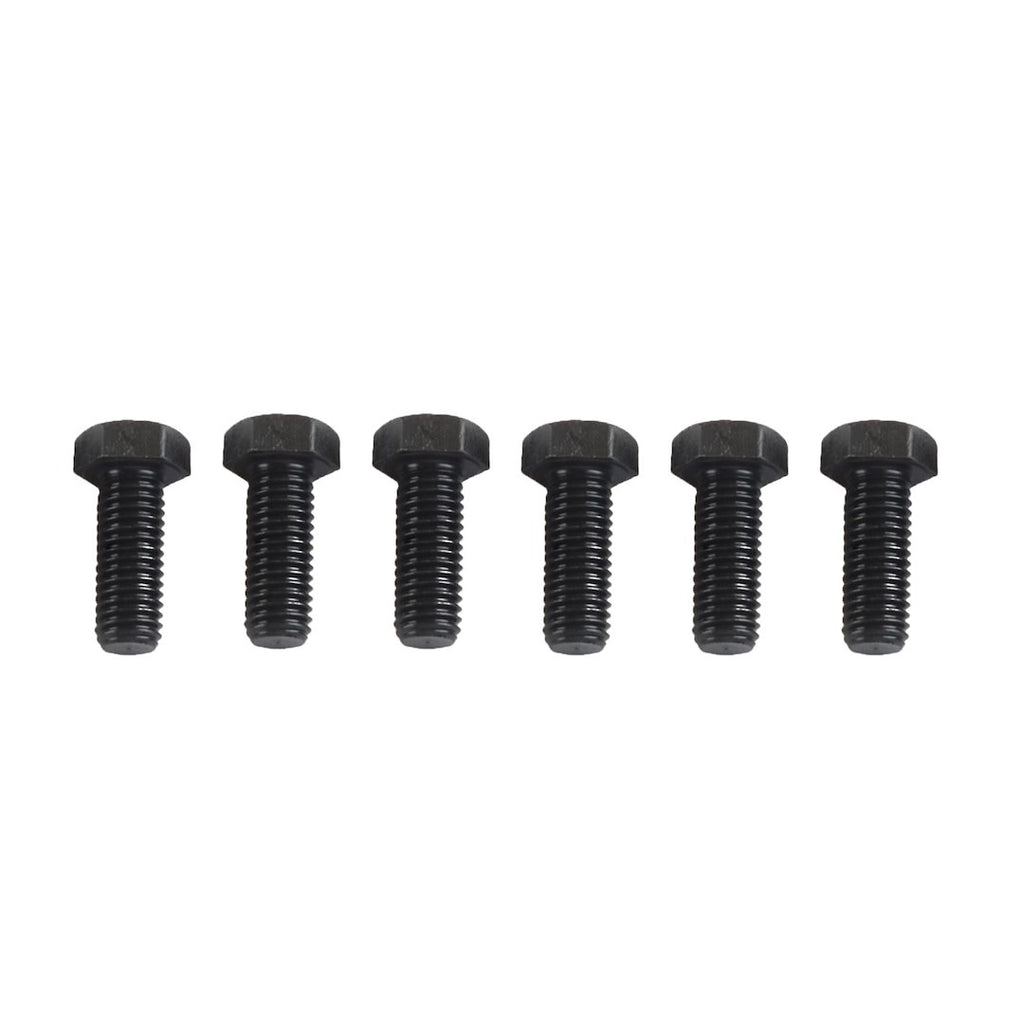

• Everything For The Repair: Comes With Axle Nut And Inboard Bolts (Where Required)

Specifications

• Manufacturer: Moog Chassis
• Manufacturer Part Number: 10H003
• Condition: New
• Inboard Joint Spline Count: OEM
• Outboard Joint Spline Count: 33
• Length (IN): 21.77 Inch
• Includes ABS Rig: No
• Material: Neoprene/ Thermoplastic

Compatibility / Fit

• 2006-2006 Cadillac Escalade
• 2006-2006 Cadillac Escalade ESV
• 2006-2006 Cadillac Escalade EXT
• 2002-2006 Chevrolet Avalanche 2500
• 2001-2003 Chevrolet Silverado 1500 HD
• 2005-2006 Chevrolet Silverado 1500 HD
• 2007-2007 Chevrolet Silverado 1500 HD Classic
• 1999-2004 Chevrolet Silverado 2500
• 2001-2010 Chevrolet Silverado 2500 HD
• 2007-2007 Chevrolet Silverado 2500 HD Classic
• 2001-2006 Chevrolet Silverado 3500
• 2007-2007 Chevrolet Silverado 3500 Classic
• 2007-2010 Chevrolet Silverado 3500 HD
• 2000-2013 Chevrolet Suburban 2500
• 2008-2008 Chevrolet Tahoe
• 2001-2003 GMC Sierra 1500 HD
• 2005-2006 GMC Sierra 1500 HD
• 2007-2007 GMC Sierra 1500 HD Classic
• 1999-2004 GMC Sierra 2500
• 2001-2010 GMC Sierra 2500 HD
• 2007-2007 GMC Sierra 2500 HD Classic
• 2001-2006 GMC Sierra 3500
• 2007-2007 GMC Sierra 3500 Classic
• 2007-2010 GMC Sierra 3500 HD
• 2000-2013 GMC Yukon XL 2500
• 2004-2009 Hummer H2

Technical Documents

• CV_Axle_Shaft_inst.pdf
