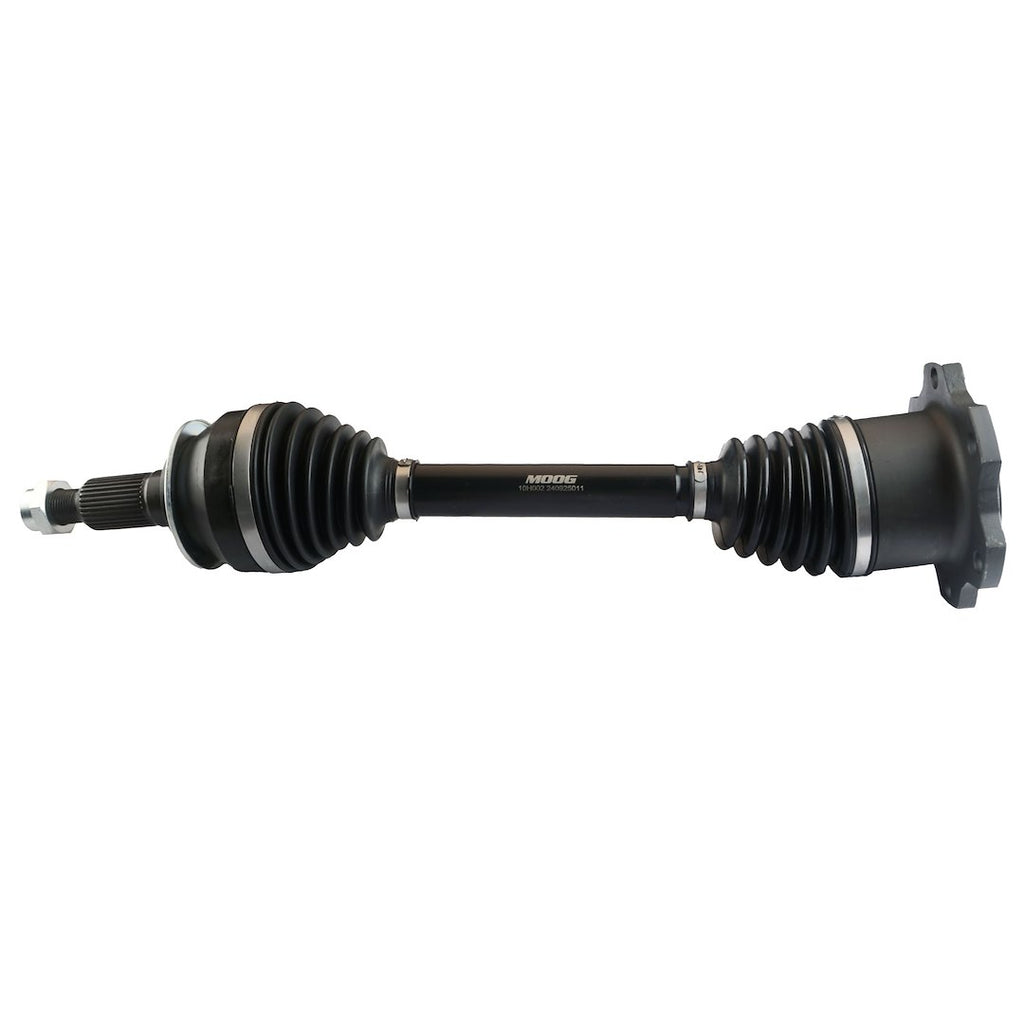

Moog CV Axle Shaft (MPN: 10H002)

Reliable performance with advanced protection against wear and environmental factors.

The Moog CV Axle Shaft is engineered for durability and reliability, featuring a compressed length of 22.91 inches. This axle is designed to keep dirt and moisture out, utilizing a problem solver thermoplastic boot that withstands extreme temperatures ranging from -50 to 284 degrees Fahrenheit. The specially engineered coating on the intermediate shaft and housings provides added rust protection, inhibiting wear caused by environmental factors such as rain, snow, and road grime.

Constructed with heat-treated bearings, races, and housings, the Moog CV Axle Shaft ensures optimal joint function, articulation, and geometry. The precise fit is guaranteed with splines that ensure a secure connection to the mating hub. Additionally, this product comes complete with an axle nut and inboard bolts where required, making it a comprehensive solution for your repair needs.

Features

• Keeps Dirt And Moisture Out: Problem Solver Thermoplastic Boot Not Only Keeps Water And Dirt Out To Prevent Premature Failure, It Also Withstands Extreme Temperatures (-50 To 284 Degree Fahrenheit)
• Added Rust Protection: Specially Engineered Coating Applied To Intermediate Shaft And Inboard And Outboard Housings To Inhibit Premature Wear Caused By Rain, Snow, Salt And Road Grime
• Built To Last: Heat-Treated Bearings, Races And Housings For Optimal Joint Function, Articulation And Geometry

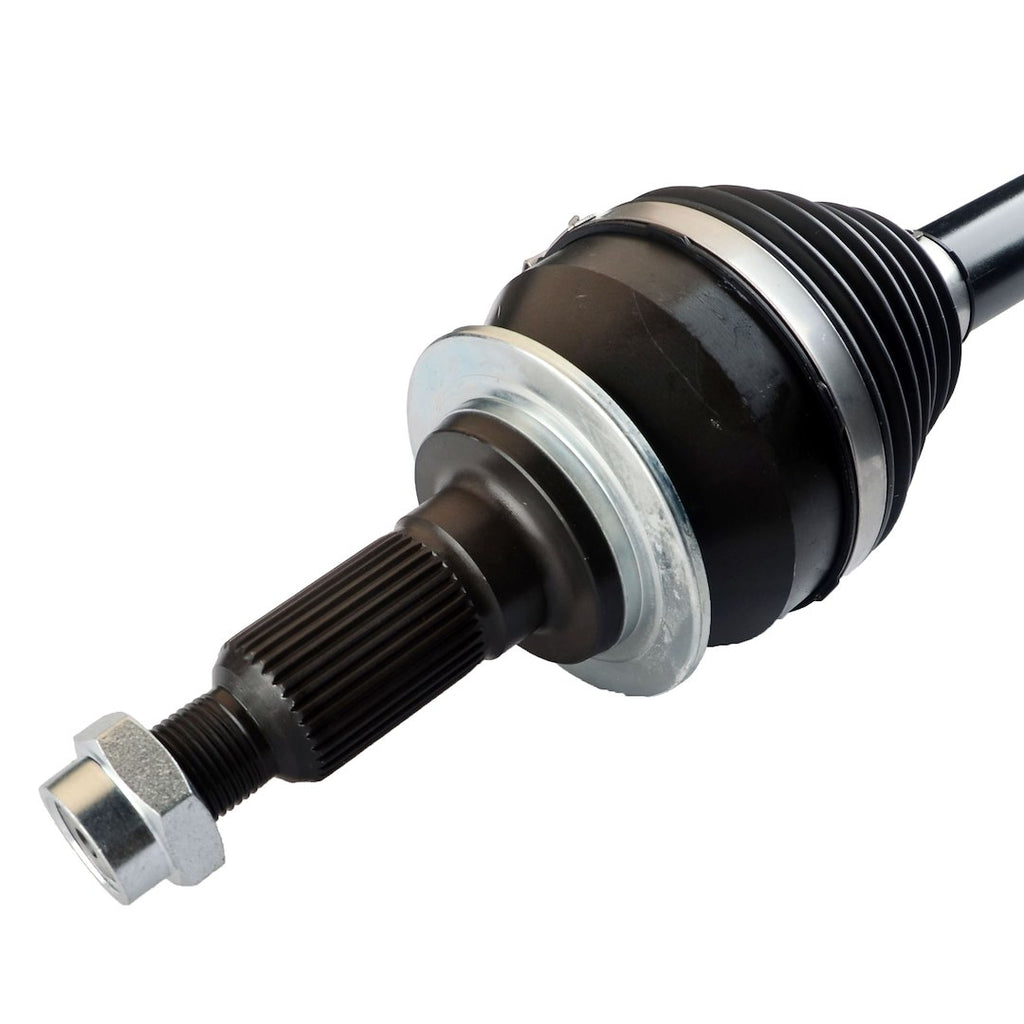

• Precise Fit: Splines Ensure Precise Fit Of The Axle Into The Mating Hub

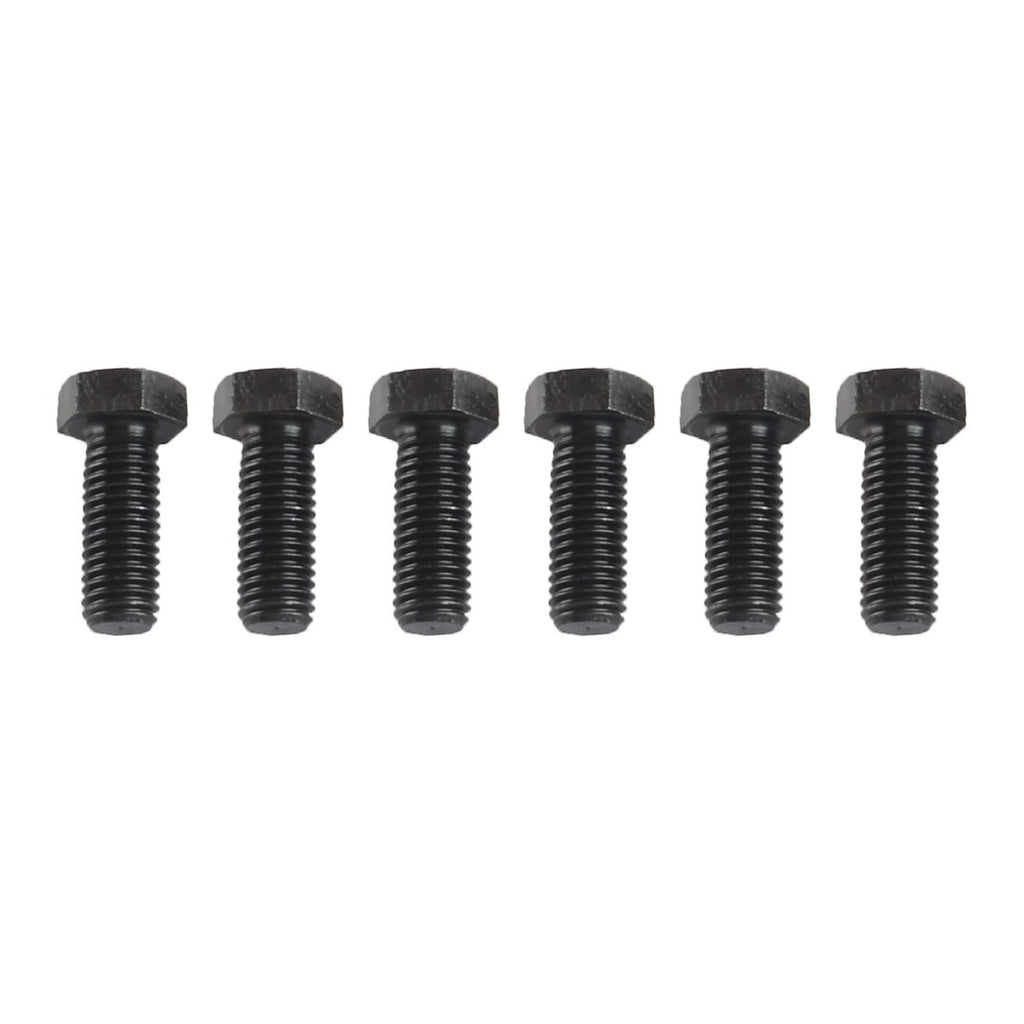

• Everything For The Repair: Comes With Axle Nut And Inboard Bolts (Where Required)

Specifications

• Manufacturer: Moog Chassis
• Manufacturer Part Number: 10H002
• Condition: New
• Inboard Joint Spline Count: OEM
• Outboard Joint Spline Count: 33
• Length (IN): 22.91 Inch
• Includes ABS Rig: No
• Material: Neoprene/ Thermoplastic

Compatibility / Fit

• 2007-2020 Cadillac Escalade
• 2007-2020 Cadillac Escalade ESV
• 2007-2013 Cadillac Escalade EXT
• 2007-2013 Chevrolet Avalanche
• 2007-2018 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2015-2020 Chevrolet Suburban
• 2007-2014 Chevrolet Suburban 1500
• 2016-2019 Chevrolet Suburban 3500 HD
• 2007-2020 Chevrolet Tahoe
• 2007-2018 GMC Sierra 1500
• 2019-2019 GMC Sierra 1500 Limited- Old Model
• 2007-2020 GMC Yukon
• 2015-2020 GMC Yukon XL
• 2007-2014 GMC Yukon XL 1500

Technical Documents

• CV_Axle_Shaft_inst.pdf
