Engineered for enhanced handling and control in light trucks and SUVs.

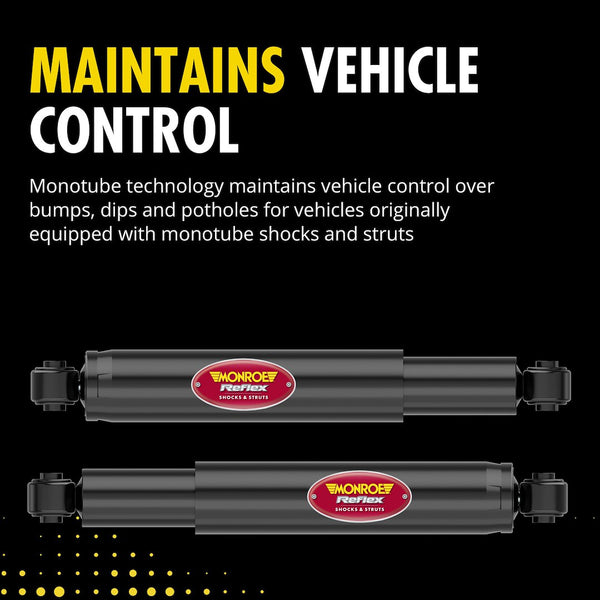

Monroe Reflex monotube shocks are designed to improve handling, control, and performance specifically for light trucks and SUVs. These shocks utilize a high-pressure nitrogen gas charge that effectively separates the internal oil and gas, enhancing damping efficiency and overall vehicle control. The inclusion of a hydraulic lockout feature cushions impacts when the suspension is fully extended, providing a smoother ride experience.
Constructed with high-strength materials, Monroe Reflex shocks are built to resist damage and ensure a longer service life. The nitrocarburized rod and Fluon banded piston contribute to increased durability and consistent sealing, which further enhances control. Additionally, the all-weather fluid used in these shocks reduces friction, ensuring smooth operation under various conditions.
With a focus on application-specific valving, these shocks are tailored to meet the demands of specific vehicles, ensuring optimal performance. The design includes a free-floating dividing piston that separates shock fluid from the high-pressure gas charge, allowing for improved response and stability. Monroe Reflex monotube shocks are a reliable choice for those seeking to enhance their vehicle's suspension performance.
Features

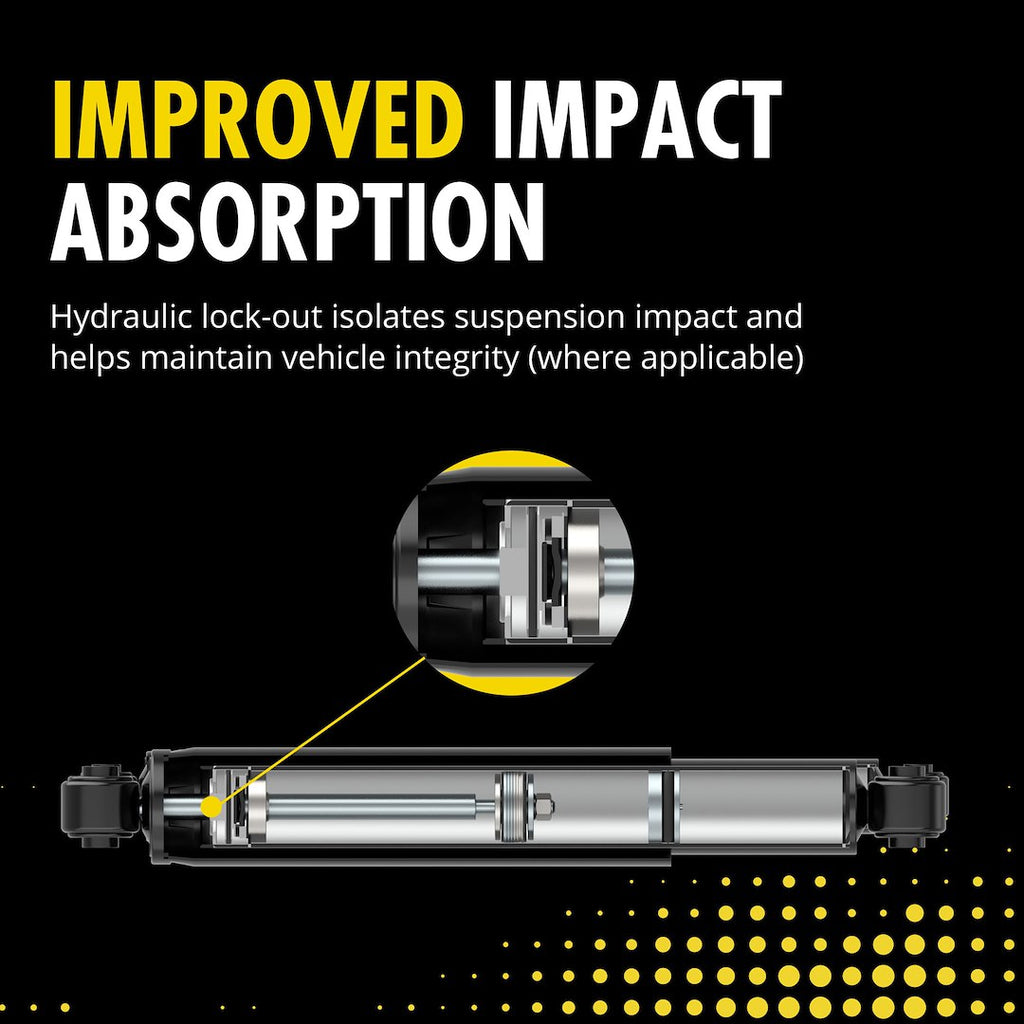

- Hydraulic Lockout: Patented Unique Hydraulic Lock-Out Isolates Impact At The Limits Of Suspension Travel
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- High Pressure Nitrogen Gas Charged: High-Pressure Charge (240 To 260 PSI) Provides A Quicker Response For Excellent Vehicle Control
- Shock Housing: High Strength To Resist Damage And Provide Longer Service Life
- Nitrocarburized Rod: For Long Service Life
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
- Free Floating Dividing Piston: Separates Shock Fluid From High-Pressure Gas Charge
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 911527
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 15-3/8 Inch
- Compressed Length (IN): 11-1/8 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Clevis
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: Yes
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2006-2010 Hummer H3
- 2009-2010 Hummer H3T
