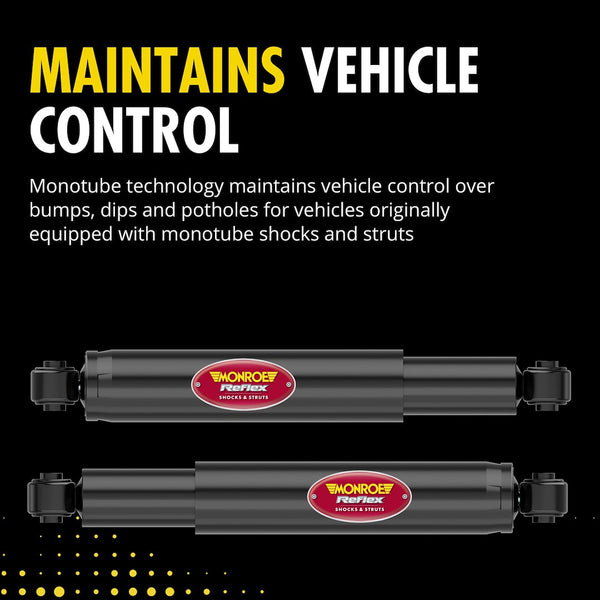

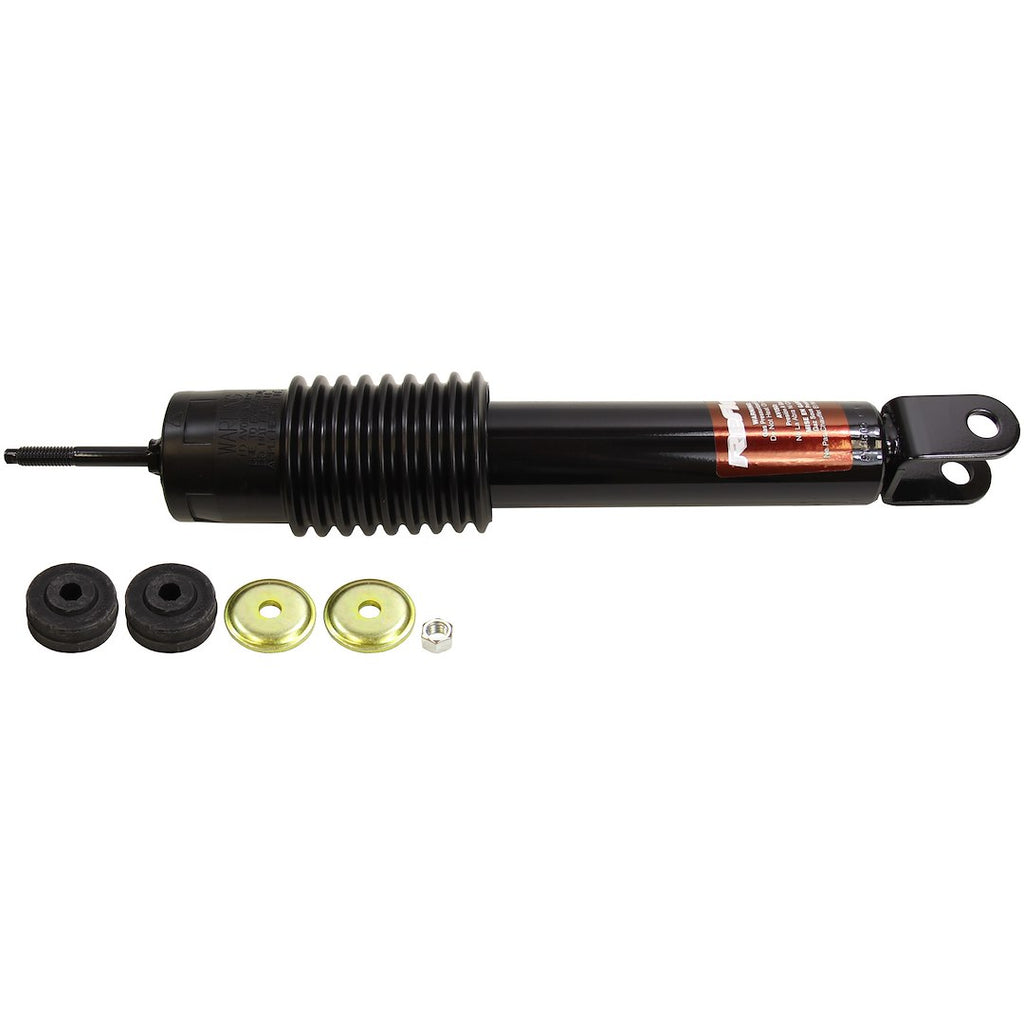

Monroe Shock Absorber Reflex (MPN: 911505)

Engineered for enhanced handling and performance in light trucks and SUVs.

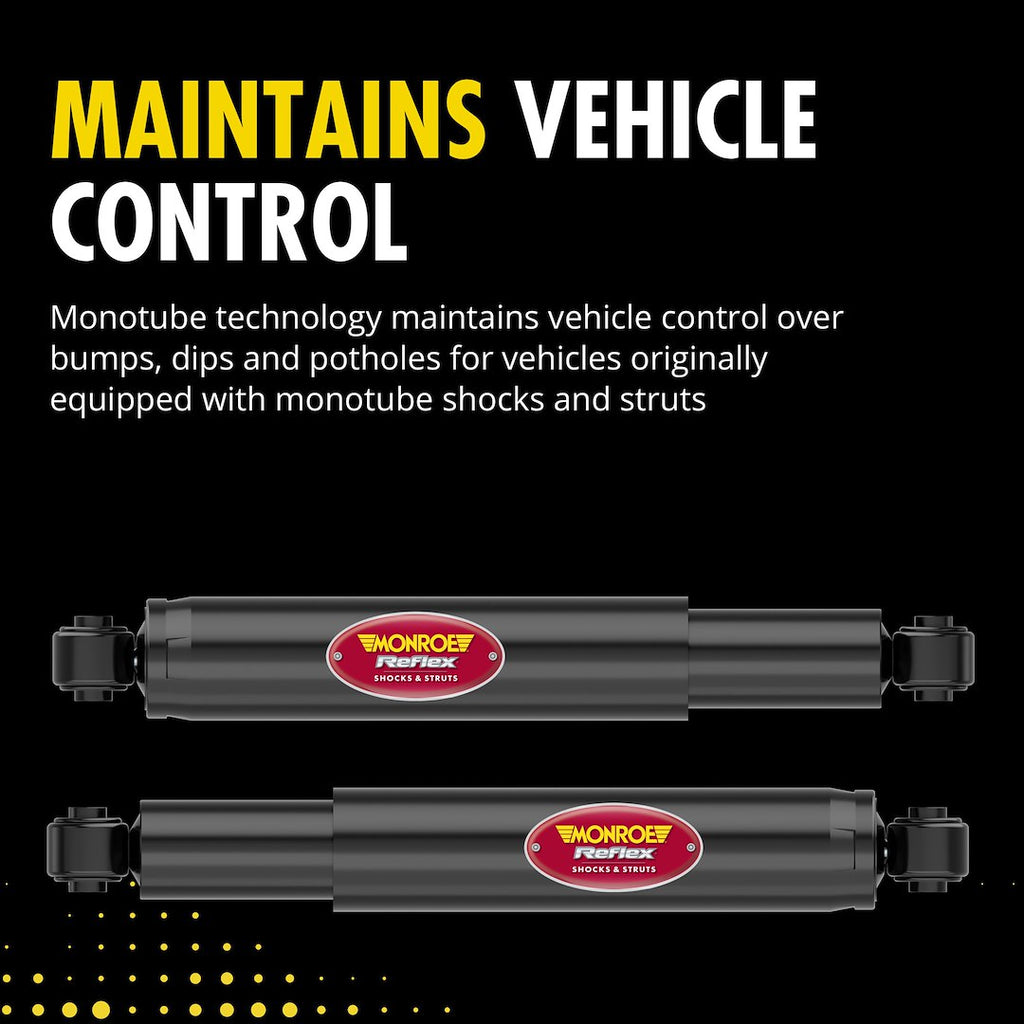

Monroe Reflex monotube shocks are designed to improve handling, control, and overall performance for light trucks and SUVs. These shocks utilize a high-pressure nitrogen gas charge that effectively separates the internal oil and gas, enhancing damping efficiency and control. The inclusion of a hydraulic lockout feature cushions impacts when the suspension is fully extended, contributing to a smoother ride experience.

Constructed with high-strength materials, Monroe Reflex shocks are built to resist damage and ensure a longer service life. The nitrocarburized rod and Fluon banded piston work together to provide consistent sealing and improved durability, while the all-weather fluid reduces friction for smooth operation. With application-specific valving, these shocks are tailored to meet the demands of specific vehicle models, ensuring optimal performance under various driving conditions.

Features

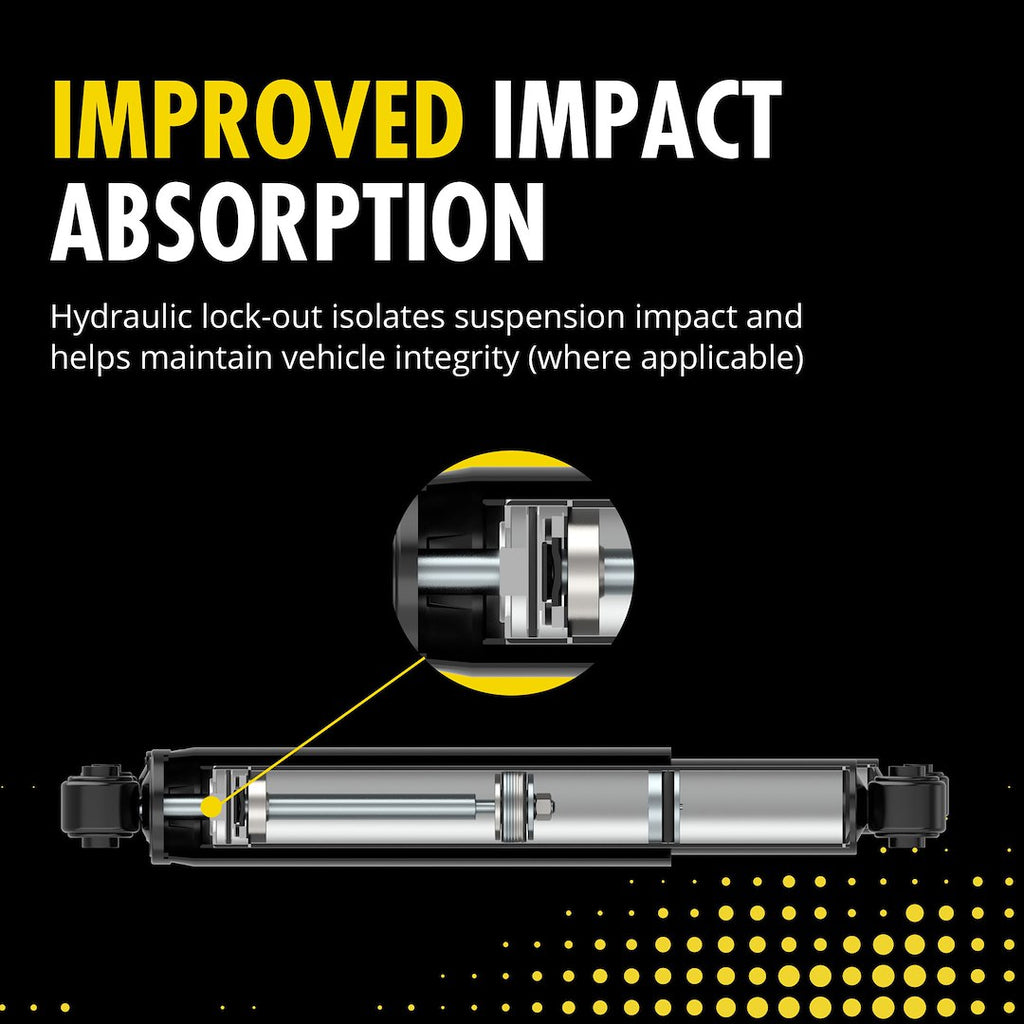

• Hydraulic Lockout: Patented Unique Hydraulic Lock-Out Isolates Impact At The Limits Of Suspension Travel

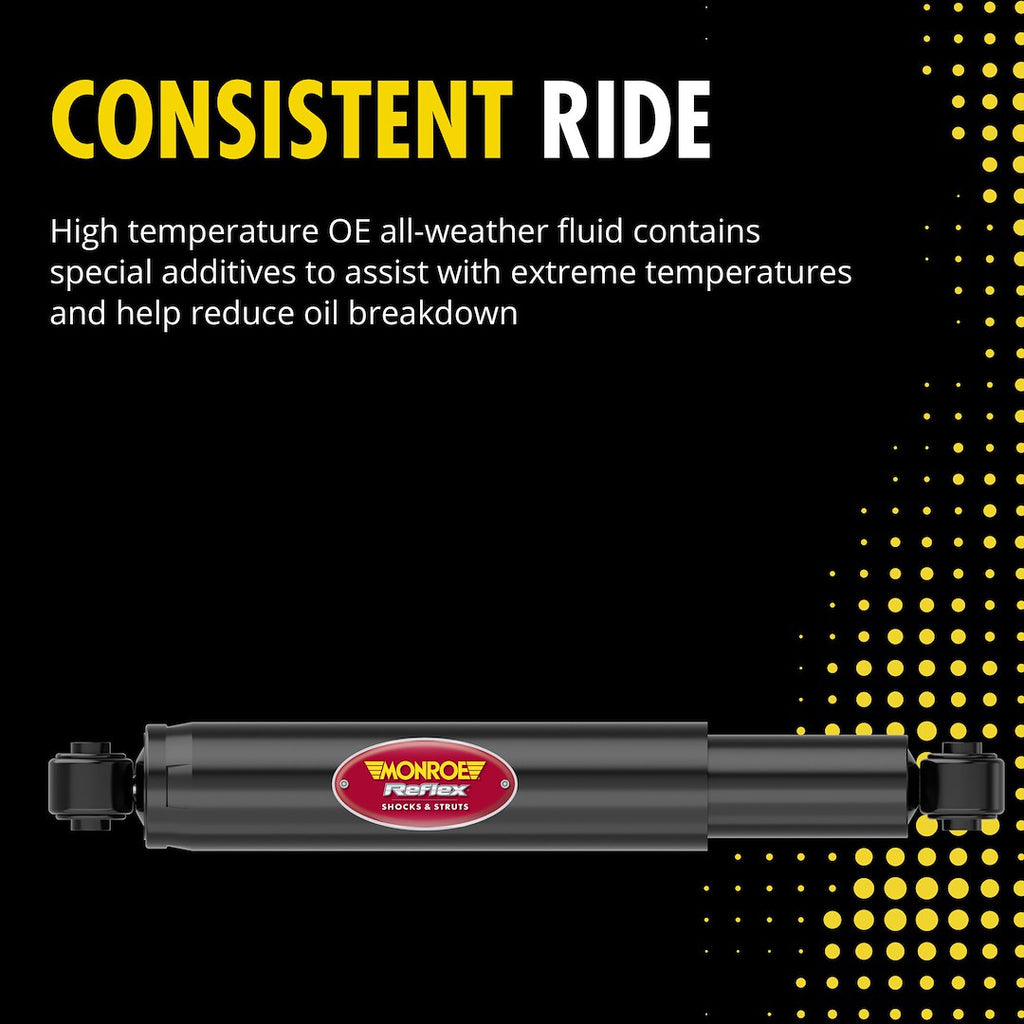

• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
• High Pressure Nitrogen Gas Charged: High-Pressure Charge (240 To 260 PSI) Provides A Quicker Response For Excellent Vehicle Control

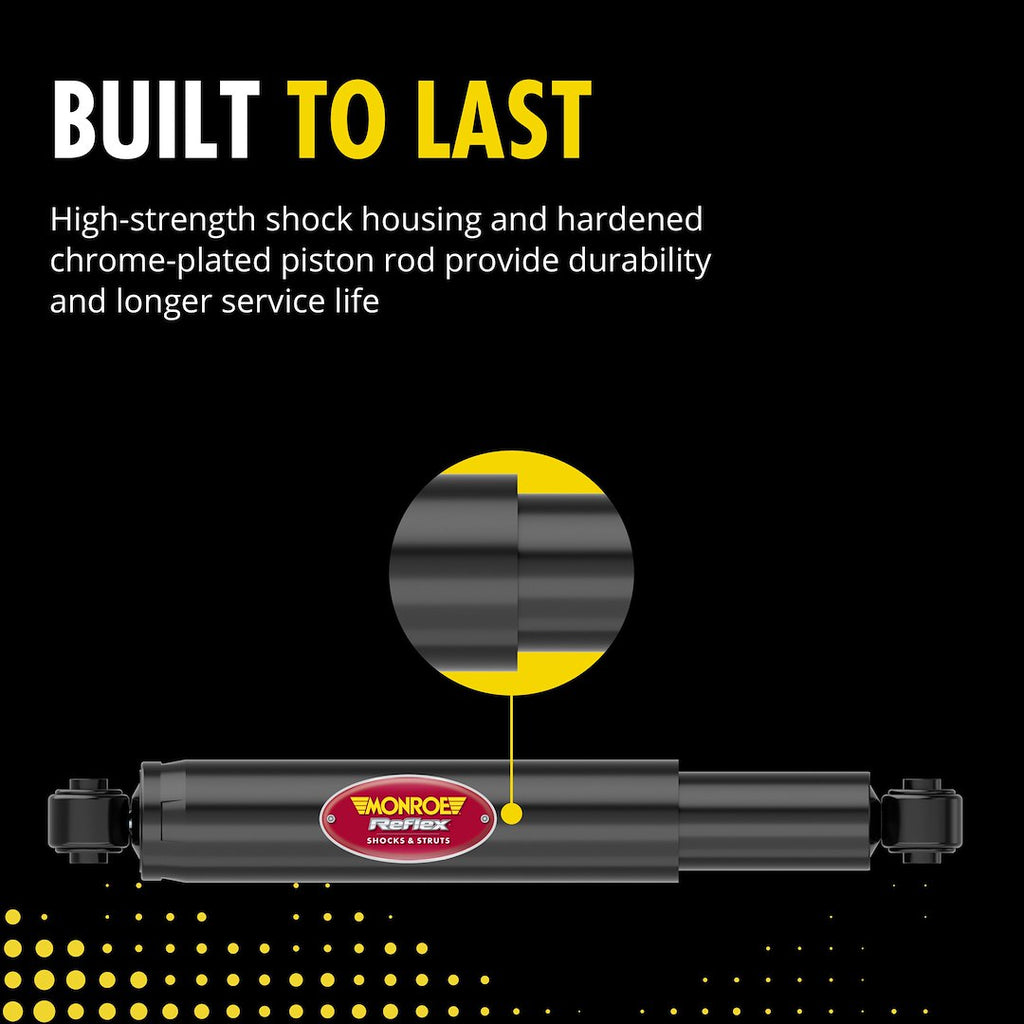

• Shock Housing: High Strength To Resist Damage And Provide Longer Service Life
• Nitrocarburized Rod: For Long Service Life

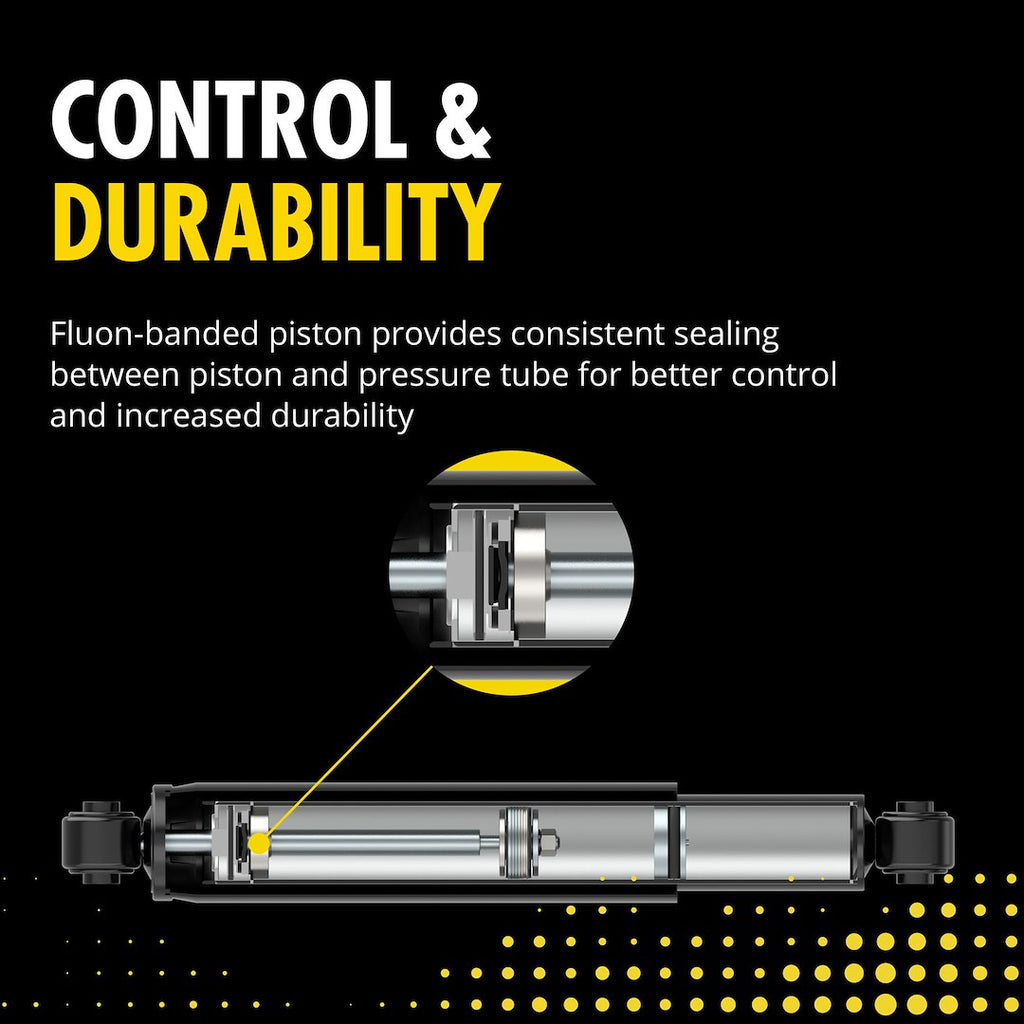

• Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability

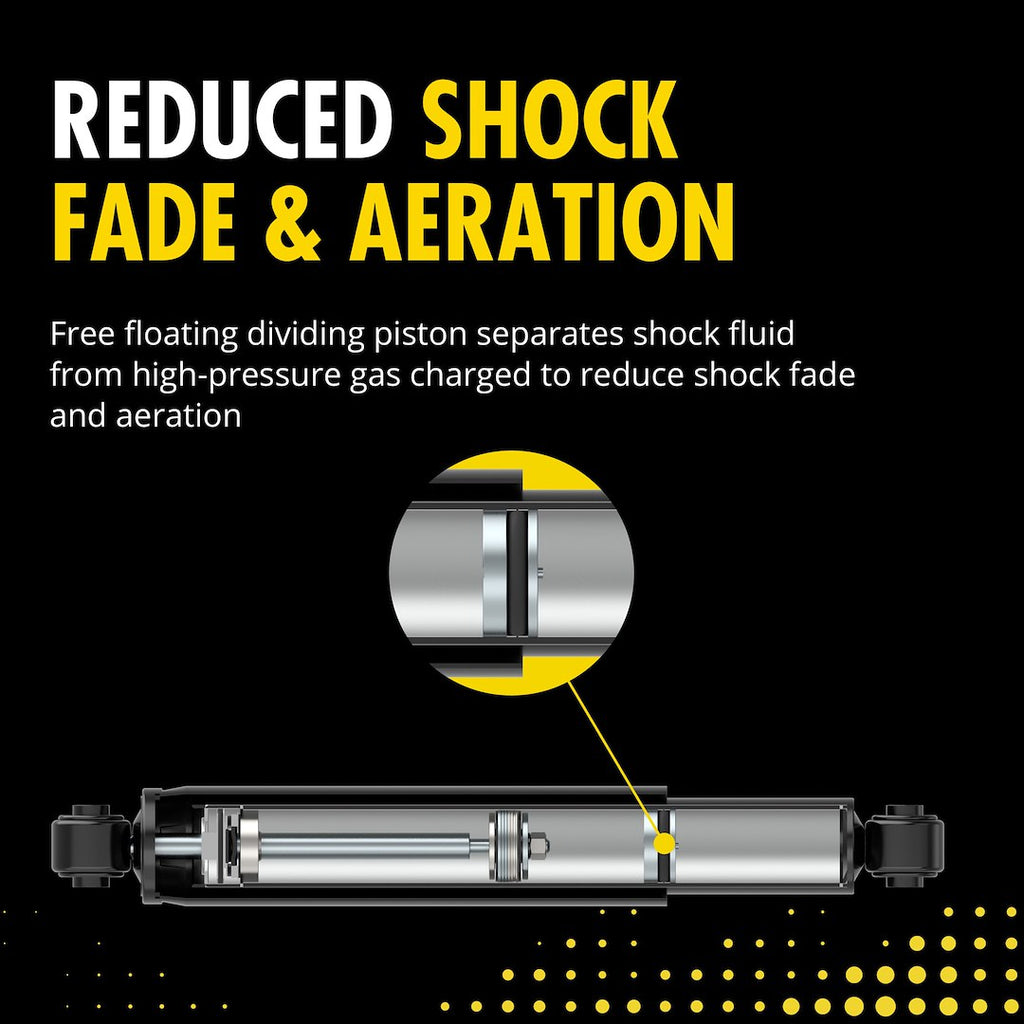

• Free Floating Dividing Piston: Separates Shock Fluid From High-Pressure Gas Charge

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 911505
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 15-3/8 Inch
• Compressed Length (IN): 10-7/8 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Clevis
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2002-2006 Cadillac Escalade
• 2003-2006 Cadillac Escalade ESV
• 2002-2006 Cadillac Escalade EXT
• 2002-2006 Chevrolet Avalanche 1500
• 2003-2006 Chevrolet Silverado 1500
• 2007-2007 Chevrolet Silverado 1500 Classic
• 2000-2006 Chevrolet Suburban 1500
• 2000-2006 Chevrolet Tahoe
• 2000-2006 GMC Yukon
• 2000-2006 GMC Yukon XL 1500

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
