Advanced nitrogen gas charged shock absorber for enhanced vehicle control and comfort.

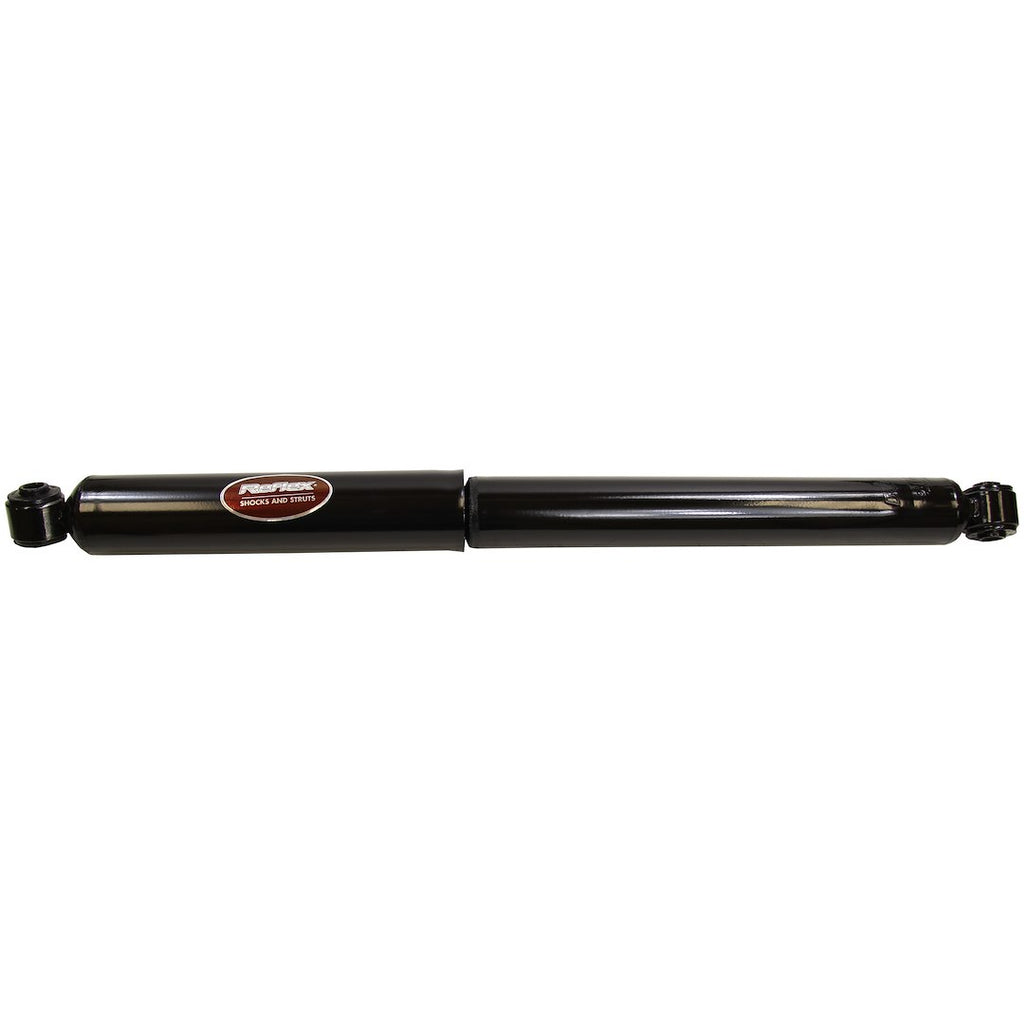

The Monroe Shock Absorber Reflex is engineered to provide superior handling and ride comfort through its innovative valving technology. This nitrogen gas charged shock absorber automatically adjusts to absorb impacts, ensuring optimal control during various driving conditions. The design features a full displaced valving system that enhances both compression and extension cycles, resulting in a smoother ride.
Constructed with a 5/8 inch heavy-duty piston rod and a self-lubricating fluid seal, this shock absorber is built for durability and long service life. The Fluon banded piston ensures consistent sealing, which contributes to better control and reduced wear. Additionally, the all-weather fluid used in the unit minimizes friction, allowing for smooth rod reaction regardless of environmental conditions.
With a 2-1/4 inch or 2 inch diameter reserve tube, the Monroe Reflex shock absorber offers increased fluid capacity for cooler operation. Its monotube internal design and non-adjustable valving provide reliable performance, making it a suitable choice for vehicle-specific applications. This shock absorber is designed to maintain tire-to-road contact effectively, enhancing stability and safety during tight maneuvers.
Features
- ASD Technology: Innovative Valving Provides Greater Control For Handling, While Improving Ride Comfort
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
- 2-1/4 Inch Or 2 Inch Diameter Reserve Tube: Allows More Fluid Carrying Capacity For A Cooler Running Unit
- 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units; Enhanced Stability By Reducing Body Roll Rate And Dive In Evasive Manoeuvers Or Tight Turns
- 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life; High-Pressure Gas Charge Helps Deliver Precise And Consistent Response
- Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 911199
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 27.69 Inch
- Compressed Length (IN): 17.18 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Rod Displaced Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2013-2025 Ram 3500
