Monroe Shock Absorber Reflex (MPN: 71362)

Advanced strut technology for enhanced vehicle handling and comfort.

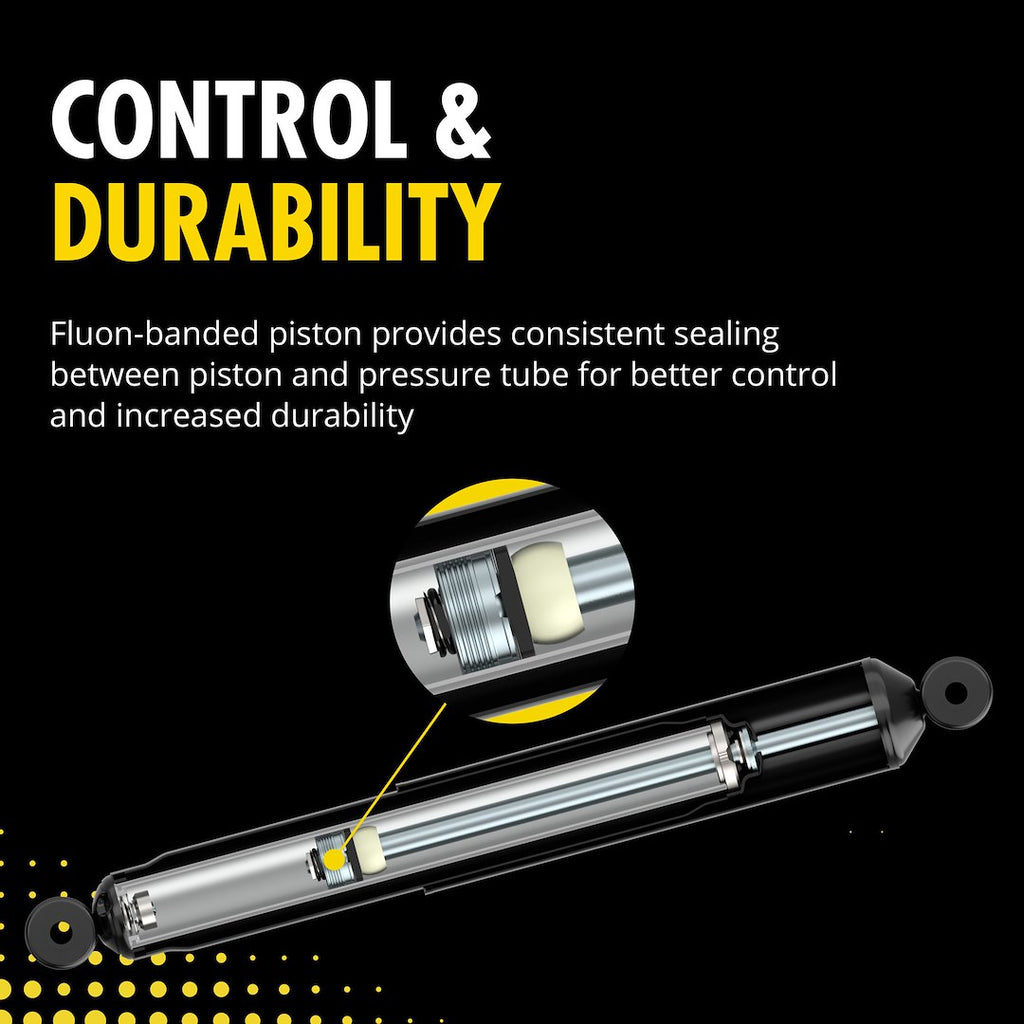

The Monroe Shock Absorber Reflex is engineered to provide superior ride quality and handling through its innovative ASD Technology. This patented system utilizes specially tuned valving and a Fluon banded piston to adapt to road conditions, ensuring optimal performance. The ASD valve detects road bumps and adjusts the shock absorption accordingly, enhancing control and comfort during driving.

Constructed with all-weather fluid, the Reflex struts minimize friction for smooth operation, while the nitrogen gas charge helps maintain consistent tire contact with the road. The rod displaced valving design offers an improved range of motion during both compression and extension cycles, contributing to a more comfortable ride.

Additional features include a protective dust boot to prevent dirt and moisture accumulation, a unique rod guide for extended service life, and a hardened chrome-plated piston rod for durability. The Monroe Reflex struts are a reliable choice for those seeking enhanced safety and performance across various driving conditions.

Features

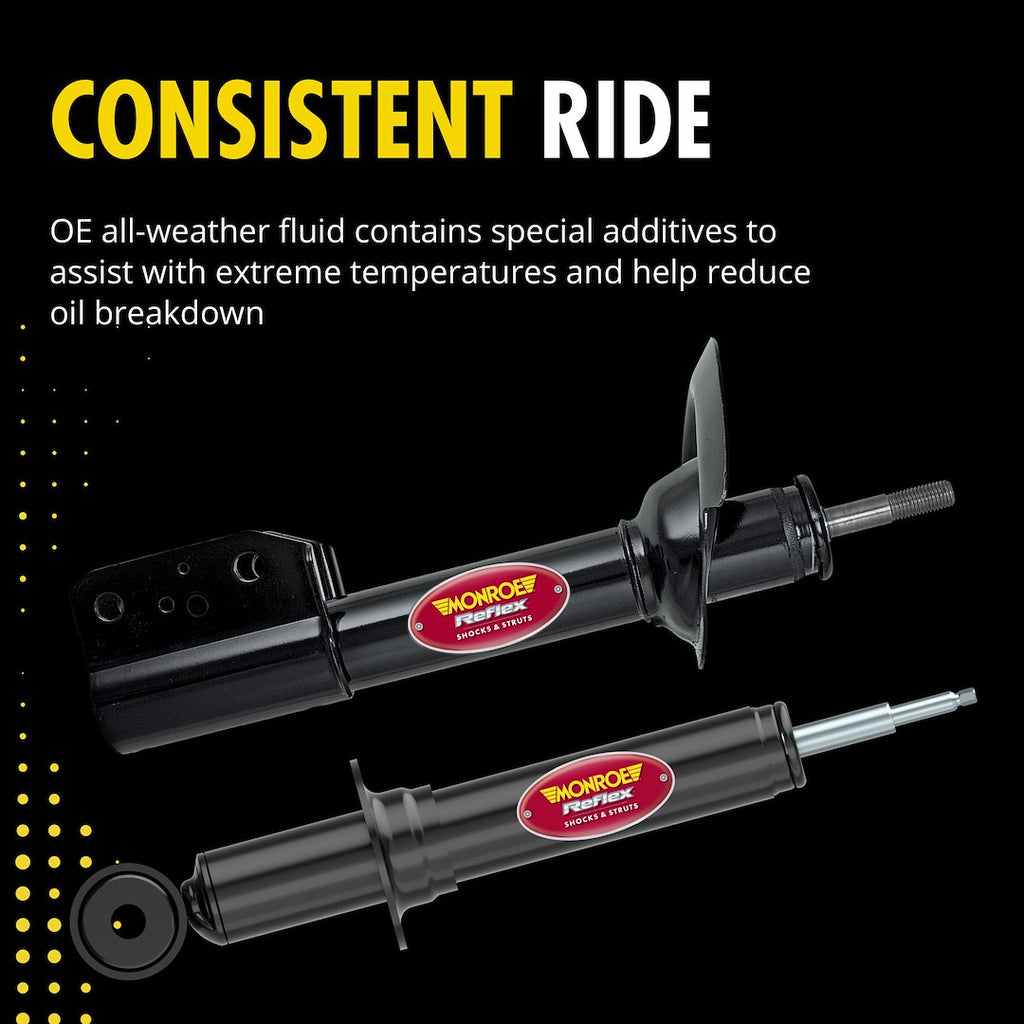

• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

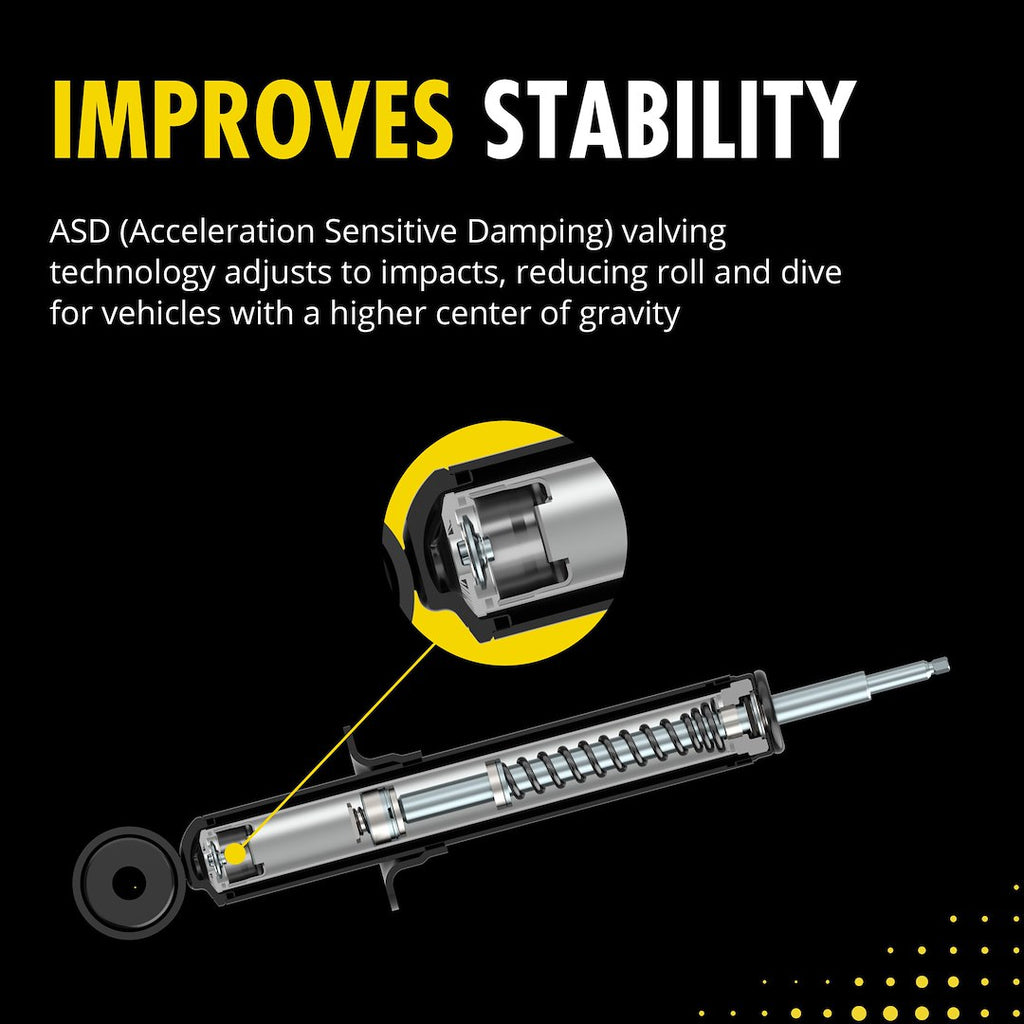

• ASD Technology: Innovative Valving Provides Greater Control For Handling, While Improving Ride Comfort

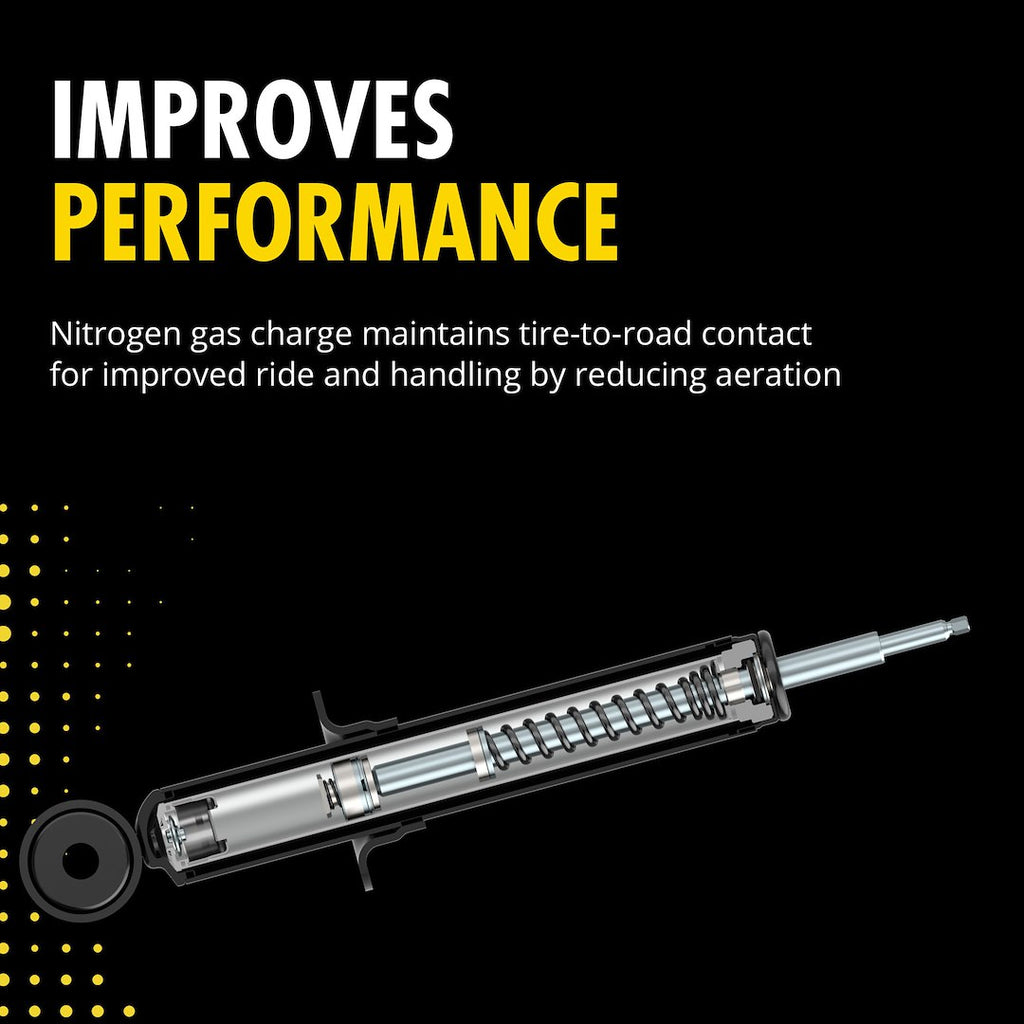

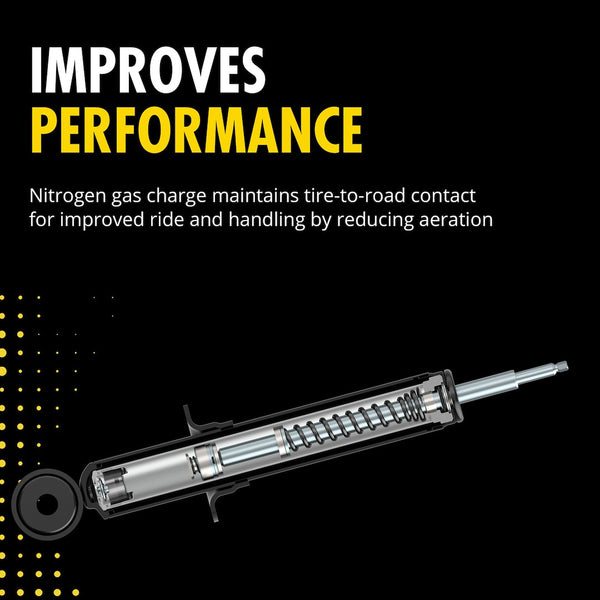

• Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications

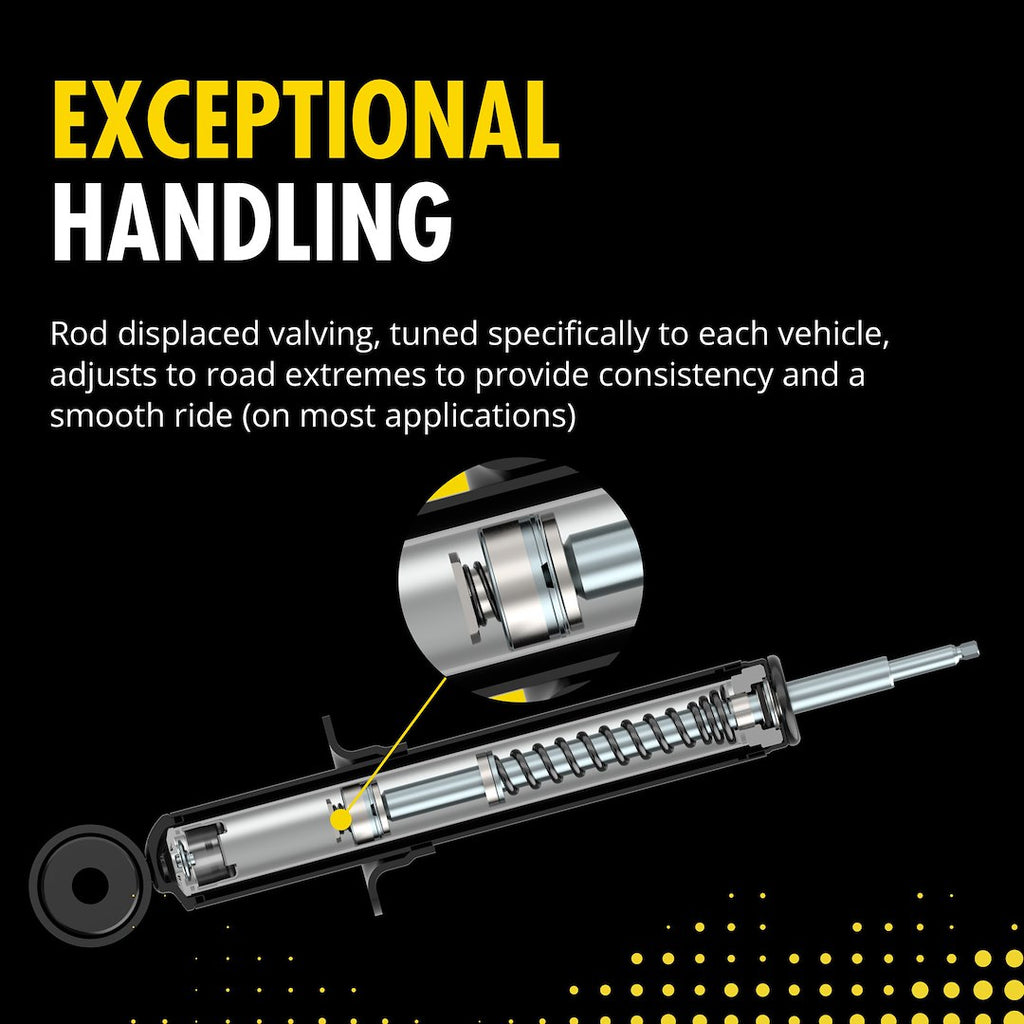

• Rod Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
• Special Dust Boot/Jounce Bumper: Protective Dust Boot Reduces Dirt And Any Moisture Build-Up. Jounce Bumper Helps Prevent Severe Suspension Movement

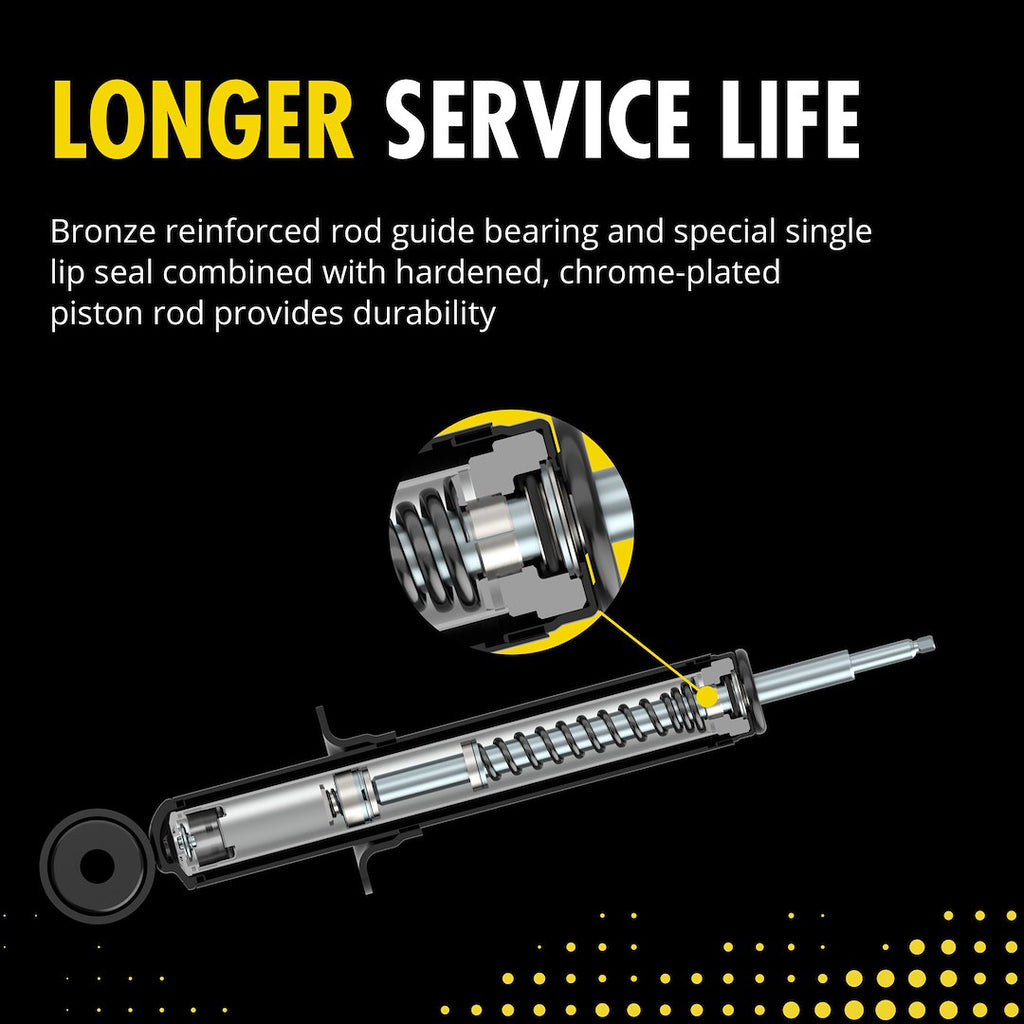

• Unique Rod Guide And Single Lip Seal: Bronze Reinforced Rod Guide Bearing And Special Seal Provides Longer Service Life And Consistent Performance
• Hardened And Chrome Plated Piston Rod: Long Service Life

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 71362
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 20.95 Inch
• Compressed Length (IN): 15.7 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Rod Displaced Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2004-2008 Ford F-150
• 2006-2008 Lincoln Mark LT

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
