Monroe Shock Absorber Magnum Loaded Strut Assembly (MPN: 253005)

Engineered for durability and performance in heavy load conditions.

The Monroe Magnum Loaded Strut Assembly is designed specifically for light commercial vehicles that require reliable performance under demanding conditions. With a compressed length of 14.72 inches and an extended length of 22.95 inches, this strut assembly features a variable rate coil spring that ensures a comfortable ride while maintaining ride height, even when supporting heavy loads. The twin technology active control system enhances vehicle handling and stability across various driving conditions.

Constructed with a PTFE-coated bearing, the Monroe Magnum reduces wear on the rod guide, contributing to the longevity of the assembly. The nitrogen gas charge minimizes shock fade and improves tire-to-road contact, enhancing overall ride quality. Additionally, the PTFE-banded piston allows for quick response to changing road surfaces, ensuring optimal performance.

This strut assembly is equipped with OE all-weather fluid that withstands extreme temperatures, preventing oil breakdown and ensuring consistent performance. The protective dust boot keeps dirt and moisture at bay, while the jounce bumper mitigates severe suspension movement, further enhancing the durability of the assembly. Designed for vehicle-specific applications, the Monroe Magnum Loaded Strut Assembly is a robust solution for those who depend on their vehicles for heavy-duty tasks.

Features

• Engineered To Handle Frequent Stops, Heavy Loads And High Miles When Under Load To Meet The Demands Of Hardworking, Light Commercial Vehicles To Help You Get The Job Done

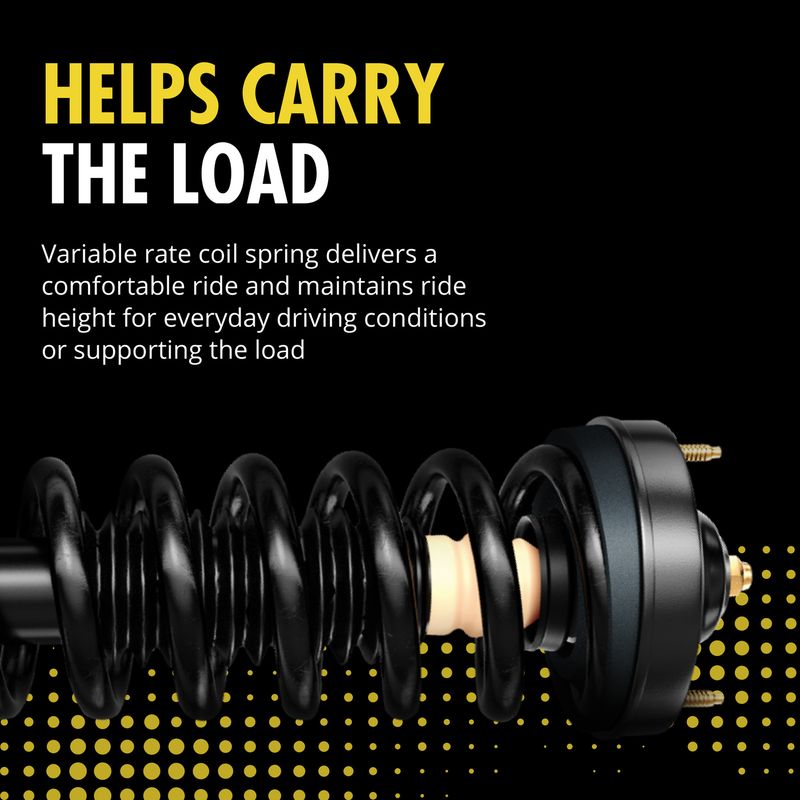

• Variable Rate Coil Spring Delivers A Comfortable Ride And Maintains Ride Height For Everyday Driving Conditions Or Supporting The Load
• Twin Technology Active Control System Delivers Exceptional Control Under Most Driving Conditions
• Bearing With PTFE Coating Protects The Rod Guide To Reduce Damage To The Seal And Chrome Piston Rod Provides Durability And Long Service Life
• Nitrogen Gas-Charge Helps Maintain Tire To Road Contact For Improved Ride And Handling By Reducing Aeration And Shock Fade
• PTFE-Banded Piston Helps Reduce Friction Between The Piston And Pressure Tube To Respond More Quickly To Changing Road Surfaces
• OE All-Weather Fluid Contains Special Additives To Assist With Extreme Temperatures And Help Reduce Oil Breakdown
• Protective Dust Boot Reduces Dirt And Moisture, While Jounce Bumper Reduces Severe Suspension Movement

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 253005
• Type: Hydraulic
• With Coil Spring: Yes
• Extended Length (IN): 22.95 Inch
• Compressed Length (IN): 14.72 Inch
• Upper Mounting Style: Strut
• Lower Mounting Style: Clevis
• Adjustable Valving: Yes
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Twin Tube
• Body Color: Black
• Valving Type: Application Specific Valving
• Ride Height Adjustable: Yes
• Rod Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2015-2017 Ford Transit-150
• 2015-2017 Ford Transit-250
• 2015-2017 Ford Transit-350

Technical Documents

• 253005.pdf
