Durable nitrogen gas charged shock for improved ride quality and control.

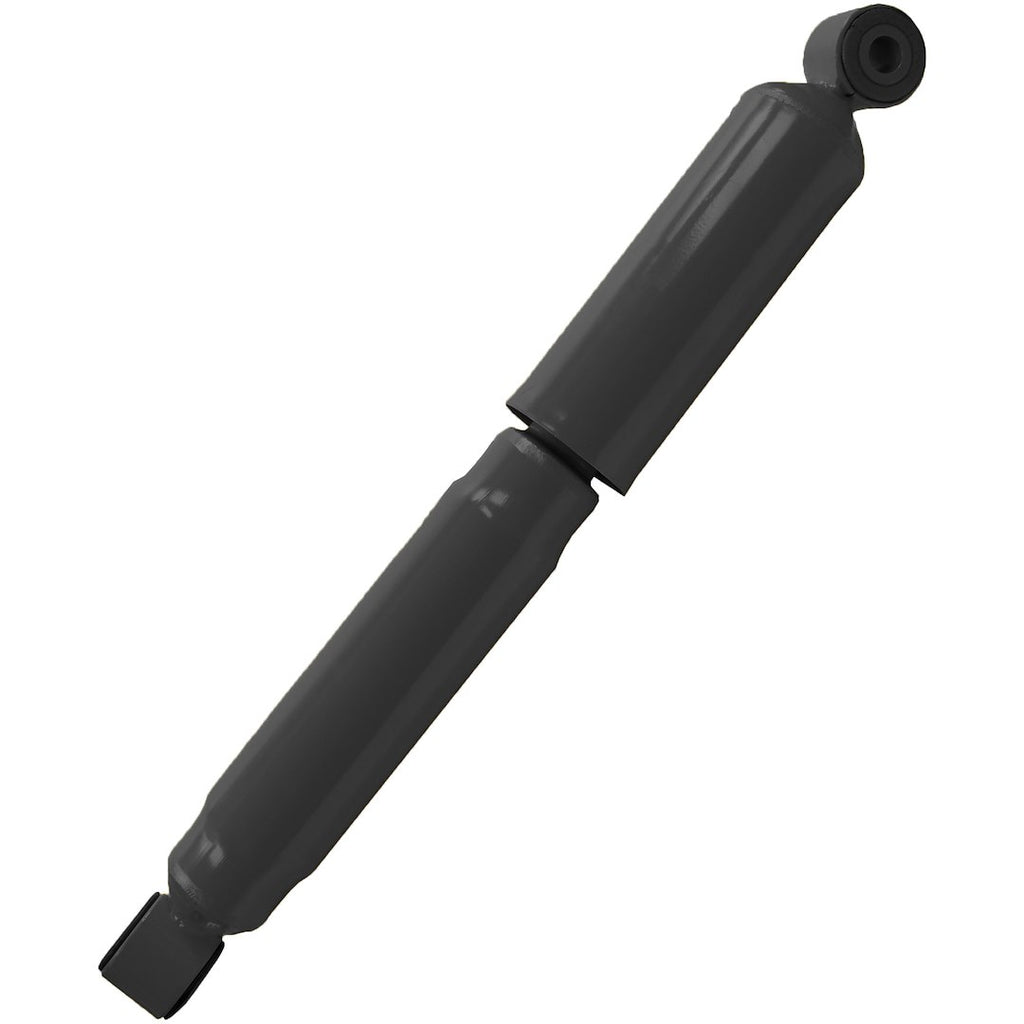

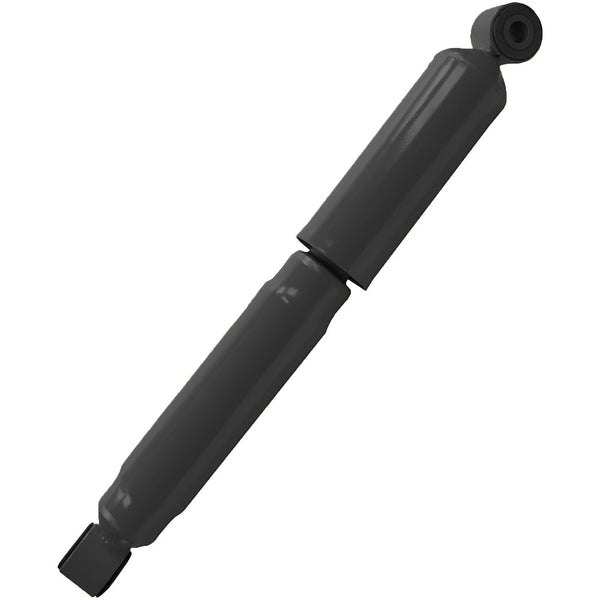

The Monroe Shock Absorber Magnum is engineered to provide enhanced control and comfort for mid to full-size light-duty work trucks and vans. This nitrogen gas charged shock absorber features a robust design with a sintered iron piston, ensuring durability and a longer service life compared to traditional materials. The shock is equipped with full displaced valving, which optimizes performance during both compression and extension cycles, resulting in a smoother ride.
Incorporating all weather fluid, the Magnum shock absorber minimizes friction and promotes smooth rod reaction, contributing to consistent performance across various driving conditions. The 2 inch reserve tube increases fluid capacity, allowing for better heat dissipation and maintaining optimal performance. With a 1-3/8 inch bore, this shock operates at lower pressures, enhancing efficiency and responsiveness while accommodating up to twice the fluid capacity of standard units.
Designed without shock boots and featuring a heavy-duty 5/8 inch piston rod, the Monroe Shock Absorber Magnum is built to withstand the rigors of daily use. The self-lubricating fluid seal retains gas effectively, reducing wear and friction over time. This shock absorber is a reliable choice for those seeking to improve their vehicle's handling and ride quality.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
- 2 Inch Reserve Tube: More Fluid For More Consistent Performance, Greater Oil Capacity To Better Dissipation Of Heat Compared To OE
- 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units, Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
- 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life
- Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
- Designed For Mid To Full-Size Light-Duty Work Trucks And Vans
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 66449
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 19.73 Inch
- Compressed Length (IN): 12.38 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Multi Stage High Displacement Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2020 Ram ProMaster 1500
- 2022-2022 Ram ProMaster 1500
