Enhanced control and comfort for light-duty trucks and vans.

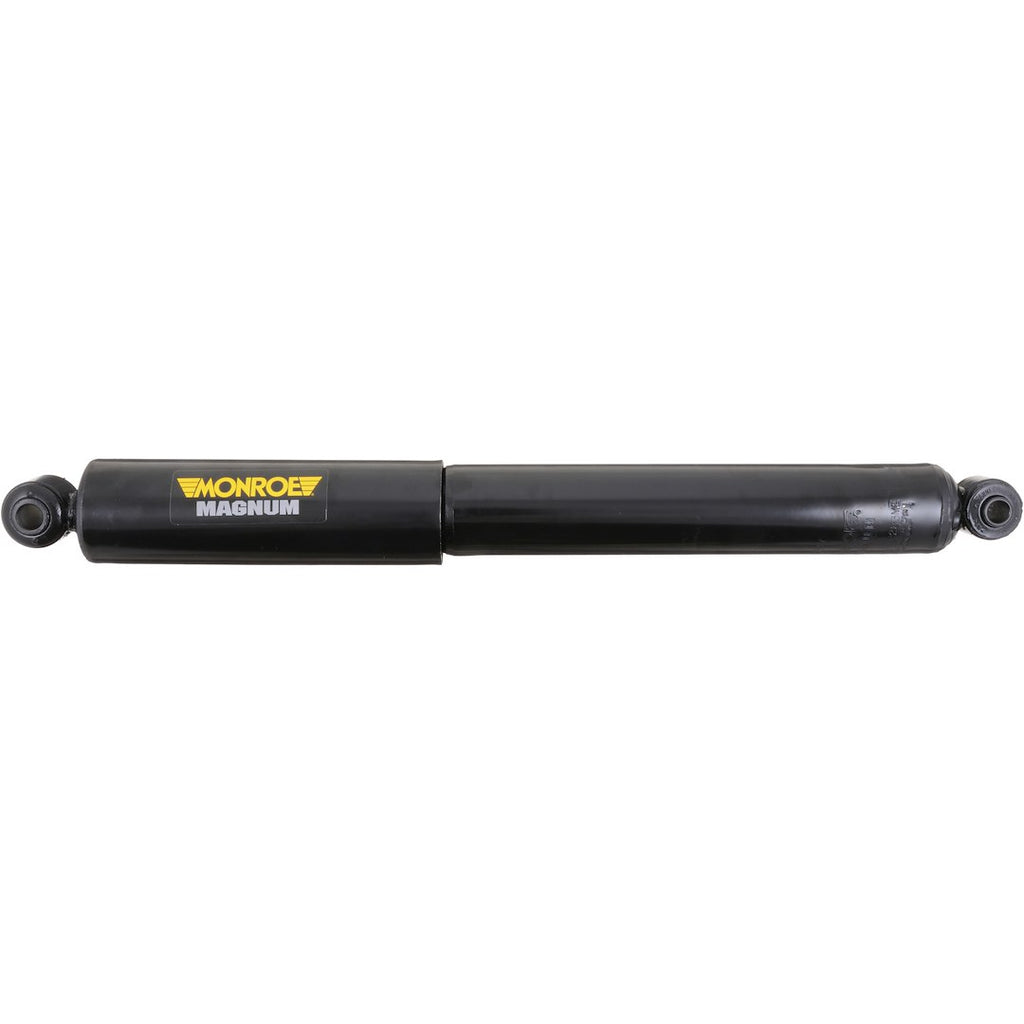

The Monroe Shock Absorber Magnum is engineered to provide superior control and comfort for mid to full-size light-duty work trucks and vans. This nitrogen gas charged shock absorber features all weather fluid that reduces friction, ensuring smooth rod reaction and enhancing overall performance. The full displaced valving allows for a better range during both compression and extension cycles, contributing to a more comfortable ride.
Constructed with a sintered iron piston, the Magnum shock absorber offers increased durability compared to traditional metals, resulting in a longer service life. The 2 inch reserve tube provides more fluid capacity, which aids in consistent performance and effective heat dissipation. With a 1-3/8 inch bore, this shock operates at lower pressures, working more efficiently and accommodating up to twice the fluid capacity of standard 1 inch bore shocks.
The heavy-duty 5/8 inch piston rod is nitrocarburized for enhanced longevity, while the special self-lubricating fluid seal retains gas without excessive wear or friction. Designed specifically for vehicle compatibility, the Monroe Shock Absorber Magnum is a reliable choice for those seeking improved ride quality and handling.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
- 2 Inch Reserve Tube: More Fluid For More Consistent Performance, Greater Oil Capacity To Better Dissipation Of Heat Compared To OE
- 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units, Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
- 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life
- Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
- Designed For Mid To Full-Size Light-Duty Work Trucks And Vans
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 65547
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 24.61 Inch
- Compressed Length (IN): 15.65 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: Black
- Rod Diameter (IN): 5/8 Inch
- Valving Type: OEM
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2011-2018 Ram 4500
- 2011-2018 Ram 5500
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
