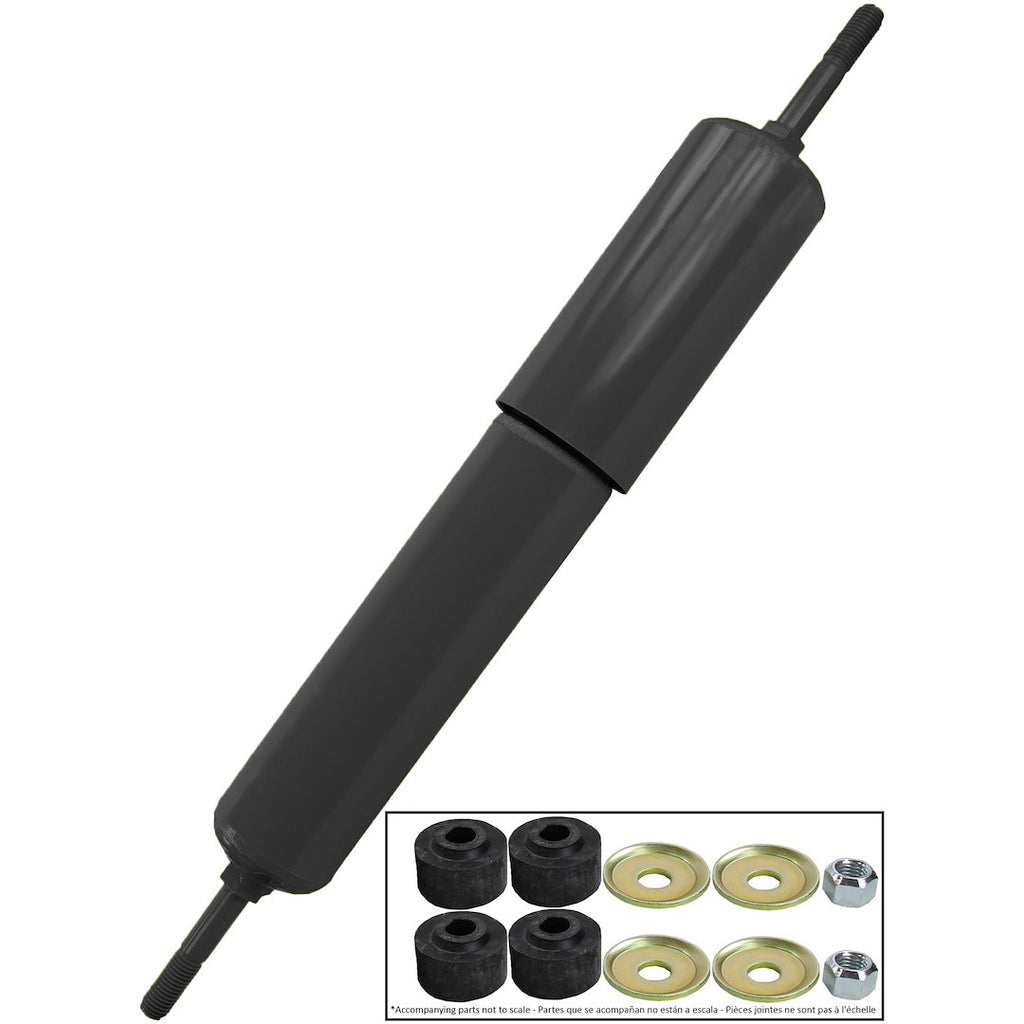

Durable nitrogen gas charged shock for improved ride quality and control.
The Monroe Shock Absorber Magnum is engineered to provide enhanced control and comfort for mid to full-size light-duty work trucks and vans. This nitrogen gas charged shock absorber features a monotube design that ensures consistent performance and improved handling by reducing aeration, which helps maintain optimal tire-to-road contact. The shock is constructed with a sintered iron piston, offering superior durability compared to traditional metals, thus extending the service life of the product.
Incorporating full displaced valving, the Magnum shock absorber delivers a smooth and comfortable ride by optimizing the valving range during both compression and extension cycles. The 2-inch reserve tube increases fluid capacity, allowing for better heat dissipation and consistent performance under various driving conditions. Additionally, the heavy-duty 5/8-inch piston rod is nitrocarburized for enhanced longevity, while the self-lubricating fluid seal minimizes wear and friction, ensuring reliable operation over time.
Designed without shock boots and featuring a striking yellow body, this shock absorber is not only functional but also visually distinctive. It is a single unit that is vehicle specific, making it a precise fit for compatible models. The Monroe Shock Absorber Magnum is an essential component for those seeking to maintain vehicle stability and comfort during demanding driving conditions.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
- 2 Inch Reserve Tube: More Fluid For More Consistent Performance, Greater Oil Capacity To Better Dissipation Of Heat Compared To OE
- 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units, Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
- 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life
- Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
- Designed For Mid To Full-Size Light-Duty Work Trucks And Vans
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 65413
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 23-3/8 Inch
- Compressed Length (IN): 14-5/8 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Stud
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Multi Stage High Displacement Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1990-1990 Chevrolet C50
- 1990-1990 Chevrolet C5500 Kodiak
- 1990-1990 GMC C5000
- 1990-1991 GMC C5000 Topkick
