Experience enhanced control and comfort with advanced gas-charged technology.

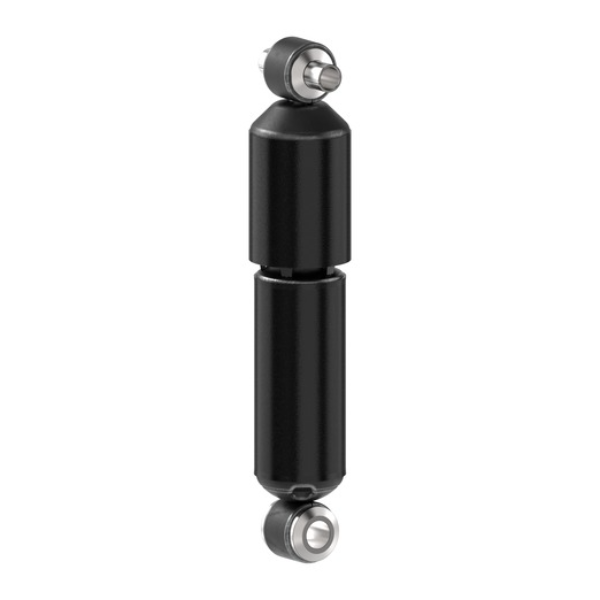

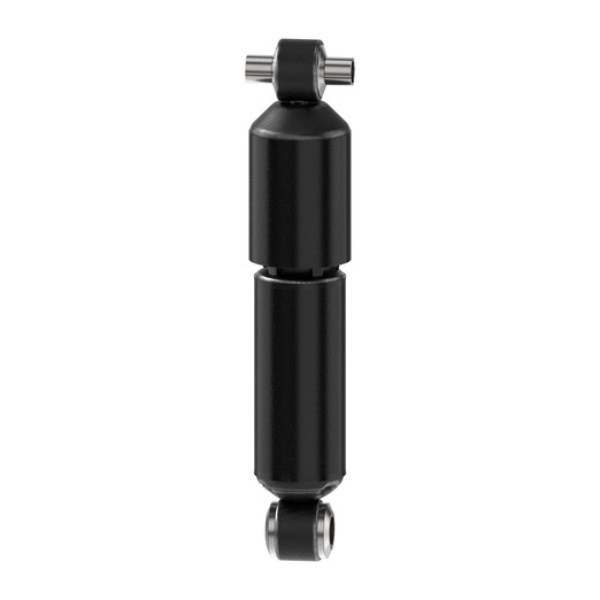

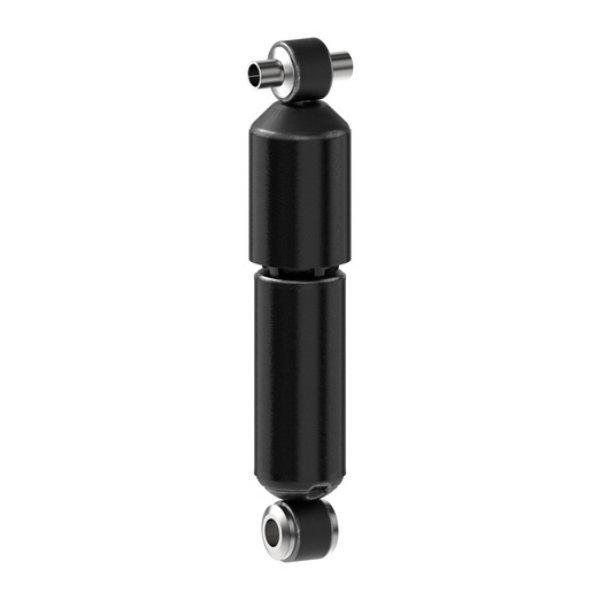

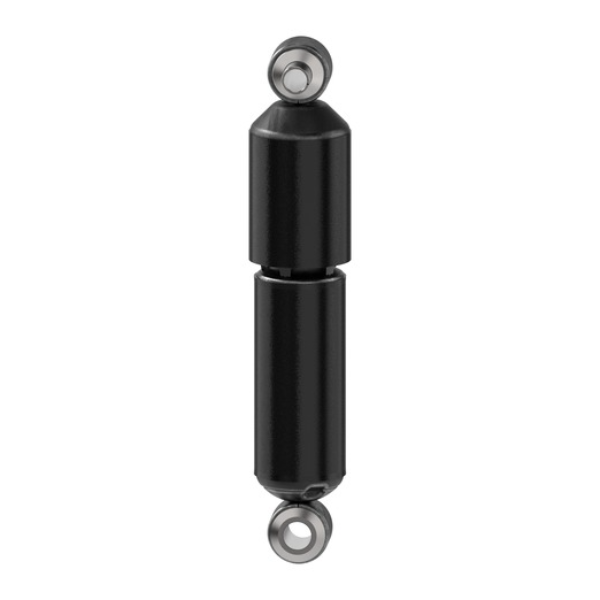

The Monroe Shock Absorber Gas Magnum is engineered to provide superior control and comfort for heavy-duty trucks. Designed specifically for Freightliner models including Cascadia, Century Class, Columbia, and Coronado, this shock absorber features a nitrogen gas charge that improves ride quality and handling. The advanced valving range allows for smooth compression and extension cycles, ensuring a comfortable ride even under demanding conditions.
Constructed with a sintered iron piston, the Gas Magnum shock absorber offers enhanced durability and longevity compared to traditional materials. Its all-weather fluid is formulated with special modifiers to minimize friction, promoting smooth rod reaction and maintaining optimal tire-to-road contact. The self-lubricating fluid seal is designed to retain gas effectively, reducing wear and friction over time.
With a robust design that includes a 5/8 inch rod diameter and a monotube internal structure, this shock absorber operates efficiently with less effort, boasting up to twice the fluid capacity of standard 1 inch bore shocks. The black body color and cross pin upper mounting style contribute to its aesthetic and functional appeal, making it a reliable choice for truck owners seeking performance and durability.
Features
- Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth, Comfortable Ride
- Nitrogen Gas-Charged For Improved Ride And Handling, Helps Maintain Tire-To-Road Contact By Reducing Aeration
- Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
- All Weather Fluid - Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Sintered Iron Piston - Stronger Than Traditional Metals, Enhances Durability For Long Service Life
- Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 66122
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 10.33 Inch
- Compressed Length (IN): 8.33 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 5/8 Inch
- Valving Type: OEM
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
