Monroe Shock Absorber Gas Magnum (MPN: 65140)

Enhance ride quality and control with advanced gas-charged technology.

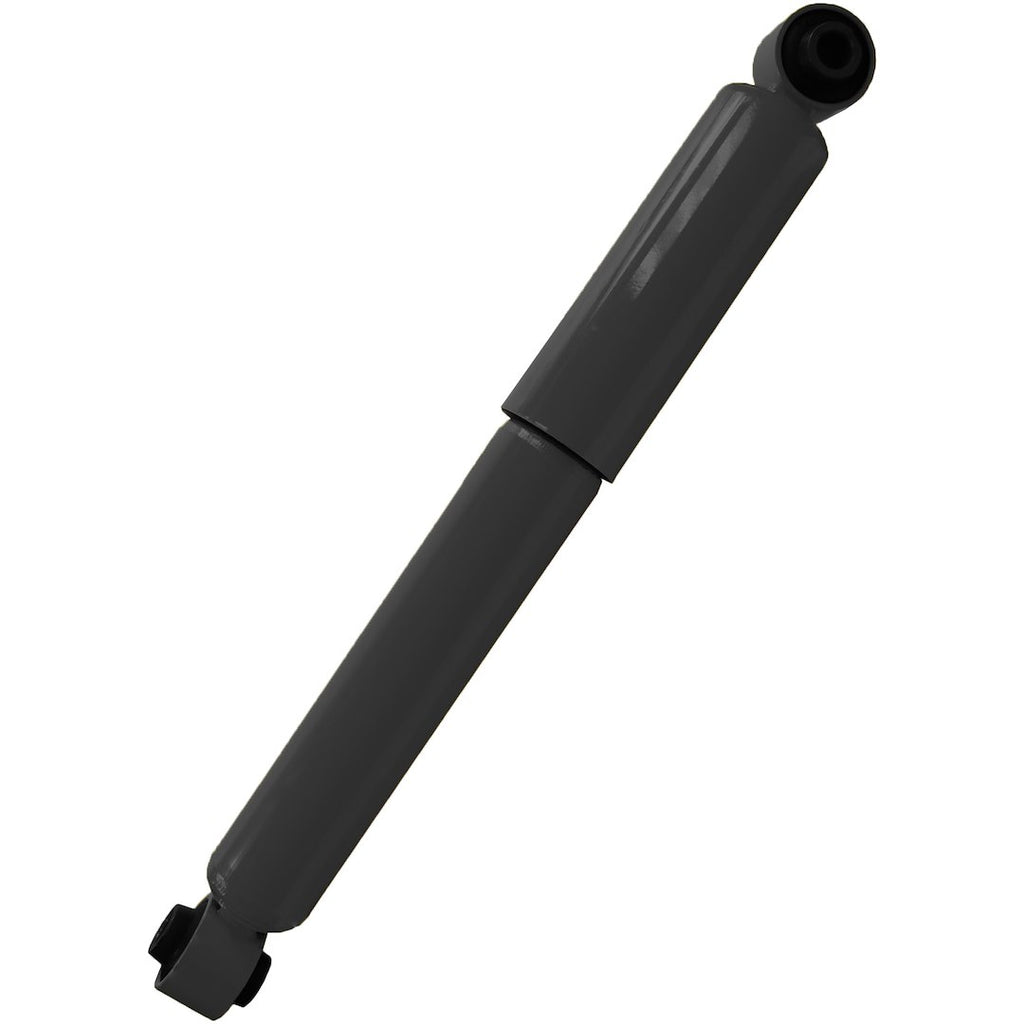

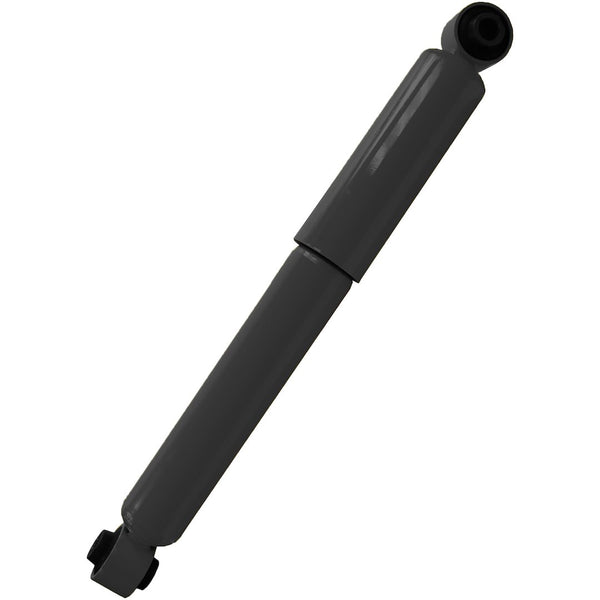

The Monroe Gas-Magnum shock absorber is engineered to provide superior control and comfort for heavy-duty vehicles. Designed specifically for models such as the Freightliner Business Class M2 and various Thomas School Buses, this shock absorber features a nitrogen gas charge that improves ride quality and handling. The advanced valving range allows for smooth compression and extension cycles, ensuring a comfortable driving experience even under demanding conditions.

Constructed with a sintered iron piston, the Gas-Magnum shock absorber offers enhanced durability compared to traditional materials, contributing to a longer service life. The self-lubricating fluid seal is designed to retain gas effectively while minimizing wear and friction, further extending the lifespan of the unit. With a robust design that includes a 5/8 inch rod diameter and a monotube internal structure, this shock absorber is built to withstand the rigors of daily use.

The shock absorber is available in a striking yellow color and is designed for easy installation with a semi-universal fit. It does not include shock boots or hardware, but it does come with a dust shield to protect against contaminants. This product is an essential component for maintaining optimal tire-to-road contact and ensuring a smooth ride in various weather conditions.

Features

• Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth, Comfortable Ride
• Nitrogen Gas-Charged For Improved Ride And Handling, Helps Maintain Tire-To-Road Contact By Reducing Aeration
• Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
• Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Long Service Life
• Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 65140
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 22-1/2 Inch
• Compressed Length (IN): 14-3/8 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Yellow
• Rod Diameter (IN): 5/8 Inch
• Valving Type: OEM
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
