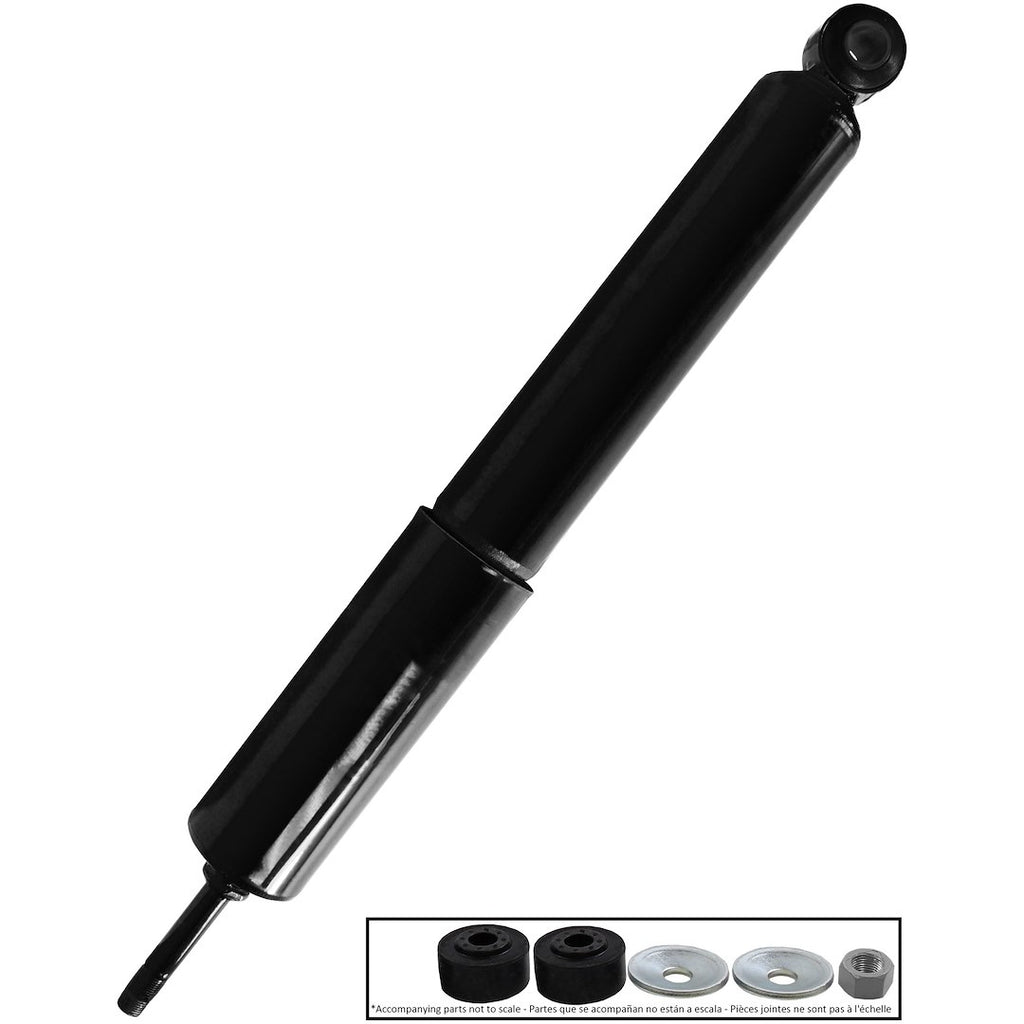

Monroe Shock Absorber Gas Magnum (MPN: 65107)

Enhance ride quality and control with advanced shock technology.

The Monroe Gas Magnum shock absorber is engineered to provide superior control and comfort for heavy-duty trucks. Designed for various International models from 1989 to 2015, this shock absorber features a nitrogen gas charge that improves ride quality and handling by maintaining optimal tire-to-road contact. The advanced valving system ensures a smooth ride by effectively managing both compression and extension cycles, reducing harshness while enhancing performance.

Constructed with a sintered iron piston, the Gas Magnum shock absorber offers increased durability compared to traditional materials, ensuring a long service life. The self-lubricating fluid seal minimizes wear and friction, contributing to the shock's reliability in all weather conditions. With a robust design that includes a 5/8 inch rod diameter and a monotube internal structure, this shock absorber is built to withstand the demands of heavy-duty applications.

Installation is straightforward, with included hardware and a dust shield for added protection. The shock absorber's yellow body color not only provides a distinctive look but also signifies its high-performance capabilities. This single shock absorber is a semi-universal fit, making it a versatile choice for various truck models.

Features

• Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth, Comfortable Ride
• Nitrogen Gas-Charged For Improved Ride And Handling, Helps Maintain Tire-To-Road Contact By Reducing Aeration
• Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
• Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Long Service Life
• Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 65107
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 20-3/4 Inch
• Compressed Length (IN): 12-7/8 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Yellow
• Rod Diameter (IN): 5/8 Inch
• Valving Type: OEM
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
