Enhanced control and comfort for light-duty trucks and vans.

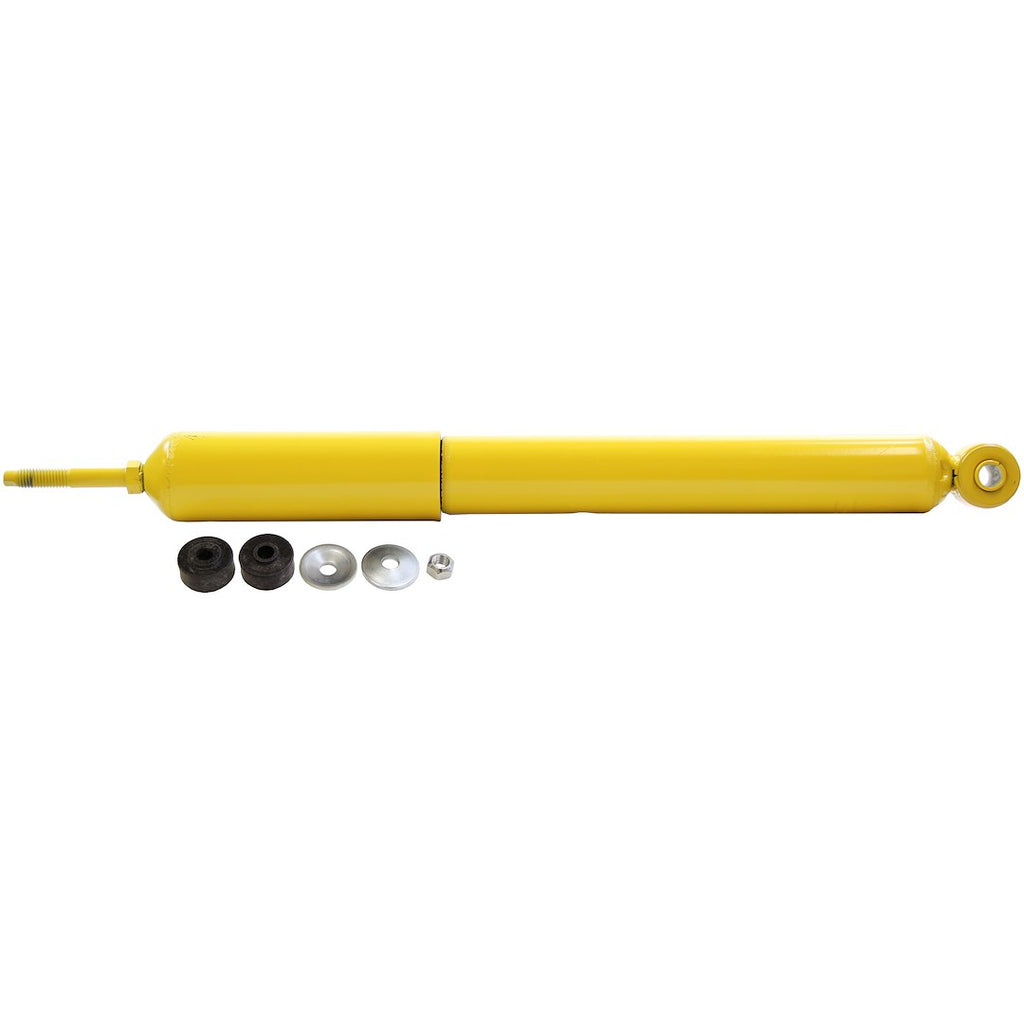

The Monroe Gas-Magnum shock absorber is engineered to provide superior control and comfort for mid to full-size light-duty work trucks and vans. This nitrogen gas charged unit features a monotube design that enhances ride quality by maintaining consistent tire-to-road contact, reducing aeration for improved handling. The shock absorber is constructed with a sintered iron piston, which offers greater durability compared to traditional metals, ensuring a longer service life under demanding conditions.
Incorporating full displaced valving, the Gas-Magnum shock absorber delivers a smooth and comfortable ride by optimizing the valving range during both compression and extension cycles. The 2-inch reserve tube increases fluid capacity, allowing for better heat dissipation and consistent performance. Additionally, the heavy-duty 5/8-inch piston rod is nitrocarburized for enhanced longevity, while the self-lubricating fluid seal minimizes wear and friction, ensuring reliable operation over time.
Designed specifically for vehicle applications, this shock absorber does not include shock boots and is available in a distinctive yellow color. With a focus on functionality and performance, the Monroe Gas-Magnum shock absorber is a practical choice for those seeking to enhance their vehicle's suspension system.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
- 2 Inch Reserve Tube: More Fluid For More Consistent Performance, Greater Oil Capacity To Better Dissipation Of Heat Compared To OE
- 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units, Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
- 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life
- Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
- Designed For Mid To Full-Size Light-Duty Work Trucks And Vans
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 34534
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 21.38 Inch
- Compressed Length (IN): 14-3/4 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Multi Stage High Displacement Valving
- Rod Material: Iron
- Body Material: OEM
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2025 Ram 2500
- 2013-2025 Ram 3500
