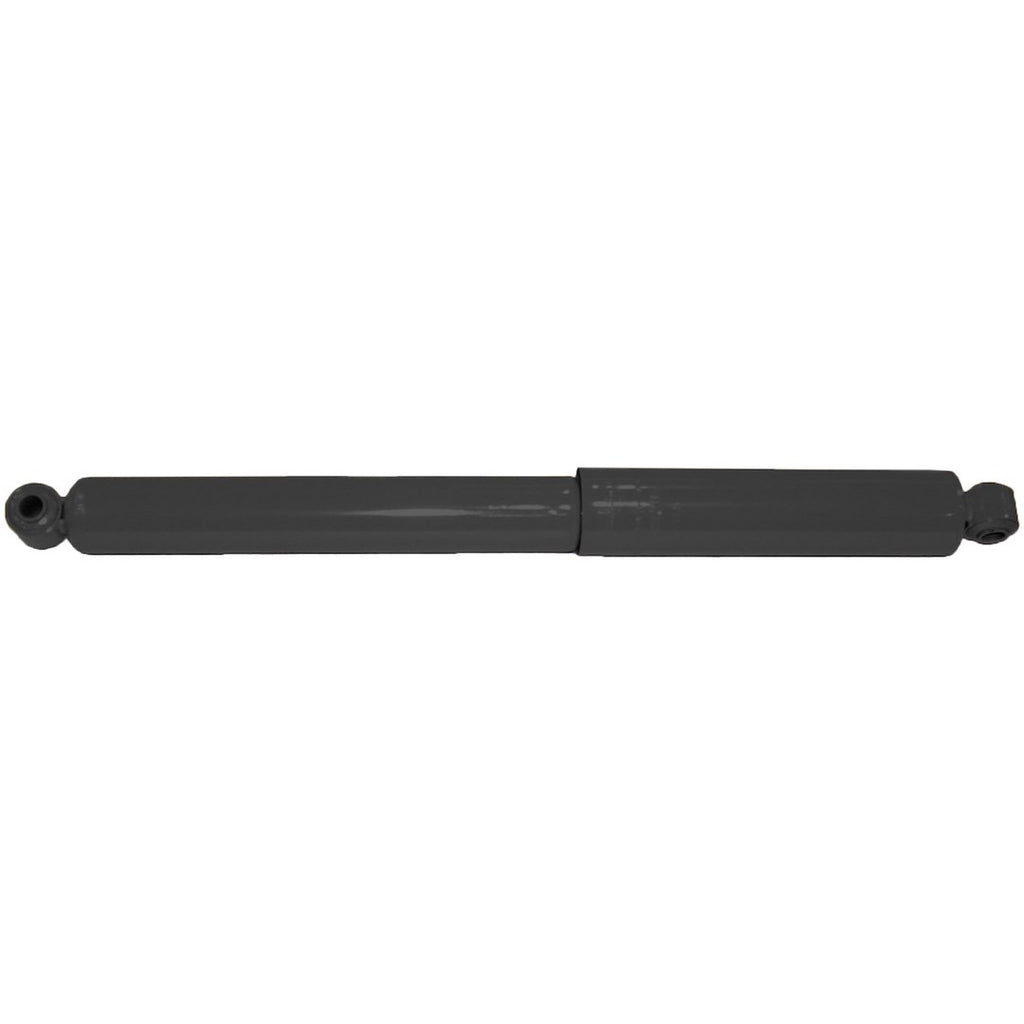

Monroe Shock Absorber (MPN: 65420)

Durable nitrogen gas charged shock for enhanced vehicle control and comfort.

The Monroe Shock Absorber is engineered to provide firm control while ensuring a smooth ride. This nitrogen gas charged unit features full displaced valving, which enhances the valving range during both compression and extension cycles, resulting in a more comfortable driving experience. Constructed with a sintered iron piston, it offers superior durability compared to traditional metals, contributing to a longer service life.

Designed specifically for mid to full-size light-duty work trucks and vans, this shock absorber includes a 2 inch reserve tube that allows for greater oil capacity and improved heat dissipation. The 1-3/8 inch bore operates at lower pressure than standard units, making it more efficient and capable of handling up to twice the fluid capacity of conventional shocks. Additionally, the heavy-duty 5/8 inch piston rod is nitrocarburized for enhanced longevity.

The Monroe Shock Absorber is equipped with a special self-lubricating fluid seal that retains gas without excessive wear or friction, ensuring consistent performance over time. With its robust construction and advanced features, this shock absorber is a reliable choice for maintaining optimal tire-to-road contact and overall vehicle handling.

Features

• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
• Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
• Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
• Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
• 2 Inch Reserve Tube: More Fluid For More Consistent Performance, Greater Oil Capacity To Better Dissipation Of Heat Compared To OE
• 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units, Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
• 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life
• Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
• Designed For Mid To Full-Size Light-Duty Work Trucks And Vans

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 65420
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 29.98 Inch
• Compressed Length (IN): 18.09 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Yellow
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Multi Stage High Displacement Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1990-1990 GMC C5000
• 1990-1991 GMC C5000 Topkick

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
