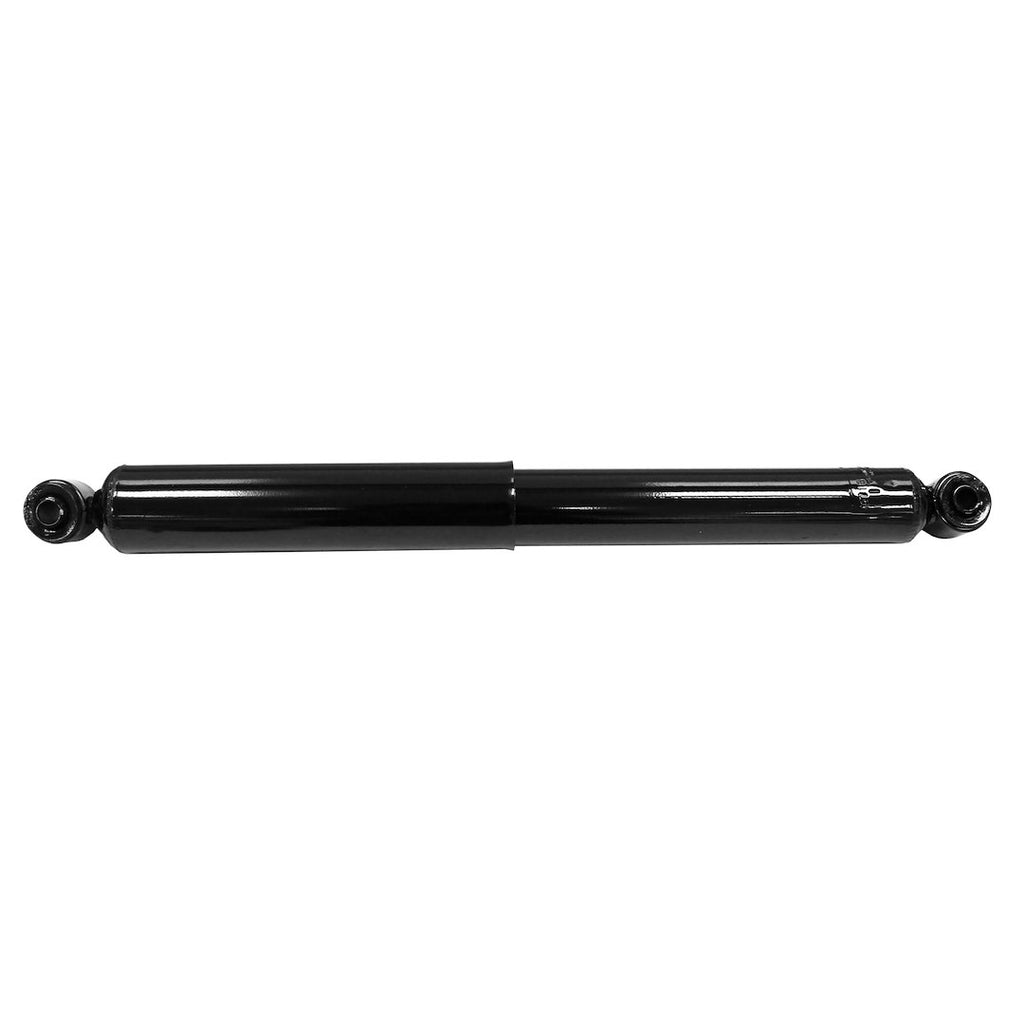

Monroe Sensa-Trac Truck Shock Absorber (MPN: 37164)

Advanced damping technology for improved ride and handling performance.

The Monroe Sensa-Trac truck shock absorber is engineered to enhance vehicle performance through its innovative position sensitive damping (PSD) technology. This shock absorber features precision tapered grooves in the pressure tube, which work in conjunction with application engineered valving to adapt to varying road and weight conditions, ensuring optimal ride quality and safety. The nitrogen gas charged design further improves handling by maintaining consistent tire-to-road contact, reducing aeration during operation.

Constructed with a Fluon banded piston, the Monroe Sensa-Trac provides superior sealing between the piston and pressure tube, resulting in enhanced control and durability. The full displaced valving is specifically tuned for each application, allowing for automatic adjustments to road extremes, which contributes to a consistent and comfortable ride. Additionally, the heavy-duty nitrocarburized piston rod is designed for long service life, making this shock absorber a reliable choice for truck owners seeking performance and longevity.

Features

• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
• Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
• Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
• Lower Operating Pressure Than Standard 1 Inch Bore Units
• Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
• Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
• Piston Rod: Heavy-Duty Nitrocarburized Rod For Long Service Life

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 37164
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 26 Inch
• Compressed Length (IN): 16 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2001-2003 Chevrolet Silverado 1500 HD
• 2005-2006 Chevrolet Silverado 1500 HD
• 2007-2007 Chevrolet Silverado 1500 HD Classic
• 1999-2004 Chevrolet Silverado 2500
• 2001-2010 Chevrolet Silverado 2500 HD
• 2007-2007 Chevrolet Silverado 2500 HD Classic
• 2001-2003 GMC Sierra 1500 HD
• 2005-2006 GMC Sierra 1500 HD
• 2007-2007 GMC Sierra 1500 HD Classic
• 1999-2004 GMC Sierra 2500
• 2001-2010 GMC Sierra 2500 HD
• 2007-2007 GMC Sierra 2500 HD Classic

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
