Advanced shock absorber with position sensitive damping for enhanced vehicle performance.
The Monroe Sensa-Trac truck shock absorber is engineered to enhance ride quality and handling through its innovative design. Featuring position sensitive damping (PSD) technology, this shock absorber utilizes precision tapered grooves in the pressure tube, allowing for rapid adjustments to varying road and weight conditions. The incorporation of a Fluon banded piston ensures consistent sealing and improved durability, contributing to better control during operation.
This shock absorber is nitrogen gas charged, which aids in maintaining optimal tire-to-road contact by minimizing aeration. The full displaced valving is specifically tuned for each application, providing consistent performance across diverse driving conditions. With a heavy-duty nitrocarburized piston rod, the Monroe Sensa-Trac is built for longevity and reliability, making it a suitable choice for vehicle-specific applications.
Designed without a coil spring and featuring a monotube internal design, this shock absorber is compatible with various vehicle models. The black steel body and 5/8 inch rod diameter ensure robust construction, while the included dust shield and hardware facilitate straightforward installation. Overall, the Monroe Sensa-Trac truck shock absorber represents a significant advancement in shock absorber technology, focusing on safety, performance, and durability.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

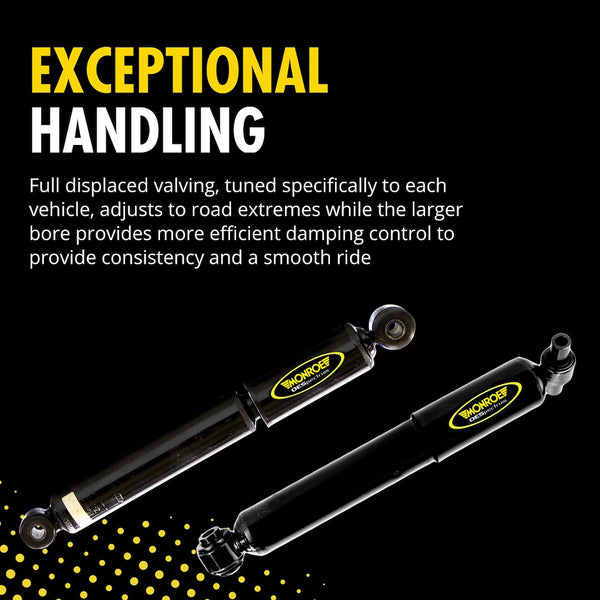

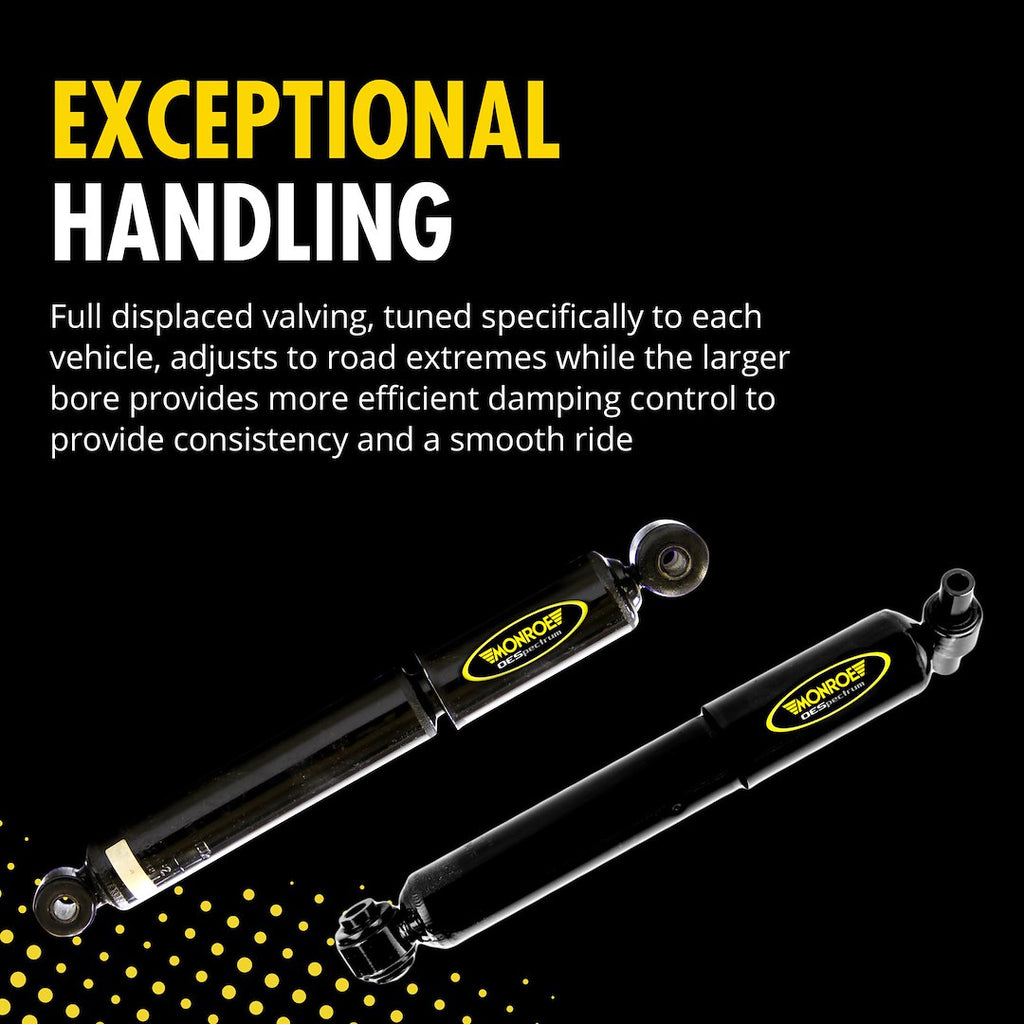

- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
- Lower Operating Pressure Than Standard 1 Inch Bore Units
- Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Piston Rod: Heavy-Duty Nitrocarburized Rod For Long Service Life
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 37133
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 14-3/8 Inch
- Compressed Length (IN): 10 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1997-2002 Ford Expedition
- 1997-2003 Ford F-150
- 2004-2004 Ford F-150 Heritage
- 1997-1999 Ford F-250
