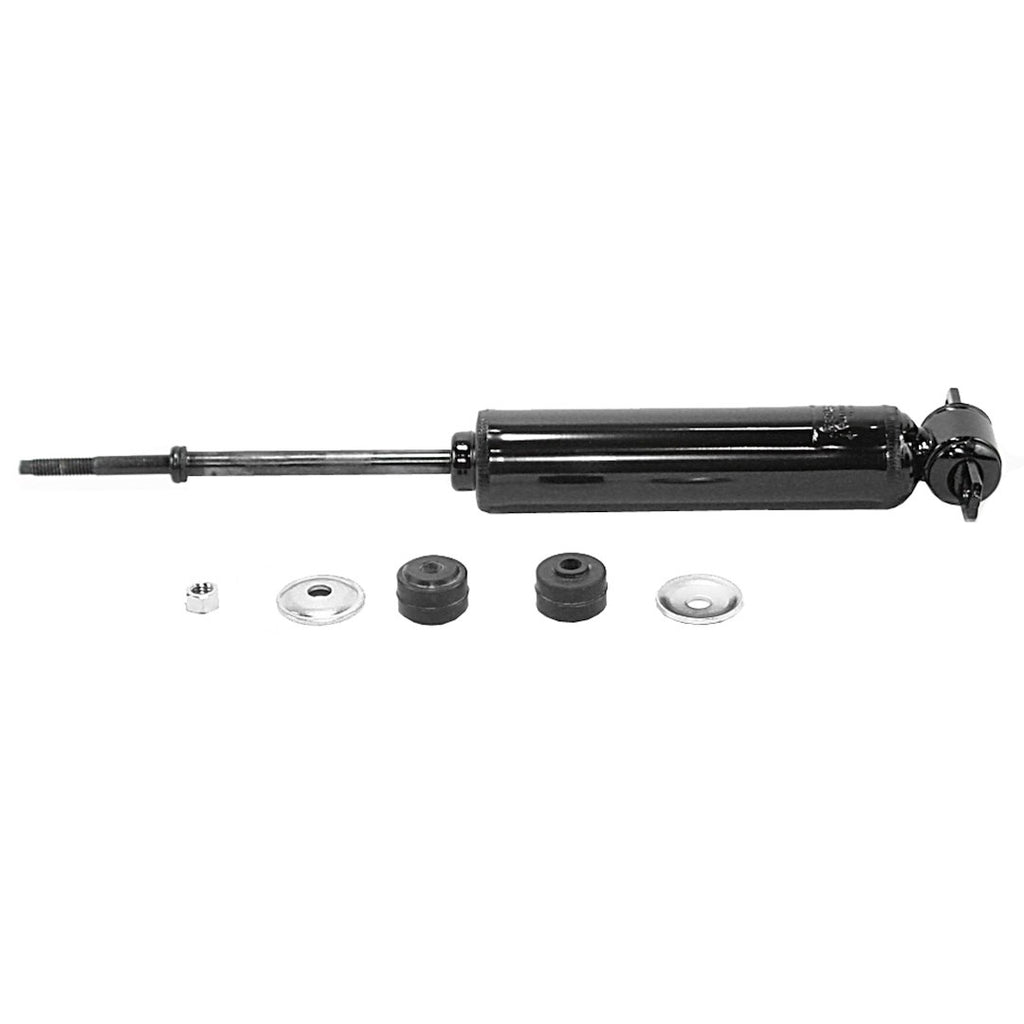

Monroe Sensa-Trac Shock Absorber (MPN: 5804)

Advanced damping technology for improved ride and handling performance.

The Monroe Sensa-Trac shock absorber is engineered to enhance the ride quality and handling of passenger vehicles. Featuring position sensitive damping (PSD) technology, it utilizes precision tapered grooves in the pressure tube to adapt to varying road conditions and vehicle loads. This innovative design allows for rapid adjustments, ensuring optimal performance in diverse driving scenarios.

Constructed with a Fluon banded piston, the shock absorber provides consistent sealing and improved durability, contributing to long service life. The larger bore design enhances control and responsiveness, while the nitrogen gas charge helps maintain tire contact with the road by minimizing aeration. This results in a smoother ride and better handling characteristics.

The Monroe Sensa-Trac shock absorber is designed with application-specific valving, ensuring that it meets the unique demands of each vehicle. Its robust construction includes a nitrocarburized piston rod and a steel body, providing reliability and strength. This shock absorber is a single unit, making it a practical choice for those looking to replace worn components.

Features

• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
• Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
• Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
• Larger Bore Than Most Shocks To Provide More Efficient And Consistent Control
• Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
• Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
• Piston Rod: Nitrocarburized Rod For Long Service Life

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 5804
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 13-3/8 Inch
• Compressed Length (IN): 8-5/8 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 1/2 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1973-1974 Buick Apollo
• 1968-1972 Buick Skylark
• 1968-1969 Buick Special
• 1968-1972 Buick Sportwagon
• 1967-1969 Chevrolet Camaro
• 1968-1972 Chevrolet Chevelle
• 1968-1972 Chevrolet El Camino
• 1970-1972 Chevrolet Monte Carlo
• 1969-1974 Chevrolet Nova
• 1971-1972 GMC Sprint
• 1964-1965 Nissan 410
• 1964-1967 Nissan 411
• 1968-1971 Oldsmobile 442
• 1968-1972 Oldsmobile Cutlass
• 1968-1972 Oldsmobile Cutlass Supreme
• 1968-1972 Oldsmobile F85
• 1973-1974 Oldsmobile Omega
• 1968-1972 Oldsmobile Vista Cruiser
• 1967-1969 Pontiac Firebird
• 1969-1972 Pontiac Grand Prix
• 1968-1972 Pontiac GTO
• 1970-1972 Pontiac LeMans
• 1968-1970 Pontiac Tempest
• 1971-1974 Pontiac Ventura
• 1967-1978 Toyota Corona
• 1972-1976 Toyota Mark II
• 1967-1974 Volvo 142
• 1967-1974 Volvo 144
• 1968-1974 Volvo 145
• 1975-1975 Volvo 164

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
