Advanced shock absorber with position sensitive damping for enhanced vehicle performance.

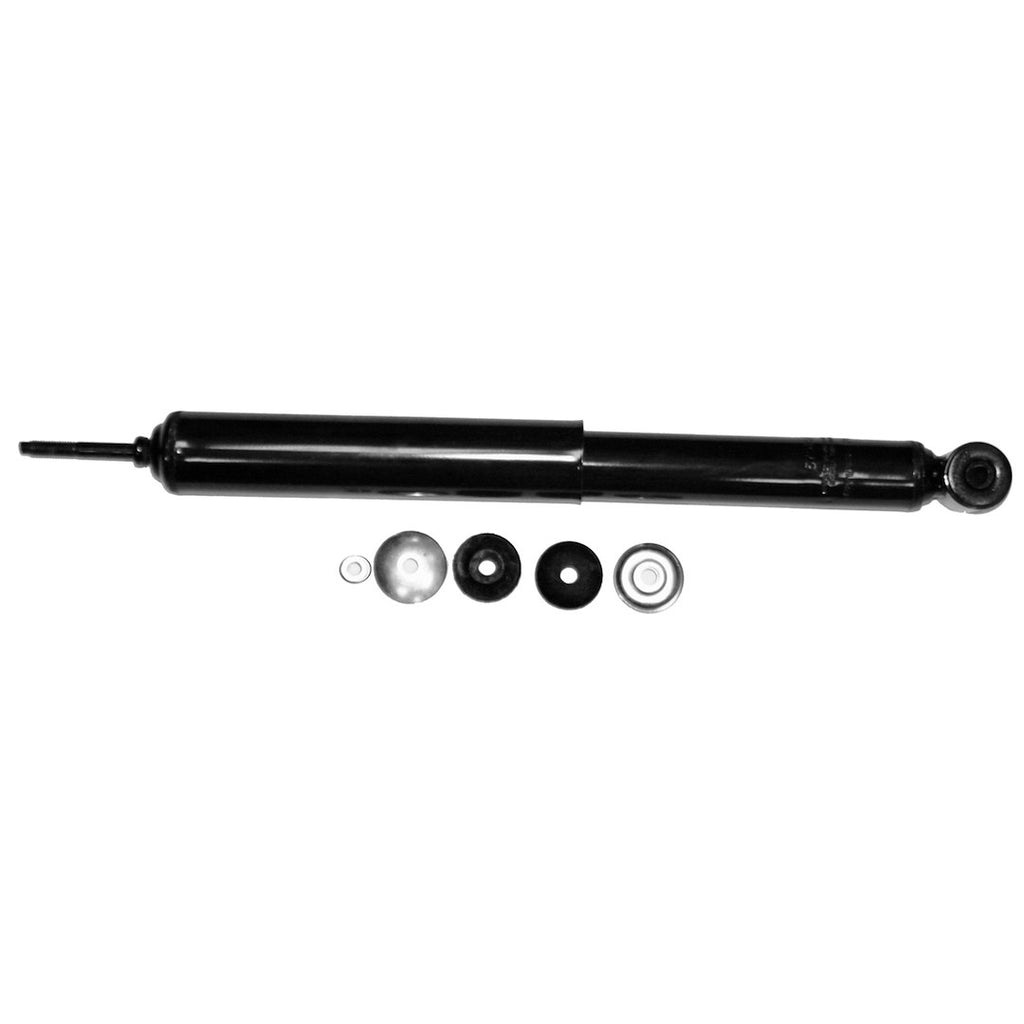

The Monroe Sensa-Trac shock absorber is designed to improve the ride, handling, and safety characteristics of passenger vehicles. Featuring position sensitive damping (PSD) technology, this shock absorber adjusts rapidly to changing road and weight conditions, ensuring optimal performance. The unique precision tapered grooves in the pressure tube work in conjunction with application engineered valving to provide a consistent and controlled ride experience.
Constructed with a Fluon banded piston, the Monroe Sensa-Trac offers enhanced sealing between the piston and pressure tube, resulting in increased durability and better control. The nitrogen gas charged design helps maintain tire to road contact by reducing aeration, which contributes to improved ride quality and handling. Additionally, the larger bore size compared to most shocks allows for more efficient and consistent control over various driving conditions.
This shock absorber is built with all weather fluid that contains special modifiers to reduce friction, ensuring smooth rod reaction. The full displaced valving is specifically tuned for each application, automatically adjusting to road extremes for a consistent ride. With a nitrocarburized piston rod for long service life and a robust steel body, the Monroe Sensa-Trac shock absorber is engineered for reliability and performance.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
- Larger Bore Than Most Shocks To Provide More Efficient And Consistent Control
- Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Piston Rod: Nitrocarburized Rod For Long Service Life
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 5794
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 24.2 Inch
- Compressed Length (IN): 14.38 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2004-2011 Chevrolet Aveo
- 2007-2011 Chevrolet Aveo5
- 2009-2009 Pontiac G3
