Enhance vehicle stability and comfort for towing and hauling applications.

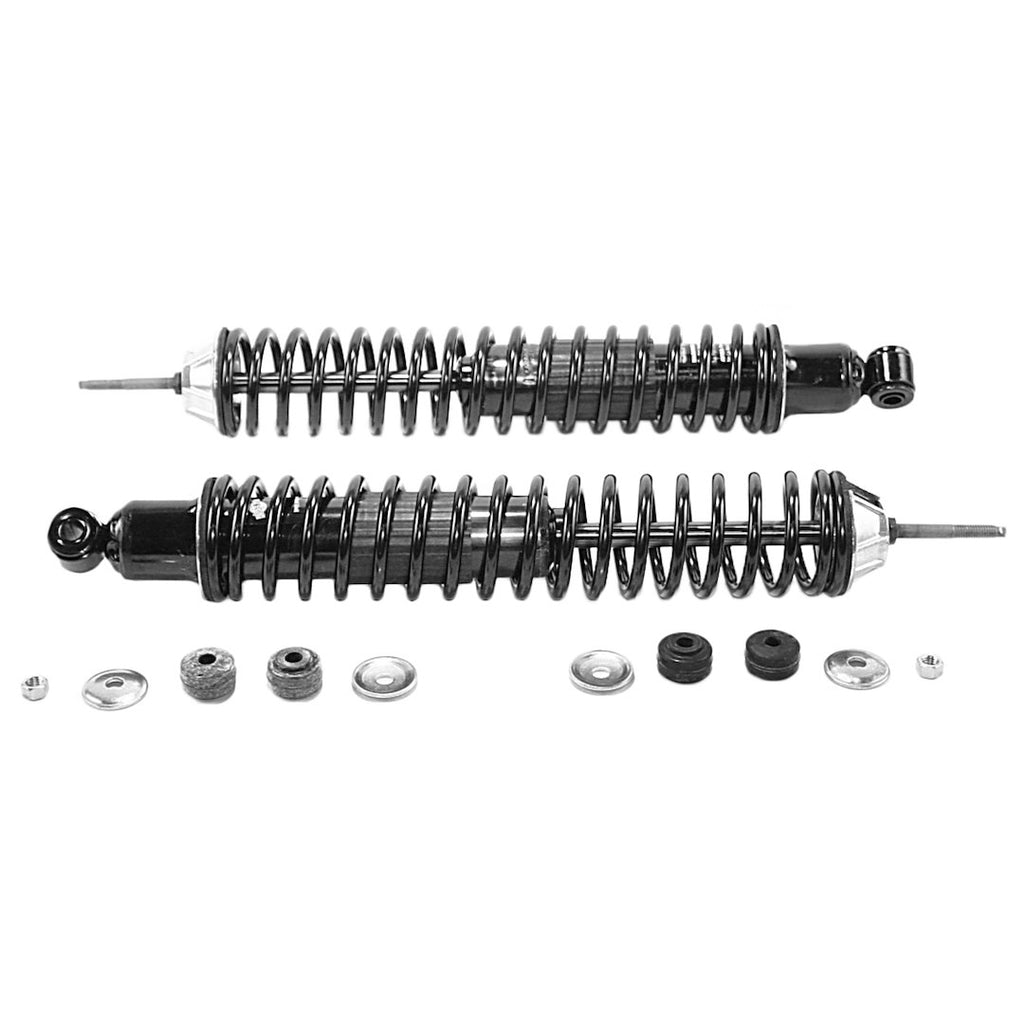

The Monroe Sensa-Trac load adjusting shock absorber is engineered to improve ride quality and handling for vehicles that tow or carry heavy loads. Featuring position sensitive damping (PSD) technology, these shock absorbers utilize precision tapered grooves in the pressure tube to adapt to varying road conditions, ensuring consistent performance. The nitrogen gas charged design enhances ride stability by reducing aeration, which helps maintain optimal tire-to-road contact under load.
Constructed with a heavy gauge calibrated coil spring, the Sensa-Trac shock absorbers provide maximum control without compromising ride comfort. The Fluon banded piston ensures a reliable seal between the piston and pressure tube, contributing to increased durability and better control. With a load capacity of up to 1,200 pounds, these shock absorbers are suitable for light trucks that frequently transport varying loads or tow trailers, making them a practical choice for enhancing vehicle performance.
In addition to their robust construction, these shock absorbers feature all-weather fluid that minimizes friction and ensures smooth operation. The application-specific valving automatically adjusts to road extremes, providing a consistent and comfortable ride. The unique groove tube design acts like an additional stage of valving, optimizing ride tuning for diverse driving conditions.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
- Heavy Gauge Calibrated Coil Spring: Computer Designed For Maximum Performance Without An Increase In Ride Harshness
- Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 58605
- Type: Nitrogen Gas Charged
- With Coil Spring: Yes
- Extended Length (IN): 19-3/4 Inch
- Compressed Length (IN): 12-3/8 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Semi-Universal
- Internal Design: Twin Tube
- Body Color: Black
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2003-2007 Ford E-150
- 2003-2005 Ford E-150 Club Wagon
- 1992-2002 Ford E-150 Econoline
- 1992-2002 Ford E-150 Econoline Club Wagon
