Enhance vehicle stability and comfort for towing and hauling applications.

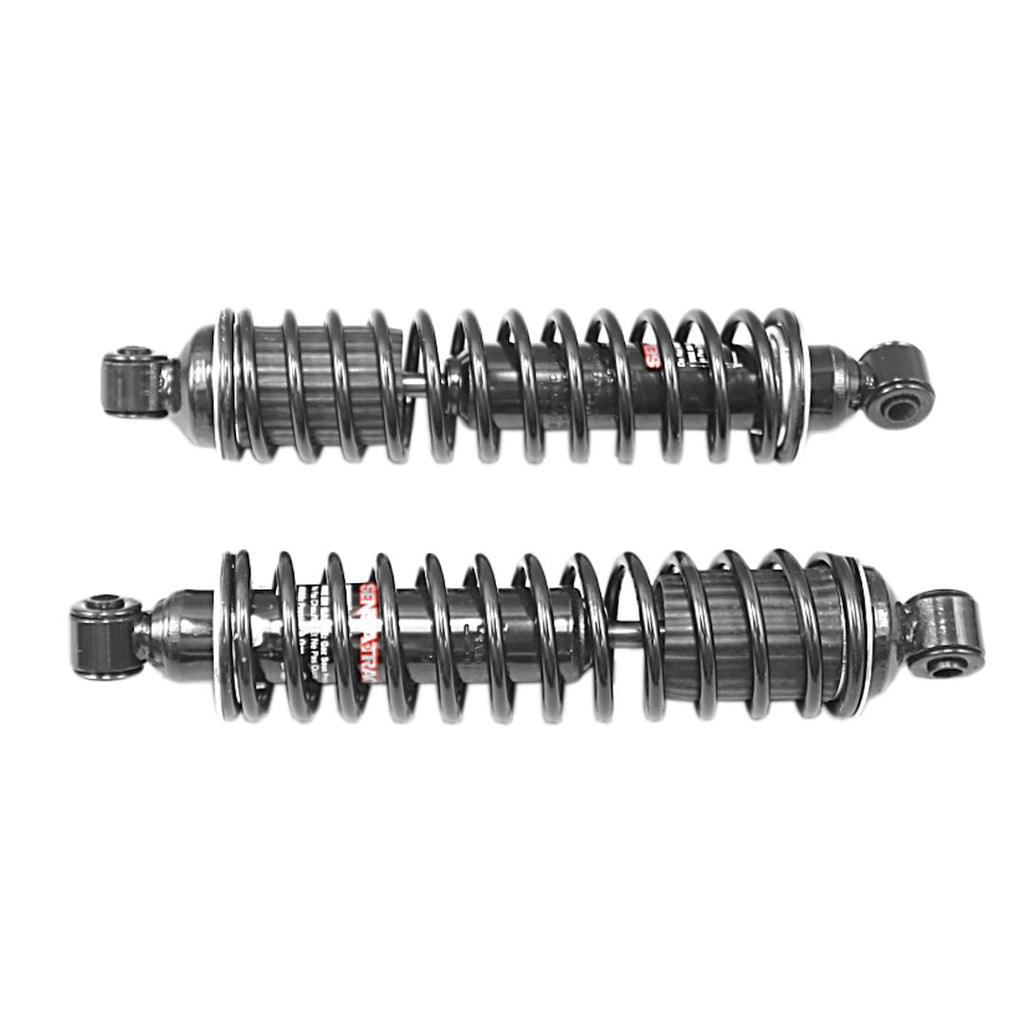

The Monroe Sensa-Trac load adjusting shock absorber is engineered to improve ride quality and handling for vehicles that tow or carry heavy loads. Featuring position sensitive damping (PSD) technology, these shock absorbers utilize precision tapered grooves in the pressure tube to optimize ride tuning and enhance safety characteristics. The nitrogen gas charged design helps maintain tire contact with the road, reducing aeration and improving overall handling performance.
Constructed with a heavy gauge calibrated coil spring, the Sensa-Trac shock absorbers provide additional control without compromising ride comfort. The full displaced valving is specifically tuned for each application, automatically adjusting to road conditions to ensure consistent performance. The Fluon banded piston enhances durability and control by providing a reliable seal between the piston and pressure tube.

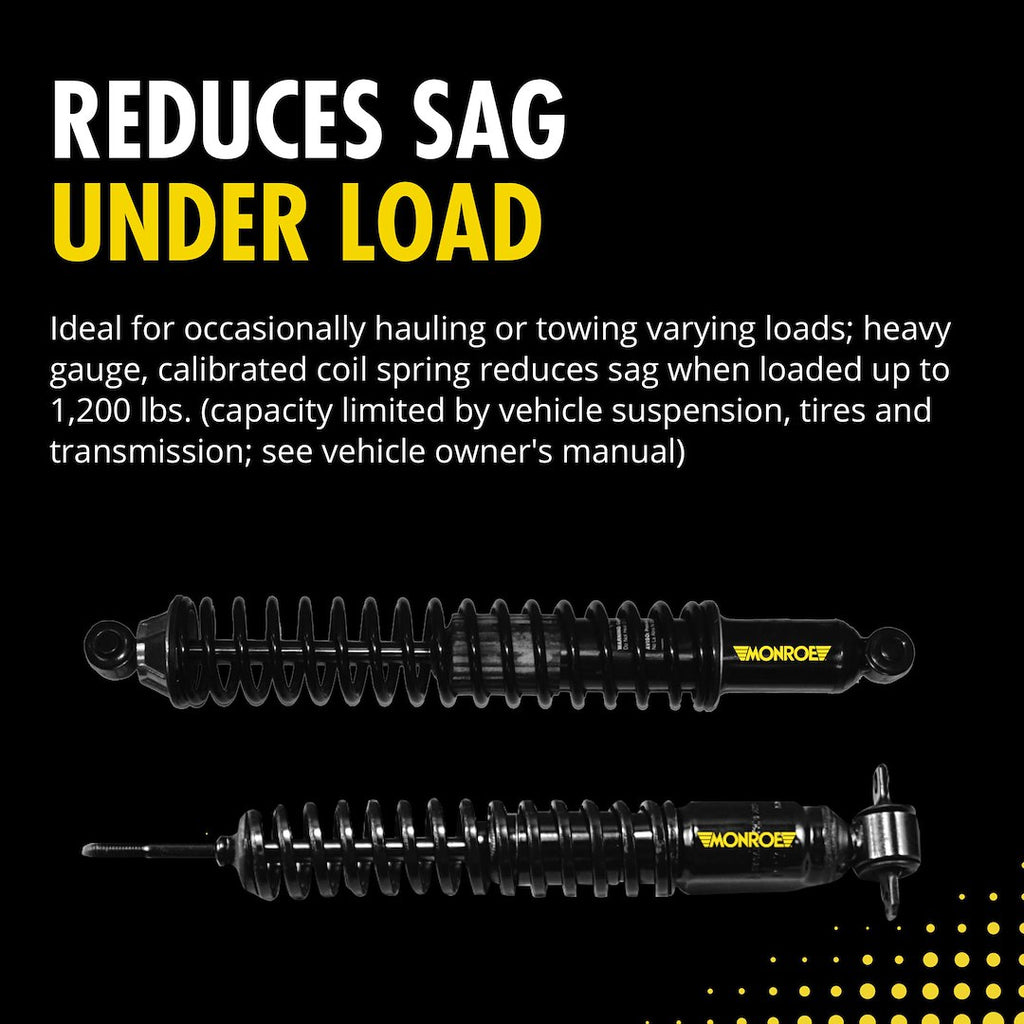

These shock absorbers are designed to assist in maintaining ride height when carrying up to 1,200 pounds of additional weight, making them suitable for light trucks that frequently transport varying loads or tow trailers. The unique groove tube design acts like an additional stage of valving, further refining the ride experience. With features such as all-weather fluid and a self-lubricating seal, the Monroe Sensa-Trac shock absorbers are built for longevity and reliability.
Features

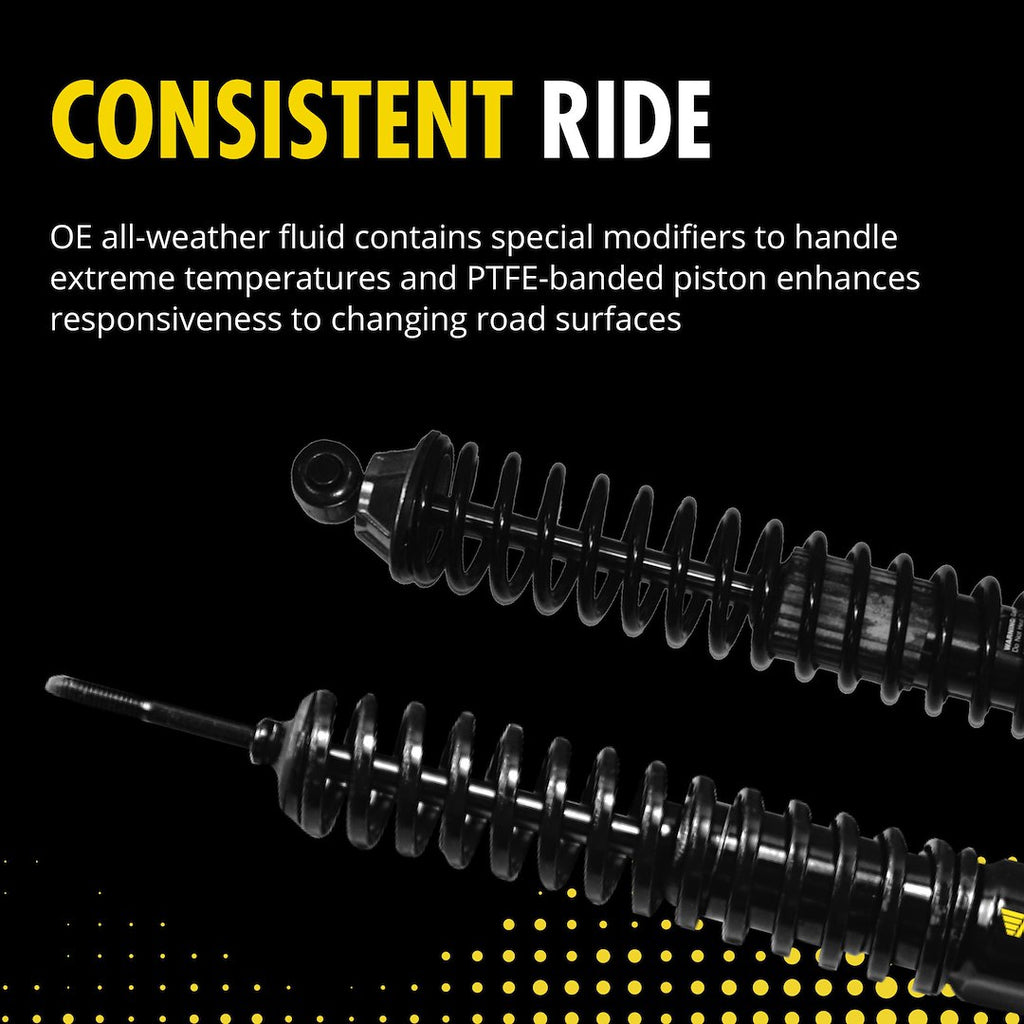

- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

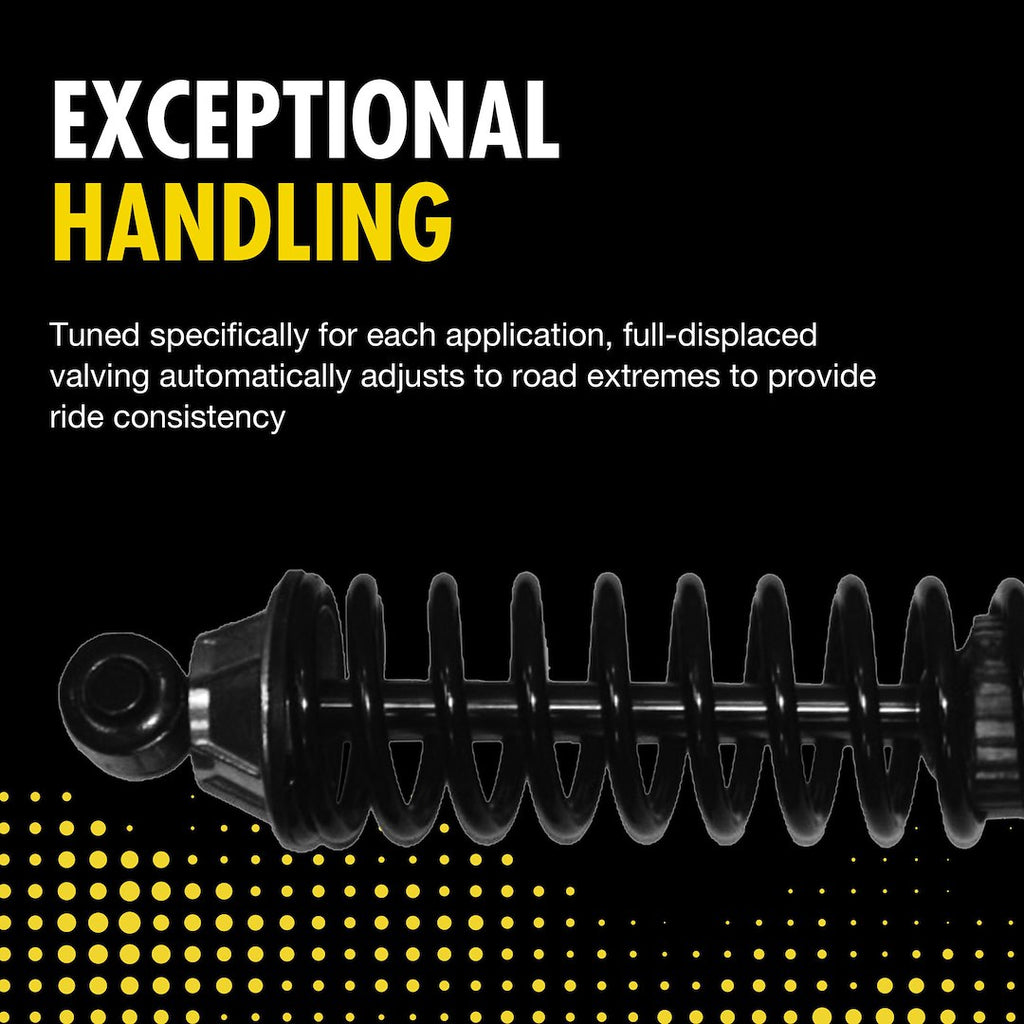

- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
- Heavy Gauge Calibrated Coil Spring: Computer Designed For Maximum Performance Without An Increase In Ride Harshness
- Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning

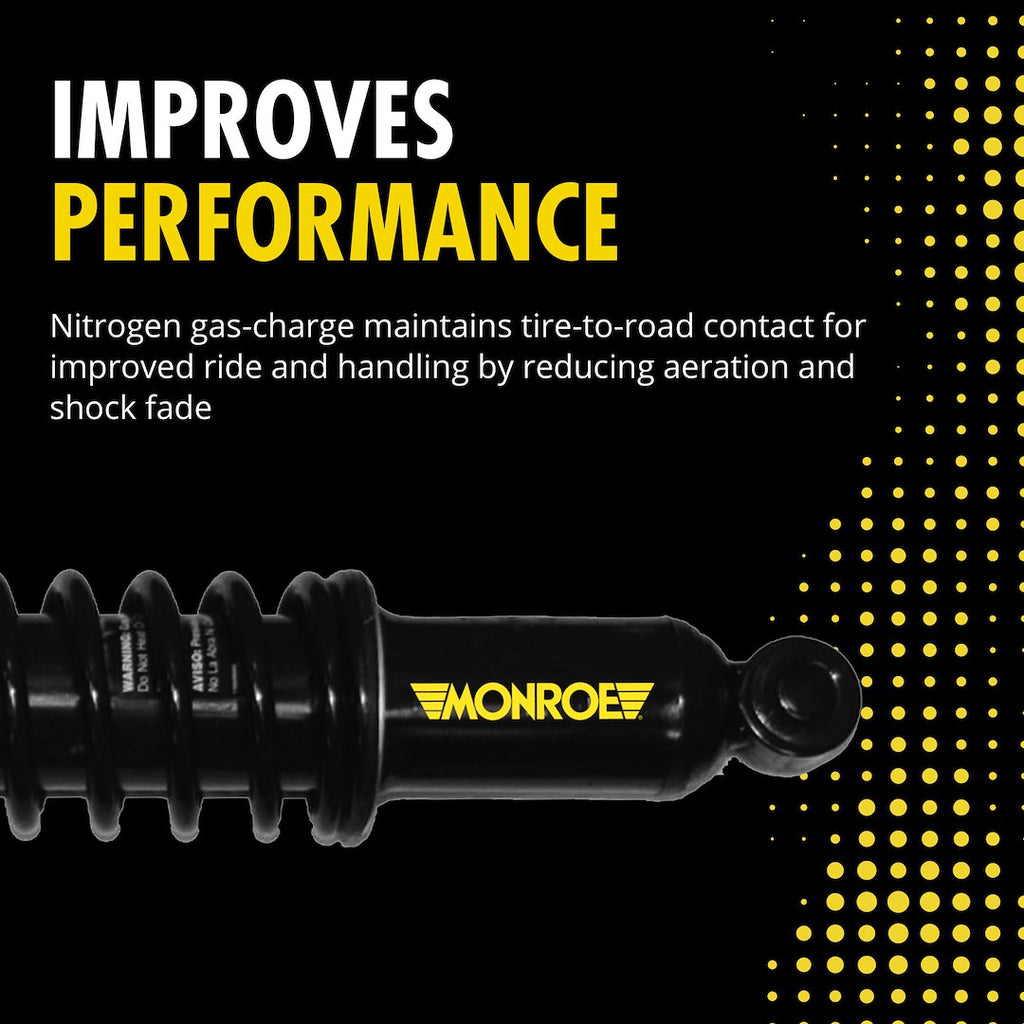

- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 58575
- Type: Nitrogen Gas Charged
- With Coil Spring: Yes
- Extended Length (IN): 14-1/2 Inch
- Compressed Length (IN): 9-3/8 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1975-1995 Chevrolet G10
- 1970-1974 Chevrolet G10 Van
- 1975-1995 Chevrolet G20
- 1970-1974 Chevrolet G20 Van
- 1975-1978 GMC G15
- 1970-1974 GMC G15/G1500 Van
- 1979-1995 GMC G1500
- 1975-1978 GMC G25
- 1970-1974 GMC G25/G2500 Van
- 1979-1995 GMC G2500
