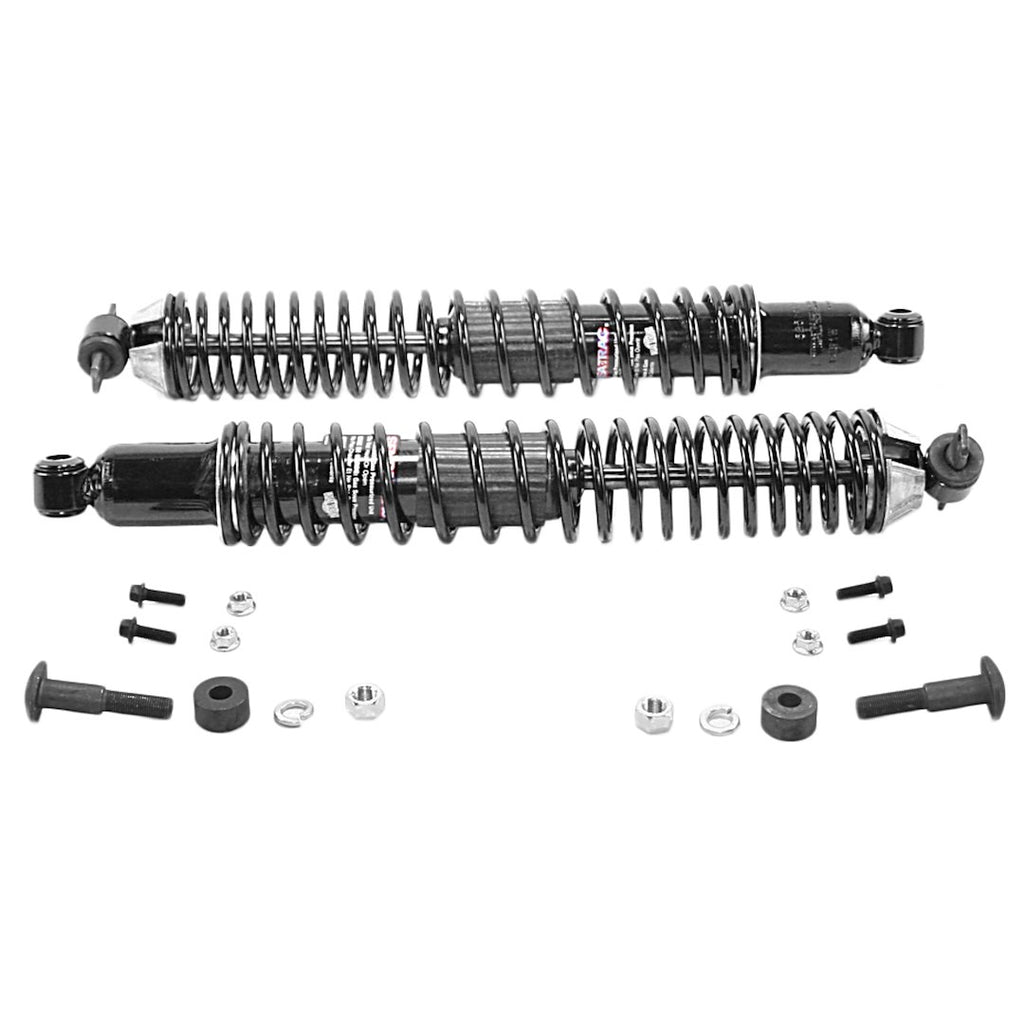

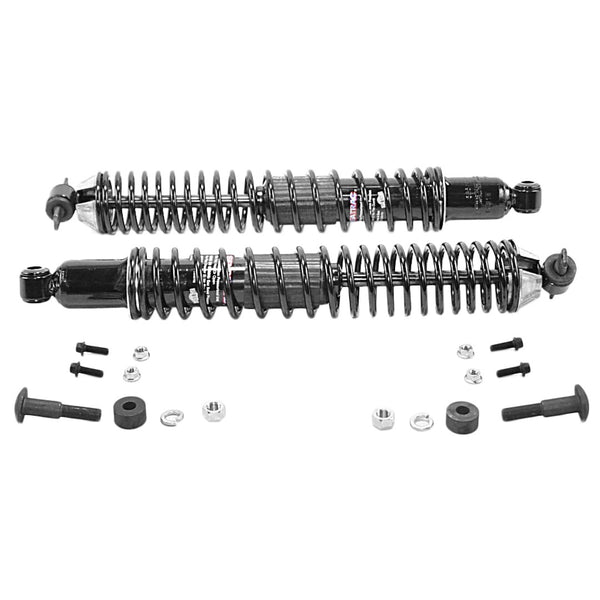

Monroe Sensa-Trac Load Adjusting Shock Absorber (MPN: 58574)

Enhance ride quality and handling for towing and hauling applications.

The Monroe Sensa-Trac load adjusting shock absorber is engineered to improve vehicle ride, handling, and safety characteristics. Featuring position sensitive damping (PSD) technology, these shock absorbers utilize precision tapered grooves in the pressure tube combined with application-specific valving to adapt to varying road conditions. This design ensures consistent performance, making it suitable for light trucks that frequently carry loads or tow trailers.

Constructed with a heavy gauge calibrated coil spring, the Sensa-Trac shock absorbers provide enhanced control and comfort without increasing ride harshness. The nitrogen gas charged design helps maintain optimal tire-to-road contact by reducing aeration, which is crucial for stability during towing and hauling. Additionally, the self-lubricating fluid seal is designed to retain gas effectively, minimizing wear and friction over time.

These shock absorbers are equipped with features such as all-weather fluid to reduce friction, full displaced valving for consistent ride quality, and a Fluon banded piston for improved durability. With a capacity to assist in maintaining ride height under additional weight, the Monroe Sensa-Trac shock absorbers are a reliable choice for those needing enhanced performance in variable load conditions.

Features

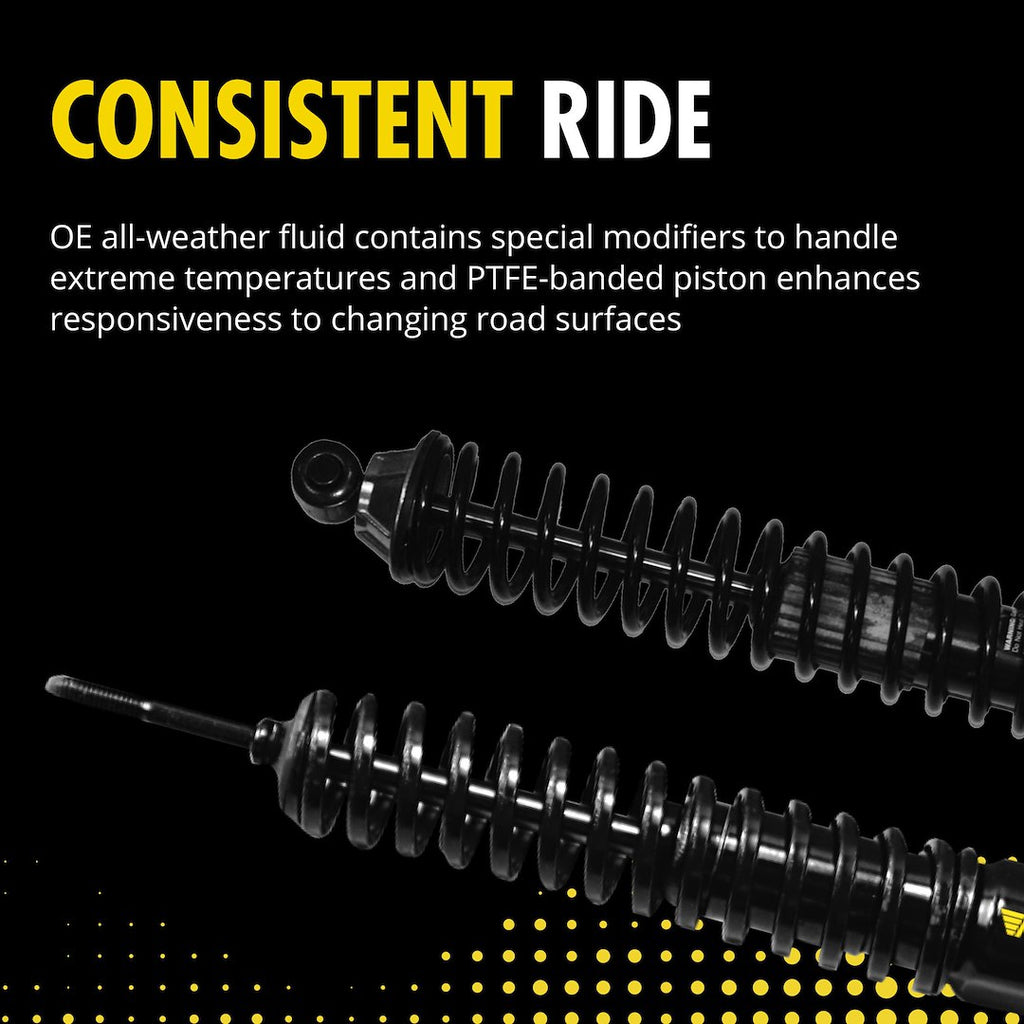

• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

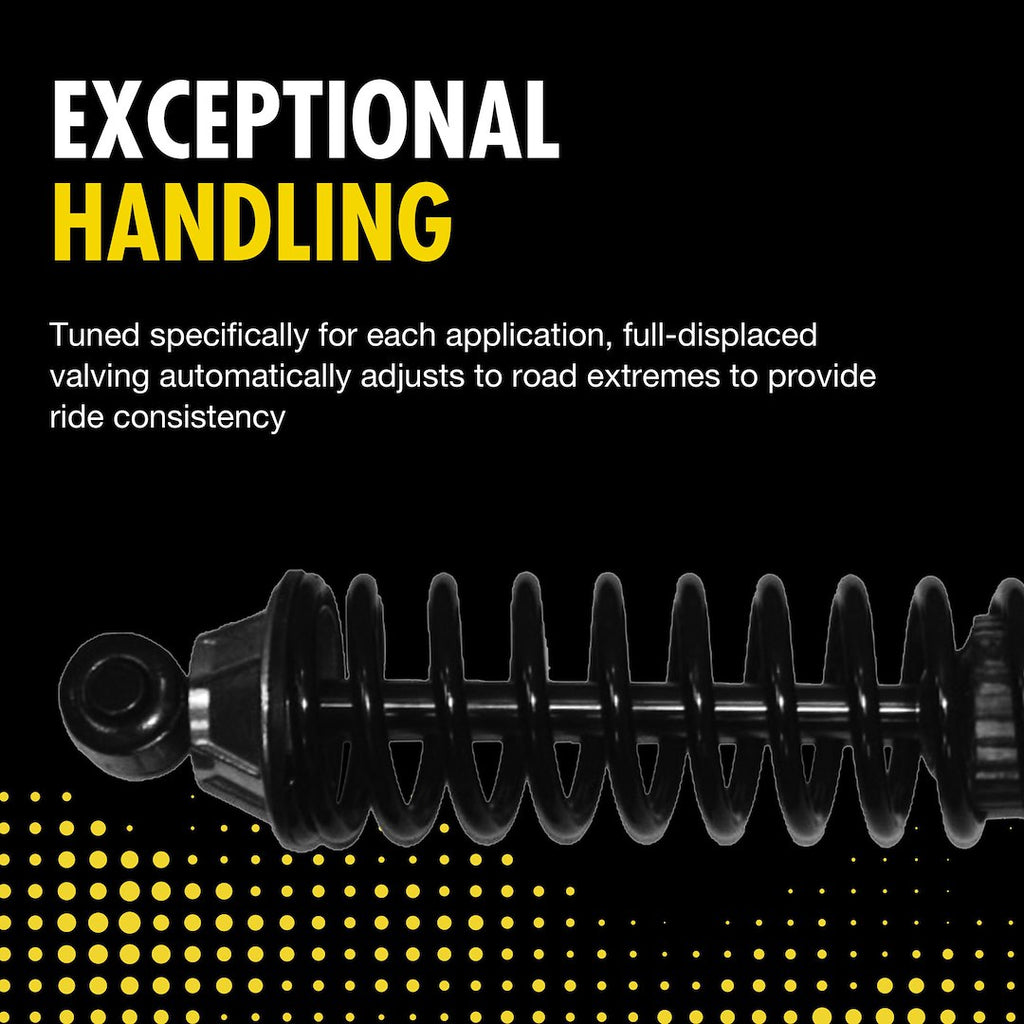

• Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
• Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability

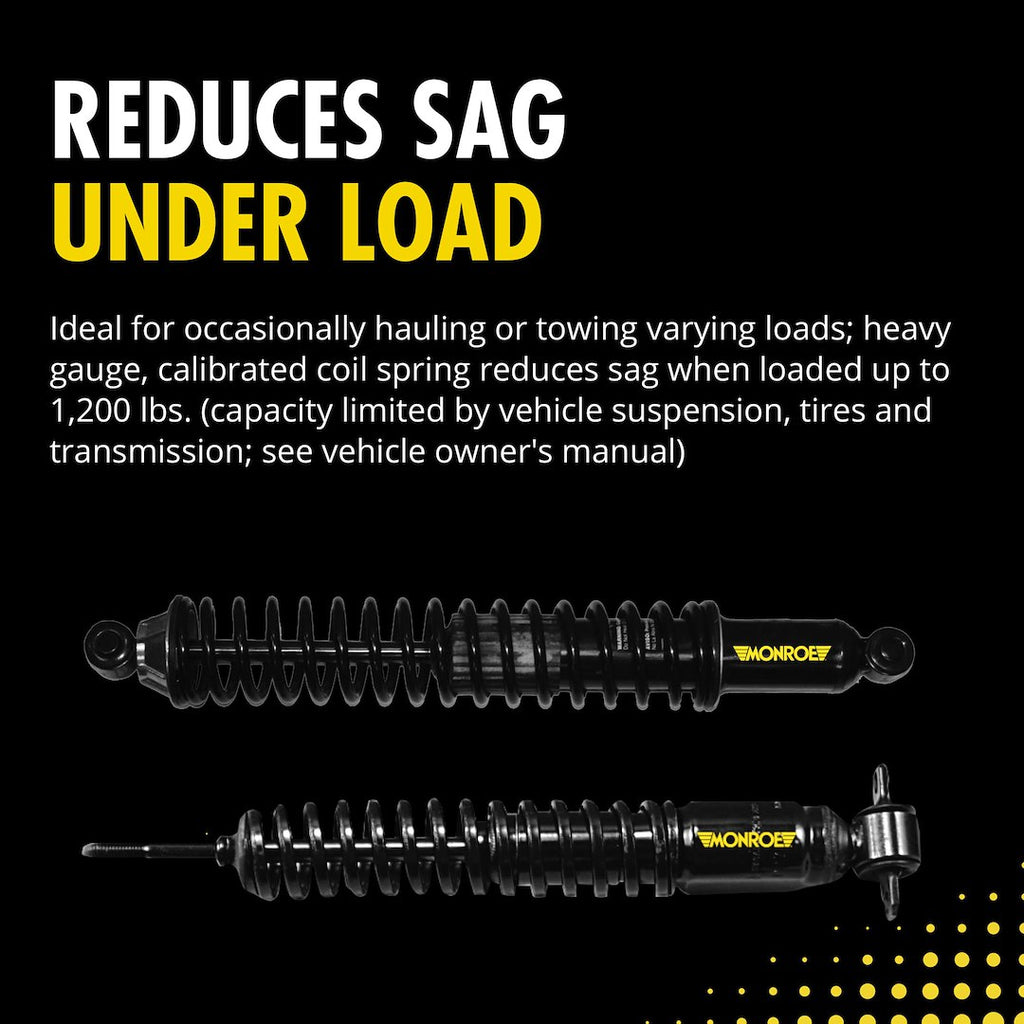

• Heavy Gauge Calibrated Coil Spring: Computer Designed For Maximum Performance Without An Increase In Ride Harshness
• Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning

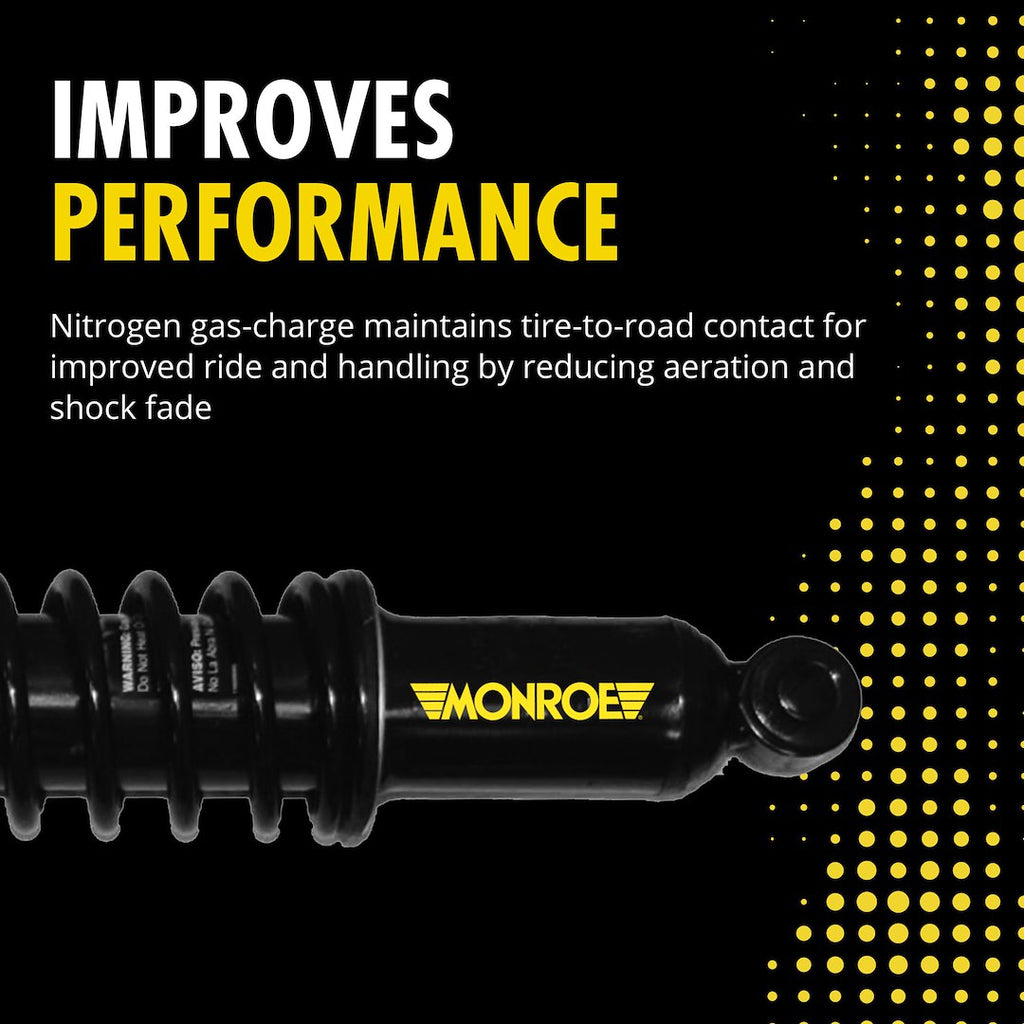

• Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
• Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 58574
• Type: Nitrogen Gas Charged
• With Coil Spring: Yes
• Extended Length (IN): 21-1/4 Inch
• Compressed Length (IN): 13-3/8 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Set Of 2
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 1973-1973 Buick Apollo
• 1971-1973 Buick Centurion
• 1973-1977 Buick Century
• 1971-1989 Buick Electra
• 1977-1983 Buick Estate Wagon
• 1971-1990 Buick LeSabre
• 1973-1977 Buick Regal
• 1971-1978 Buick Riviera
• 1991-1996 Buick Roadmaster
• 1964-1972 Buick Skylark
• 1964-1969 Buick Special
• 1970-1972 Buick Sportwagon
• 1987-1992 Cadillac Brougham
• 1983-1984 Cadillac Commercial Chassis
• 1992-1996 Cadillac Commercial Chassis
• 1977-1984 Cadillac DeVille
• 1977-1986 Cadillac Fleetwood
• 1993-1996 Cadillac Fleetwood
• 1965-1975 Chevrolet Bel Air
• 1965-1972 Chevrolet Biscayne
• 1966-1996 Chevrolet Caprice
• 1964-1973 Chevrolet Chevelle
• 1964-1977 Chevrolet El Camino
• 1971-1985 Chevrolet Impala
• 1973-1983 Chevrolet Malibu
• 1970-1977 Chevrolet Monte Carlo
• 1969-1973 Chevrolet Nova
• 1971-1977 GMC Sprint
• 1964-1971 Oldsmobile 442
• 1971-1984 Oldsmobile 98
• 1977-1992 Oldsmobile Custom Cruiser
• 1964-1977 Oldsmobile Cutlass
• 1975-1977 Oldsmobile Cutlass Salon
• 1967-1977 Oldsmobile Cutlass Supreme
• 1976-1976 Oldsmobile Cutlass Tiara
• 1971-1985 Oldsmobile Delta 88
• 1964-1972 Oldsmobile F85
• 1971-1978 Oldsmobile Toronado
• 1973-1975 Oldsmobile Vista Cruiser
• 1963-1964 Pontiac Bonneville
• 1971-1981 Pontiac Bonneville
• 1963-1964 Pontiac Catalina
• 1971-1981 Pontiac Catalina
• 1973-1975 Pontiac Grand Am
• 1975-1977 Pontiac Grand LeMans
• 1963-1964 Pontiac Grand Prix
• 1969-1977 Pontiac Grand Prix
• 1977-1978 Pontiac Grand Safari
• 1971-1975 Pontiac Grandville
• 1964-1973 Pontiac GTO
• 1970-1977 Pontiac LeMans
• 1983-1986 Pontiac Parisienne
• 1987-1989 Pontiac Safari
• 1963-1964 Pontiac Star Chief
• 1964-1970 Pontiac Tempest
• 1971-1974 Pontiac Ventura

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
