Monroe Sensa-Trac Load Adjusting Shock Absorber (MPN: 58567)

Enhance vehicle stability and comfort for towing and hauling applications.

The Monroe Sensa-Trac load adjusting shock absorber is engineered to improve ride quality and handling for vehicles that tow or carry heavy loads. Featuring position sensitive damping (PSD) technology, these shock absorbers utilize precision tapered grooves in the pressure tube to adapt to varying road conditions, ensuring consistent performance. The nitrogen gas charged design enhances ride stability by reducing aeration, which helps maintain optimal tire contact with the road.

These shock absorbers are equipped with a heavy gauge calibrated coil spring, designed to provide maximum control without compromising ride comfort. The Fluon banded piston ensures a reliable seal between the piston and pressure tube, contributing to increased durability and better control. With a load capacity of up to 1,200 pounds, the Monroe Sensa-Trac shock absorbers are suitable for light trucks that frequently carry varying loads or tow trailers, making them a practical choice for enhancing vehicle performance.

In addition to their robust construction, these shock absorbers feature all-weather fluid that minimizes friction for smooth operation. The application-specific valving automatically adjusts to road extremes, providing a consistent and comfortable ride. The unique groove tube design acts like an additional stage of valving, optimizing ride tuning for diverse driving conditions.

Features

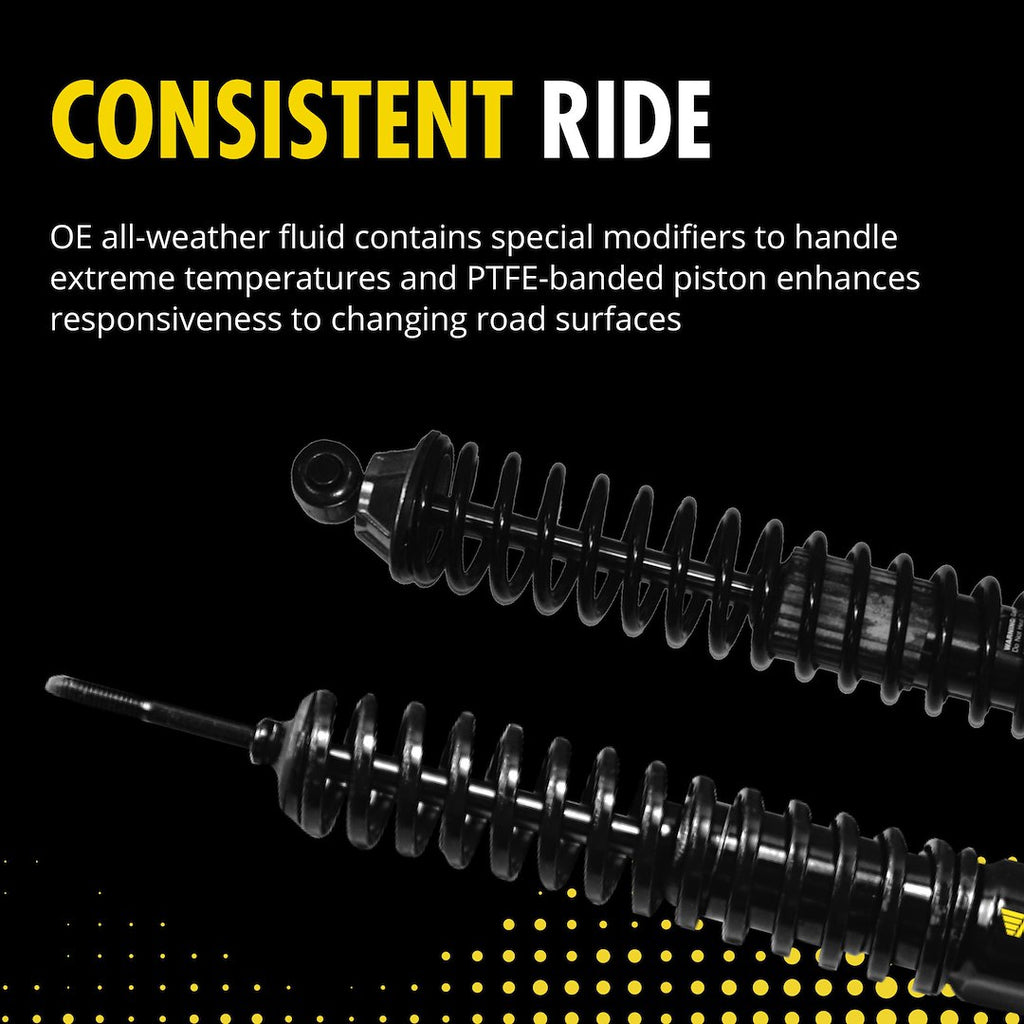

• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

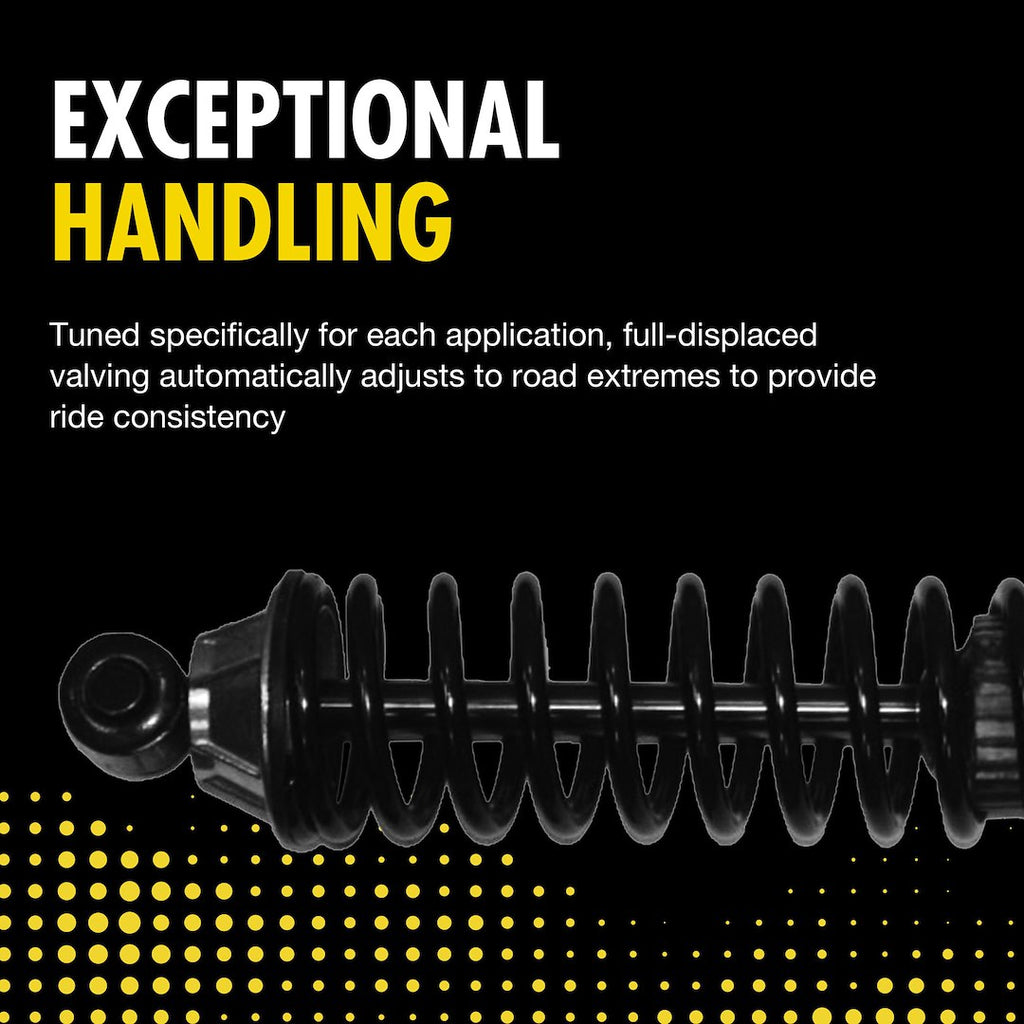

• Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
• Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability

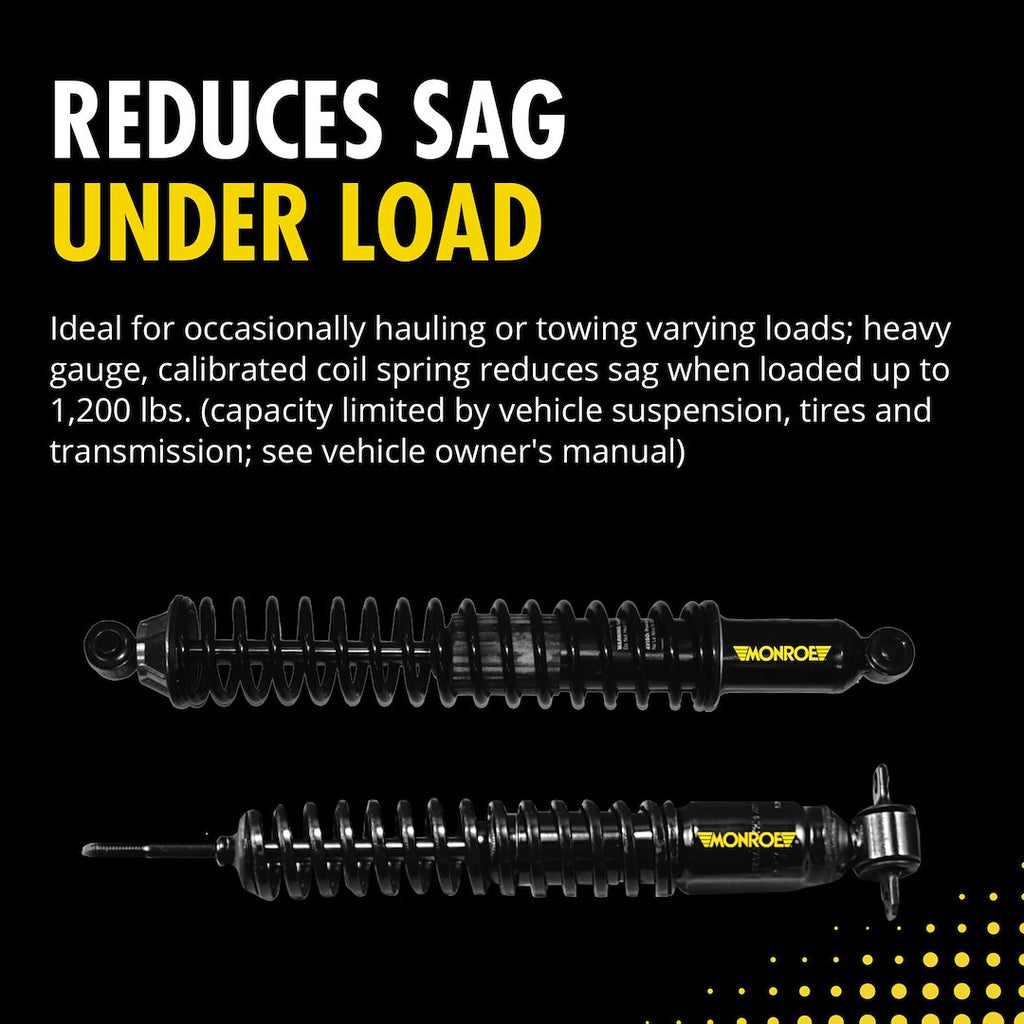

• Heavy Gauge Calibrated Coil Spring: Computer Designed For Maximum Performance Without An Increase In Ride Harshness
• Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning

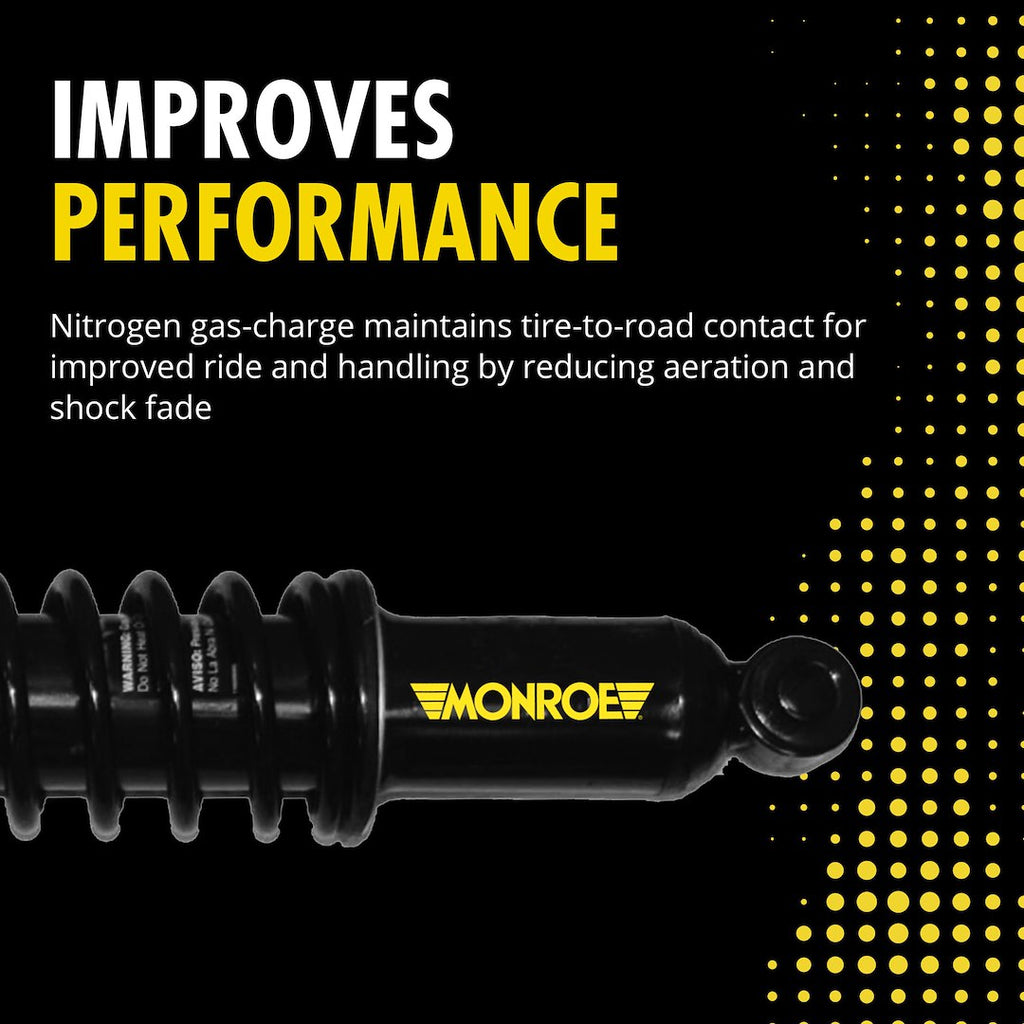

• Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
• Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 58567
• Type: Nitrogen Gas Charged
• With Coil Spring: Yes
• Extended Length (IN): 20-3/8 Inch
• Compressed Length (IN): 12-1/2 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Set Of 2
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 1956-1958 Buick Century
• 1958-1958 Buick Limited
• 1957-1958 Buick Roadmaster
• 1956-1958 Buick Special
• 1956-1958 Buick Super
• 1963-1967 Chevrolet C10 Panel
• 1963-1972 Chevrolet C10 Pickup
• 1967-1967 Chevrolet C20 Panel
• 1963-1972 Chevrolet C20 Pickup
• 1975-1980 Chevrolet LUV
• 1972-1974 Chevrolet Luv Pickup
• 1963-1966 Chevrolet P10 Series
• 1968-1972 Chevrolet P20 Van
• 1963-1966 Chevrolet Suburban
• 1949-1949 Chrysler Crown Imperial
• 1950-1950 Chrysler Imperial
• 1949-1950 Chrysler New Yorker
• 1950-1950 Chrysler Royal
• 1949-1949 Chrysler Royal Series
• 1950-1950 Chrysler Saratoga
• 1949-1949 Chrysler Saratoga Series
• 1950-1950 Chrysler Windsor
• 1949-1949 Chrysler Windsor Series
• 1949-1950 Dodge Coronet
• 1946-1948 Dodge Custom
• 1946-1948 Dodge Deluxe
• 1949-1952 Ford Custom
• 1947-1948 Ford Deluxe
• 1953-1955 Ford F-100
• 1961-1965 Ford F-100
• 1953-1955 Ford F-250
• 1961-1965 Ford F-250
• 1947-1948 Ford Super Deluxe
• 1966-1966 GMC 1000
• 1963-1965 GMC 1000 Series
• 1966-1966 GMC 1500
• 1963-1965 GMC 1500 Series
• 1967-1972 GMC C15/C1500 Pickup
• 1967-1972 GMC C25/C2500 Pickup
• 1963-1963 GMC G1000 Series
• 1966-1966 GMC I1000
• 1966-1966 GMC I1500
• 1966-1966 GMC I2500
• 1967-1967 GMC P15/P1500 Van
• 1968-1972 GMC P25/P2500 Van
• 1963-1966 GMC PB1000 Series
• 1966-1966 GMC PB15 Series
• 1963-1965 GMC PB1500 Series
• 1963-1966 GMC Suburban
• 1966-1966 International 1000A
• 1967-1967 International 1000B
• 1968-1968 International 1000C
• 1969-1970 International 1000D
• 1971-1973 International 1010
• 1966-1966 International 1100A
• 1967-1967 International 1100B
• 1968-1968 International 1100C
• 1969-1970 International 1100D
• 1971-1973 International 1110
• 1966-1966 International 1200A
• 1968-1968 International 1200C
• 1969-1970 International 1200D
• 1971-1973 International 1210
• 1966-1966 International 1300A
• 1967-1967 International 1300B
• 1968-1968 International 1300C
• 1969-1970 International 1300D
• 1971-1973 International 1310
• 1966-1967 International 900A
• 1967-1967 International 908B
• 1968-1968 International 908C
• 1961-1962 International C100
• 1963-1964 International C1000
• 1961-1962 International C102
• 1961-1962 International C110
• 1963-1964 International C1100
• 1961-1962 International C112
• 1961-1962 International C120
• 1963-1964 International C1200
• 1961-1962 International C122
• 1961-1962 International C130
• 1963-1964 International C1300
• 1961-1962 International C132
• 1964-1964 International C900
• 1971-1980 International Scout II
• 1949-1950 Plymouth Deluxe
• 1940-1940 Plymouth P10 Deluxe
• 1941-1941 Plymouth P11 Deluxe
• 1941-1941 Plymouth P11 Standard
• 1941-1941 Plymouth P12 Special Deluxe
• 1942-1942 Plymouth P14C Special Deluxe
• 1942-1942 Plymouth P14S Deluxe
• 1946-1948 Plymouth P15 Deluxe
• 1946-1948 Plymouth P15 Special Deluxe
• 1939-1939 Plymouth P7 Roadking
• 1939-1939 Plymouth P8 Deluxe
• 1940-1940 Plymouth P9 Roadking
• 1949-1950 Plymouth Special Deluxe
• 1959-1960 Pontiac Bonneville
• 1959-1960 Pontiac Catalina
• 1949-1958 Pontiac Chieftain
• 1970-1974 Toyota Pickup

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
