Enhance vehicle stability and comfort for towing and hauling applications.

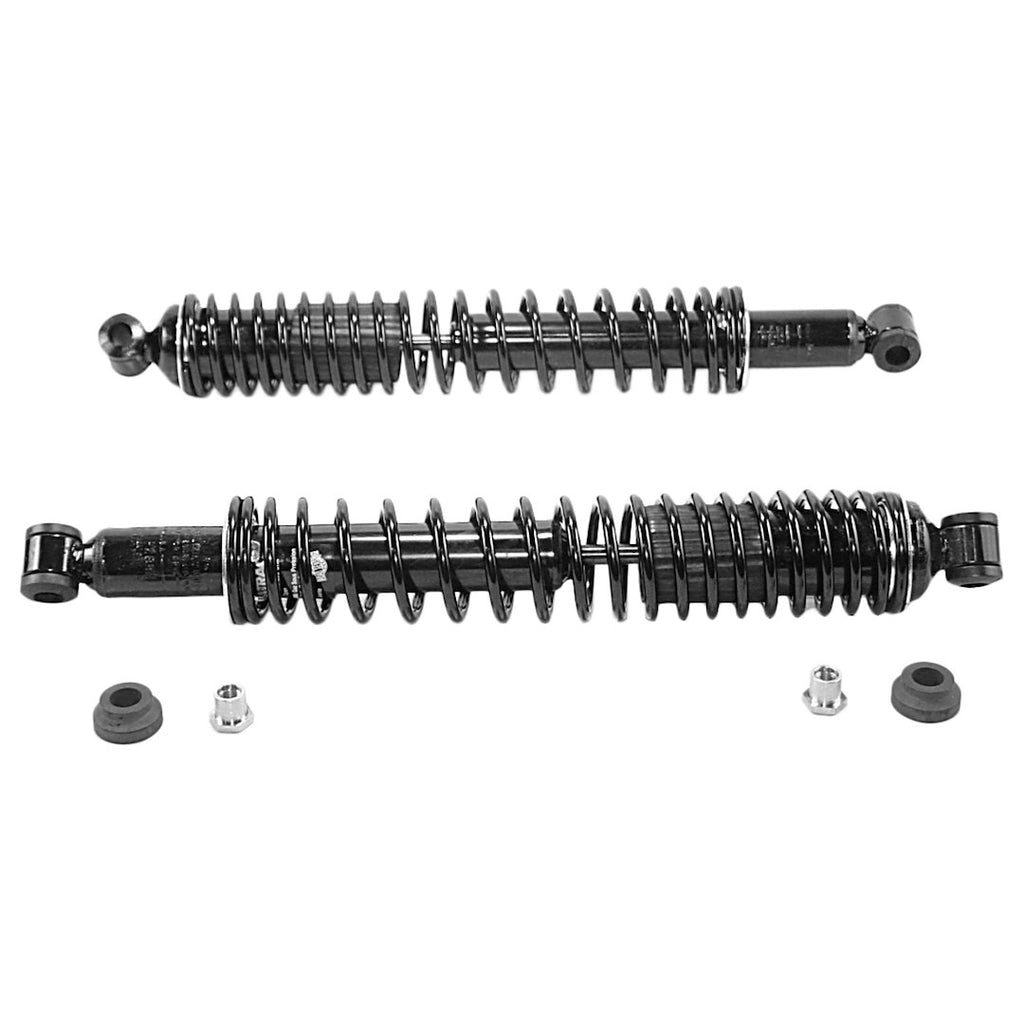

The Monroe Sensa-Trac load adjusting shock absorber is engineered to improve ride quality and handling for vehicles that tow or carry heavy loads. Featuring position sensitive damping (PSD) technology, this shock absorber utilizes precision tapered grooves in the pressure tube to optimize ride tuning and enhance safety characteristics. The nitrogen gas charged design helps maintain tire contact with the road, reducing aeration and improving overall handling performance.
Constructed with a heavy gauge calibrated coil spring, the Sensa-Trac shock absorber provides maximum control without increasing ride harshness. The full displaced valving is specifically tuned for each application, automatically adjusting to road conditions to ensure a consistent and comfortable ride. Additionally, the Fluon banded piston enhances durability and control by providing a reliable seal between the piston and pressure tube.
This shock absorber is suitable for light trucks that may carry varying loads or tow trailers, with a capacity to assist in maintaining ride height when up to 1,200 pounds of additional weight is loaded. The inclusion of a special self-lubricating fluid seal ensures long-lasting performance by retaining gas without excessive wear or friction. The Monroe Sensa-Trac shock absorber is a practical choice for enhancing vehicle performance in demanding conditions.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
- Heavy Gauge Calibrated Coil Spring: Computer Designed For Maximum Performance Without An Increase In Ride Harshness
- Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 58496
- Type: Nitrogen Gas Charged
- With Coil Spring: Yes
- Extended Length (IN): 21-1/4 Inch
- Compressed Length (IN): 13 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1955-1964 Chrysler 300
- 1955-1966 Chrysler Imperial
- 1955-1964 Chrysler New Yorker
- 1961-1964 Chrysler Newport
- 1957-1960 Chrysler Saratoga
- 1955-1961 Chrysler Windsor
- 1957-1960 DeSoto Adventurer
- 1961-1961 DeSoto DeSoto
- 1955-1959 DeSoto Firedome
- 1956-1960 DeSoto Fireflite
- 1957-1959 DeSoto Firesweep
- 1963-1964 Dodge 880
- 1960-1961 Dodge Dart
- 1963-1976 Dodge Dart
- 1962-1962 Dodge Lancer
- 1961-1963 Lincoln Continental
- 1964-1969 Plymouth Barracuda
- 1955-1961 Plymouth Belvedere
- 1970-1976 Plymouth Duster
- 1959-1961 Plymouth Fury
- 1955-1958 Plymouth Plaza
- 1955-1961 Plymouth Savoy
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
