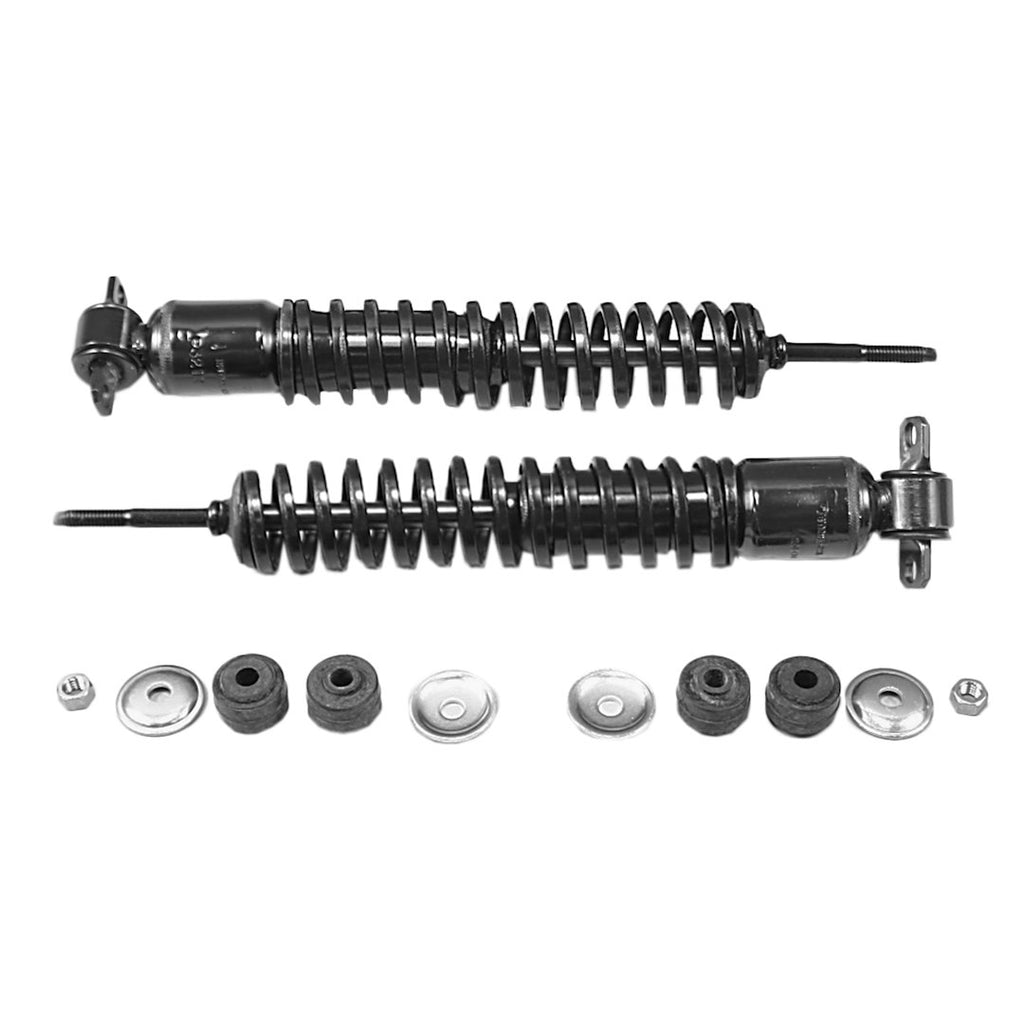

Monroe Sensa-Trac Load Adjusting Shock Absorber (MPN: 58270)

Enhance vehicle stability and comfort for towing and hauling applications.

The Monroe Sensa-Trac load adjusting shock absorber is engineered to improve ride quality and handling for vehicles that tow or carry heavy loads. Featuring position sensitive damping (PSD) technology, these shock absorbers utilize precision tapered grooves in the pressure tube to optimize ride tuning and enhance safety characteristics. The nitrogen gas charged design helps maintain tire contact with the road, reducing aeration and improving overall handling performance.

These shock absorbers are equipped with a heavy gauge calibrated coil spring, designed to provide maximum performance without increasing ride harshness. The full displaced valving automatically adjusts to road conditions, ensuring consistent performance across various driving scenarios. Additionally, the Fluon banded piston enhances durability and control by providing a reliable seal between the piston and pressure tube.

With a load capacity of up to 1,200 pounds, the Monroe Sensa-Trac shock absorbers are suitable for light trucks that frequently carry varying loads or tow trailers. The inclusion of all-weather fluid and a unique groove tube design further contributes to the shock absorbers' ability to deliver a smooth and controlled ride, making them a practical choice for enhancing vehicle performance.

Features

• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
• Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
• Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
• Heavy Gauge Calibrated Coil Spring: Computer Designed For Maximum Performance Without An Increase In Ride Harshness
• Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
• Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
• Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 58270
• Type: Nitrogen Gas Charged
• With Coil Spring: Yes
• Extended Length (IN): 13 Inch
• Compressed Length (IN): 8-3/4 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: Yes
• Quantity: Set Of 2
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 1975-1975 Buick Apollo
• 1973-1981 Buick Century
• 1973-1987 Buick Regal
• 1975-1979 Buick Skylark
• 1976-1979 Cadillac Seville
• 1973-1973 Chevrolet Chevelle
• 1973-1987 Chevrolet El Camino
• 1973-1983 Chevrolet Malibu
• 1973-1988 Chevrolet Monte Carlo
• 1975-1979 Chevrolet Nova
• 1982-1993 Chevrolet S10
• 1983-1993 Chevrolet S10 Blazer
• 1978-1987 GMC Caballero
• 1992-1993 GMC Jimmy
• 1982-1990 GMC S15
• 1983-1991 GMC S15 Jimmy
• 1991-1993 GMC Sonoma
• 1973-1977 GMC Sprint
• 1973-1981 Oldsmobile Cutlass
• 1978-1984 Oldsmobile Cutlass Calais
• 1980-1983 Oldsmobile Cutlass Cruiser
• 1975-1980 Oldsmobile Cutlass Salon
• 1985-1987 Oldsmobile Cutlass Salon
• 1973-1988 Oldsmobile Cutlass Supreme
• 1976-1976 Oldsmobile Cutlass Tiara
• 1975-1979 Oldsmobile Omega
• 1973-1975 Oldsmobile Vista Cruiser
• 1982-1986 Pontiac Bonneville
• 1973-1975 Pontiac Grand Am
• 1978-1980 Pontiac Grand Am
• 1975-1981 Pontiac Grand LeMans
• 1973-1987 Pontiac Grand Prix
• 1973-1973 Pontiac GTO
• 1973-1981 Pontiac LeMans
• 1977-1979 Pontiac Phoenix
• 1975-1977 Pontiac Ventura

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
