Monroe Sensa-Trac Load Adjusting Shock Absorber (MPN: 58263)

Enhance vehicle stability and comfort for towing and hauling applications.

The Monroe Sensa-Trac load adjusting shock absorber is engineered to improve ride quality and handling for vehicles that tow or carry heavy loads. Featuring position sensitive damping (PSD) technology, these shock absorbers utilize precision tapered grooves in the pressure tube to adapt to varying road conditions, ensuring consistent performance. The nitrogen gas charged design enhances ride stability by reducing aeration, which helps maintain optimal tire-to-road contact under load.

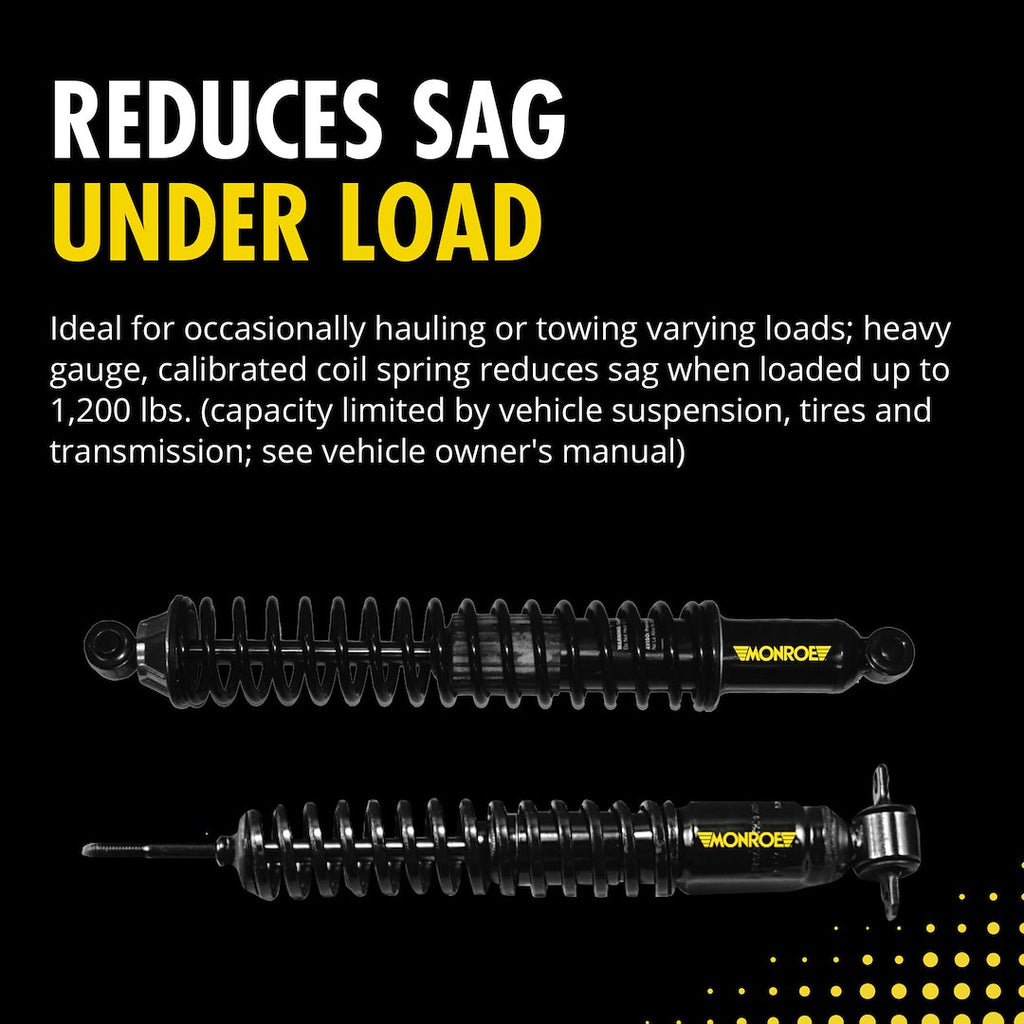

Constructed with a heavy gauge calibrated coil spring, the Sensa-Trac shock absorbers provide additional control without compromising ride comfort. The Fluon banded piston ensures a reliable seal between the piston and pressure tube, contributing to increased durability and better control. With a load capacity of up to 1,200 pounds, these shock absorbers are suitable for light trucks that frequently transport varying loads or tow trailers, making them a practical choice for enhancing vehicle performance.

The all-weather fluid used in these shock absorbers contains special modifiers that reduce friction, promoting smooth rod reaction across diverse driving conditions. Additionally, the application-specific valving automatically adjusts to road extremes, providing a consistent and comfortable ride. The unique groove tube design acts like an additional stage of valving, optimizing ride tuning for improved handling and safety.

Features

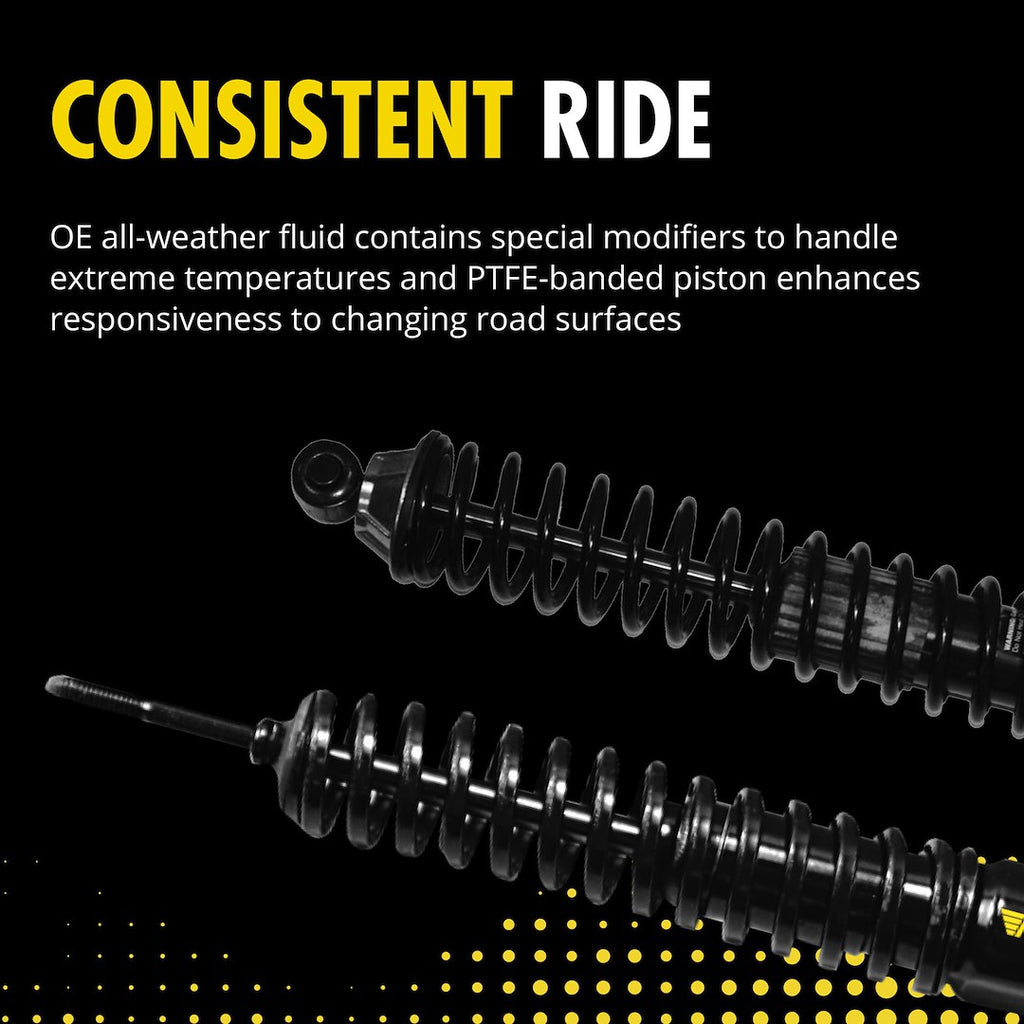

• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

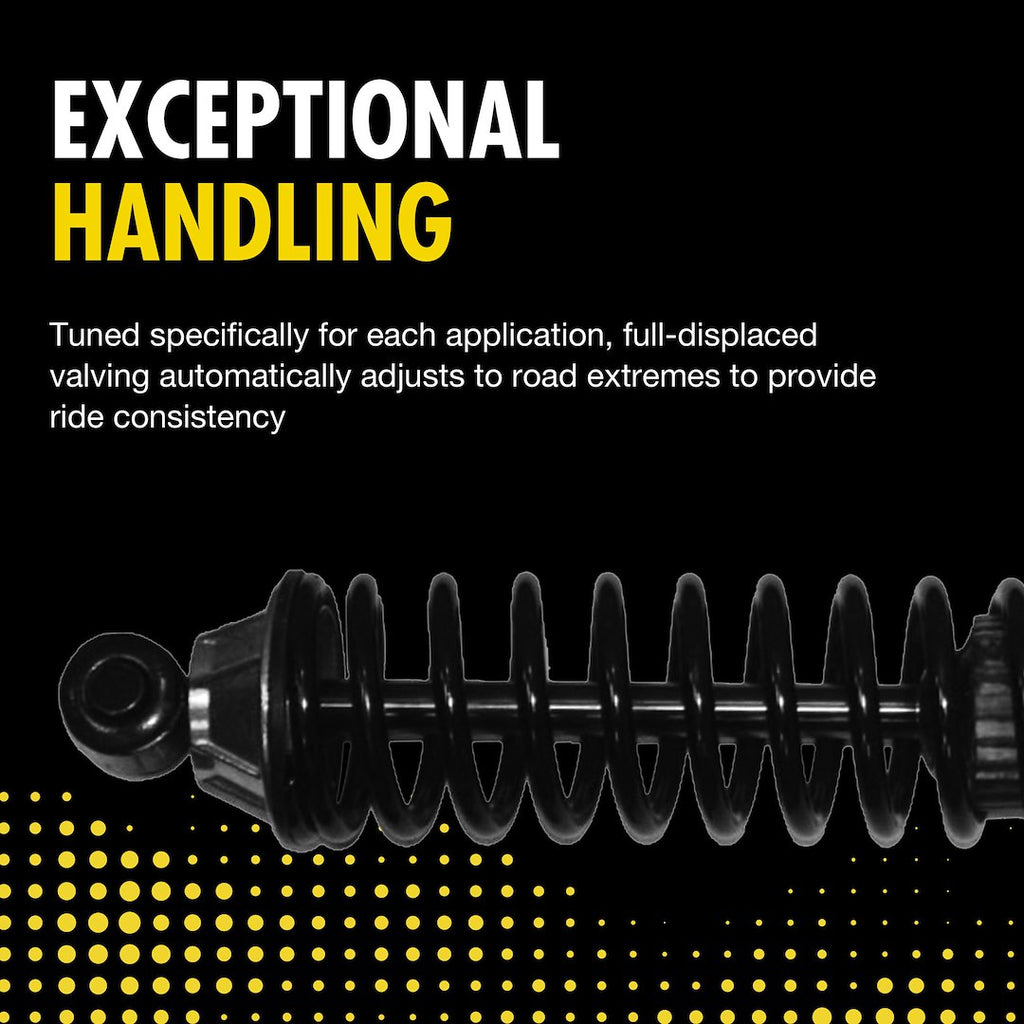

• Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
• Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
• Heavy Gauge Calibrated Coil Spring: Computer Designed For Maximum Performance Without An Increase In Ride Harshness
• Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning

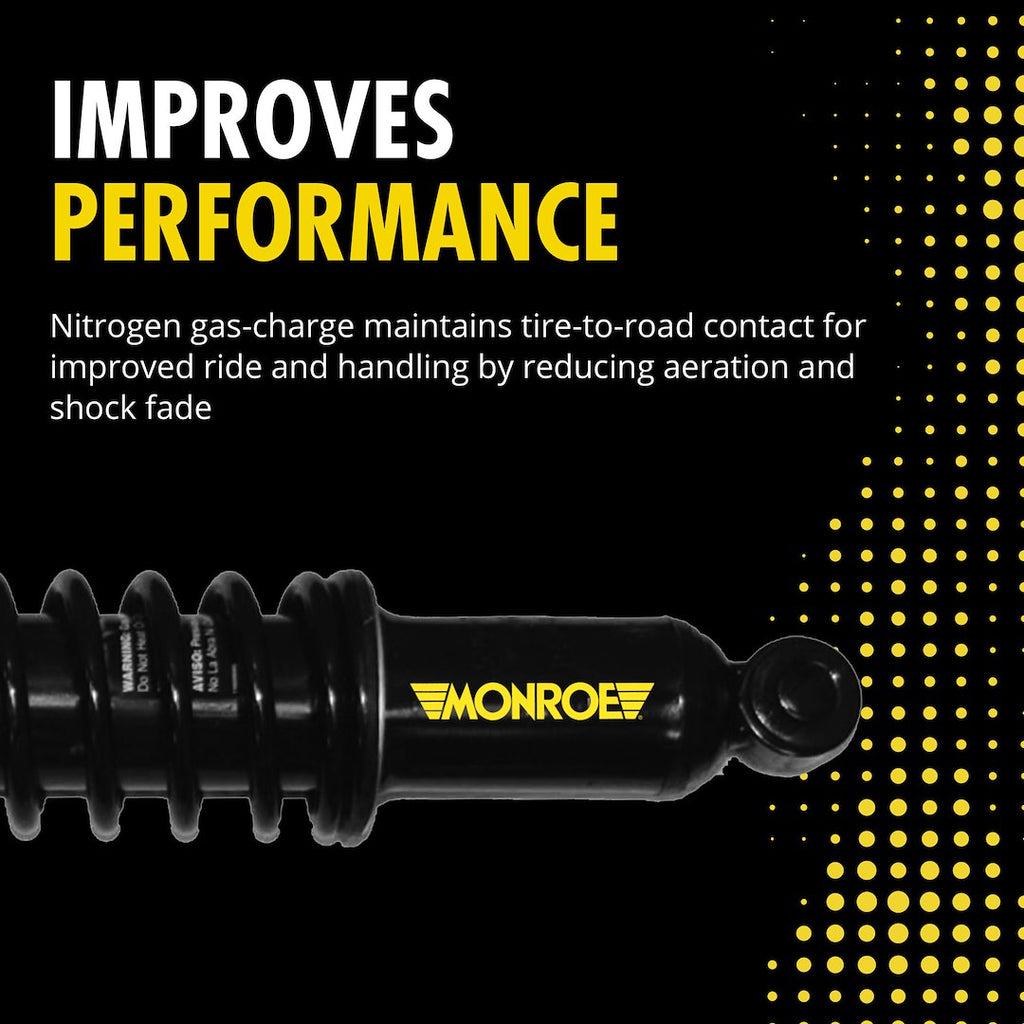

• Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
• Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 58263
• Type: Nitrogen Gas Charged
• With Coil Spring: Yes
• Extended Length (IN): 13-3/4 Inch
• Compressed Length (IN): 9-1/8 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: Yes
• Quantity: Set Of 2
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 1971-1989 Buick Electra
• 1971-1983 Buick Estate Wagon
• 1971-1990 Buick LeSabre
• 1971-1978 Buick Riviera
• 1991-1996 Buick Roadmaster
• 1987-1992 Cadillac Brougham
• 1977-1984 Cadillac Commercial Chassis
• 1992-1996 Cadillac Commercial Chassis
• 1977-1984 Cadillac DeVille
• 1977-1986 Cadillac Fleetwood
• 1993-1996 Cadillac Fleetwood
• 1965-1975 Chevrolet Bel Air
• 1965-1972 Chevrolet Biscayne
• 1970-1981 Chevrolet Camaro
• 1966-1996 Chevrolet Caprice
• 1965-1985 Chevrolet Impala
• 1987-1991 Ford Country Squire
• 1965-1972 Ford Custom
• 1965-1977 Ford Custom 500
• 1965-1967 Ford Galaxie
• 1965-1974 Ford Galaxie 500
• 1972-1976 Ford Gran Torino
• 1967-1986 Ford LTD
• 1987-1991 Ford LTD Crown Victoria
• 1977-1979 Ford LTD II
• 1972-1979 Ford Ranchero
• 1967-1979 Ford Thunderbird
• 1972-1976 Ford Torino
• 1970-1980 Lincoln Continental
• 1968-1971 Lincoln Mark III
• 1972-1976 Lincoln Mark IV
• 1977-1979 Lincoln Mark V
• 1980-1983 Lincoln Mark VI
• 1981-1991 Lincoln Town Car
• 1965-1974 Mercury Colony Park
• 1987-1991 Mercury Colony Park
• 1974-1979 Mercury Cougar
• 1965-1967 Mercury Cyclone
• 1975-1991 Mercury Grand Marquis
• 1965-1966 Mercury Marauder
• 1969-1970 Mercury Marauder
• 1967-1982 Mercury Marquis
• 1972-1976 Mercury Montego
• 1965-1974 Mercury Monterey
• 1966-1968 Mercury Park Lane
• 1971-1984 Oldsmobile 98
• 1971-1992 Oldsmobile Custom Cruiser
• 1971-1985 Oldsmobile Delta 88
• 1971-1981 Pontiac Bonneville
• 1971-1981 Pontiac Catalina
• 1970-1981 Pontiac Firebird
• 1971-1978 Pontiac Grand Safari
• 1971-1975 Pontiac Grandville
• 1983-1986 Pontiac Parisienne
• 1987-1989 Pontiac Safari

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
